Product Description

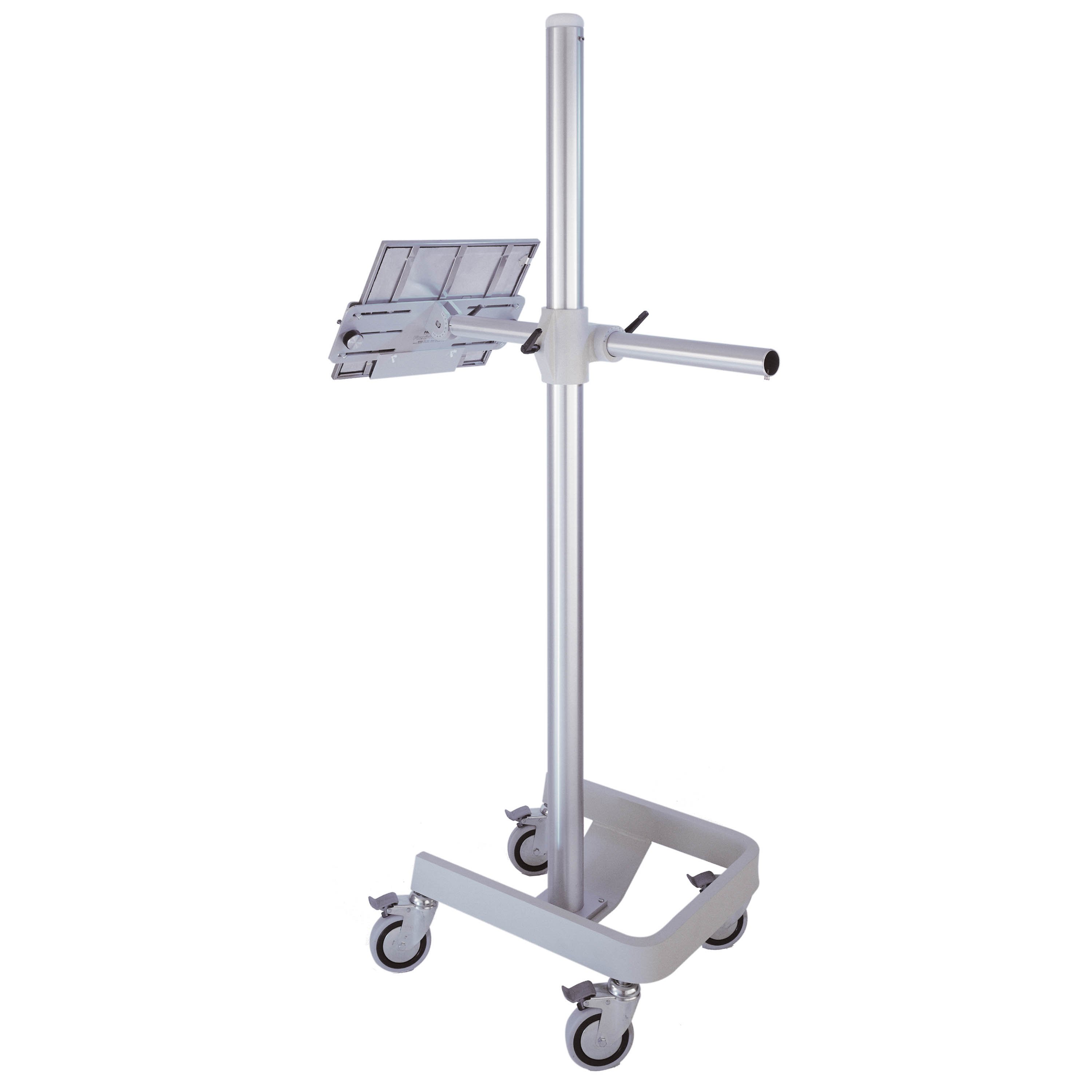

Flexi•holder® FH-303 series significantly reduces retakes caused by improper cassette positioning. It permits smoother scheduling and superior radiographs–saving film, time and labor for cost effective radiographic procedures.

Flexible Arm Movement

  • Radiographs can be taken from any angle from floor level to 71" (180 cm)
  • Tilts cassette 180° facing straight up, straight down or anywhere in between
  • Rotates cassette 360° clockwise or counterclockwise
  • Arm rotates 360° on vertical column
  • Arm assembly is counterweighted for easy raising or lowering
  • Two models to choose from:
    • Standard Arm telescopes 26" (66 cm) over the X-ray or operating room table
    • Extension Arm telescopes 36" (91 cm) over the X-ray or operating room table

Very Stable, Compact Design

  • Rolls into position on large, locking casters for stable positioning
  • Dimensions: 19" x 22" x 75" (48 x 56 x 191 cm)
  • Product Weight: 110 lbs. (50 kg)

Convenient Ratchet Handles - Ratchet handles can be repositioned easily to help eliminate interference problems when positioning cassettes

Accepts All Cassettes

  • Accepts virtually all cassettes and does not obscure cassette film area
  • Please note, Cassette or Grid Cassette Combo can not exceed 3/4" in thickness to be used with this holder

One Hand Operation - A lip on the cassette holder enables the cassette to be inserted with one hand, if necessary

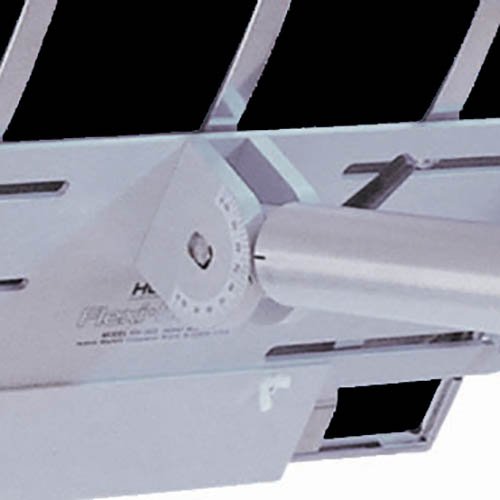

Accurate Calibration Scales - Column and arm calibration scales provide exact, repeatable angulation

Diagnostic Applications

  • Three-way studies of acute abdomens
  • Myelograms
  • Fractures where patient is immobilized
  • Lateral decubitus fluid level studies of abdomen and chest
  • Operating room radiography

Therapeutic Applications

  • Radiation therapy verification films (portal films)
  • Localization for tangential breast, isocentric or oblique fields
  • Simulation without fluoroscopy
  • Implant source localization by orthogonal films

Specifications

Specifications
Manufacturer Heustis
Country of Manufacture United States
Item Ships From Rhode Island

Returns

Requests for return must be made within 30 days of item receipt. The item must be unused and in all original packaging. To prevent damage in return transit, ideally the unit will not have been assembled prior to return. A minimum 25% re-stock fee is assessed on all returns and all shipping fees remain payable by the buyer.

Reviews

Ask a Question (2)

Customer Questions
Will the cassette holder also hold a grid at the same time?

This item will hold a Cassette or Grid Cassette Combo but it cannot exceed 1" in thickness .

What is the maximum weight capacity that this positioner can hold?

The maximum cassette weight would be 30 lbs and it cannot be more than 1" thick.
