Product Description

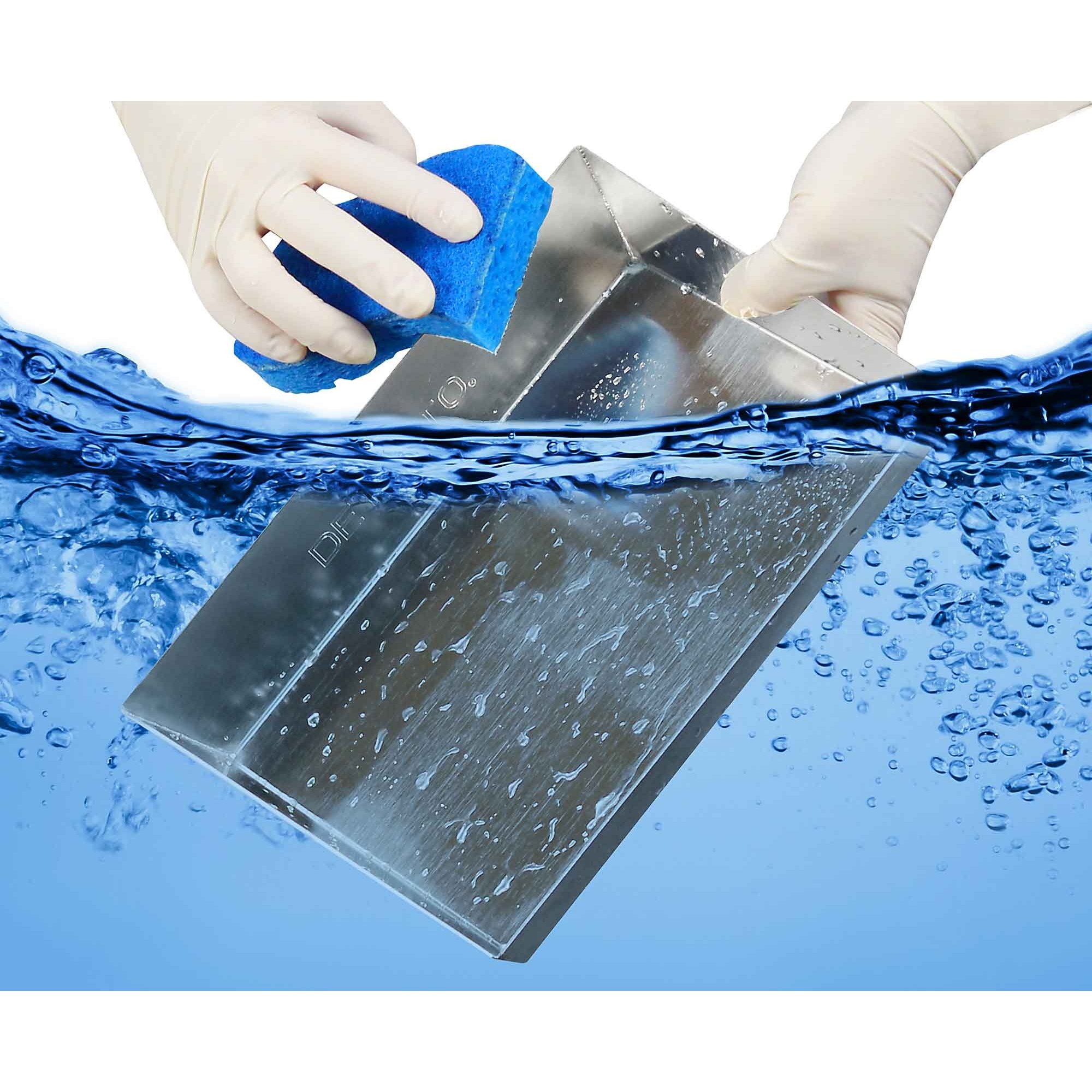

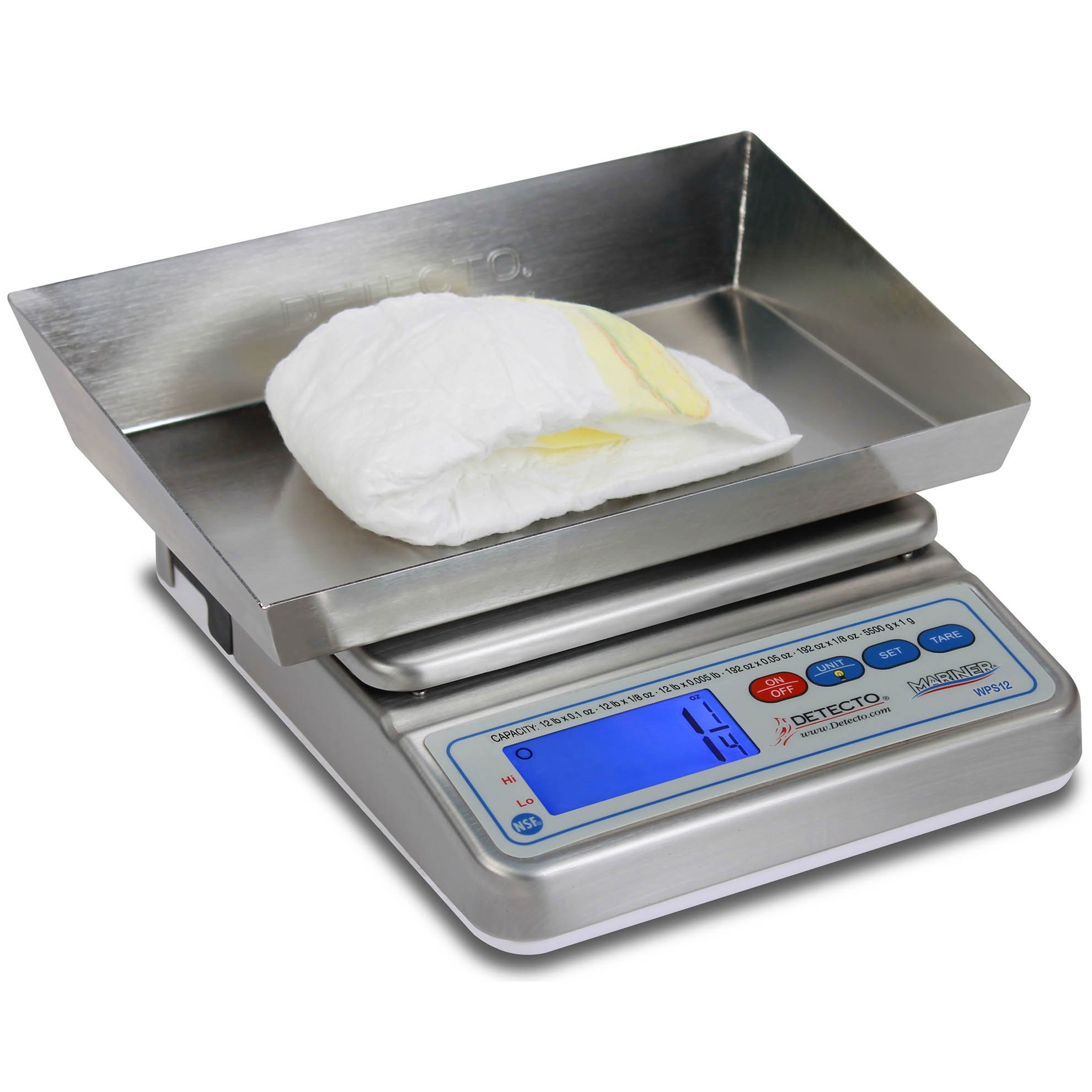

DETECTO's stainless steel model WPS12DT Mariner® Wet Diaper Scale can be completely submerged underwater for easy wash-down cleaning that is necessary in any hygienic medical environment.

  • The scale features six different capacities, including 192 oz x 0.05 oz and 5,500 g x 1 g
  • The convenient 80-hour rechargeable battery pack with automatic shut-off feature conserves energy and allows the scale to be moved where it is needed the most

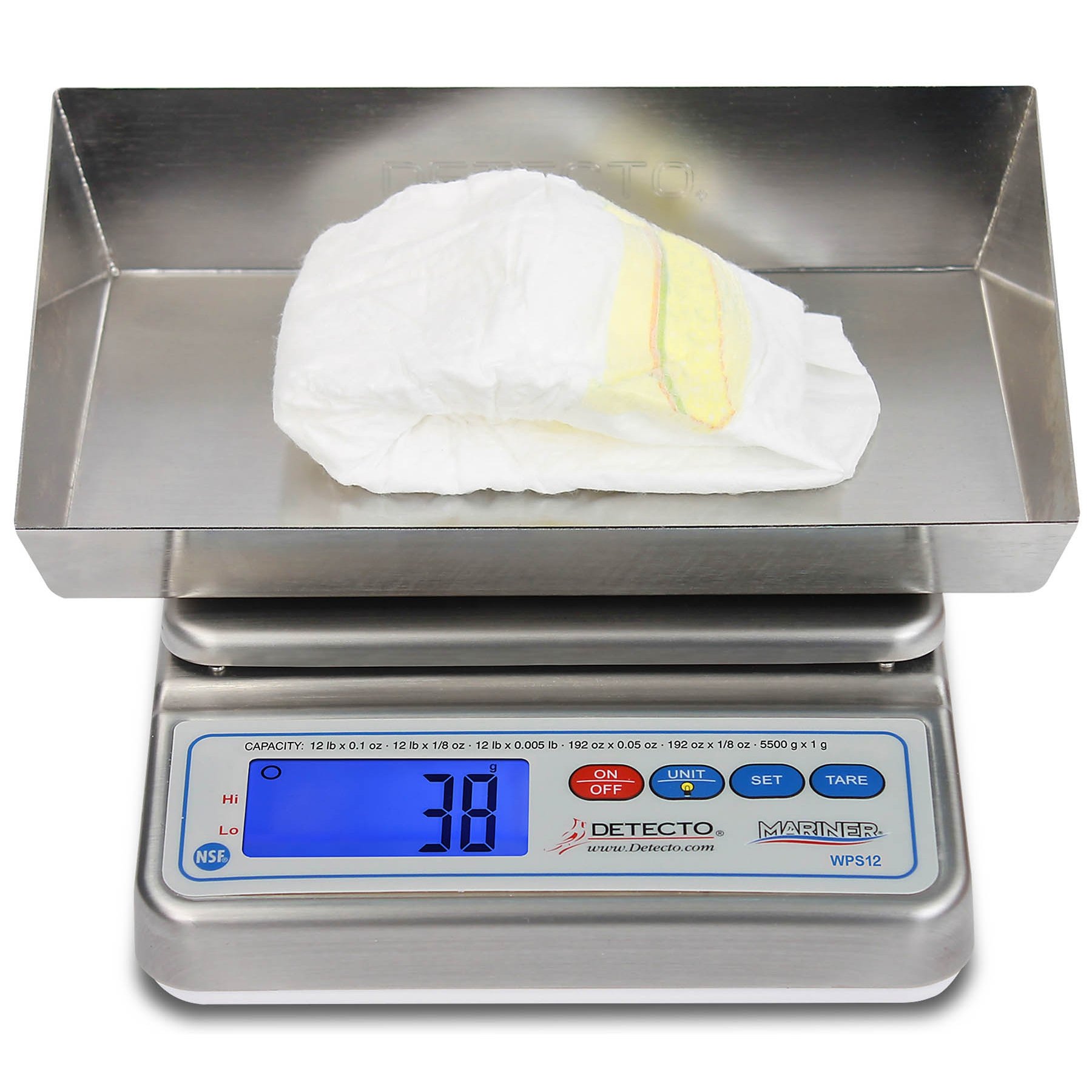

  • The Tare button removes the dry diaper weight and measures fluid output of the soiled diaper
  • The 5/8" deep stainless steel removable tray aids sample retention and allows easy clean up
  • The wet diaper scale's 1.2" high backlit LCD is easily readable in dimly-lit nurseries
  • The WPS12DT's raised buttons allow for tactile functionality and easy operation



  WPS12DT
Capacity
12 lb x 0.1 oz / 12 lb x 0.005 lb / 12 lb x 1/8 oz / 192 oz x 0.05 oz / 192 oz x 1/8 oz / 5,500 g x 1 g
Scale Dimensions
7.5 in W x 9.8 in D x 2.3 in H / 190.5 mm W x 247.5 mm D x 57.0 mm H
Tray Dimensions 9.0 in W x 6.0 in D x 1.1 in H / 228.6 mm W x 152.4 mm D x 27.9 mm H
Display 1.2-in / 30-mm high backlit blue LCD
Digits (5) 1-in / 25-mm high black LCD digits
Feet
6 rubberized feet for traction
Product Weight 4.9 lb / 2.2 kg
Shipping Weight 7.1 lb / 3.2 kg
Power

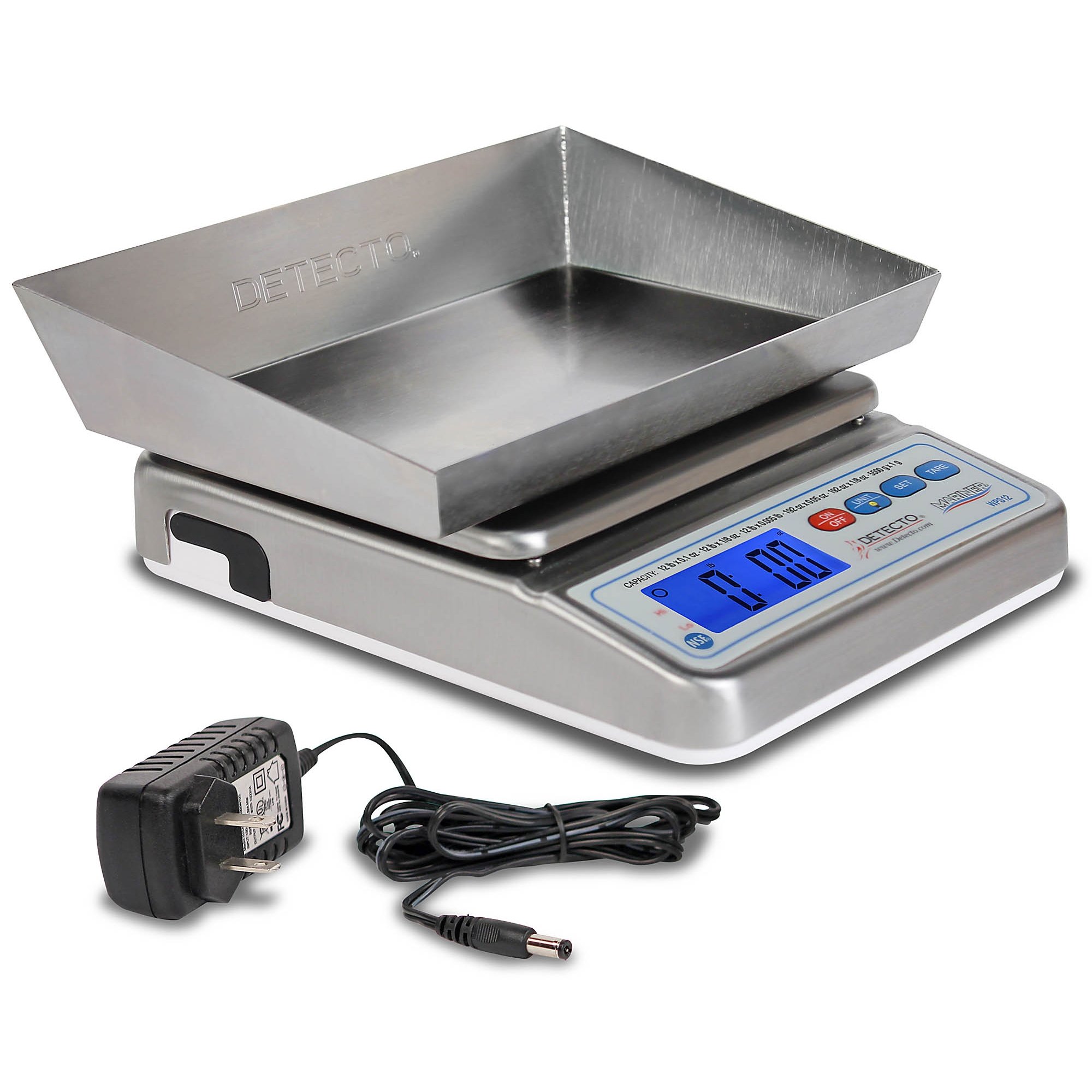

AC Adapter (included): 120 VAC input 9V, 100mA output

Battery (included): Ni-MH rechargeable 4.8 VDC 1800 mA

Tare 100% of full scale capacity
Keypad Buttons ON/OFF, UNITS/Backlight, SET, TARE
Enclosure Rating IP67 submersible
Operating Temperature 40° to 105°F (5° to 40°C)
Storage Temperature

40° to 105°F (5° to 40°C)

Please Note: The Mariner® is not commercial dishwasher safe

Battery Life 80 hours of continuous use with a fully recharged battery pack
Certification NSF Approved
Zero Established on power up routine and maintained by auto-zero circuitry

Specifications

Specifications
Manufacturer Detecto Scales
Weight Capacity 12 lbs
Country of Manufacture China
Item Ships From Missouri

Literature 3

pdf
(Size: 578 KB)
pdf
(Size: 606.2 KB)
pdf
(Size: 154.7 KB)

Instructions

Warranty:

Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows:

  • Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of two (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
  • During the first ninety (90) days Detecto may choose to replace the product at no charge to the buyer upon inspection of the returned item.
  • After the first ninety (90) days, upon inspection of the returned item, Detecto will repair or replace it with a remanufactured product. The customer is responsible for paying for the freight both ways.

Returns

A valid return authorization number must be obtained within 30 days of item receipt. Returned merchandise must be in new, undamaged condition and all return shipments must be prepaid. A minimum 25% restocking fee will be deducted.
