Product Description

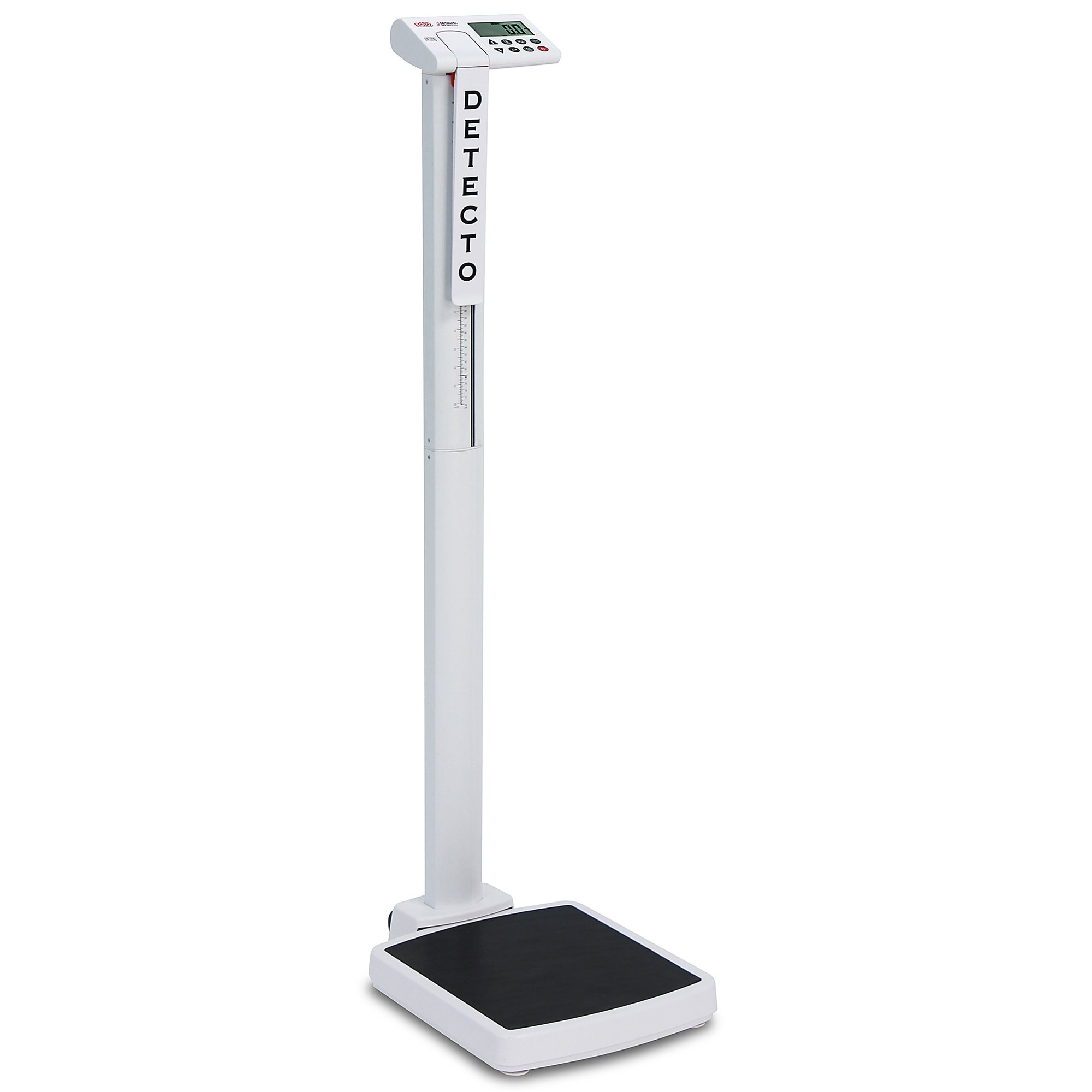

DETECTO's solo® eye-level clinical scale is the most economical, high-quality digital physician scale with height rod available.

  • The oversized 14" x 15" platform with rubber mat is only 2.4" high making it easy for patients to step on and off

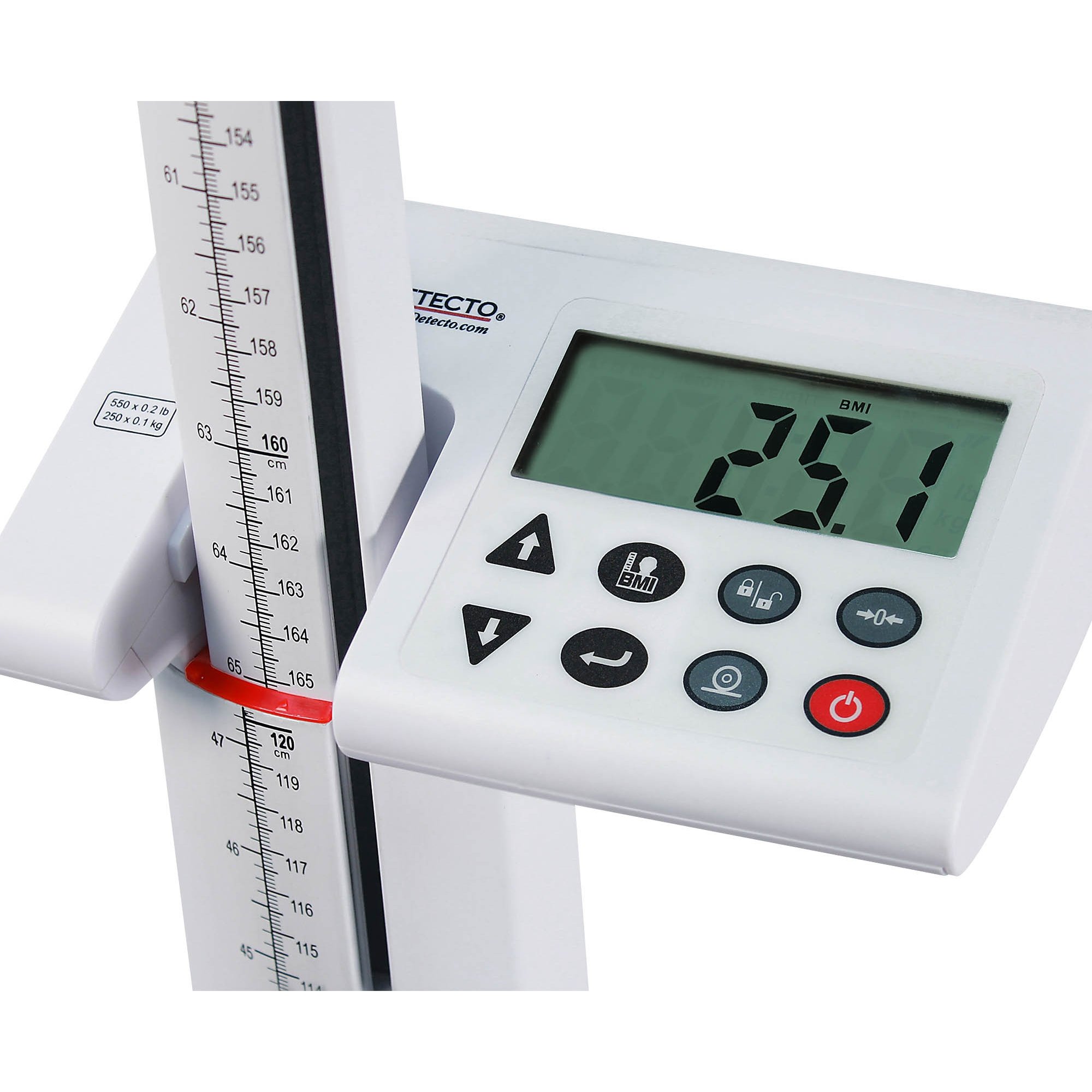

  • Inline mechanical height rod (measures 30" to 84.5" / 76 cm to 214.5 cm) is situated to the side of the LCD, so it never interferes with viewing measurements
  • Eye-level weight display and column
  • One-inch-high LCD readouts
  • Body Mass Index calculation - Simply step on the scale to weigh and the scroll arrows let you rapidly enter your height to factor BMI
  • The scale's RS-232 serial port allows you to output measurement data to EMR/EHR software
  • Convenient audible beep confirmation
  • 8 simple buttons that are easily identifiable in any language
  • Two integral wheels allow for ease of movement whenever you need to transport the solo®

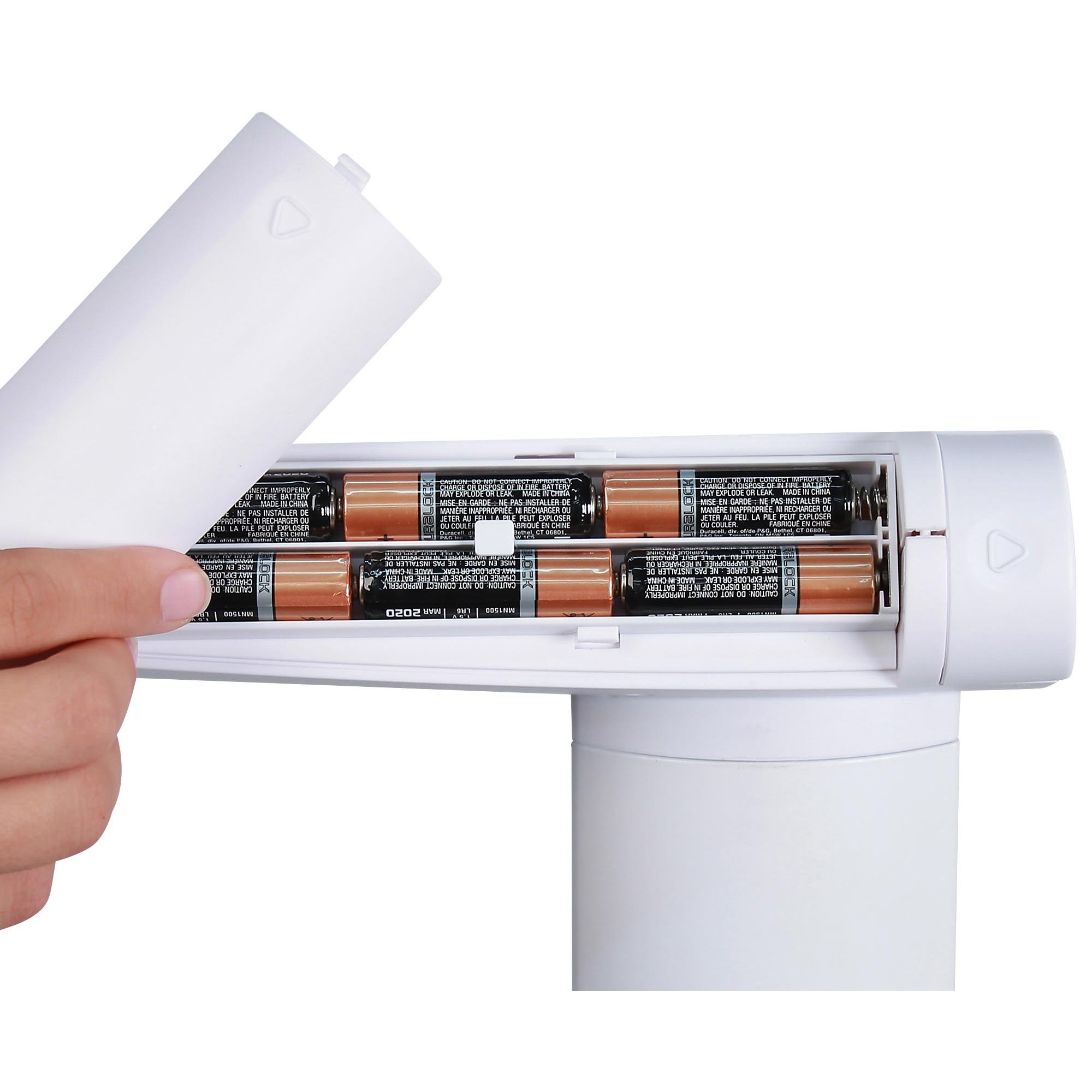

  • Powered by 6 AA batteries (included), or an optional AC adapter
  • The AC port is located in the base, so no pesky wires dangle from up on the indicator (AC Adapter optional: model PD-AC)
    • initialization



  SOLO
Capacity
 550 lb x 0.2 lb / 250 kg x 0.1 kg
Platform Size
 14" W x 15" D x 2.4" H / 36 cm W x 38 cm D x 6 cm H
Weight Units
 Pounds or Kilograms (selectable upon initialization at start-up; changeable through Settings menu)
Power Requirements
 Six (6) AA size Alkaline batteries (included) OR an optional medical device 9V AC/DC wall plug-in adapter (sku PD-AC)
Display
 Five-digit, seven-segment, 1" (25mm) high LCD digits
Operation Temperature
50 to 104°F / +10 to +40°C
Function Keys ON/OFF, PRINT, ENTER, UP ARROW, DOWN ARROW, BMI HEIGHT, LOCK/RELEASE, ZERO
Annunciators
 ZERO, LOCK, STA, HOLD, LB, KG, CM, FT/IN, HEIGHT, WEIGHT, BMI, AM, PM
Scale Dimensions 14.3" W x 19.5" D x 52" H / 36.3 cm W x 49.5 cm D x 132.1 cm H
Interface RS-232 Serial Port, 9-Pin (DB-9), Baud Rate 9600
Height Rod Mechanical included standard, inline
Height Rod Units Inches or Centimeters
Height Rod Range 30" to 84.5" / 76 cm to 214.5 cm
Manual Input Height 2 ft 0.0 in - 7 ft 10.5 in by 0.5 in / 60.0 cm - 240.0 cm by 1cm
Minimum Weighing 11 lb / 5 kg
Wheel (2) wheels for ease of movement
Selectable Auto Shut-Off Up to 9 Minutes
Construction

Column and height rod: aluminum alloy white powder coated

Indicator enclosure, height rod arm, platform and base: white ABS

Mat: black PVC
Product Weight 17.7 lb / 7.7 kg
Shipping Weight 25 lb / 11.3 kg
Package Dimensions 30" W x 20" D x 11" H / 76 cm W x 51 cm D x 28 cm H

Specifications

Specifications
Manufacturer Detecto Scales
Latex Free Yes
Actual Product Weight 17.7 lbs
Weight Capacity 550 lbs
Country of Manufacture China
Item Ships From Missouri

Literature

pdf
Owner's Manual
(Size: 2 MB)
pdf
Product Info
(Size: 1.1 MB)

Instructions

Warranty:

Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows:

  • Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of two (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
  • During the first ninety (90) days Detecto may choose to replace the product at no charge to the buyer upon inspection of the returned item.
  • After the first ninety (90) days, upon inspection of the returned item, Detecto will repair or replace it with a remanufactured product. The customer is responsible for paying for the freight both ways.

Returns

A valid return authorization number must be obtained within 30 days of item receipt. Returned merchandise must be in new, undamaged condition and all return shipments must be prepaid. A minimum 25% restocking fee will be deducted.

Reviews

Write a Review

Ask a Question (1)

Customer Questions
Is this scale suitable for an outpatient clinic? Can it be calibrated to ensure accurate readings?
The Solo is not heavy, and it comes calibrated. It is not intended to be moved from location to location, but would be the easiest physical scale to transport.
