Product Description

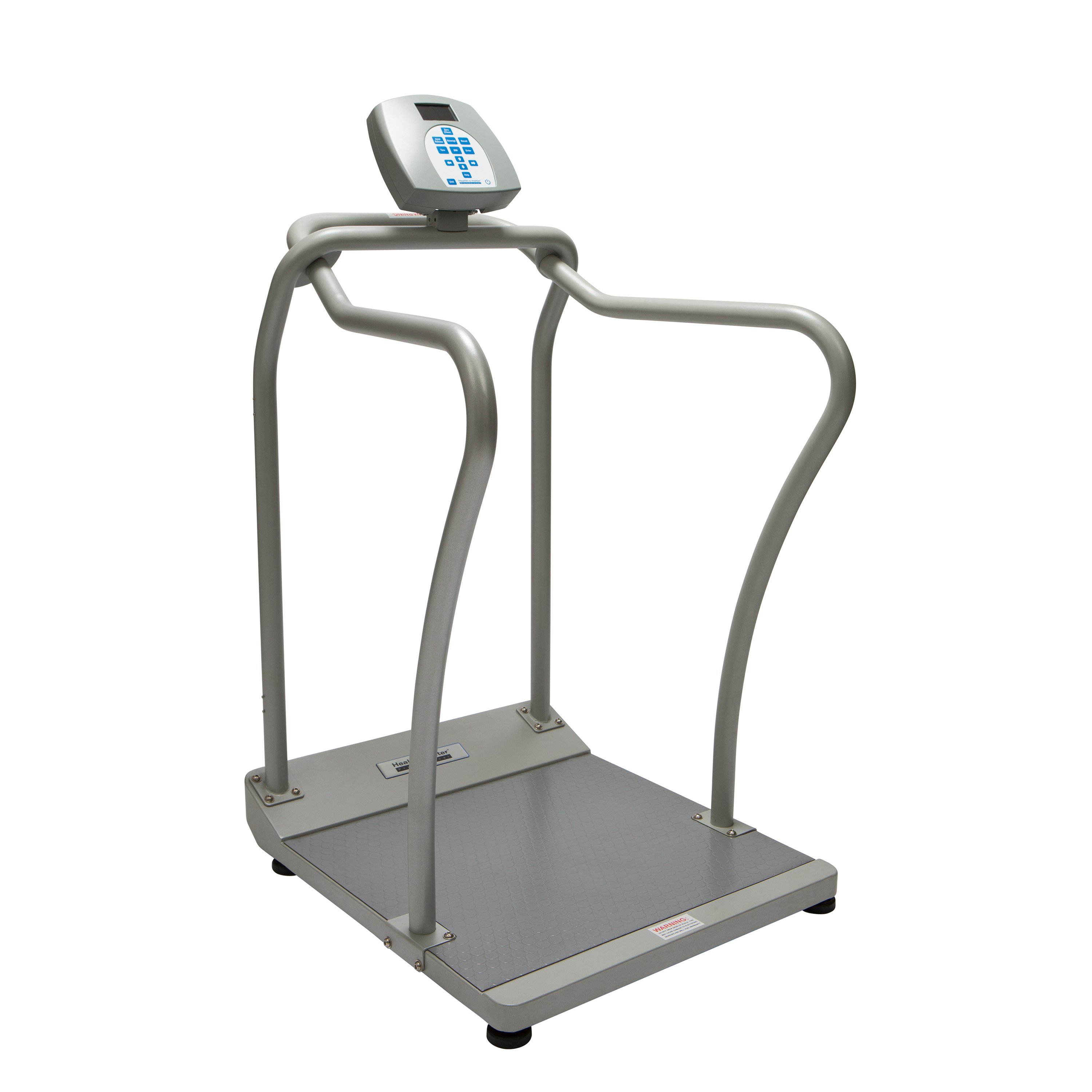

The 2101 Series Digital Platform Scales are comprehensive bariatric scale that supports up to 1000 pounds and provides the optimum quality, reliability, and ease of use. Designed to meet the needs of doctor’s offices, hospitals, clinics, and acute and long-term care facilities, the scale’s keypad features antimicrobial protection, a display head that swivels 180°, a large non-skid low-profile platform, and wheels that enable portability.

Features:

  • EMR Connectivity - The scale can interface with a computer, EMR software, or other electronic devices via various Health o meter® Professional Connectivity Solutions
  • "Live" Handrails - Advanced technology allows the patient to hold onto handrails for stability while the scale accurately calculates a weight.
  • Antimicrobial Keypad - The keypad features antimicrobial protection
  • Easy Portability - Includes 2 wheels for ease of movement
  • Easy integration and seamless communication with today's EMR applications
  • The exclusive Everlock® function allows the measuring unit (LB or KG) to be permanently locked on the scale.

Functions:

  • LB/KG conversion
  • LB/KG lockout
  • BMI
  • Zero
  • Tare
  • Pre-tare
  • Hold/release
  • Reweigh
  • Recall
  • Auto zero
  • Auto-off
  • Time/date
  • Variable auto off-time
  • Audible/mute sound option
  • Parent/child weighing function
  • Everlock®

Technical Specifications:

  • Weight Capacity: 1000 lbs / 454 kg
  • EMR Connectivity: Via USB, optional Pelstar® wireless technology
  • Resolution: 0.2 lbs / 0.1 kg
  • Display: 1 1/2" High-Contrast Color TFT-LCD Screen
  • Power Source: 100-240V Adapter (ADPT30) included or 6 D batteries (Not included)
  • Platform Size: 26" W x 22" D x 2 3/8" H
  • Overall Product Dimension: 31" W x 27" D x 50" H
  • Actual Product Weight: 66 lbs

The Pelstar Wireless Technology allows facilities to wirelessly transmit measurements directly to a myriad of devices to increase workflow efficiency and reduce the risk of error from manual data entry. Once the data reaches the device, it can be conveniently displayed, reviewed, and smoothly transferred into EMR systems.

SKU Measurement System Pelstar Wireless Technology
2101KL Kilograms & Pounds Purchased Separately
2101KL-BT Kilograms & Pounds Built-in
2101KG Kilograms Only Purchased Separately
2101KG-BT Kilograms Only Built-in

About this Brand

Specifications

Specifications
Manufacturer Pelstar LLC
Actual Product Weight 66 lbs
Overall Height 50"
Overall Width 31”
Overall Length 27”
Weight Capacity 1000 lbs / 454 kg
Country of Manufacture China
Item Ships From Illinois

Literature

pdf
(Size: 263.5 KB)
pdf
(Size: 232.6 KB)
pdf
(Size: 1.3 MB)
pdf
(Size: 1.7 MB)

Instructions

Warranty: Health o meter® Professional scales are warranted from the date of purchase against defects of materials or in workmanship for a period of time (see product instruction manual for the warranty period). Your warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, abuse including tampering, damage in transit, or unauthorized repair or alternations. If the manufacturer determines that a defect of material or workmanship exists, a customer’s sole remedy will be the replacement of scale at no charge. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, a replacement may be made with a similar product of equal or greater value. All parts including replaced parts are covered only for the original warranty period.

Freight Shipping

Please Note: This item ships via motor freight carrier. Shipping fees often have to be re-quoted when purchasing this item. Our website estimates freight charges based on delivery to a location with a truck height dock. Examples of additional services include liftgate service, inside delivery, call ahead service, or limited access. If you would like to know the total delivery charges in advance of placing an order, we recommend requesting a quote for this item prior to placing your order. At quote or order submission, please make note of your receiving hours and specific delivery needs. Customer Service will reach out to you if additional details are needed. If you have questions about the motor freight delivery process please contact Customer Service.

Returns

Products must be returned in unused, unopened, resalable condition with the original packaging. To return this item you must contact Customer Service within 30 days of receipt to obtain a valid Return Authorization Number. Restocking fees may apply at the discretion of the manufacturer. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.

Custom made products are non returnable and non exchangeable.
