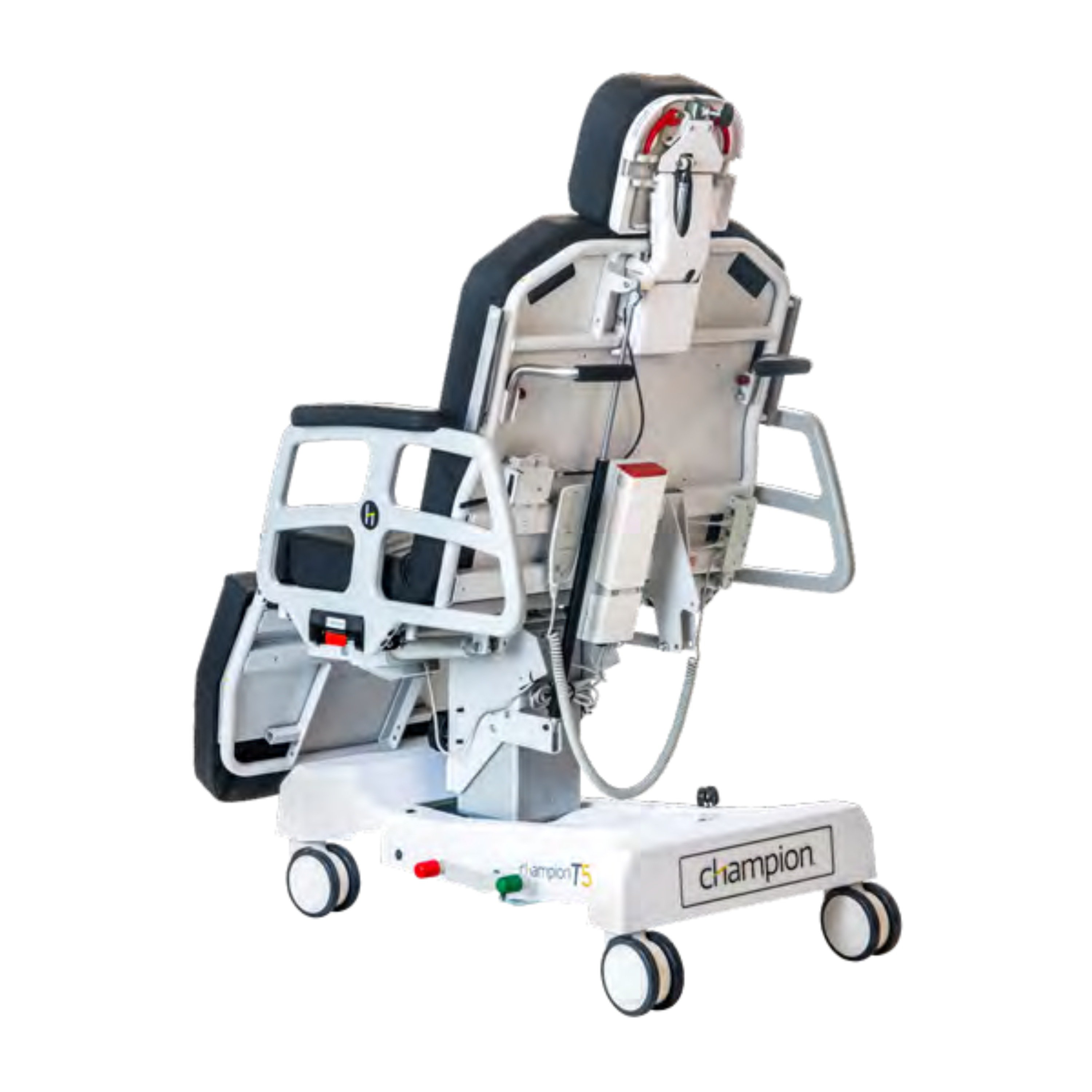

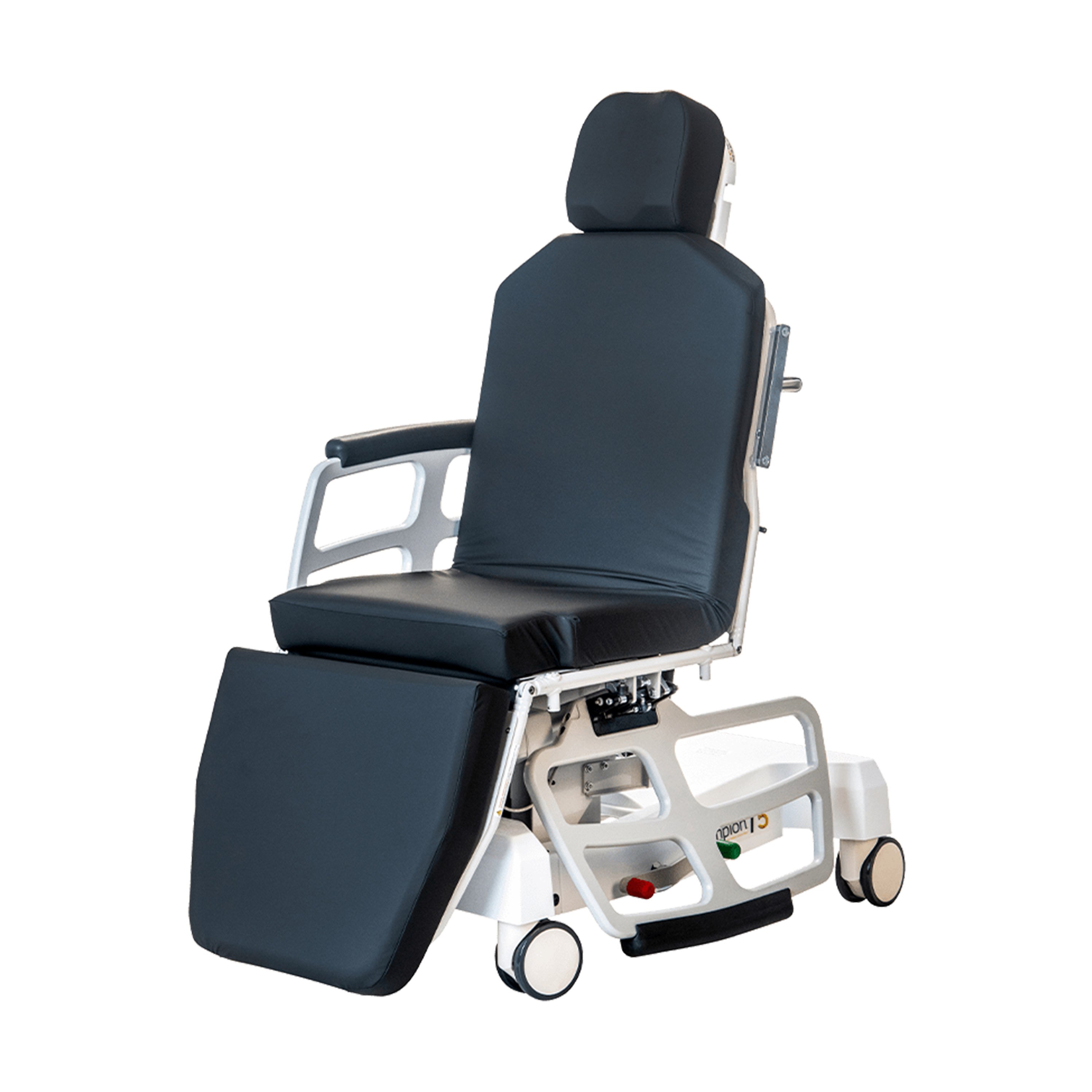

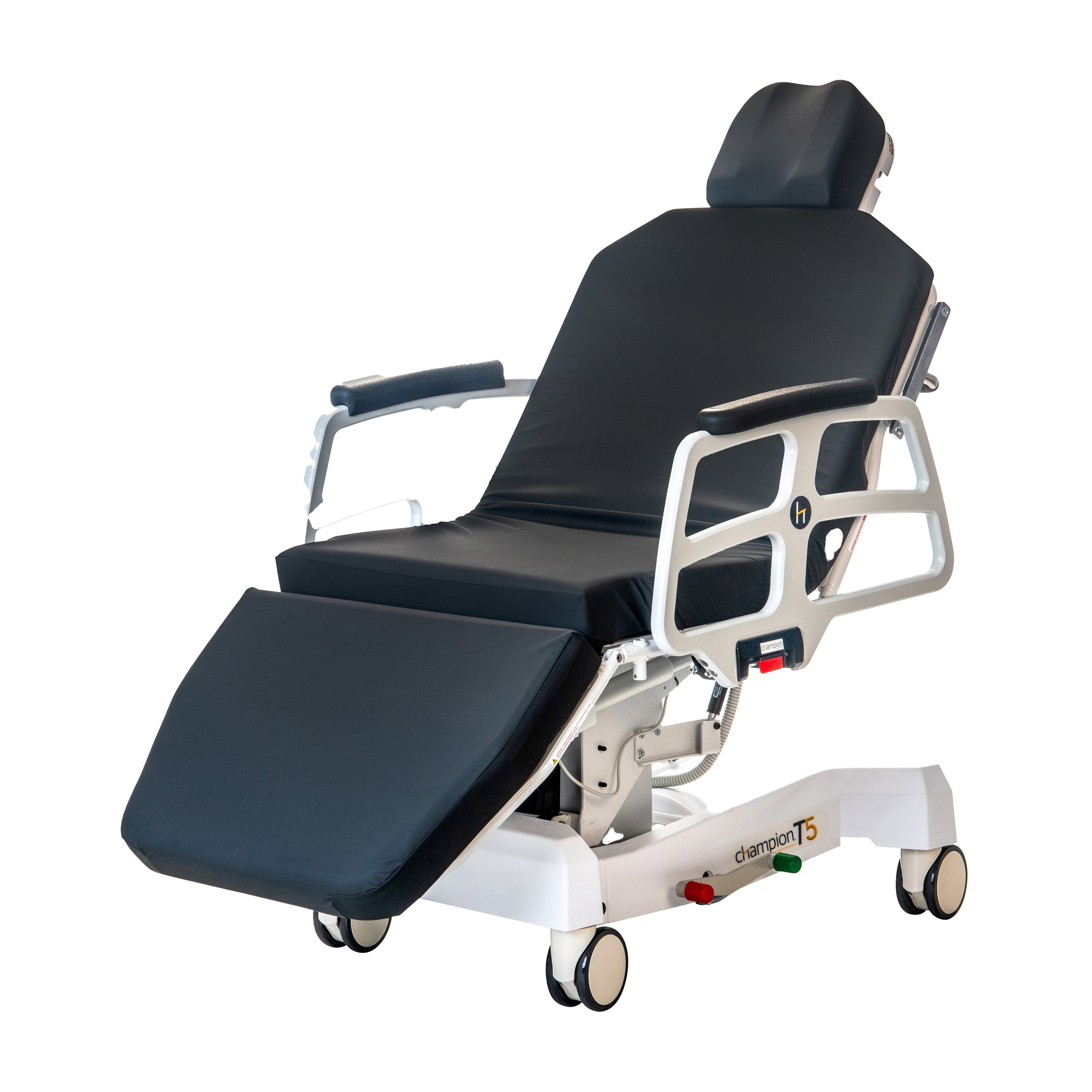

Champion Healthcare T5 Procedure Stretcher Chair with Seat Tilt and Auto Extending Footrest

The T5 Procedure Stretcher Chair with Seat Tilt and Auto Extending Footrest is designed to help medical facilities streamline treatment processes and surgical workflow by replacing multiple pieces of equipment with a single device.

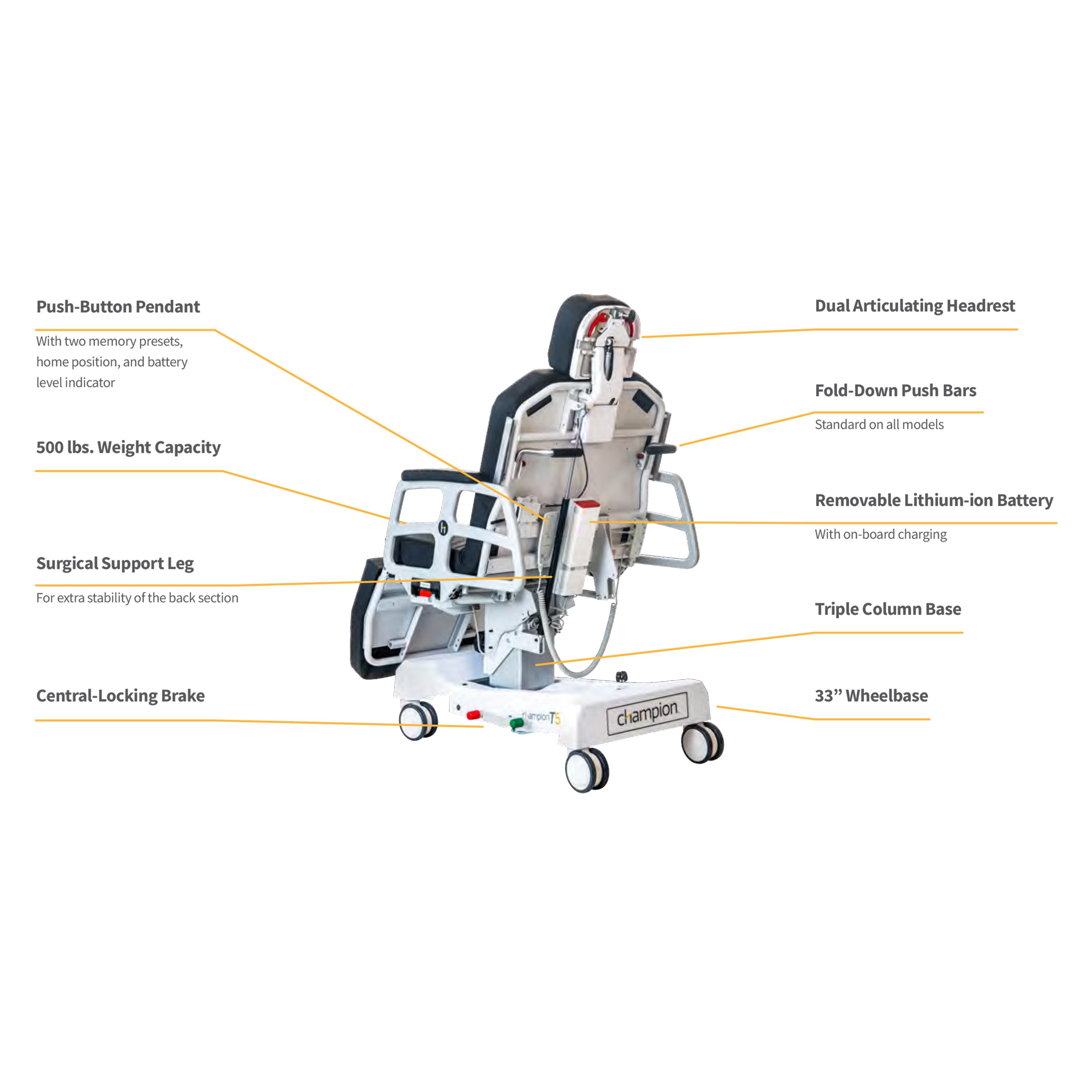

Features:

• A procedure chair with seat tilt and an auto extending footrest design that helps minimize risk and space requirements while enhancing productivity

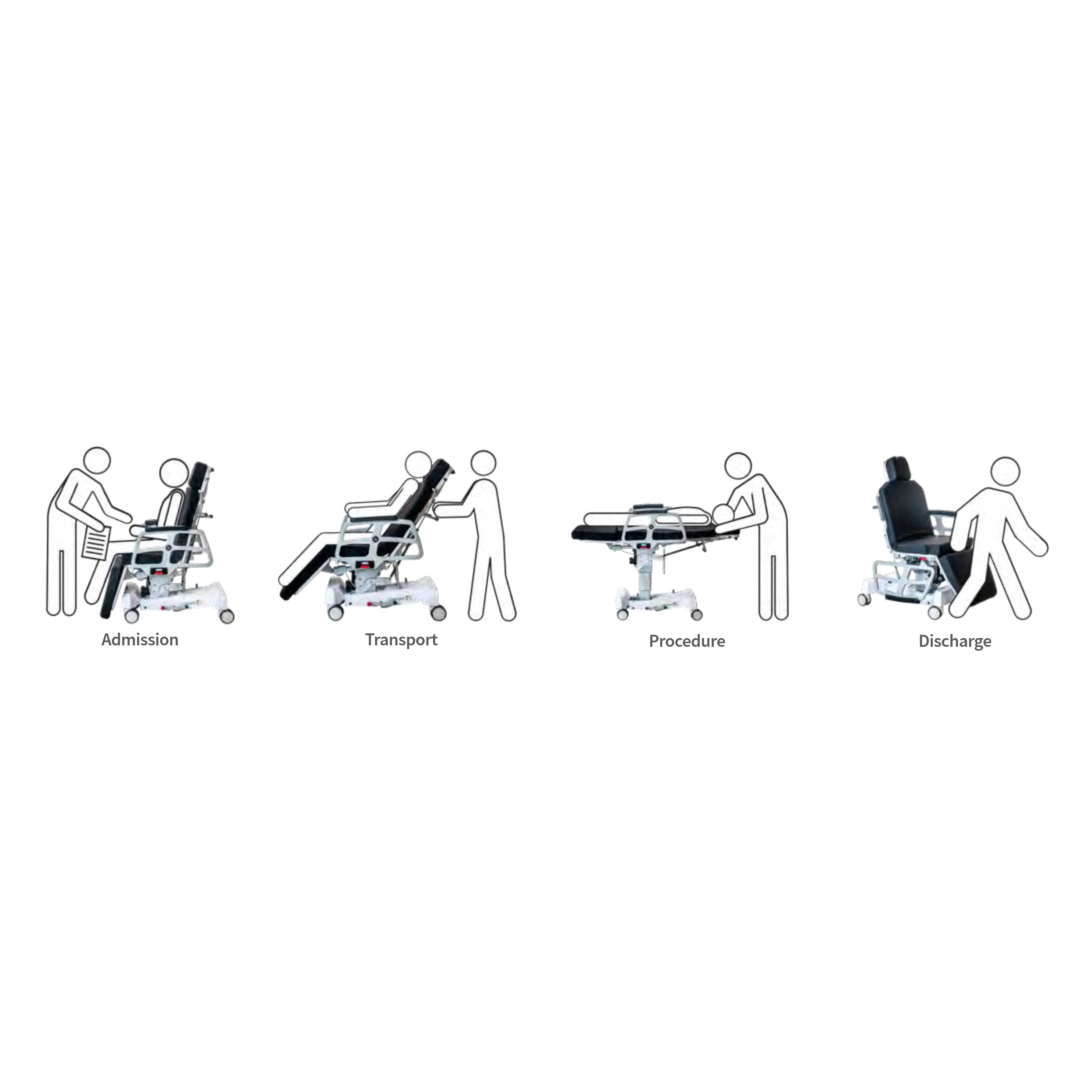

• A 'one patient, one surface' design creates a more spa-like environment, counteracting the clinical feel of traditional surgery centers and significantly improving patient comfort
• Powered positioning with memory presets minimizes the need for patient transfers, reducing the risk of injury to both patients and staff while enhancing overall patient throughput
• Seated position only requires half the space of a traditional stretcher and is easy to navigate through hallways, elevators, and other close quarters
• Small footprint frees up floor space, allowing additional units to be stored more efficiently
• A low-profile dual articulating headpiece provides precise positioning
• The headpiece can be raised or lowered as needed

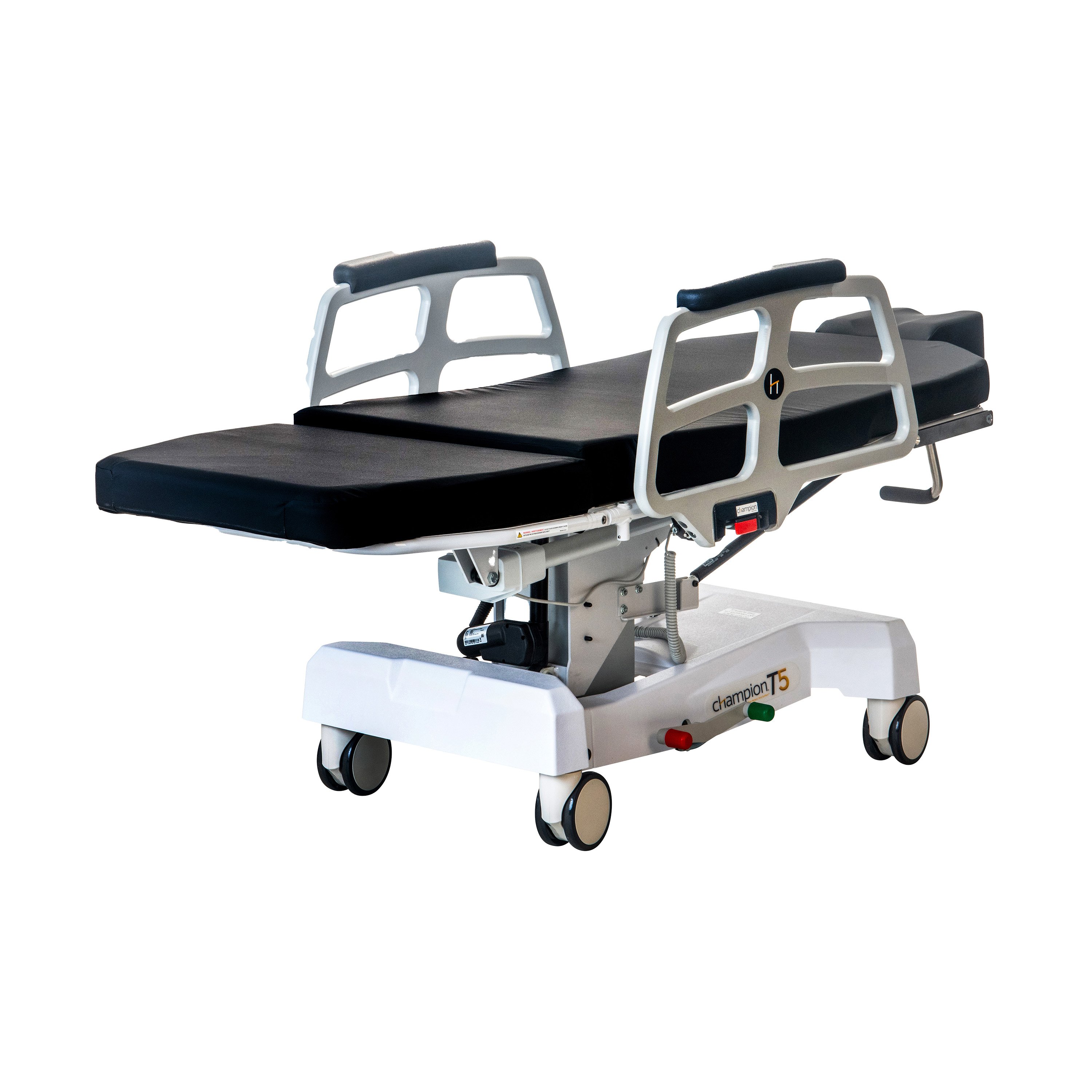

• Advanced tilt capability allows up to 15° Trendelenburg and 3° reverse Trendelenburg positioning
• Manual quick-release back
• Fold-down push bars
• Triple column base
• Central-locking brake
• Swing and tuck side rails
• Electrostatic discharge steering caster
• Surgical support leg providing extra stability to the back section

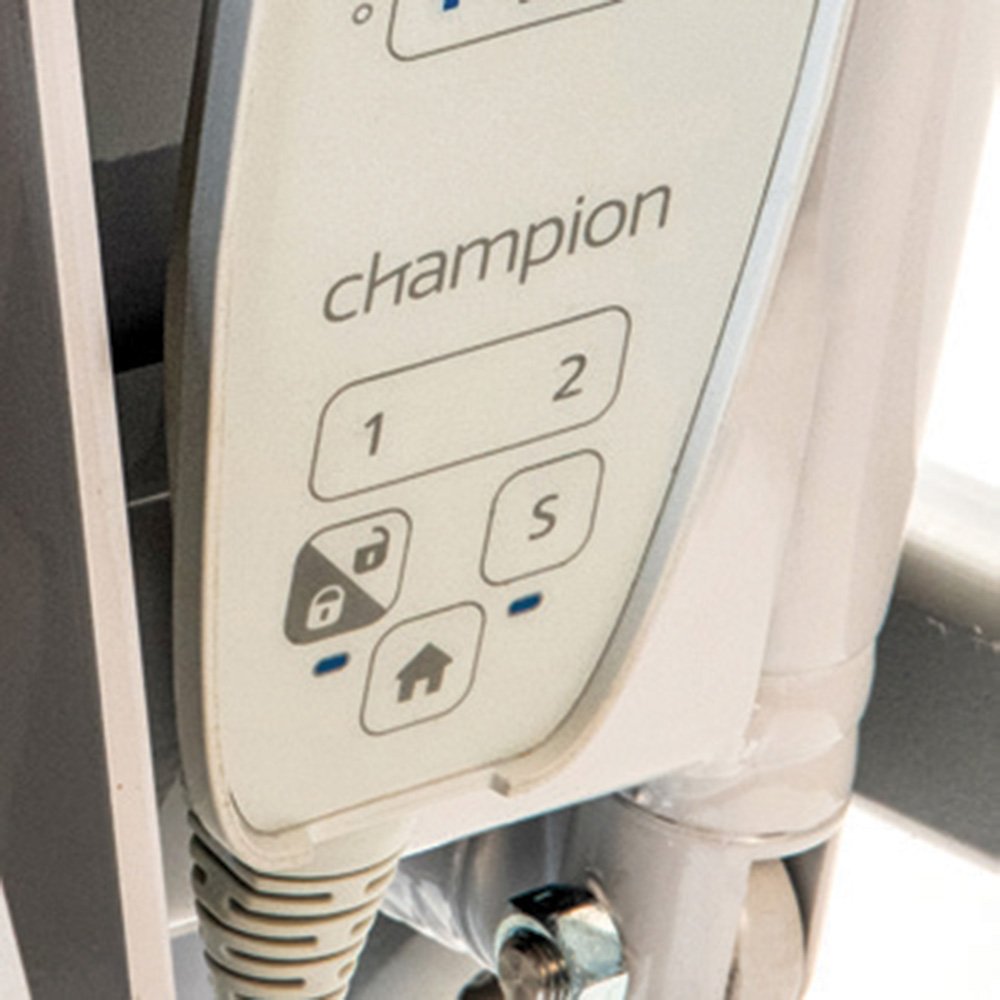

• Push-button pendant with two memory presets, home position, and battery level indicator

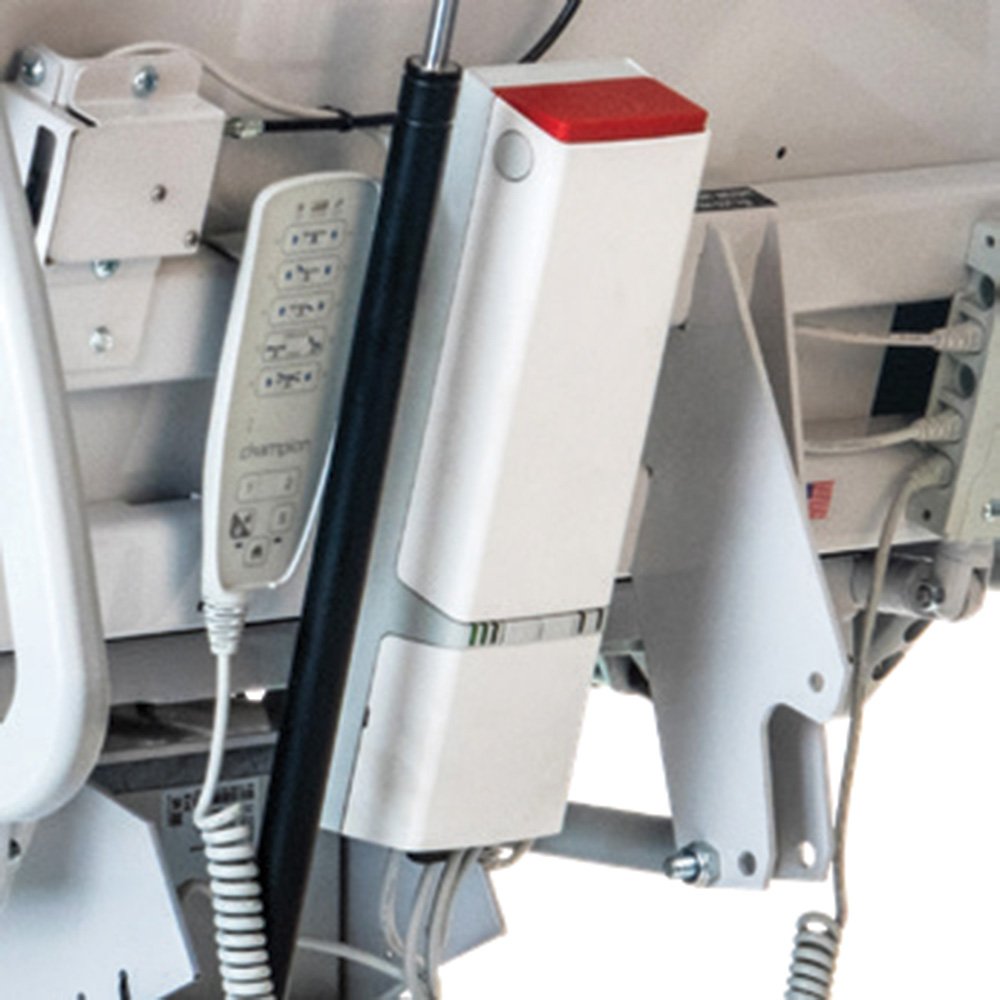

• The removable lithium-ion battery system eliminates the inconsistencies often seen in other battery-powered medical chairs, ensuring consistent performance
• Commonly applied in surgical, endoscopy, GI, and emergency

Technical Specifications:

• Trendelenburg (Up to - Reverse): 15° - 3°
• Backrest Articulation Range: 0° - 85°
• Headpiece Articulation Range (Fully Elevated - Fully Retracted): 30° - 60°
• Headpiece Adjustment Range (Lowered - Raised): 0.9" - 3.5"
• Wheelbase: 30" x 20"
• Patient Surface Length: 77"
• Seat Height: 23.75" - 43.5"
• Back Height: 33.75”
• Side Rail Height (Up, Seat Pan to Rail Top): 13.5"
• Side Rail Length: 27.6"
• Overall Chair Height: 56" - 76"
• Seat Width: 24"
• Overall Width (Rails Up - Rails Down): 30" - 28.5"
• Weight Capacity: 500 lbs

Please Note: The Image shown may include features, accessories, or fabrics that do not come standard on the base model.
