Champion Healthcare T3 Procedure Stretcher Chair

The T3 Procedure Stretcher Chair is the preferred chair used for modified barium swallow studies and video fluoroscopy. The compact design is ideal for saving space in alternative care site locations.

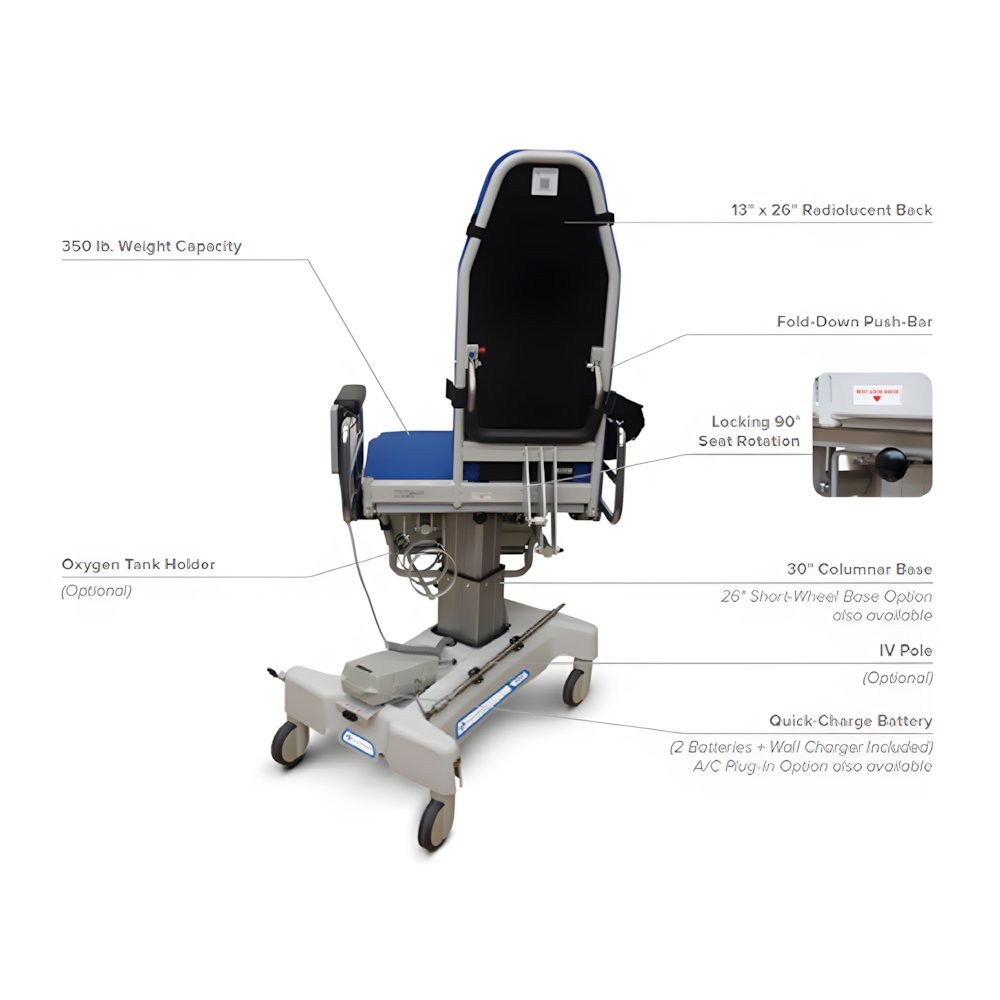

Features:

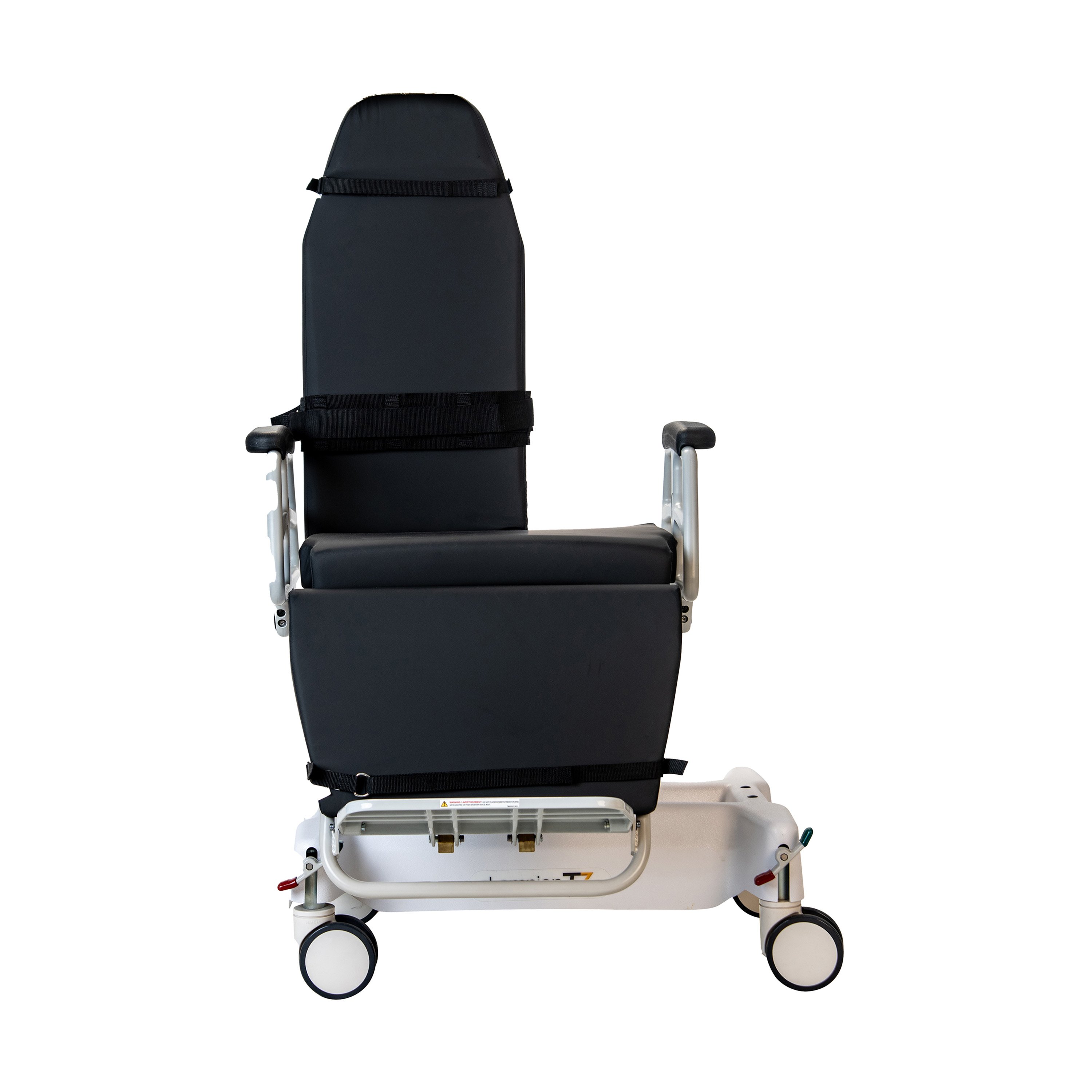

• 90º rotating and split back seat design allows patients to remain seated for both lateral and A/P imaging
• A 'one patient, one surface' design creates a more spa-like environment, counteracting the clinical feel of traditional surgery centers and significantly improving patient comfort
• Powered back, leg, and height adjustments provide effortless conversion from procedure chair to stretcher to transport device
• The T3's swing and tuck arm rails streamline RF imaging. Lowering arms before positioning creates vital space in tight radio frequency (RF) environments
• Uses half the space in the seated position of a standard stretcher, making it easy to maneuver through hallways, elevators, and tight spaces
• Fold-down push bar secure grip for maneuvering and folds down when not in use to save space and improve accessibility
• Small footprint frees up floor space, allowing more units to be stored efficiently in compact or high-traffic areas
• Split back removes easily, ensuring a safe and efficient fit into the imaging tower for seamless patient positioning
• Two-stage column base smooth height adjustment with enhanced lift performance for patient positioning and ease of access
• Fold-down push bar secure grip for maneuvering and folds down when not in use to save space and improve accessibility
• A compact wheelbase and powered height range of 25” to 33” provide superior surgeon/patient access during procedures
• The removable battery system eliminates the inconsistencies often seen in other battery-powered medical chairs, ensuring consistent performance

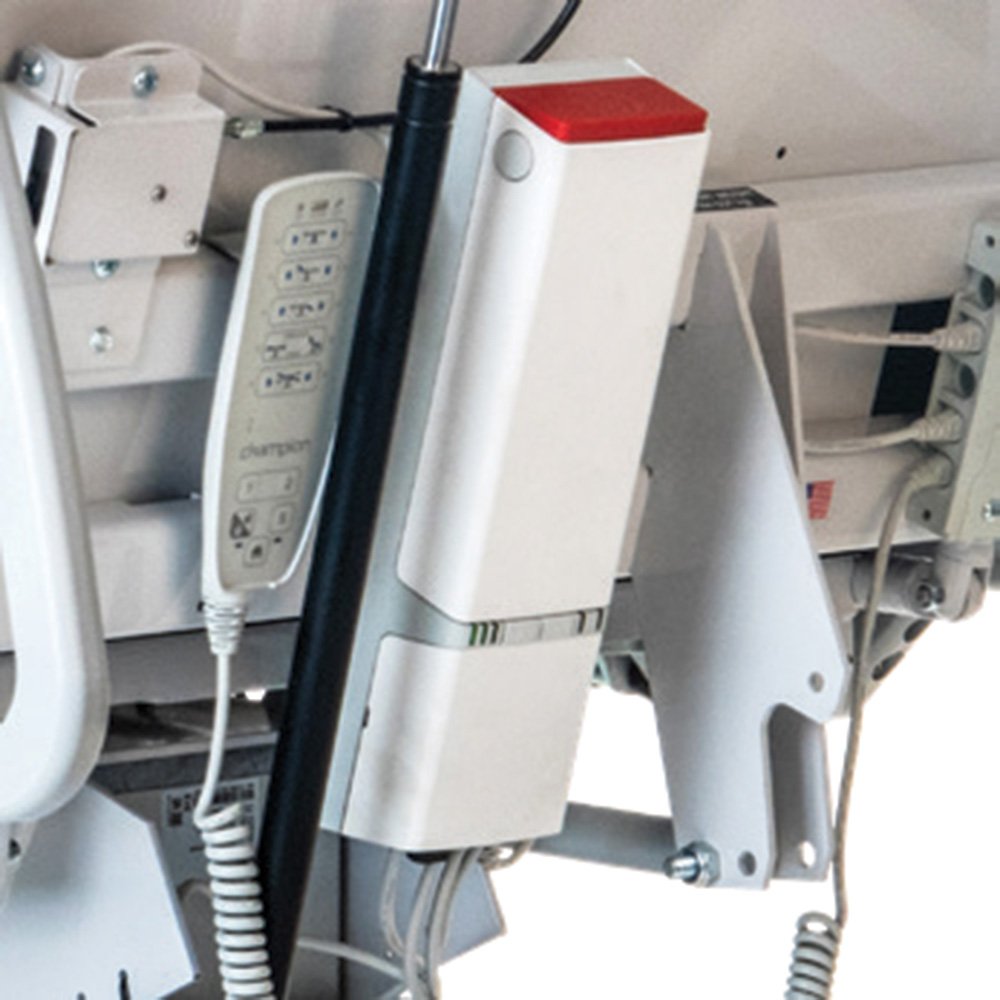

• Removable lithium-ion battery with onboard charging
• Radiolucent back
• Brake and steer caster system

Technical Specification:

• Backrest Articulation Range: 0° - 90°
• Charging System Input Volts: 120-240 VAC
• Charging System Current: 350 mA
• Charging System Frequency: 50/60 Hz
• Charging System Max Power: 38.5 W
• Seat Height: 25" - 33"
• Back Width:
  • Standard: 15"
  • With Optional Extension: 25"
• Side Rail Height (Up, Seat Pan to Rail Top): 15" - 25"
• Overall Chair Height: 15" - 25"
• Seat Width: 24"
• Overall Width: 28.5" (Rails Down) - 31" (Rails Up)
• Weight Capacity: 350 lbs

*The 77" length is with optional extension and is Sold Separately.

Please Note: Image shown may include features, accessories, or fabrics that do not come standard on base model
