Product Description

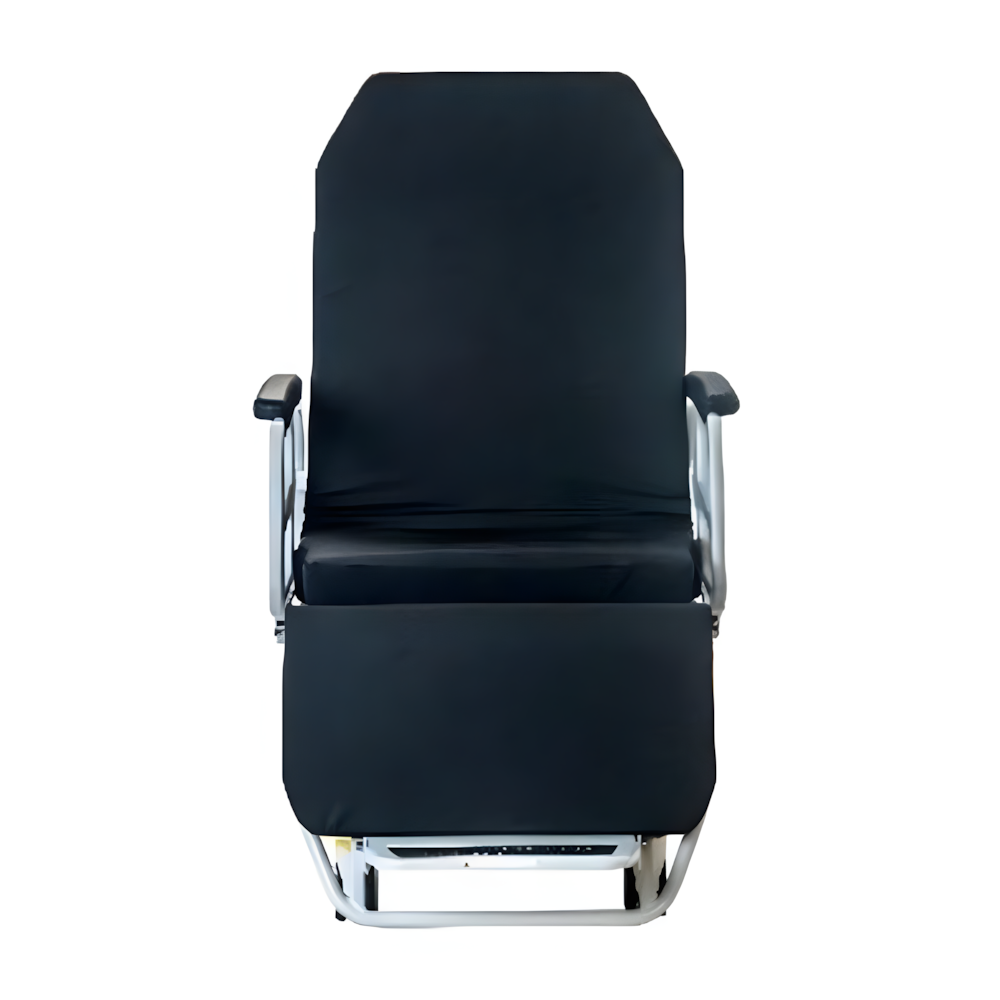

The T5 Procedure Stretcher Chair with Seat Tilt and Wide Back Width is designed to help medical facilities streamline treatment processes and surgical workflow by replacing multiple pieces of equipment with a single device.

Features:

A procedure chair with seat tilt and a wide back design that helps minimize risk and space requirements while enhancing productivity

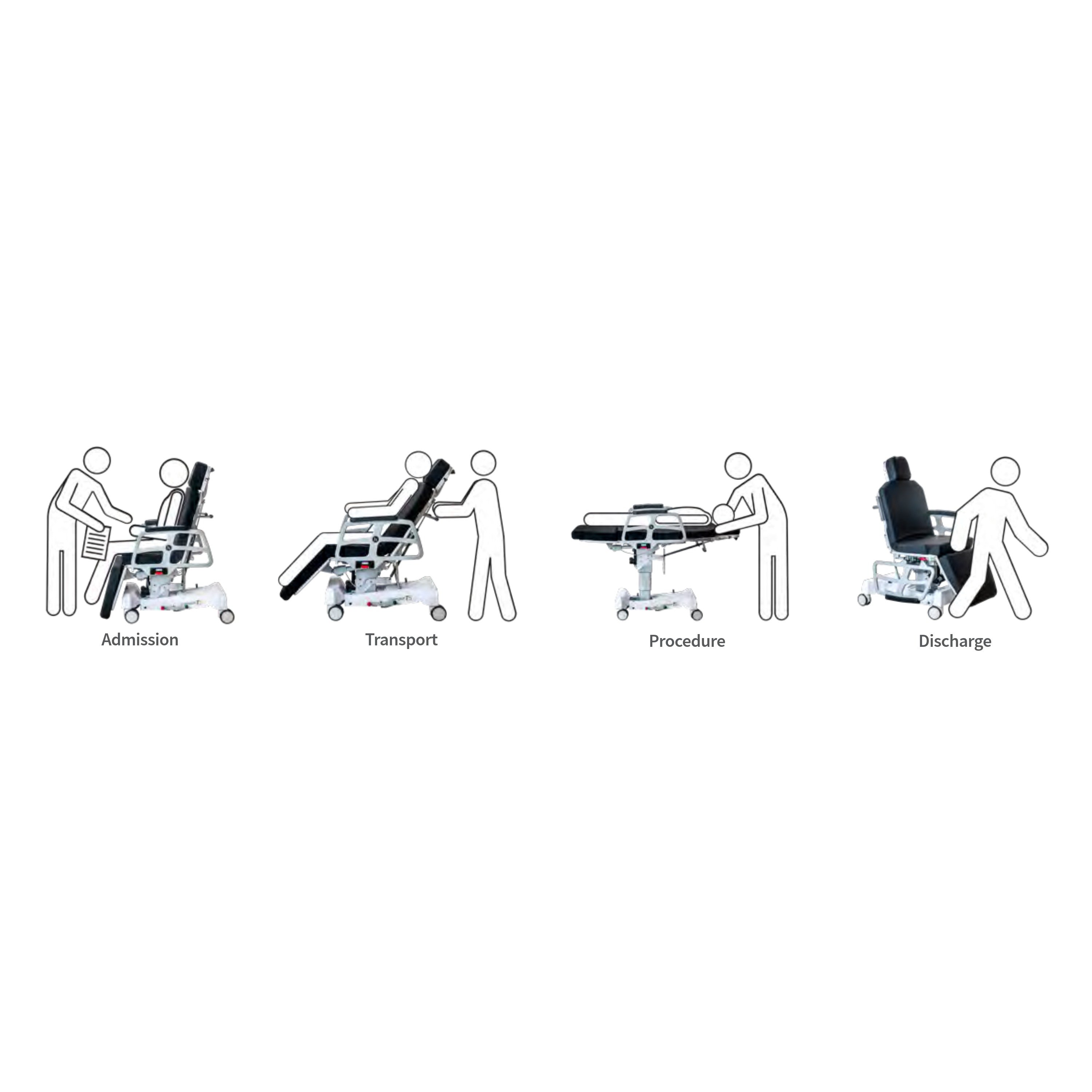

A 'one patient, one surface' design creates a more spa-like environment, counteracting the clinical feel of traditional surgery centers and significantly improving patient comfort
Powered positioning with memory presets minimizes the need for patient transfers, reducing the risk of injury to both patients and staff while enhancing overall patient throughput
Seated position only requires half the space of a traditional stretcher and is easy to navigate through hallways, elevators, and other close quarters
Small footprint frees up floor space, allowing additional units to be stored more efficiently
A low-profile dual articulating headpiece provides precise positioning
The headpiece can be raised or lowered as needed

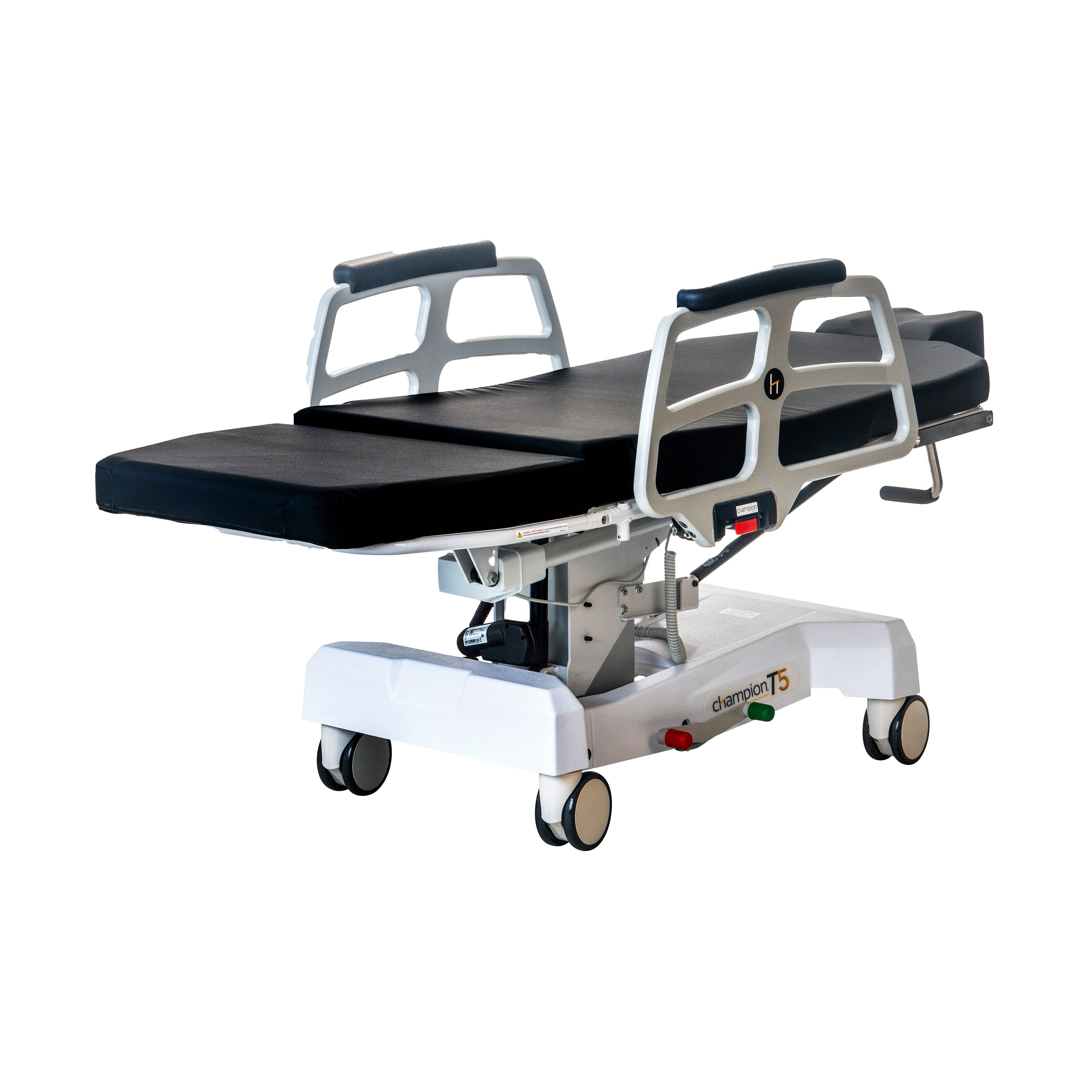

Advanced tilt capability allows up to 15° Trendelenburg and 3° reverse Trendelenburg positioning

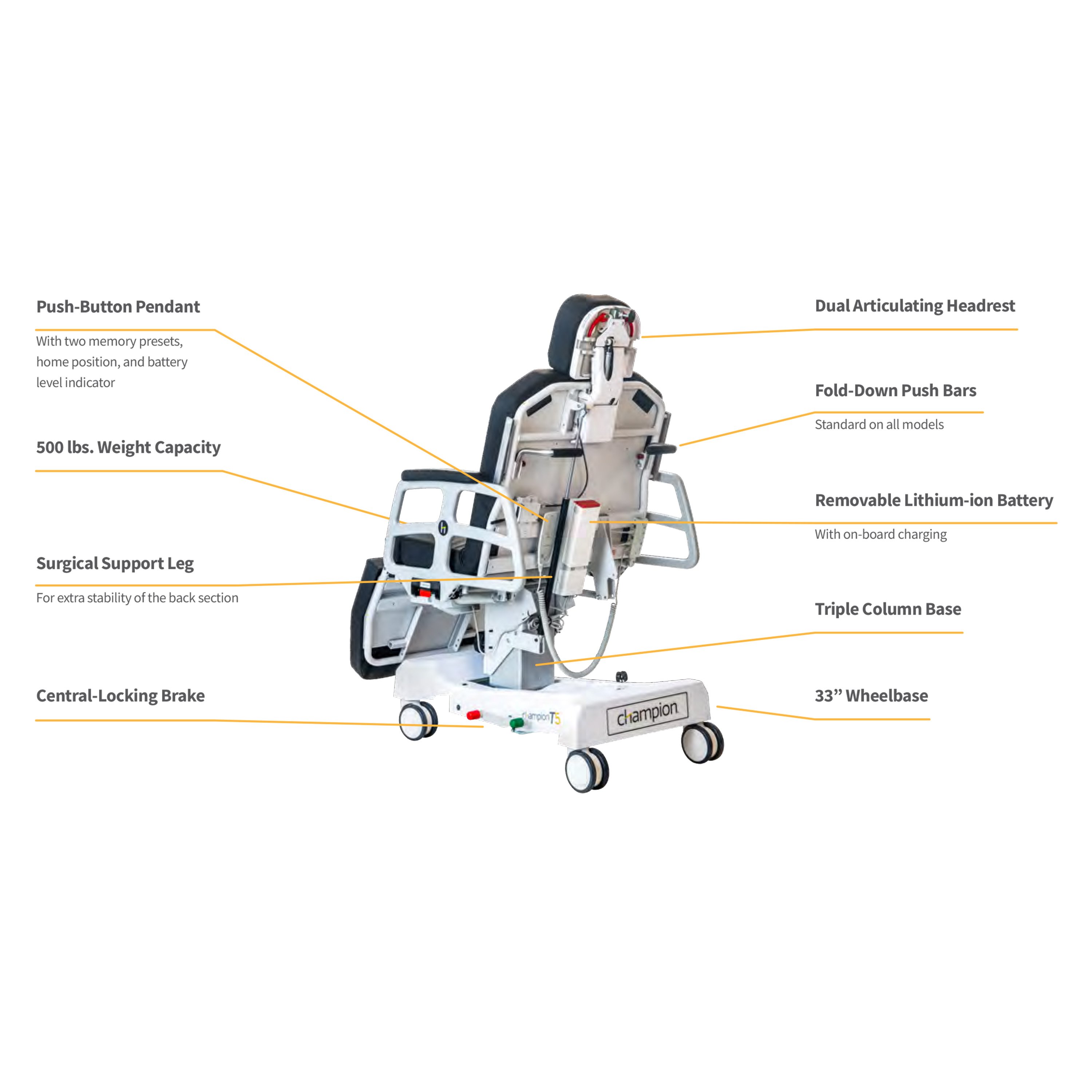

Manual quick-release back
Fold-down push bars
Triple column base
Central-locking brake
Swing and tuck side rails
Electrostatic discharge steering caster
Surgical support leg providing extra stability to the back section

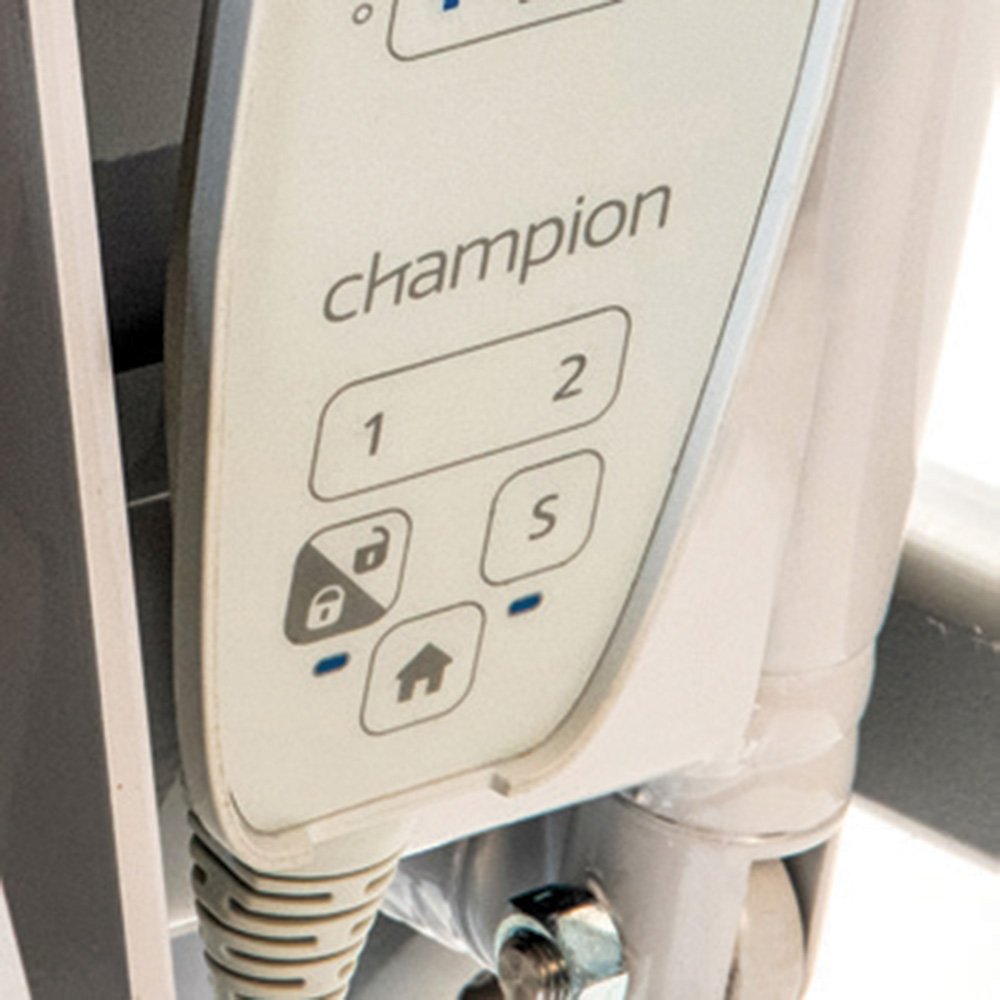

Push-button pendant with two memory presets, home position, and battery level indicator

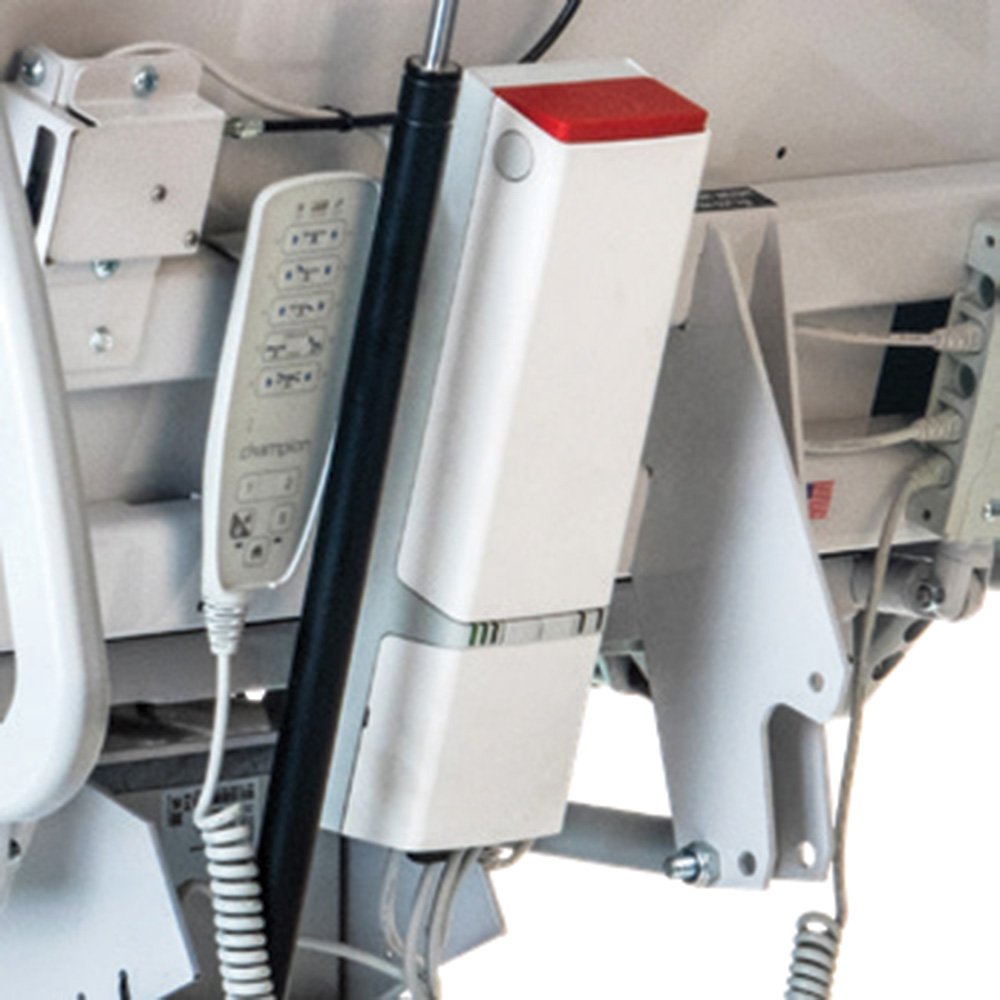

The removable lithium-ion battery system eliminates the inconsistencies often seen in other battery-powered medical chairs, ensuring consistent performance
Commonly applied in surgical, endoscopy, GI, and emergency

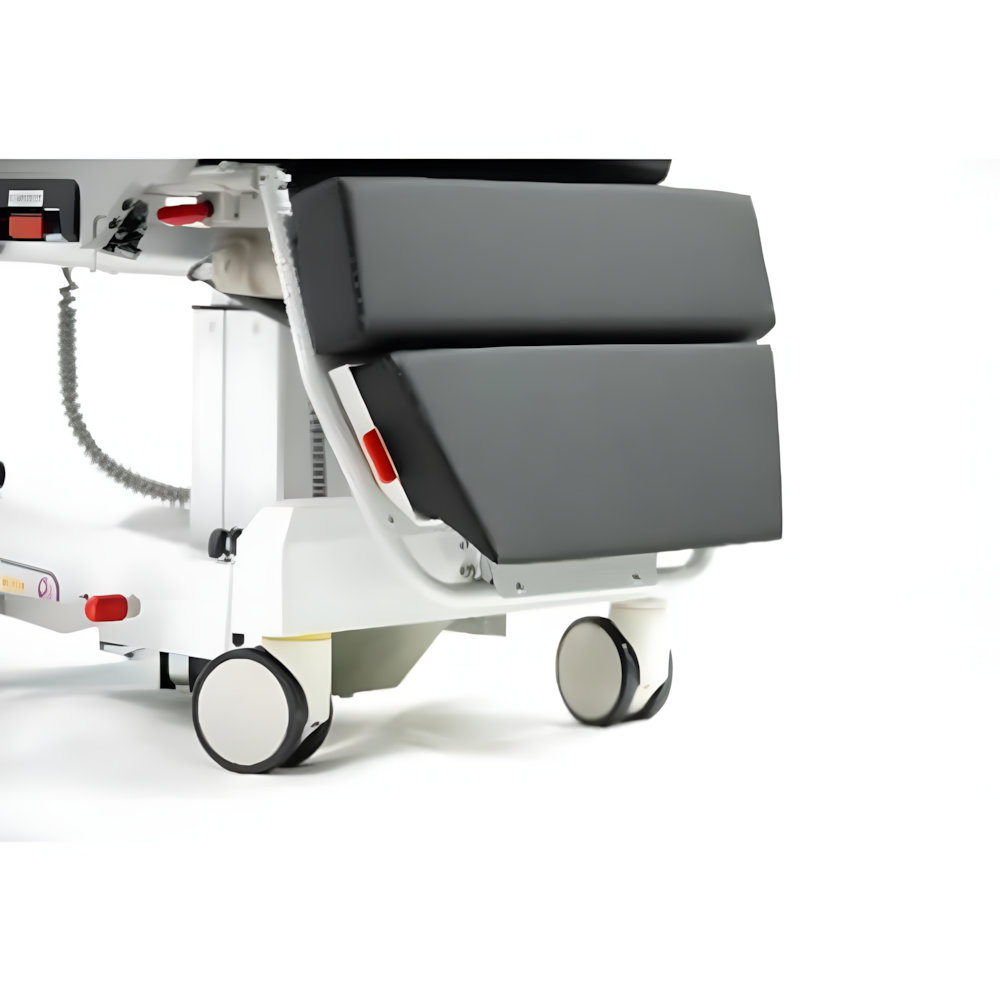

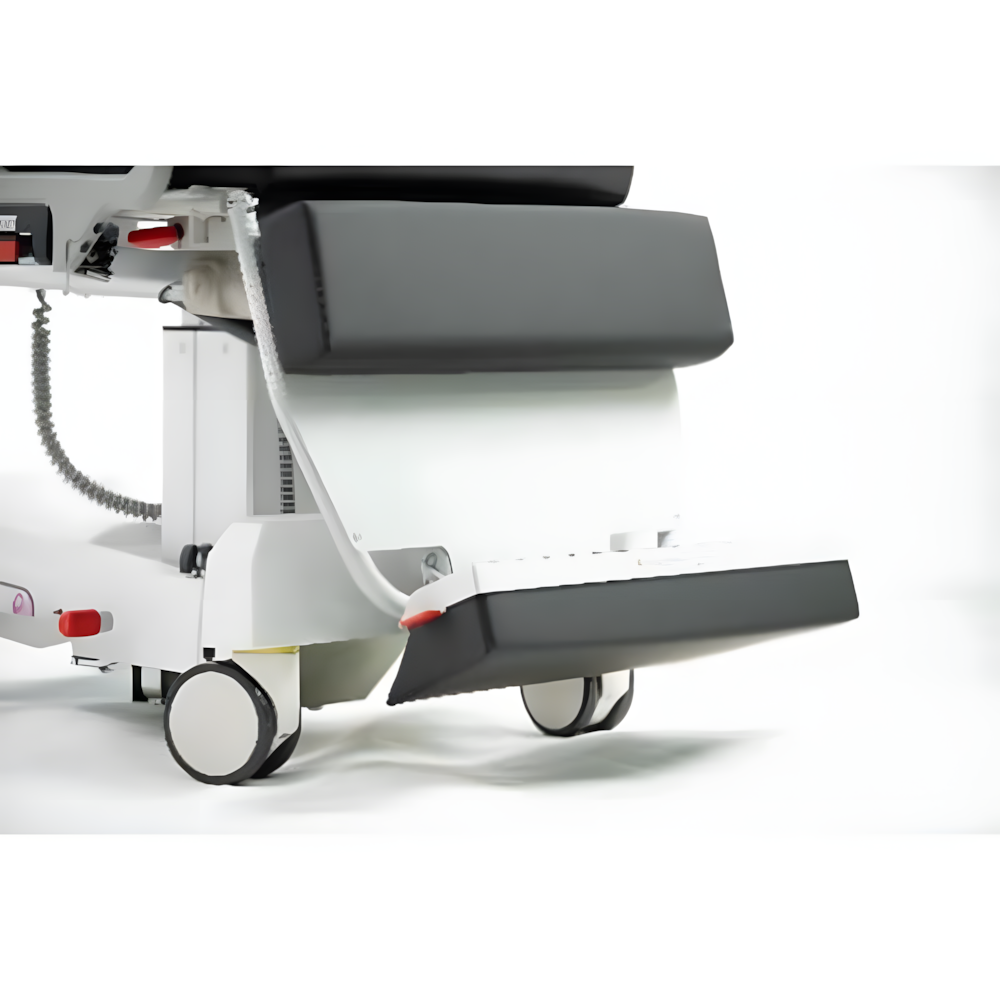

Available in three configurations: Base Model (T5-XWB), with Folding Footrest (T5-XWFB), and with Low Seat Height (T5-XWLB)

Technical Specifications:

SKU	T5-XWB	T5-XWFB	T5-XWLB
Trendelenburg (Up to - Reverse)	15° - 3°
Backrest Articulation Range	0° - 85°		0 - 90°
Headpiece Articulation Range (Fully Elevated - Fully Retracted)	30° - 60°
Headpiece Adjustment Range (Lowered - Raised)	0.9" - 3.5"
Wheelbase	30" x 20"
Patient Surface Length	75"		77"
Seat Height	23.75" - 43.5"		22" - 42"
Back Height	33.75”
Side Rail Height	13.5"
Side Rail Length	27.6"		27.5"
Charging System Input Volts	120 – 240 VAC
Charging System Current	350 mA
Charging System Frequency	50/60 Hz
Charging System Max Power	38.5 W
Overall Chair Height	56" - 76"		54.5" - 76"
Seat Width	28"
Overall Width (Rails Up - Rails Down)	34" - 30"		35" - 30"
Weight Capacity	500 lbs

Please Note: The Image shown may include features, accessories, or fabrics that do not come standard on the base model.

Specifications

Specifications
Manufacturer	Champion Healthcare Solutions
Latex Free	Yes
Weight Capacity	500 lbs
Country of Manufacture	United States
Item Ships From	Florida

Literature

Product Brochure

(Size: 501 KB)

User Manual

(Size: 2 MB)

Product Videos

Instructions

Warranty: Champion warrants all other products, product components, and / or accessories to be free from defects in materials and workmanship under normal use for a period of two (2) years from the date of shipment, provided that the product is in use by the original owner and has been used only for its original purpose.
