Champion Healthcare T4 Procedure Stretcher Chair with Wide Back

The T4 Procedure Stretcher Chair with Wide Back is designed with a universal appeal, often utilized as a procedure and/or transport chair, and can be incorporated across a spectrum of applications and environments.

Features:

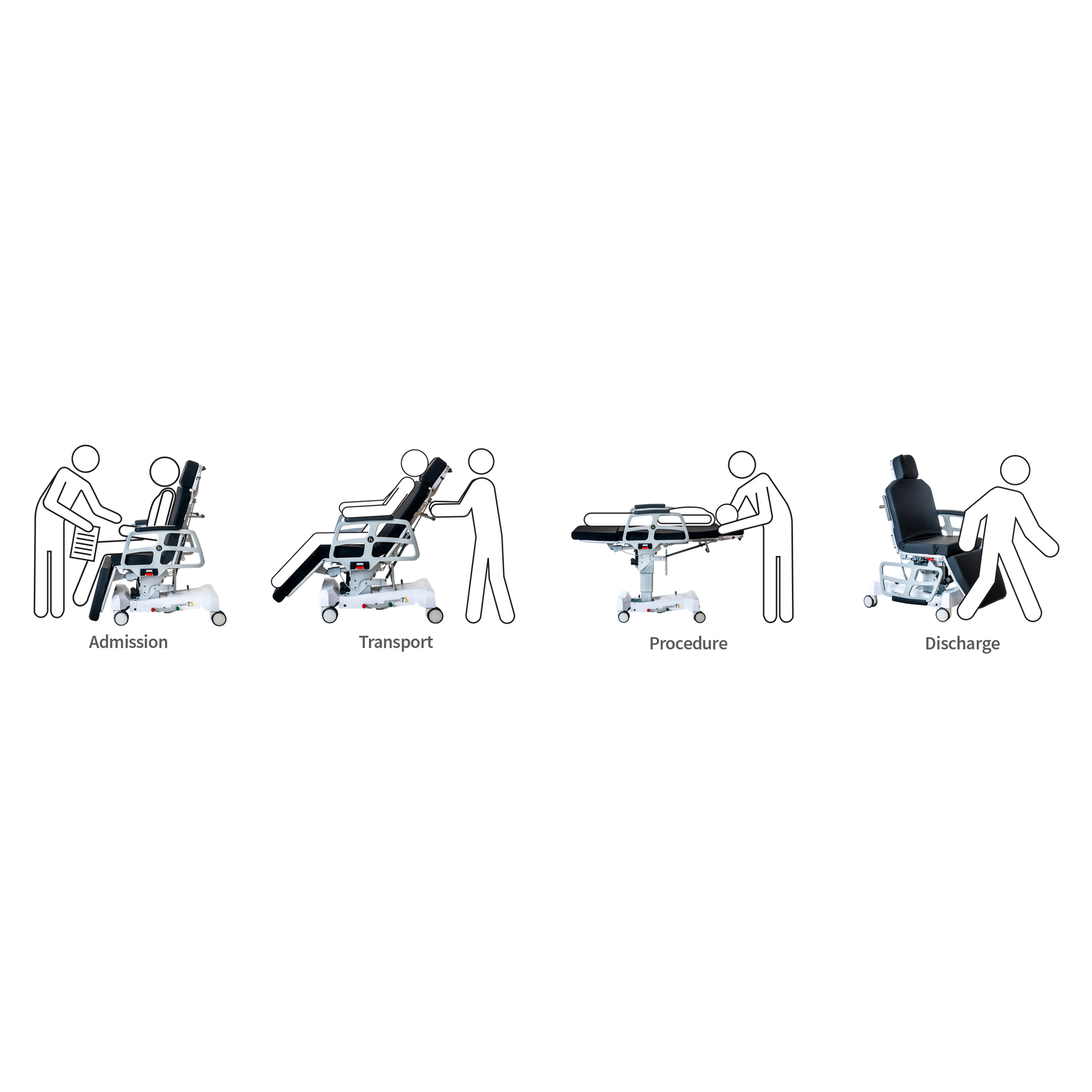

• A multi-purpose medical seating stretcher chair with a wide back offers more clinical and economic advantages to doctors and patients
• A 'one patient, one surface' design creates a more spa-like environment, counteracting the clinical feel of traditional surgery centers and significantly improving patient comfort
• Powered positioning with memory presets minimizes the need for patient transfers, reducing the risk of injury to both patients and staff while enhancing overall patient throughput

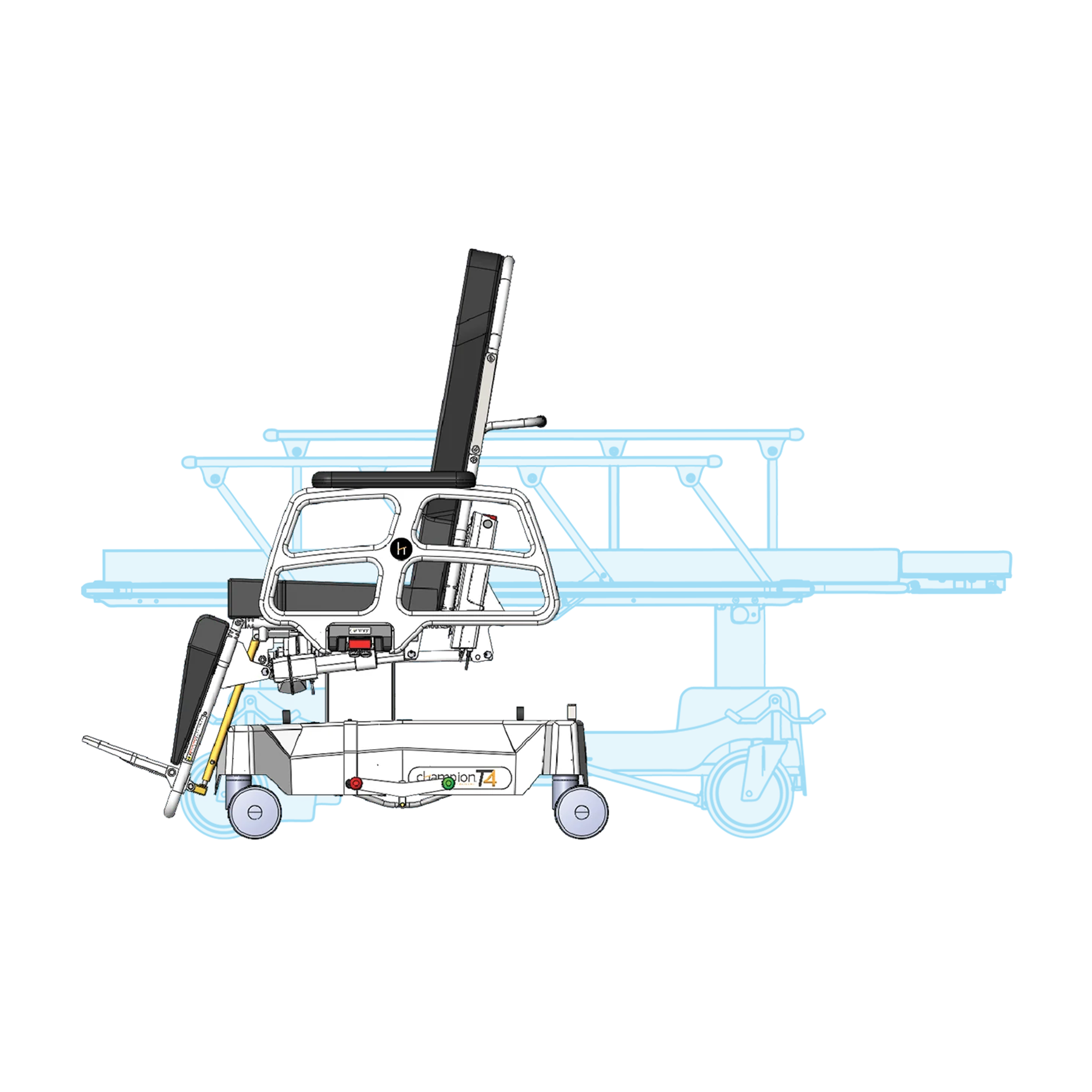

• Seated position only requires half the space of a traditional stretcher and is easy to navigate through hallways, elevators, and other close quarters
• Trendelenburg positioning provides efficient functionality and surgical access during procedures
• Small footprint frees up floor space, allowing additional units to be stored more efficiently

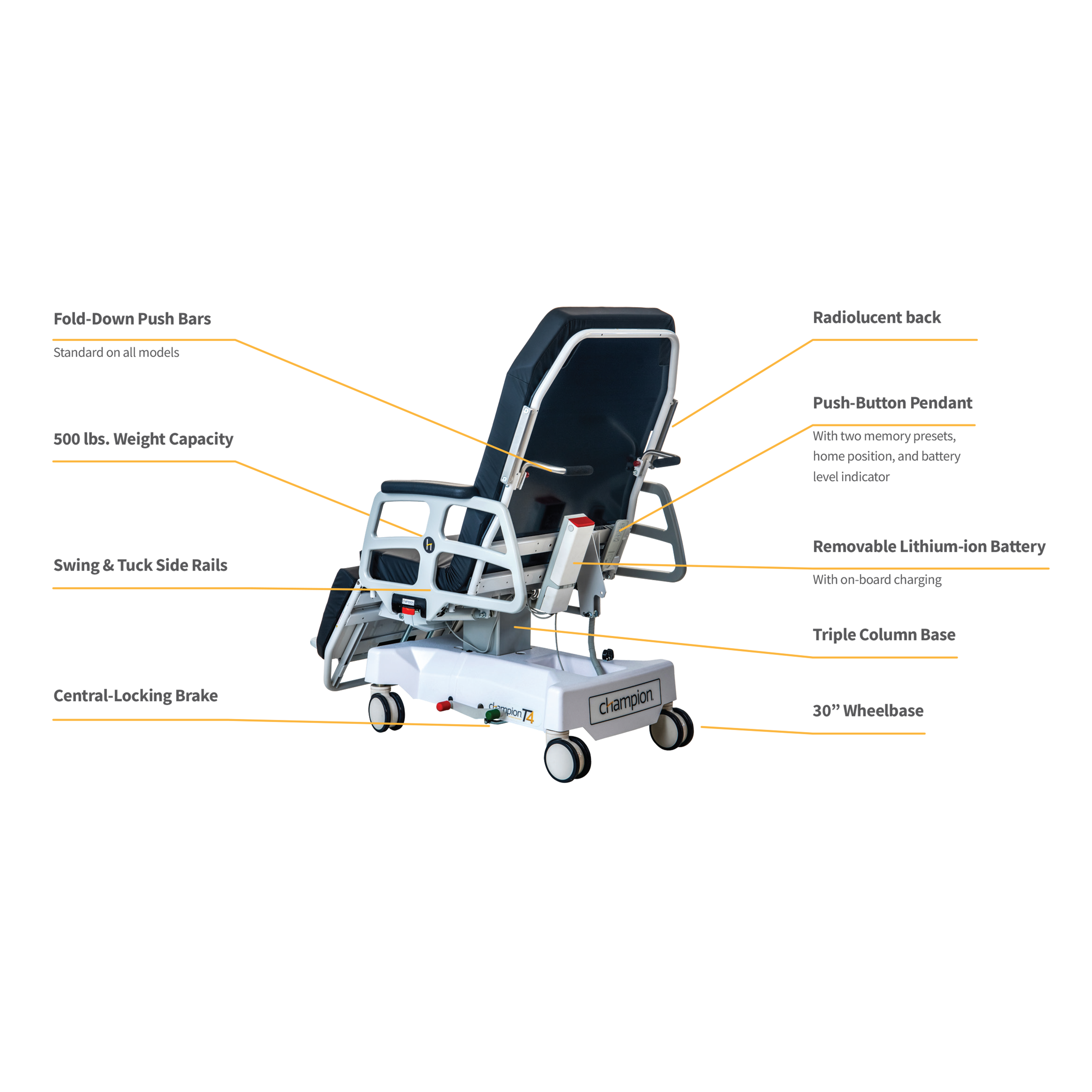

• Radiolucent back
• Fold-down push bars
• Triple column base
• Central-locking brake
• Swing and tuck side rails
• Electrostatic discharge steering caster

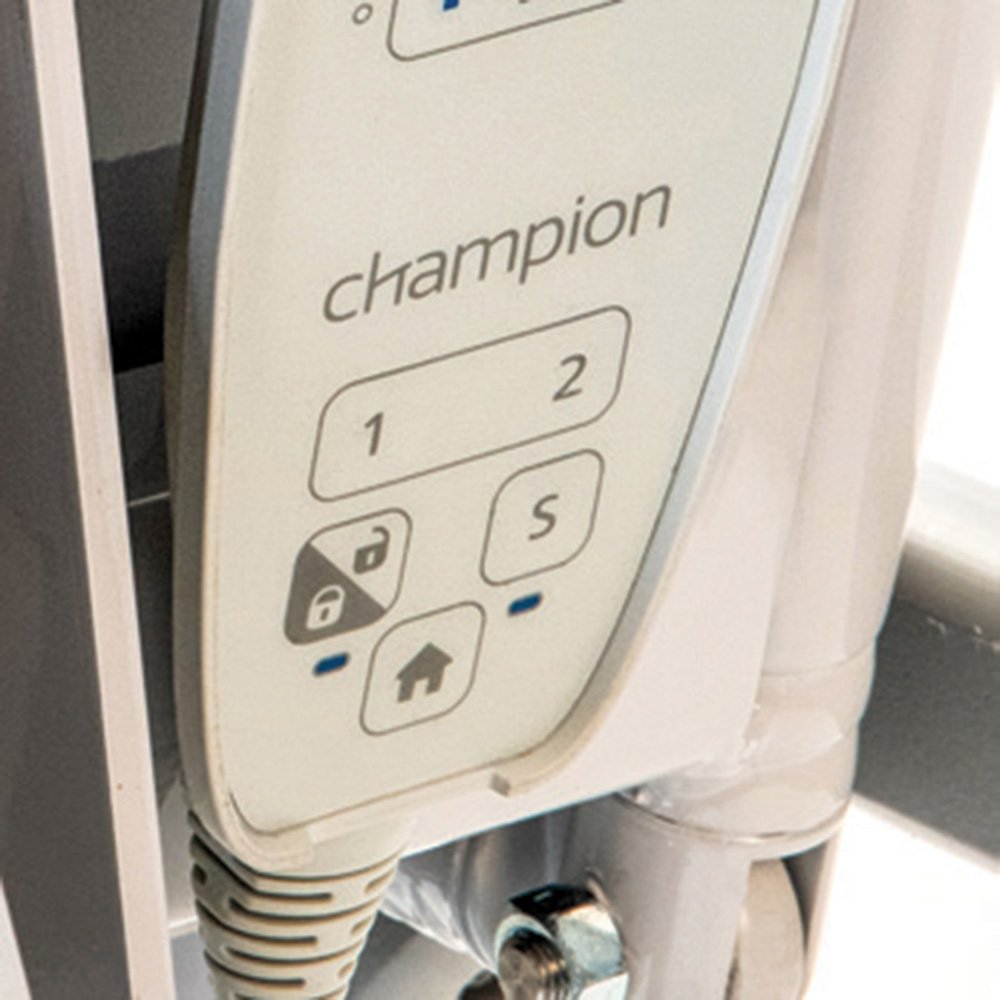

• Push-button pendant with two memory presets, home position, and battery level indicator

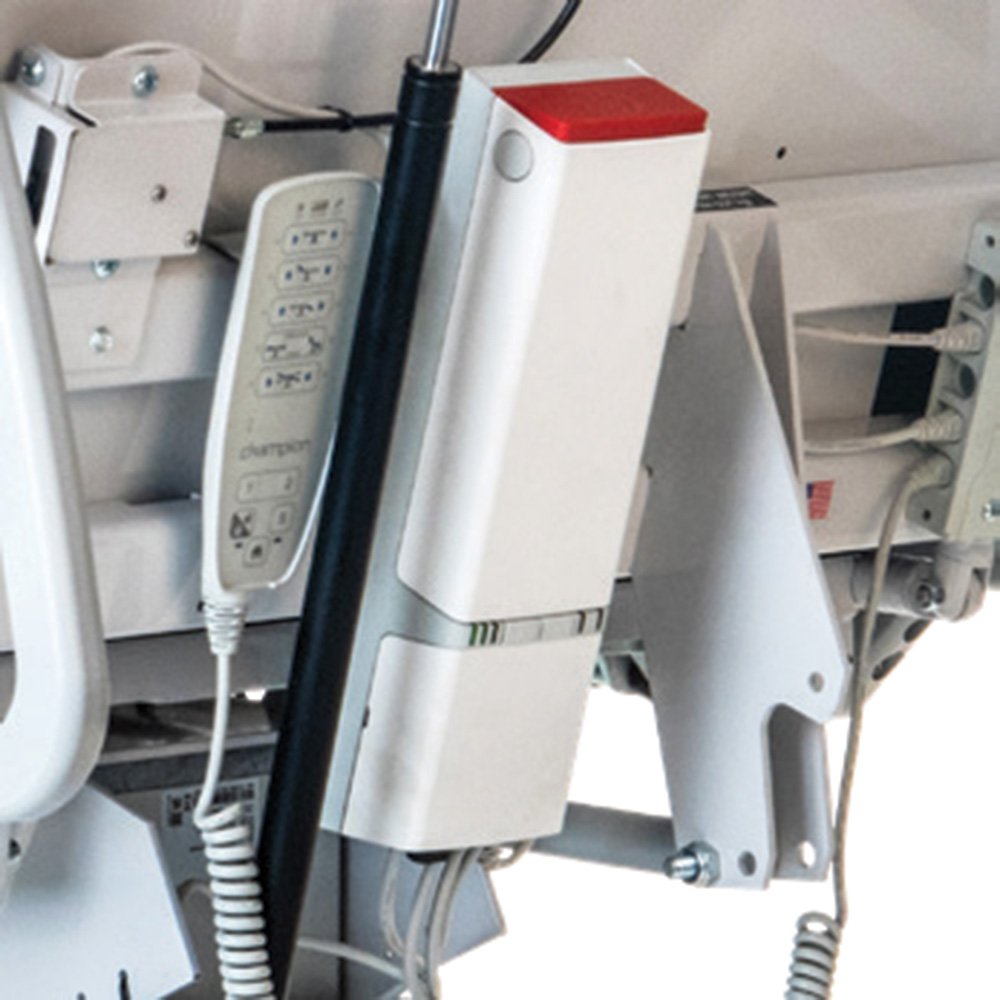

• The removable lithium-ion battery system eliminates the inconsistencies often seen in other battery-powered medical chairs, ensuring consistent performance
• Compact wheelbase and powered height range of 23.5" to 43.5", providing superior surgeon/patient access during procedures
• Commonly applied in surgical, endoscopy, GI, and emergency
• Available in seven configurations:
  • Base Model (T4-WB)

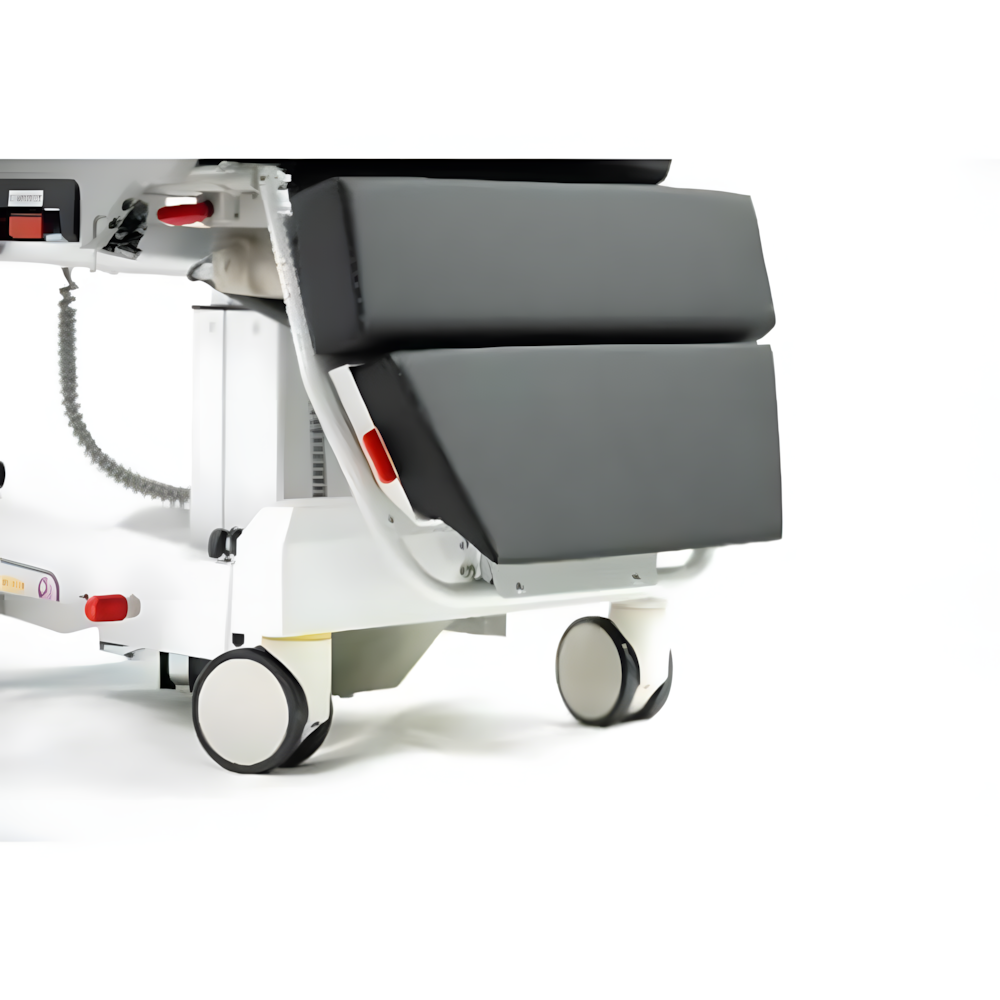

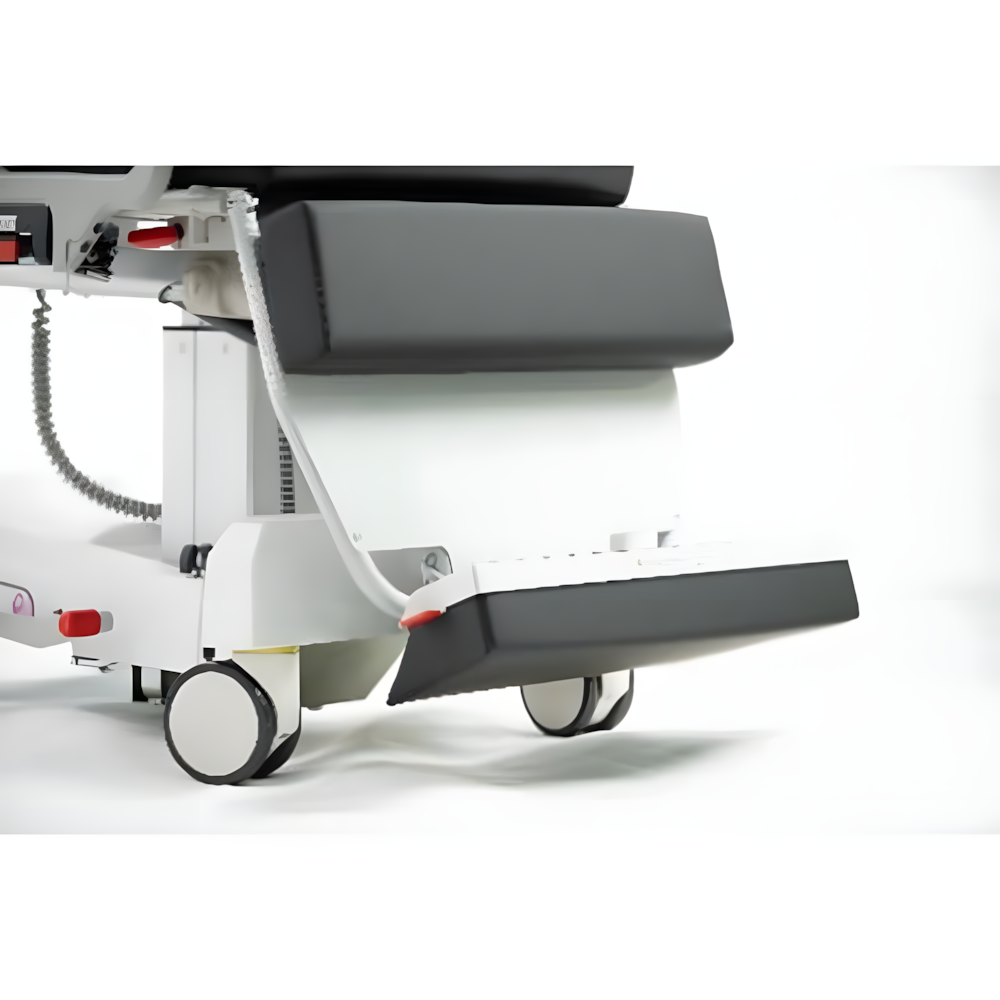

  • With Folding Footrest (T4-WFB)
  • With Audiology ENG Back (T4-WGB)
  • With Audiology ENG Back and Low Seat Height (T4-WLFB)
  • With Low Seat Height (T4-WLB)
  • With Upper Rails (T4-WRB)
  • With Upper Rails and Folding Footrest (T4-WRFB)

Technical Specification:

• Backrest Articulation Range: 0° - 90°
• Charging System Input Volts: 120-240 VAC
• Charging System Current: 350 mA
• Charging System Frequency: 50/60 Hz
• Charging System Max Power: 38.5 W
• Wheelbase: 30" x 20"
• Patient Surface Length:
  • Standard: 77"
  • With Manual Folding Footrest: 71"
• Seat Height: 23.5" - 43.5"

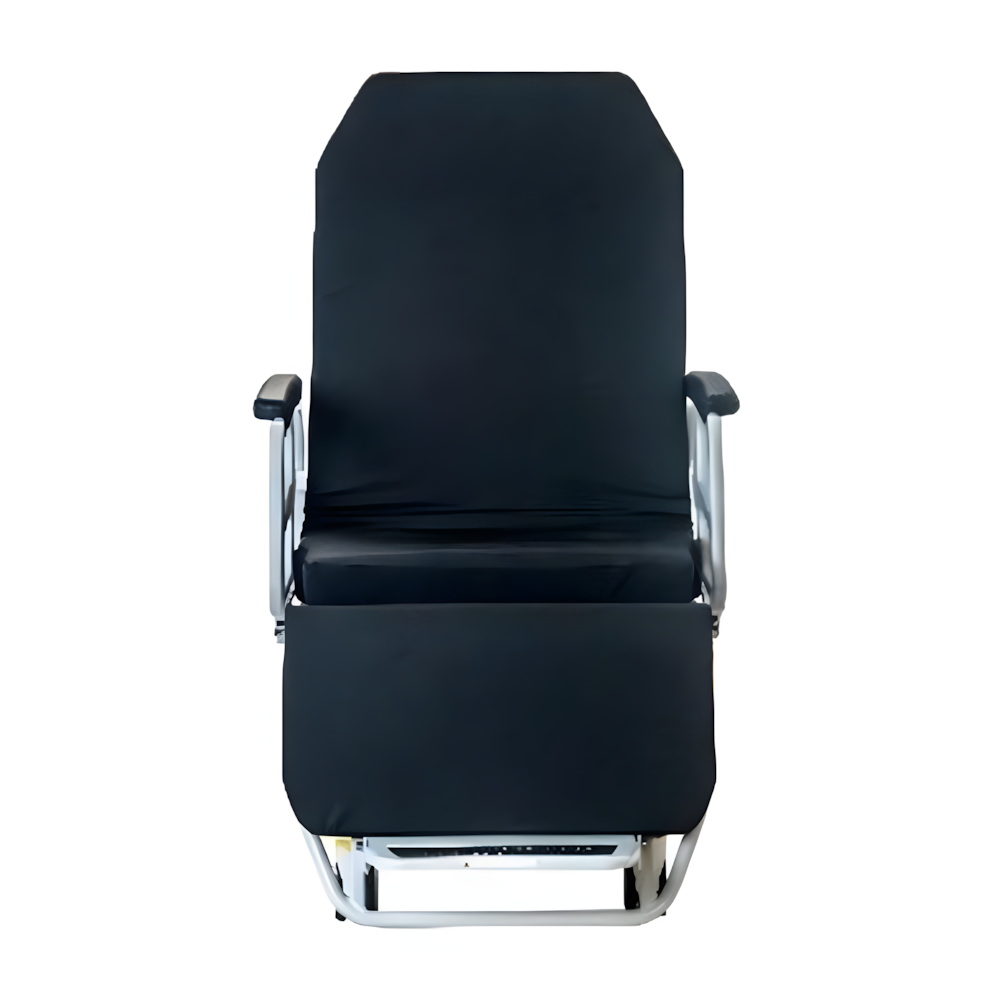

• Back Width: 28"
• Side Rail Height (Up, Seat Pan to Rail Top): 13.5" - 27.5"
• Overall Chair Height: 54.5" - 74.5"
• Seat Width: 24"
• Overall Width (Rails Up): 35"
• Weight Capacity: 500 lbs

Please Note: The Image shown may include features, accessories, or fabrics that do not come standard on the base model.
