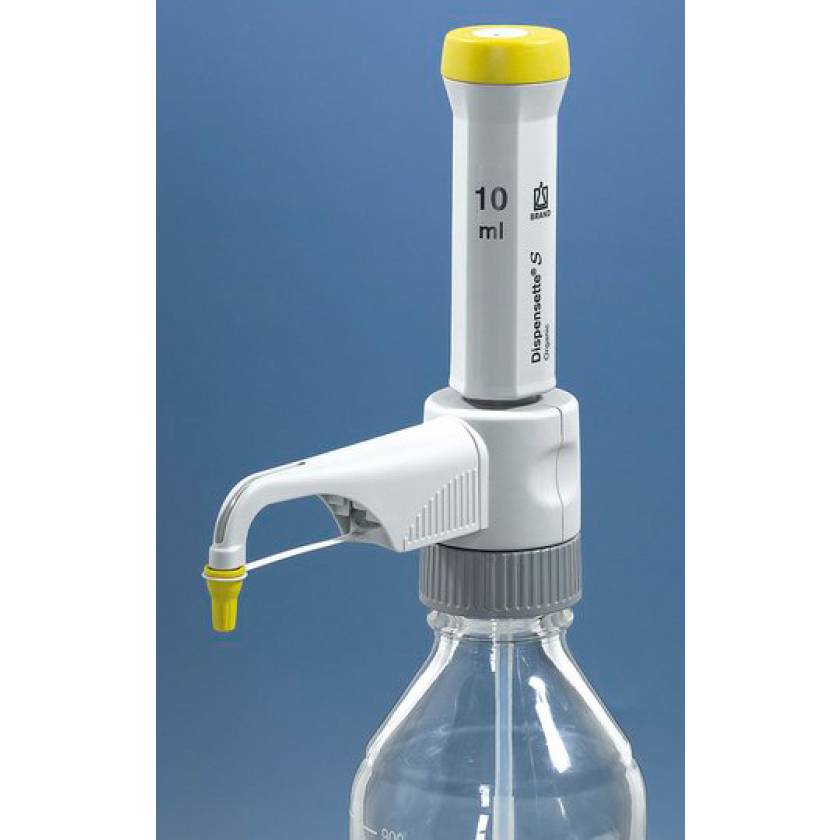

Dispense most lab reagents: Choose the Dispensette® S Organic for organic solvents, including combinatorial chemistry solvents, concentrated acids such as HCl** and HNO3**, trifluoroacetic acid (TFA), tetrahydrofuran (THF)**, and peroxides.
Proven accurate and durable: Uses a floating piston design with no seals to wear or replace, minimizing service downtime.
Increase laboratory safety: Dispensers mount on reagent bottles to reduce poured reagent transfers. They include a number of safety features to reduce the risk of injury from inadvertent dispensing and splashes. Many accessories are available for remote, serial and drum dispensing.
Resist wear and damage: Unique design ensures smooth operation and eliminates wearing parts. Dispensers disassemble easily to simplify cleaning and maintenance. The new system eliminates seals for a lifetime of reliable dispensing.
Fixed volume for standardized applications
The Dispensette® S Organic is constructed using the "floating piston" principle that matched with precise tolerances to the cylinder of the instrument. A thin film of the dispensed liquid of just a few µm thick acts as a non-wearing seal that reduces friction, so dispensing is easy and convenient.
The GL45mm standard thread, plus included adapters, fit most common lab bottles
The valve block can be rotated 360° so that the bottle label always faces the user for safety
A telescoping filling tube adjusts to different bottle sizes
The instrument is easy to disassemble for cleaning
Valves are replaceable for simple, economical service
New valve design eliminates seals for trouble-free operation
Olive-shaped filling valve for firmer attachment of filling tubes
Autoclavable at 121ºC (250ºF) for use with sterile reagents
Easy to calibrate and adjust in order to comply with ISO 9001 and GLP guidelines with included tool
A positive indicator automatically indicates adjustment from factory settings
An extensive line of accessories facilitates specialized dispensing tasks like sterile applications or dispensing from large containers
Dispensette S Organic Bottletop Dispensers with Standard Valve are supplied with a Valve Mounting/Calibration Tool, Telescoping Filling Tube, Discharge Tube, Polypropylene Adapters, Operating manual, One-year warranty, and Certificate of performance.
Limitations of Use: This instrument is intended for the pipetting of liquids within the following limitations:
Use between +15°C and +40°C (59°F and 104°F) of instrument and reagent
Density up to 2.2 g/cm³
Vapor pressure up to max. 600 mbar; aspirate slowly above 300mbar in order to prevent the liquid from boiling
Kinematic viscosity up to 500 mm²/s (dynamic viscosity [mPas] = kinematic viscosity [mm²/s] x density [b/cm³])
Operating Exclusions: Never use this instrument with:
Suspensions as solid particles may clog or damage the instrument (e.g., of charcoal)
*Dissolved sodium azide permitted up to a max. concentration of 0.1%
**Please note, additional, separately sold, accessory parts are required for use of some solvents with this Dispensette. Please see the complete list of Reagents in the Literature below to determine which reagents may require the use of ETFE or PTFE bottle adapters or Valve Blocks.
*A ≤ %
*A ≤ µL
*CV ≤ %
*CV ≤ µL
Supplied Adapter for Bottle Thread
Supplied Filling Tube Length
GL24-25, GL28, GL32-33, GL38, S40
GL24-25, GL28, GL32-33, GL38, S40
*The value of Accuracy (A) and Coefficient of Variation (CV) are final test values referring to the delivered nominal volume, instrument and distilled water at equilibrium with ambient temperature (20°C/68°F) and with smooth operation.
