ADC System 5™ Portable 5 Cuff Sphyg with Adcuff

The ADC System 5™ Portable 5 Cuff Sphyg with Adcuff is the most compact, ergonomically designed, and affordably priced portable blood pressure system on the market.

740 Features:

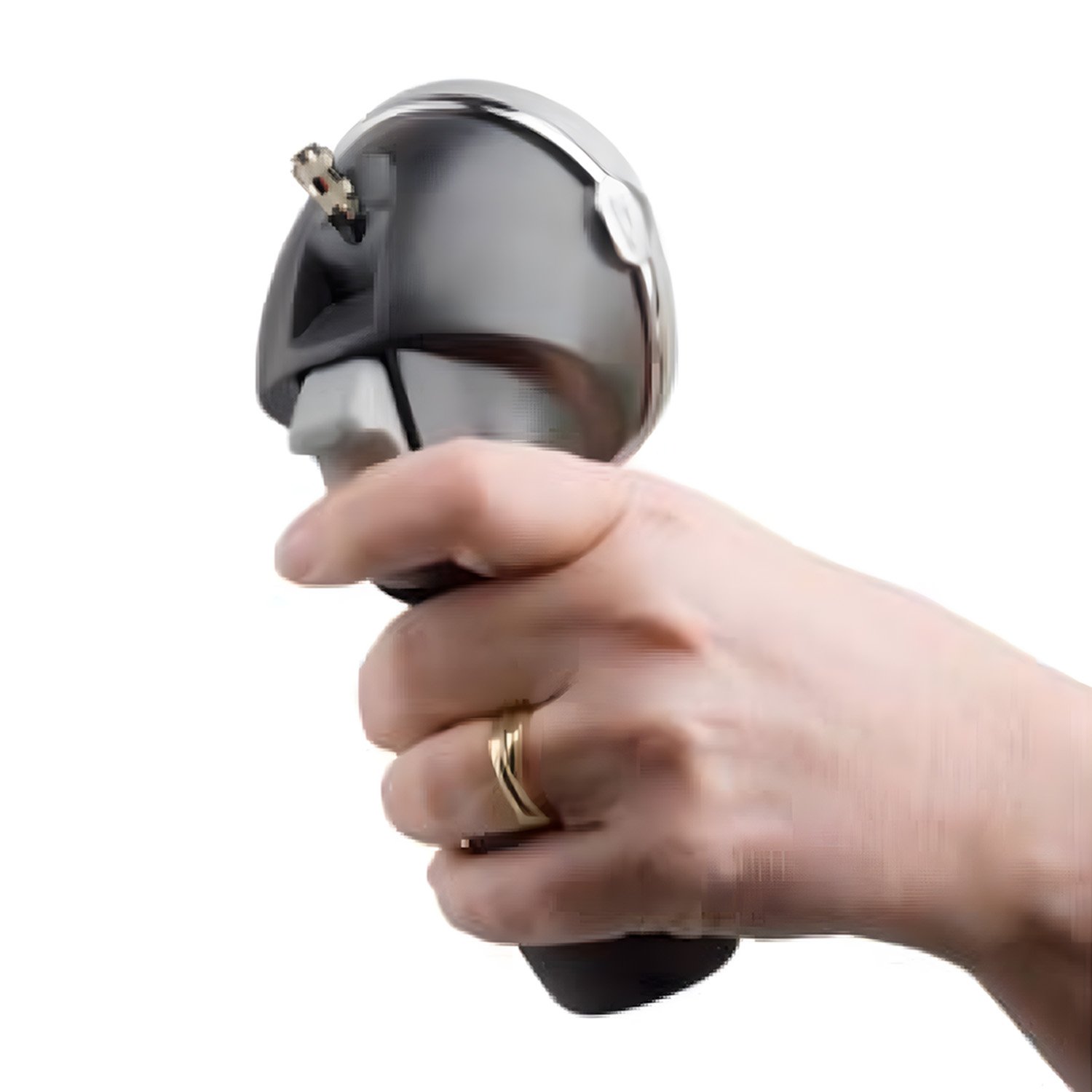

• Revolutionary palm-style manometer with integral bulb
• Ambidextrous, infinite-control, trigger-style air release valve for one-hand convenience

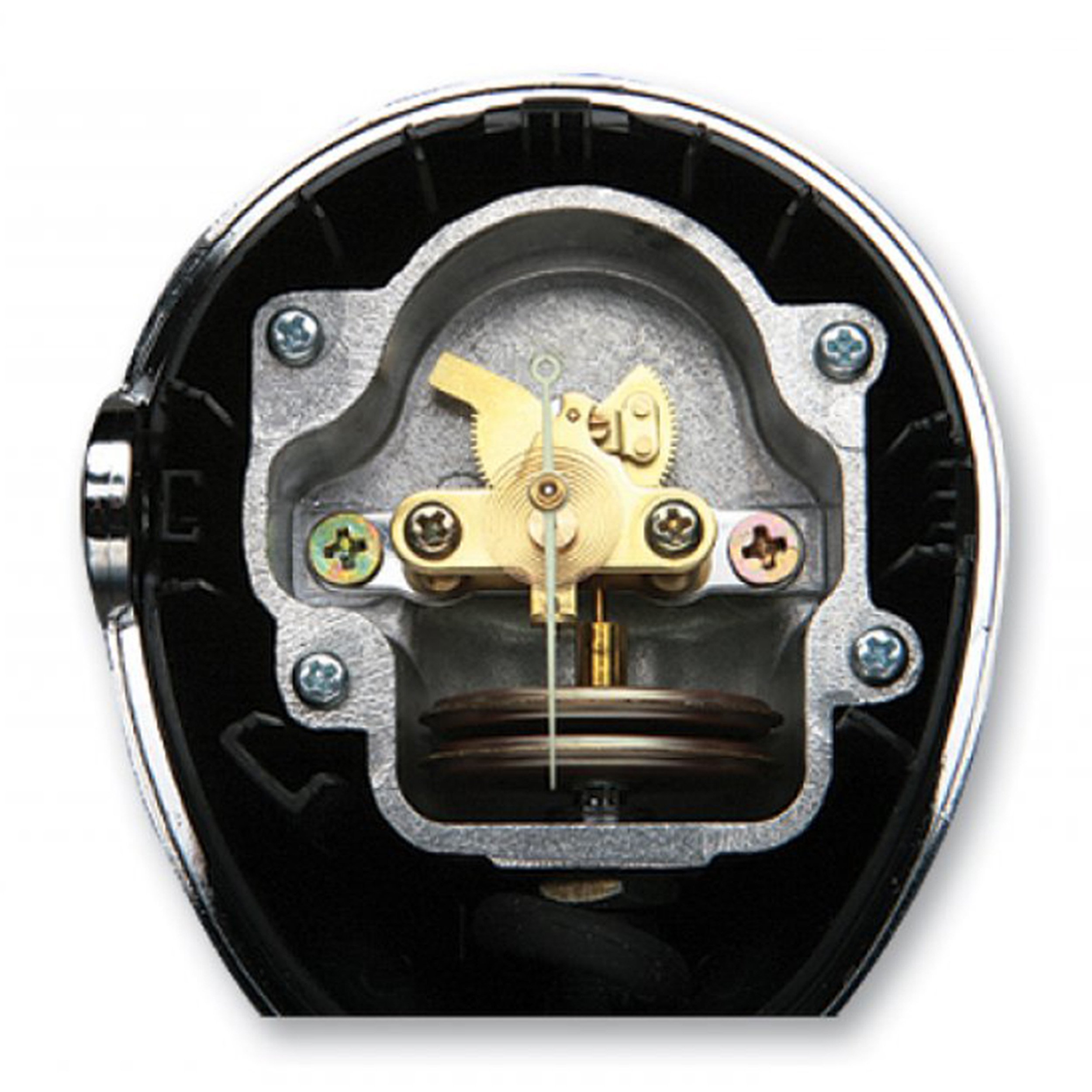

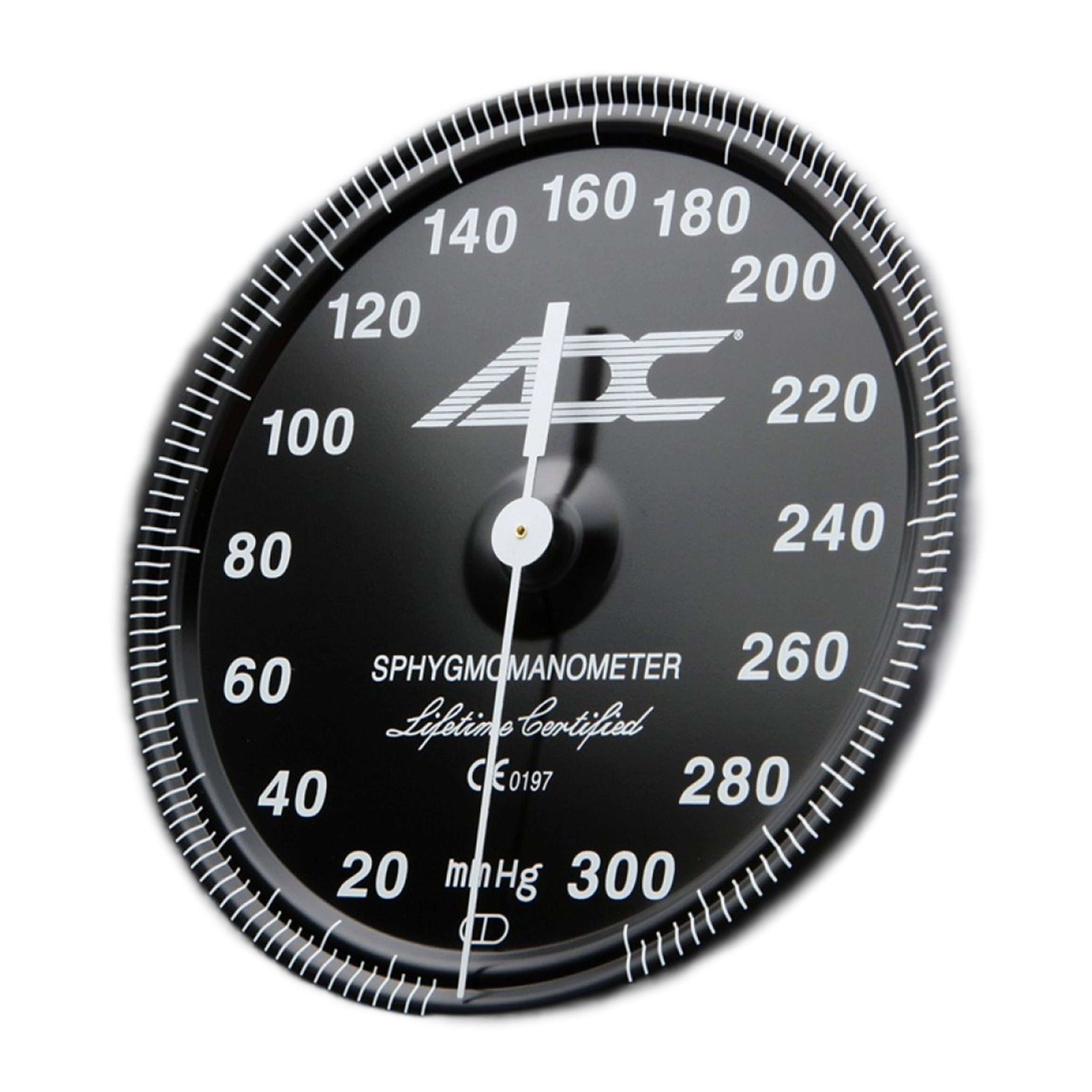

• Precision-crafted 300 mmHg Japanese-engineered manometer, housed in a zinc cage that suspends within the polymer housing for enhanced shock resistance
• Built with metal bayonet-style connectors for rapid selection of the appropriate cuff
• Comes Standard With:
  • 1 Palm aneroid sphygmomanometer
  • 5 Cuff Sizes: Child, Small adult, Adult, Large adult, and Thigh
  • 1 Multi-Pocketed, Heavy-Duty 600D Polyester Attaché Style Case
    • Keeps each component securely in place, yet instantly accessible
    • Fits in most emergency boxes and trauma kits
    • Reinforced handle allows for wall mounting in the open position
    • Dual zipper closure for rapid access and protection against environmental elements
• Made without phthalates or natural rubber latex
• Assembled, inspected, and packaged in the USA from foreign components
• Meets or exceeds ANSI/AAMI/ISO 81060-1

Traditional Adcuff Features:

• Two-piece cuffs and bladders
• Made of durable 600D polyester
• An integral flap that secures the bladder and prevents bulging
• ADC's proprietary Size Guide marking system prevents mis-cuffing
• Longer limb ranges for improved patient coverage
• Gauge hang tab (on most sizes), bladder flap, and "property of" tag
• Hook-and-loop adhesive rated to a minimum of 30,000 open/close cycles

Technical Specifications:

• Sphyg Type: Multicuff
• Sphyg Accuracy: ±3 mmHg @ 10°C - 40°C
• Sphyg Accuracy at Extended Temperature Range: ±3 mmHg or 2% whichever is greater @ <10°C and >40°C
• Storage Temperature: -20°C to 55°C
• Valve Type: Integral
• Manometer Type: Palm aneroid
• Number of Tubes: 1 Tube
• Cuff Type: ADCUFF
• Case Dimensions: 10" L x 9" W x 4" H
• Case Weight: 2.5 lbs
• Warranty:
  • Inflation System Components (Cuff, Bladder, Tubing, Valves, and Connectors): 3 Years
  • Manometer/Calibration: Lifetime
