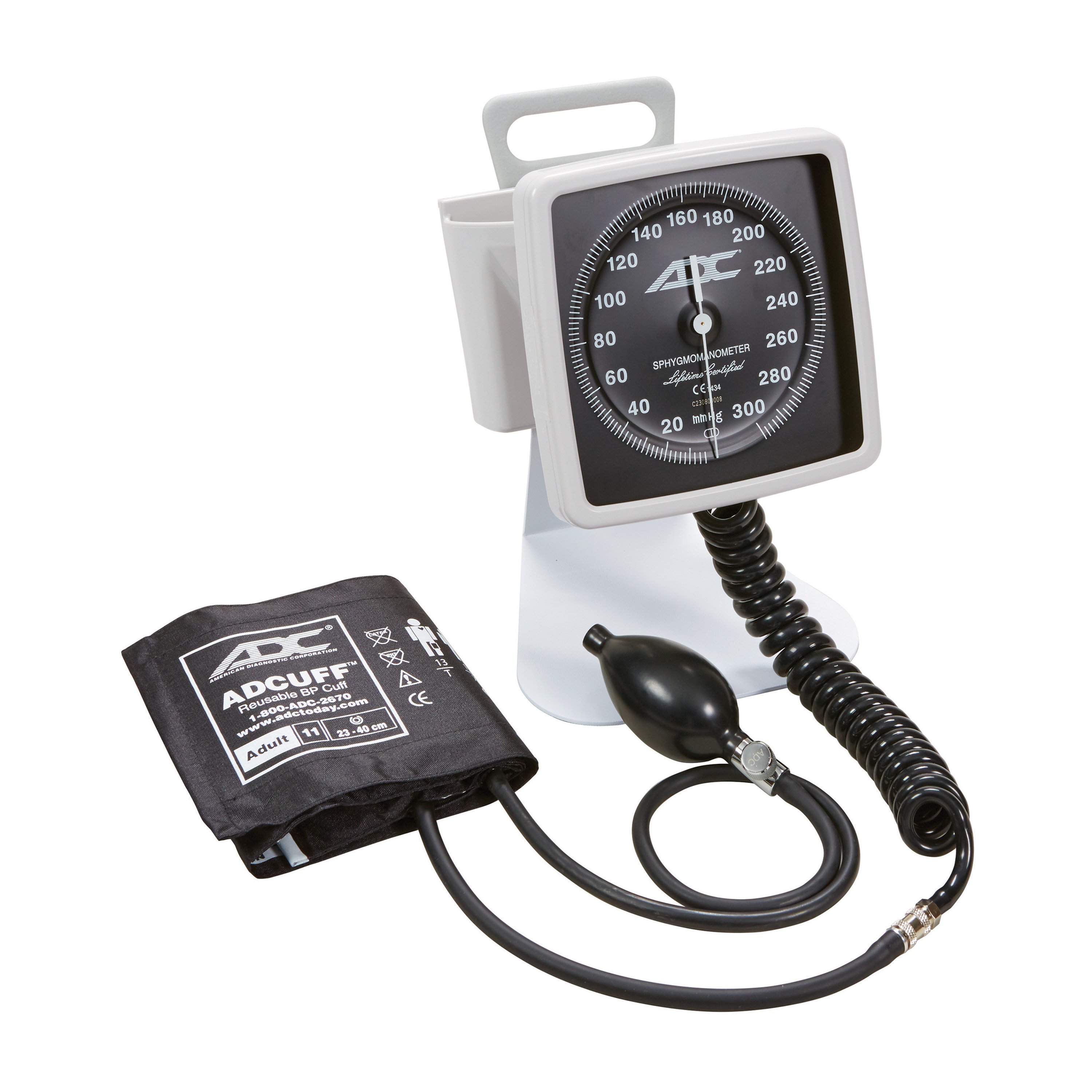

ADC Diagnostix™ Desk Aneroid Sphyg with Adcuff

The ADC Diagnostix™ Desk Aneroid Sphyg with Adcuff is the desktop model in the 750 clock-face aneroid series, offering affordable portability.

Features:

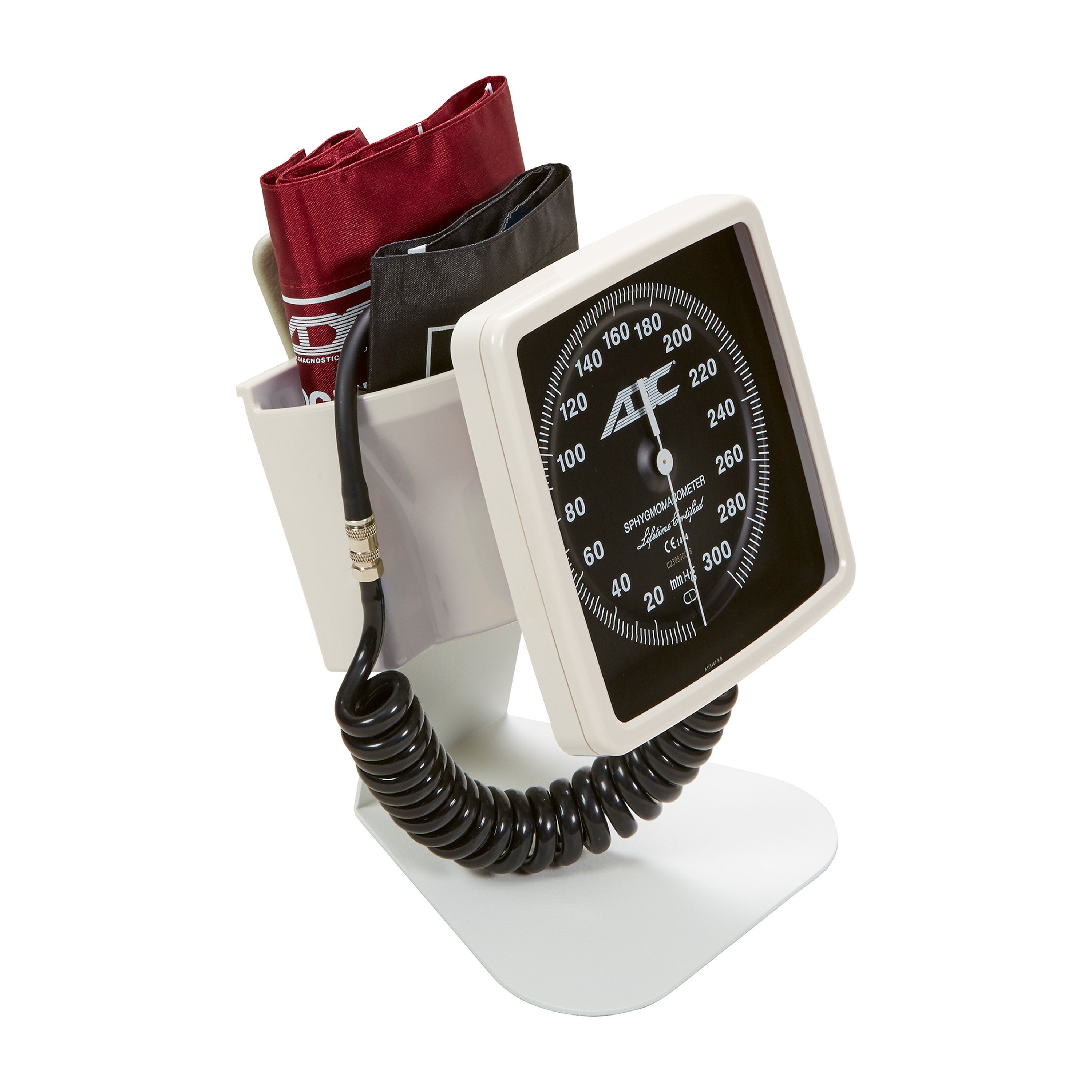

• Fully assembled tabletop stand with compact, integrated basket for storage and integrated swivel mount for 110° viewing rotation
• Integrated cushioned carry handle
• Adflow filter screen check and deflation valve for reduced dust build-up
• Adflow chrome-plated brass air release valve with micro-threads for precise deflation control
• Made without phthalates or natural rubber latex
• Assembled, inspected, and packaged in the USA from foreign components
• Meets or exceeds ANSI/AAMI/ISO 81060-1
• Adcuff inflation system comes standard with a nylon cuff, Adflow bulb and valve, and eight-foot length (when extended) coiled tubing

Traditional Adcuff Features:

• Two-piece cuffs and bladders
• Durable 210 denier nylon construction
• An integral flap that secures the bladder and prevents bulging
• ADC’s proprietary Size Guide marking system prevents mis-cuffing
• Longer limb ranges for improved patient coverage
• Gauge hang tab (on most sizes), bladder flap, and “property of” tag
• Hook-and-loop adhesive rated to a minimum of 30,000 open/close cycles

Gauge Features:

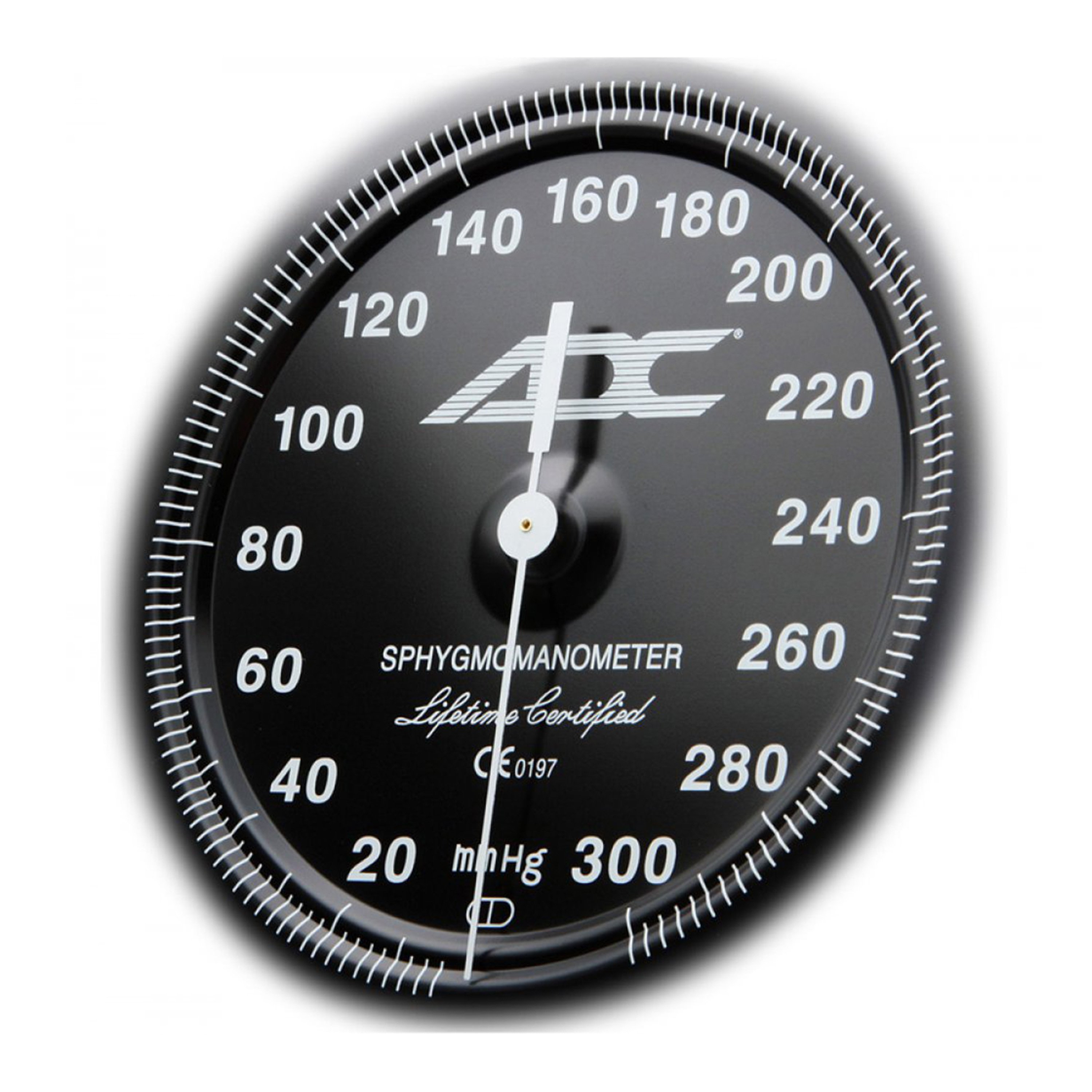

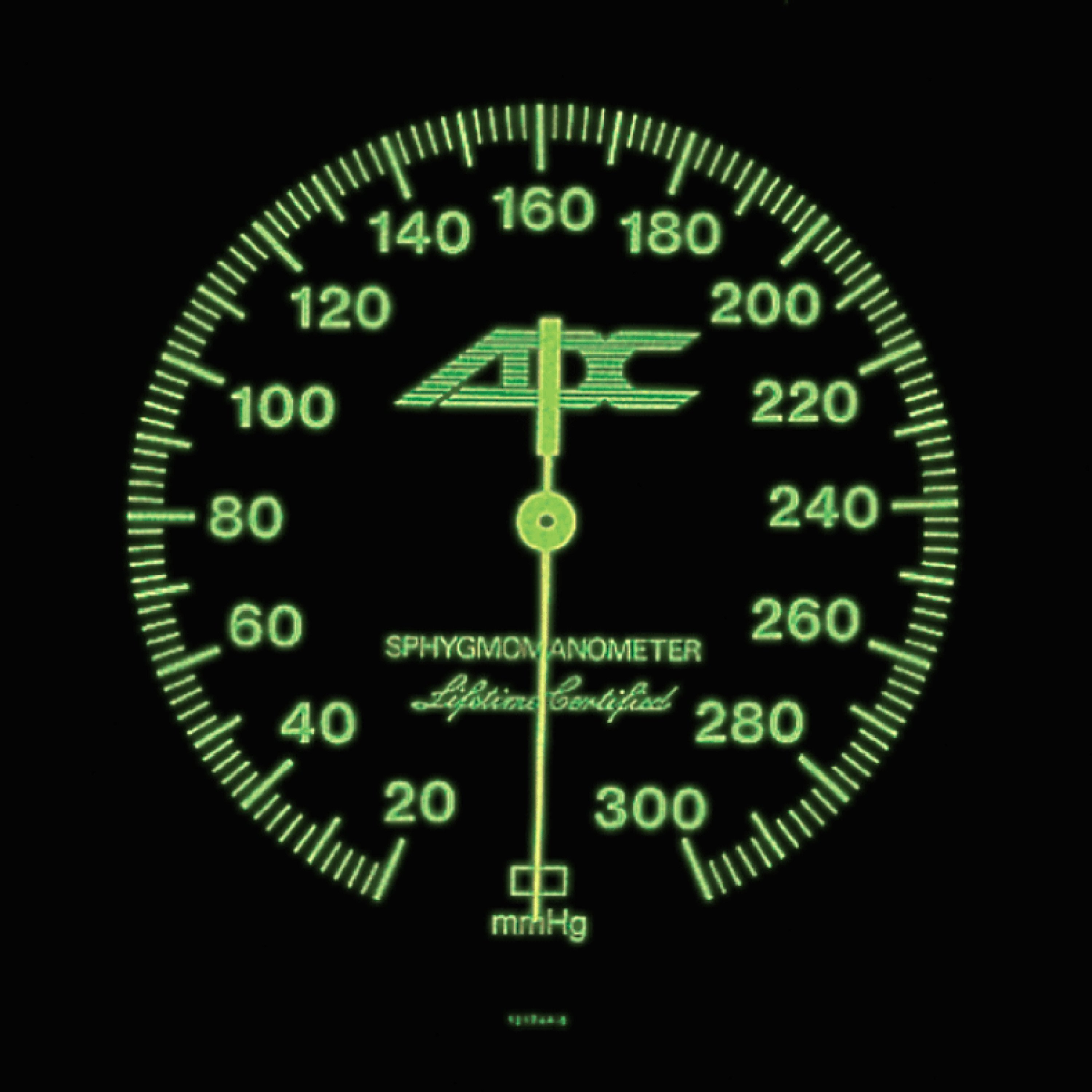

• Clock-style gauge with a large, easy-to-read, 6” luminescent dial for high visibility in virtually any light condition

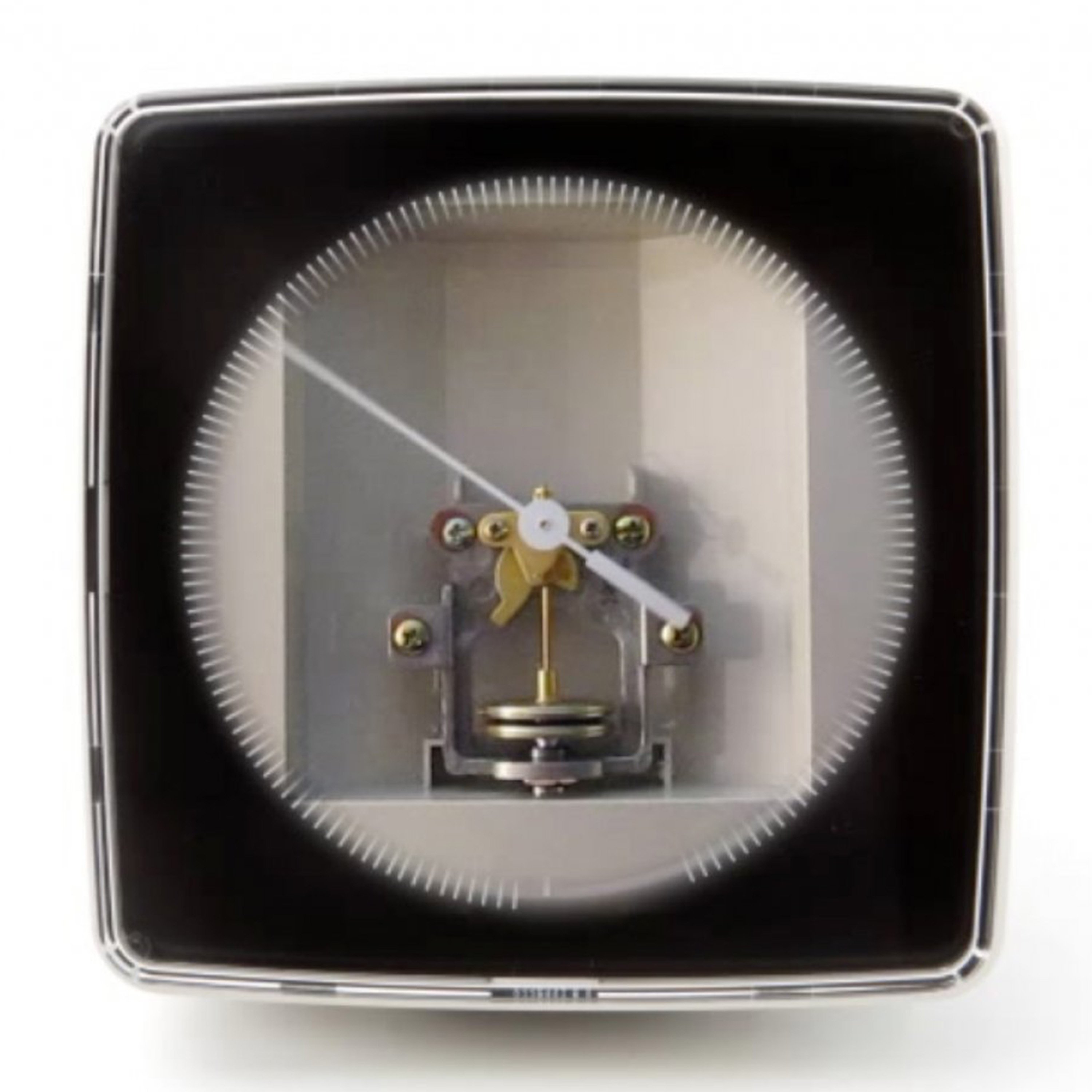

• Precision-crafted, 300 mmHg Japanese-engineered manometer with no-pin stop movement, withstands the heaviest use
• Winter white wrap-around bezel for a finished look

Technical Specifications:

• Sphyg Type: Clock-Desk
• Gauge: 805
• Sphyg Accuracy: ±3 mmHg @ 10°C - 40°C
• Sphyg Accuracy at extended temperature range: ±3 mmHg or 2% whichever is greater @ <10°C and >40°C
• Storage Temperature: -20°C - 55°C
• Valve Type: ADFLOW
• Number of Tubes: 2 Tubes
• Cuff Type: ADCUFF
•  Warranty:
  • Cuffs: 3 Years
  • Gauge: Lifetime
  • Lifetime calibration warranty
