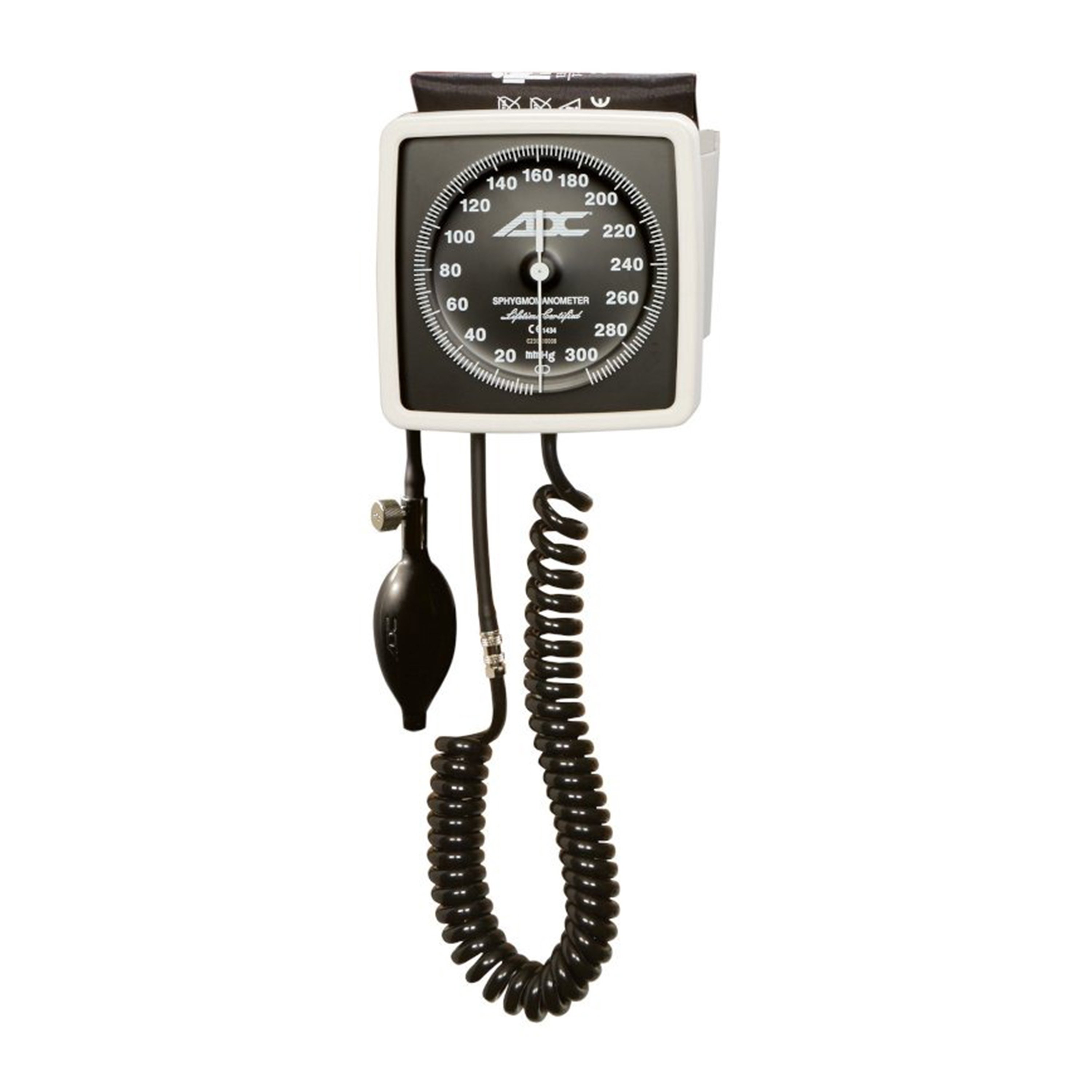

ADC Diagnostix™ Wall Aneroid Sphyg with Adcuff+

The ADC Diagnostix™ Wall Aneroid Sphyg with Adcuff+ is the popular wall model in the 750 clock-face aneroid series. It is the instrument of choice in patient exams and hospital rooms.

Features:

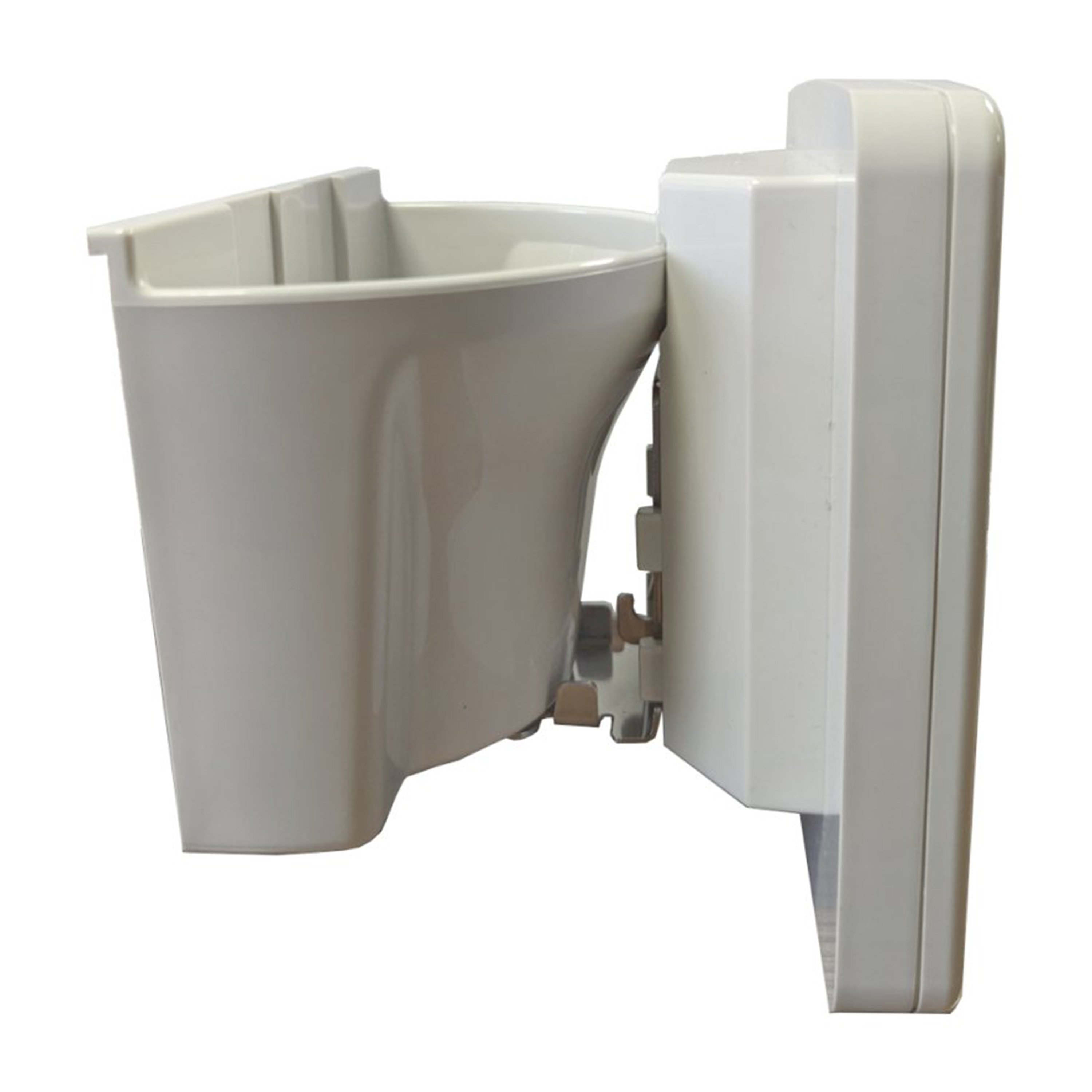

• Wall bracket with integral cuff storage swivels through 110° rotation for easy viewing
• Adflow filter screen check and deflation valve for reduced dust build-up
• Adflow chrome-plated brass air release valve with micro-threads for precise deflation control
• Made without phthalates or natural rubber latex
• Assembled, inspected, and packaged in the USA from foreign components
• Meets or exceeds ANSI/AAMI/ISO 81060-1
• Complete with all necessary hardware and assembly instructions
• Adcuff inflation system comes standard with a nylon cuff, Adflow bulb and valve, and eight-foot length (when extended) coiled tubing

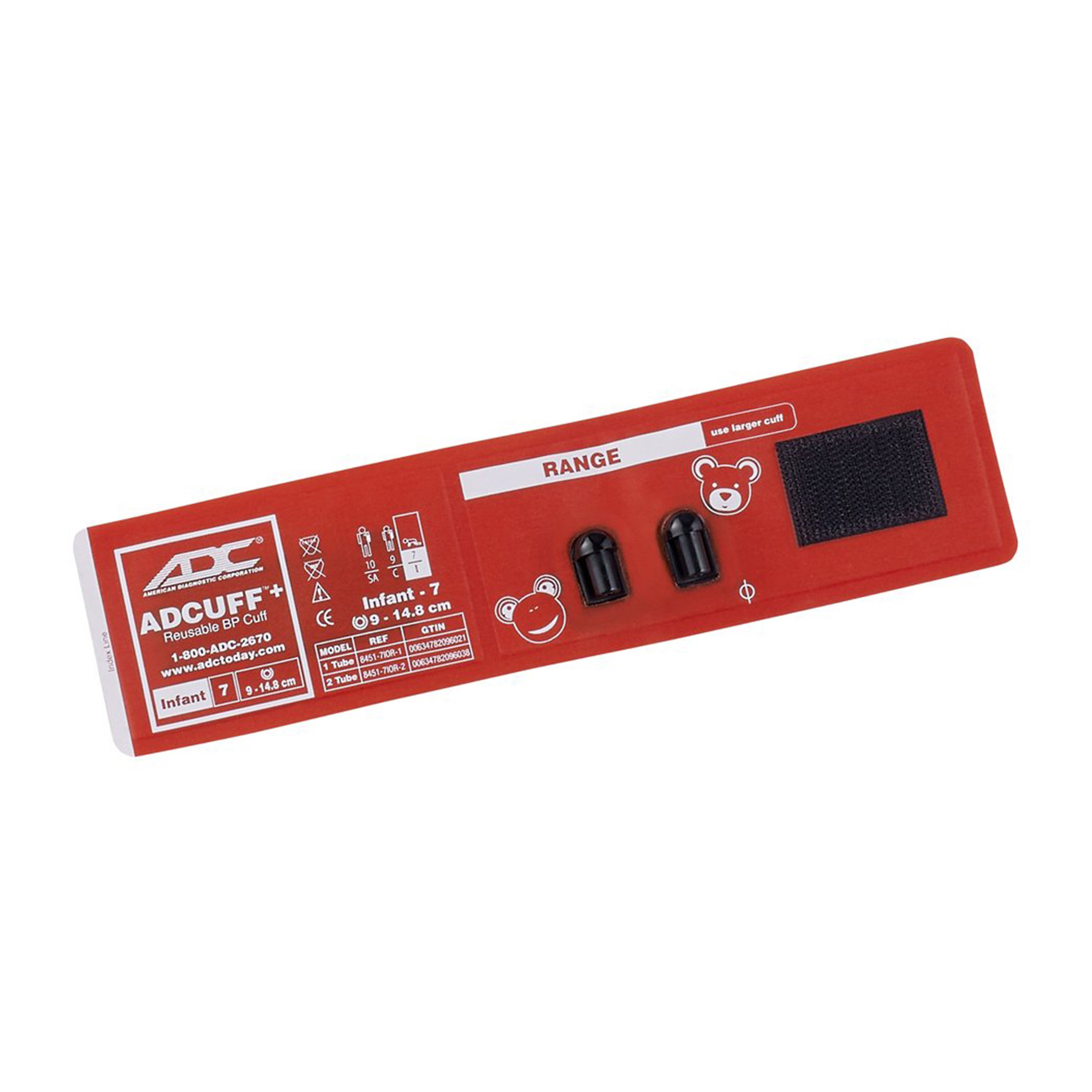

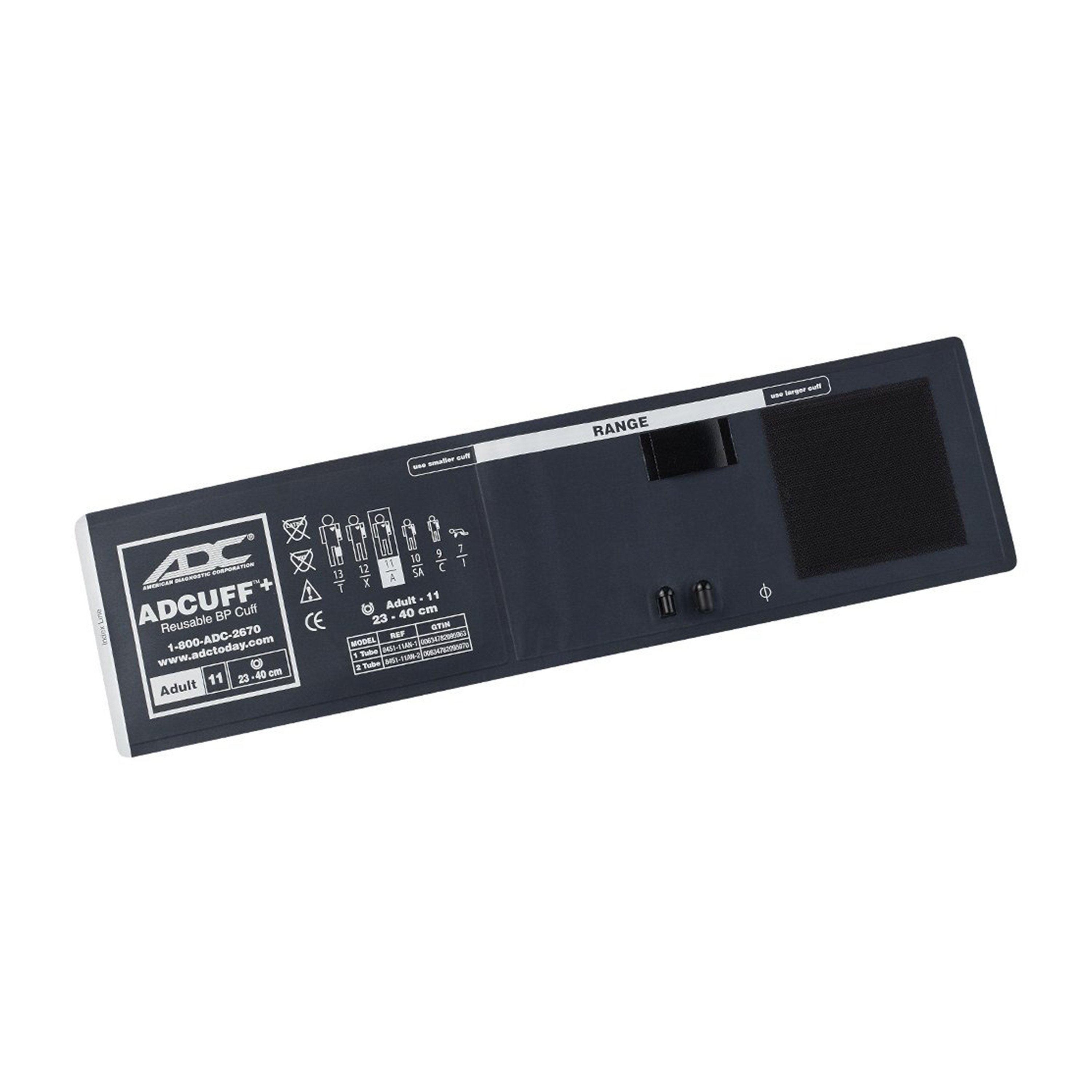

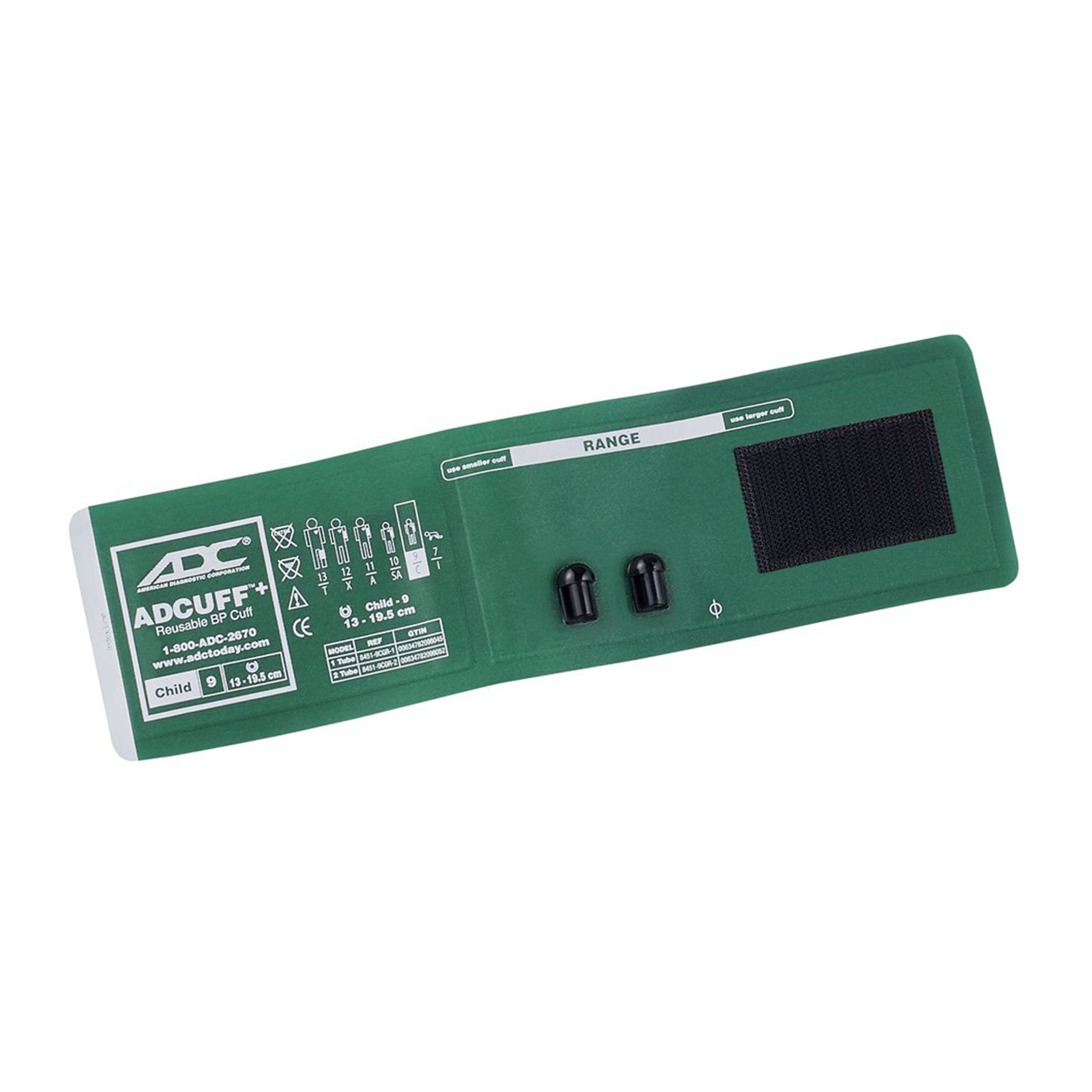

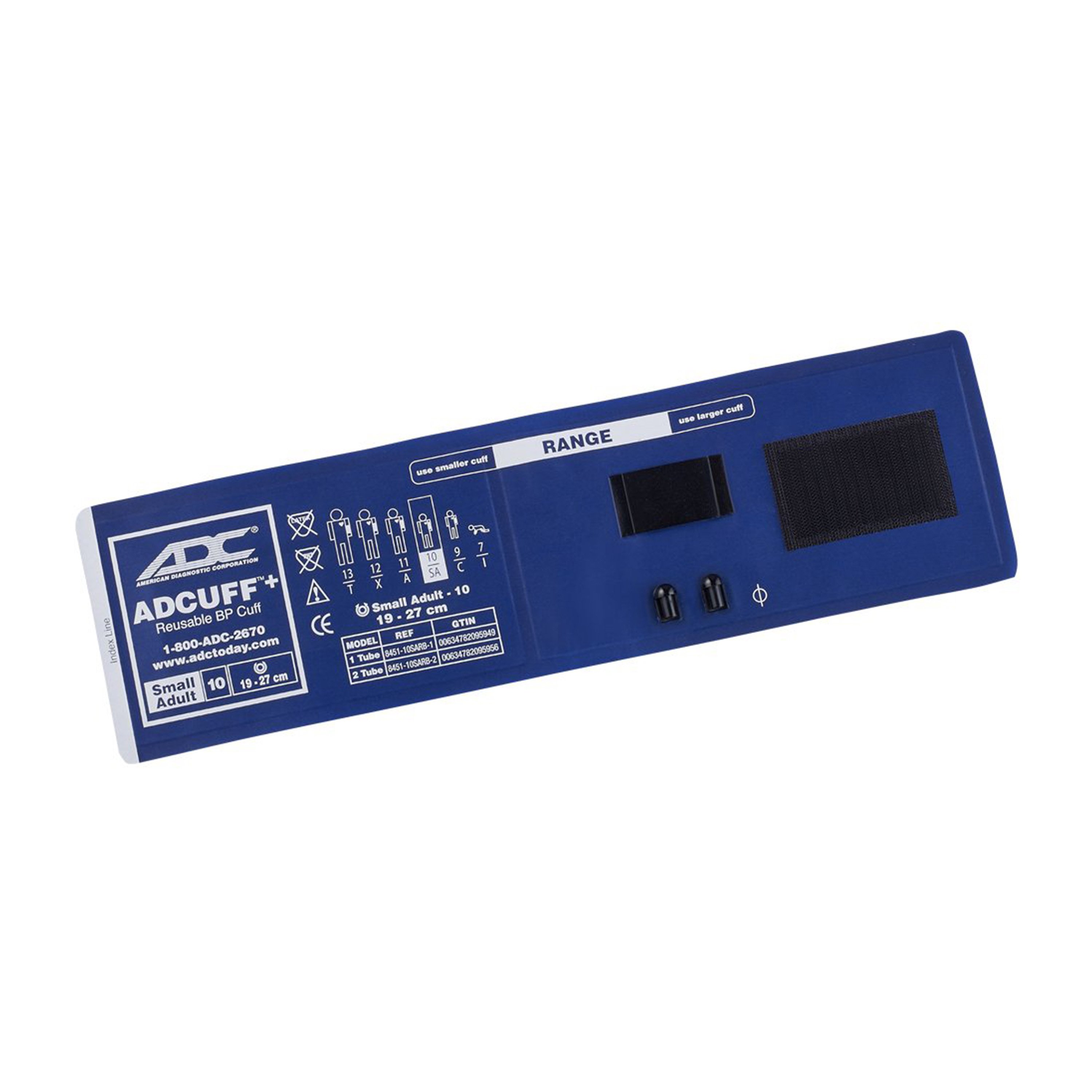

Adcuff+ Features:

• Bladderless construction from TPU-coated, 70 denier nylon that’s simple to use and easy to clean

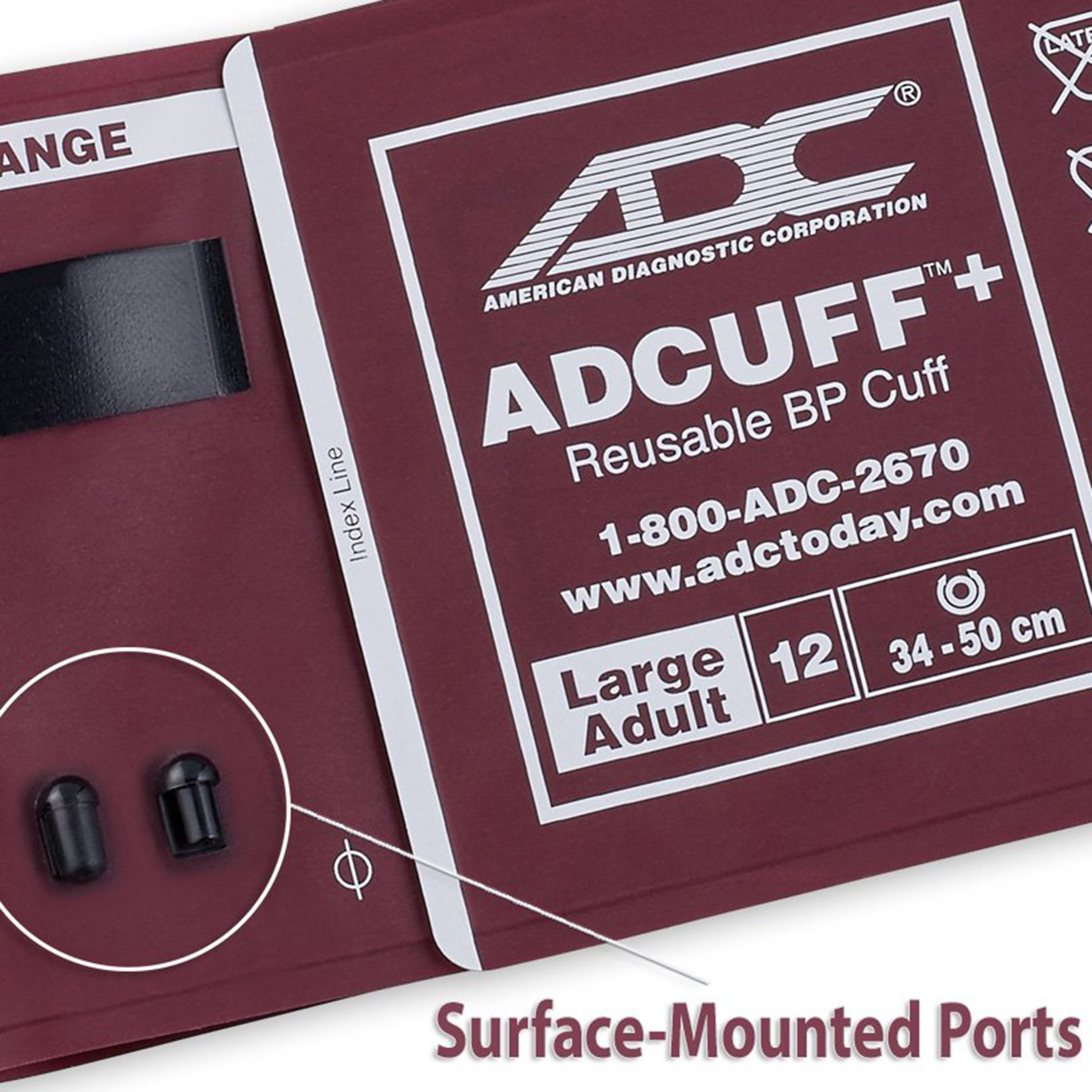

• Surface-mounted tube ports for a more uniform fit around the patient's limb
• ADC’s proprietary Size Guide marking system, which helps prevent mis-cuffing
• Longer limb ranges for improved patient coverage
• Hang tab (on most sizes) fits conventional pocket gauges
• Hook-and-loop adhesive rated for tens of thousands of cycles

Gauge Features:

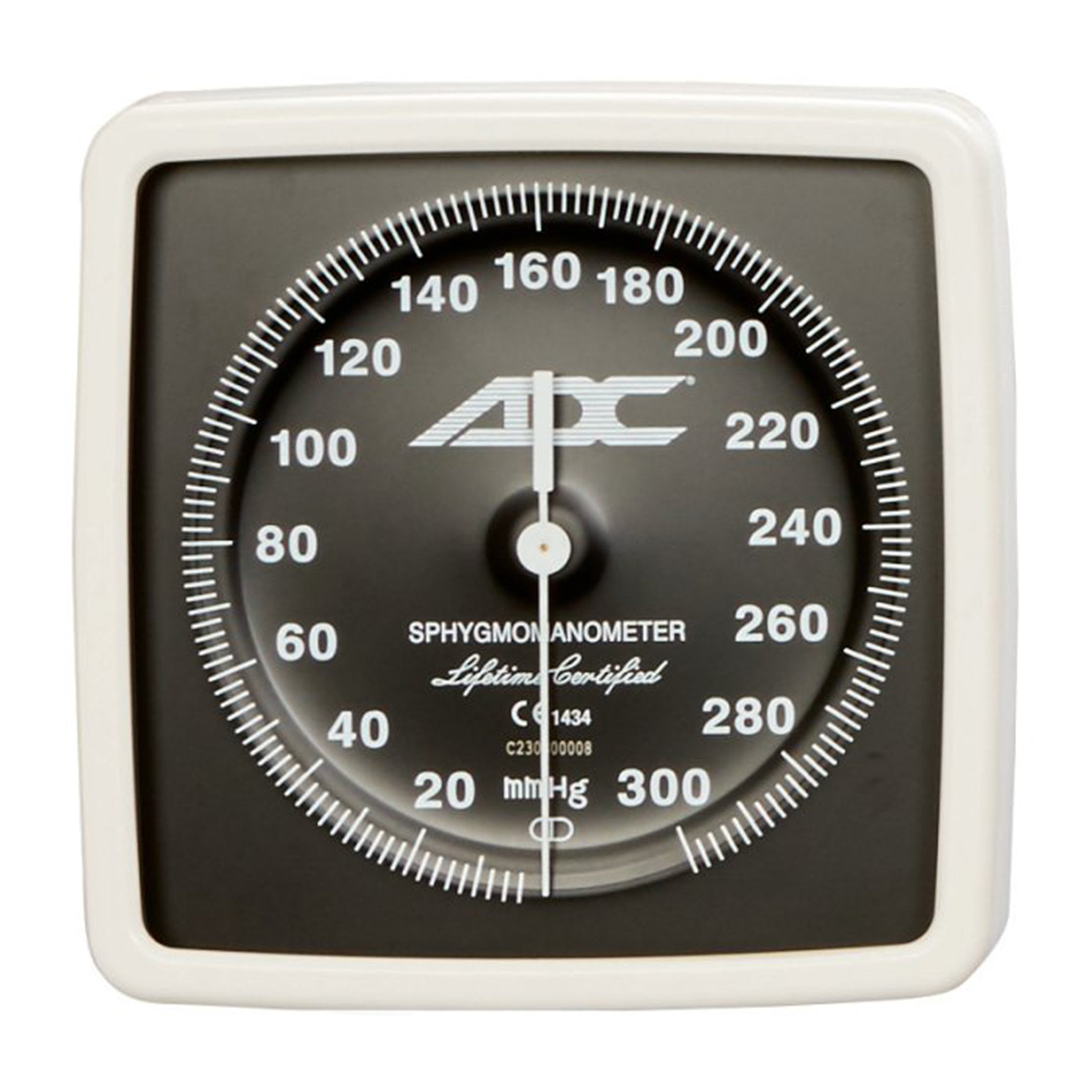

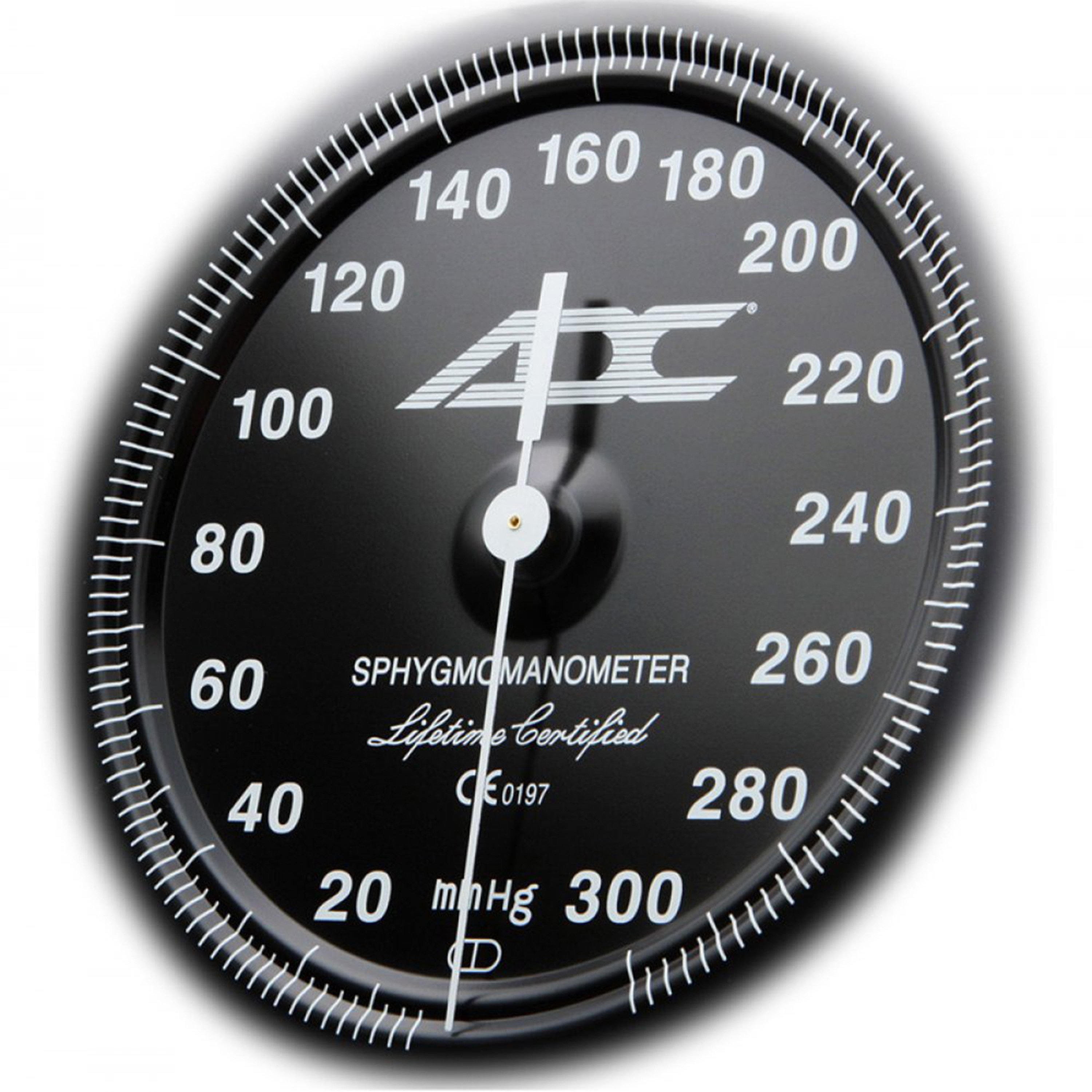

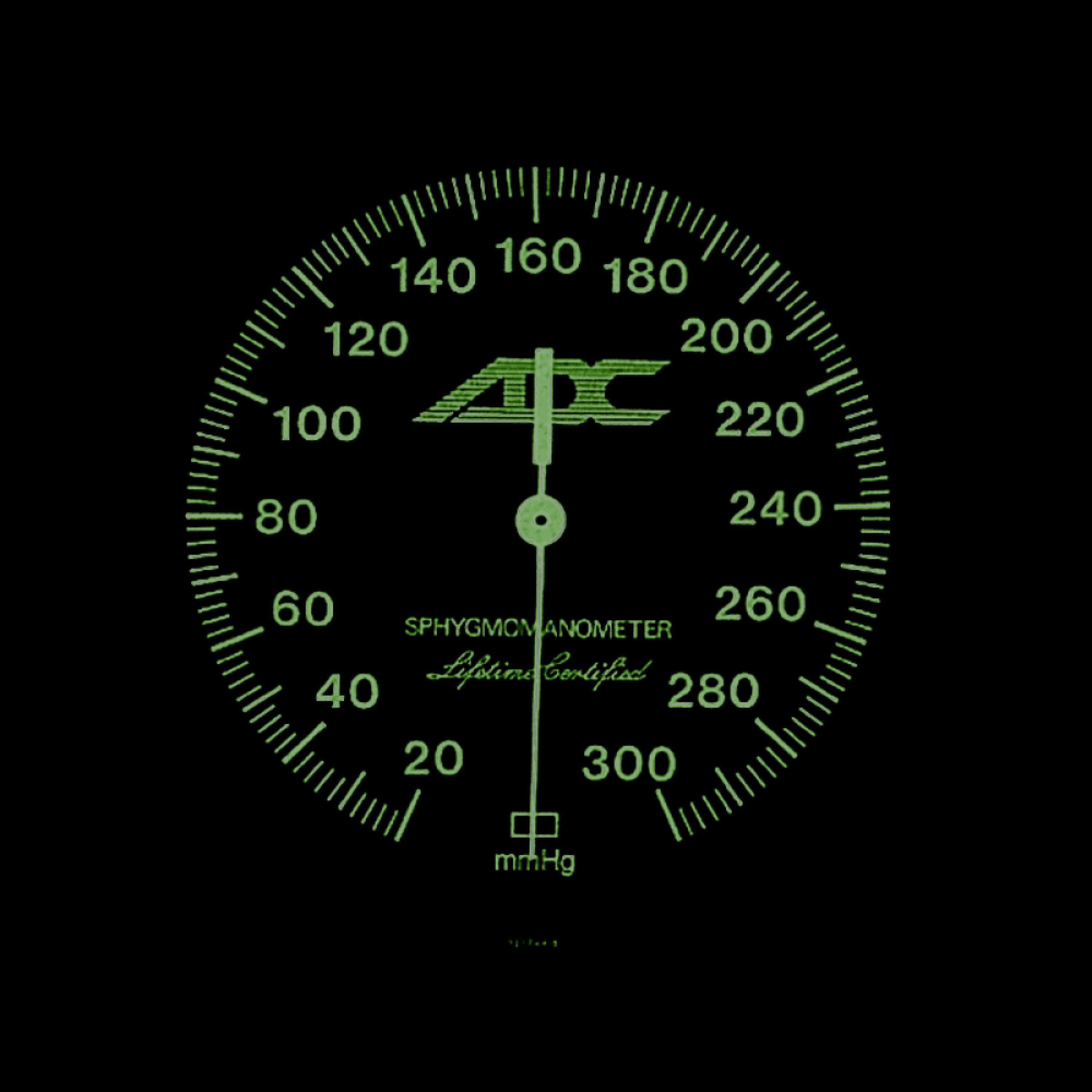

• Clock-style gauge with a large, easy-to-read, 6” luminescent dial for high visibility in virtually any light condition

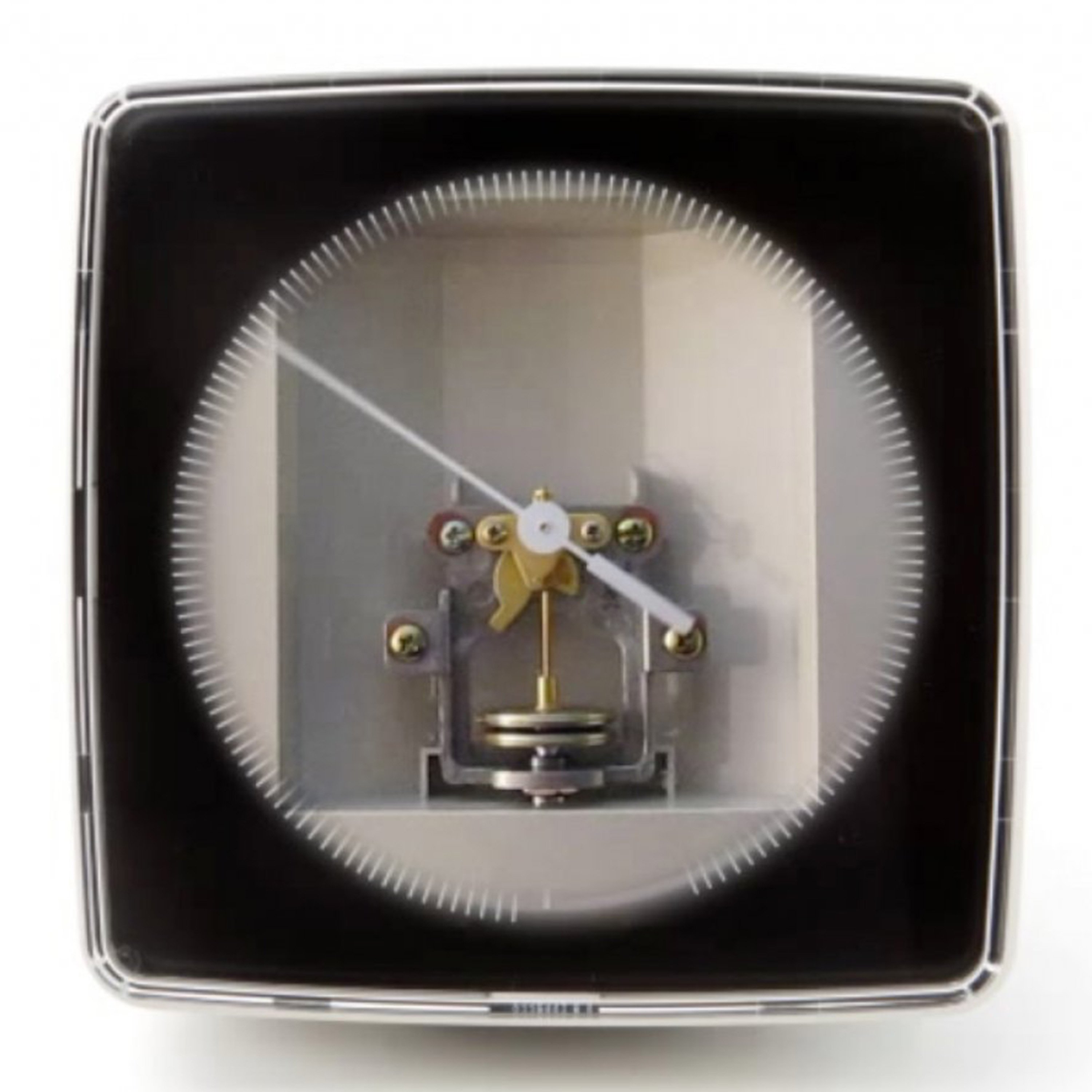

• Precision-crafted, 300 mmHg Japanese-engineered manometer with no-pin stop movement, withstands the heaviest use
• Winter white wrap-around bezel for a finished look

Technical Specifications:

• Sphyg Type: Clock-Wall
• Gauge: 805
• Sphyg Accuracy: ±3 mmHg @ 10°C - 40°C
• Sphyg Accuracy at extended temperature range: ±3 mmHg or 2% whichever is greater @ <10°C and >40°C
• Storage Temperature: -20°C - 55°C
• Valve Type: ADFLOW
• Number of Tubes: 2 Tubes
• Cuff Type: ADCUFF+
•  Warranty:
  • Cuffs: 3 Years
  • Gauge: Lifetime
  • Lifetime calibration warranty
