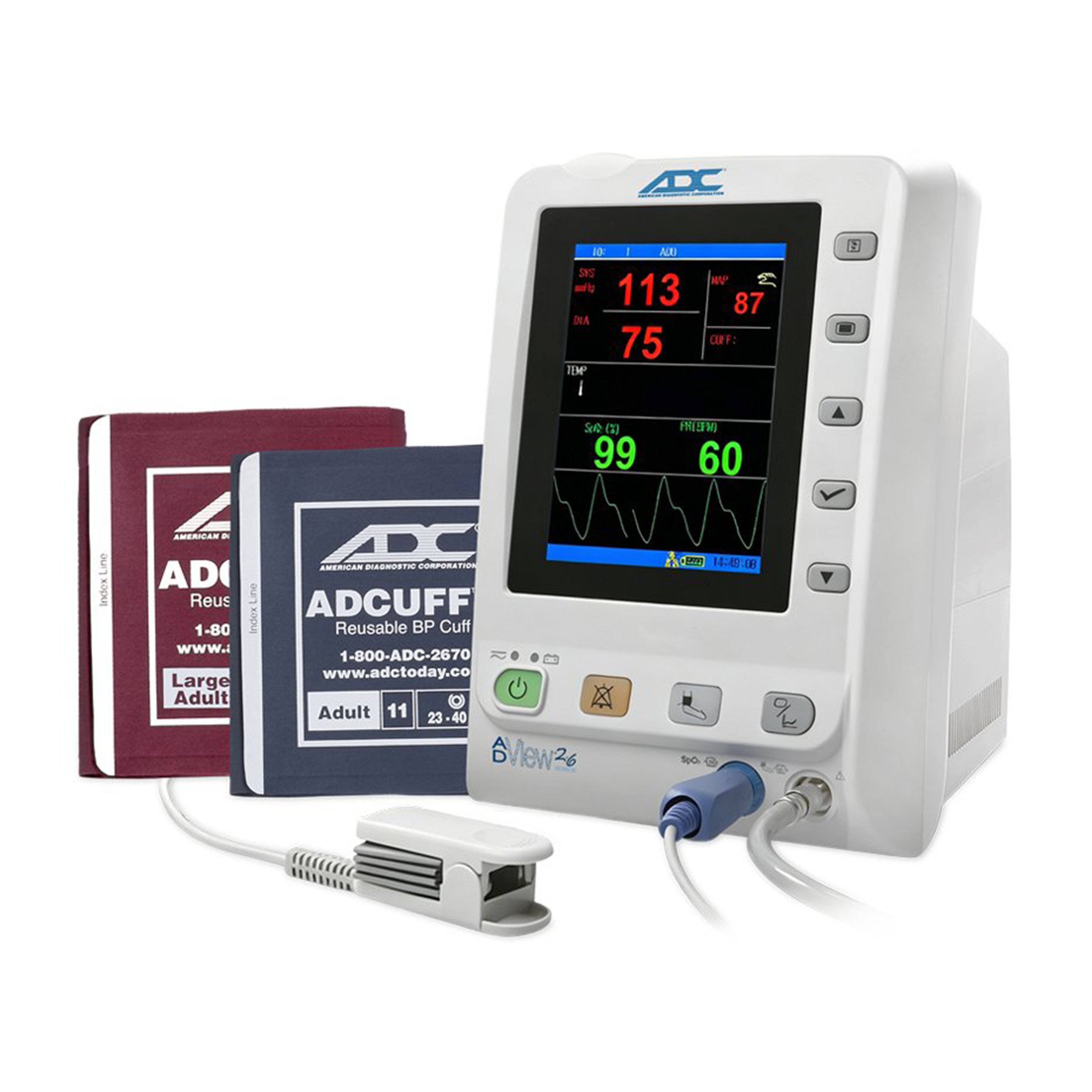

ADC Adview® 2.6 Blood Pressure Diagnostic Station

The ADC Adview® 2.6 Blood Pressure Diagnostic Station is a modern, compact, self-standing design with a built-in handle for instant portability.

Features:

• Automated blood pressure measurements at the touch of a button, with both pulse rate and mean arterial blood pressure (MAP)
• Pulse oximetry module to measure oxygen saturation of arterial blood flow
• Pediatric mode to ensure accurate measurements for younger patients
• Designed to support both adult and pediatric patients
• Large, full-color, high-resolution TFT LCD
• Intuitive interface helps clinicians access measurements quickly with minimal training
• Built-in memory with 72-hour trend data for all parameters and storage of 30,000 NIBP measurement results and 5-hour SpO2 waveform
• View current measurements alongside trends to help identify changes in patient condition over time
• Rechargeable lithium-ion battery delivers up to 14 hours of continuous operation, reducing downtime and supporting mobile care
• Made without phthalates or natural rubber latex
• Meets or exceeds ANSI/ AAMI/ISO 81060-2:2013 for non-invasive accuracy

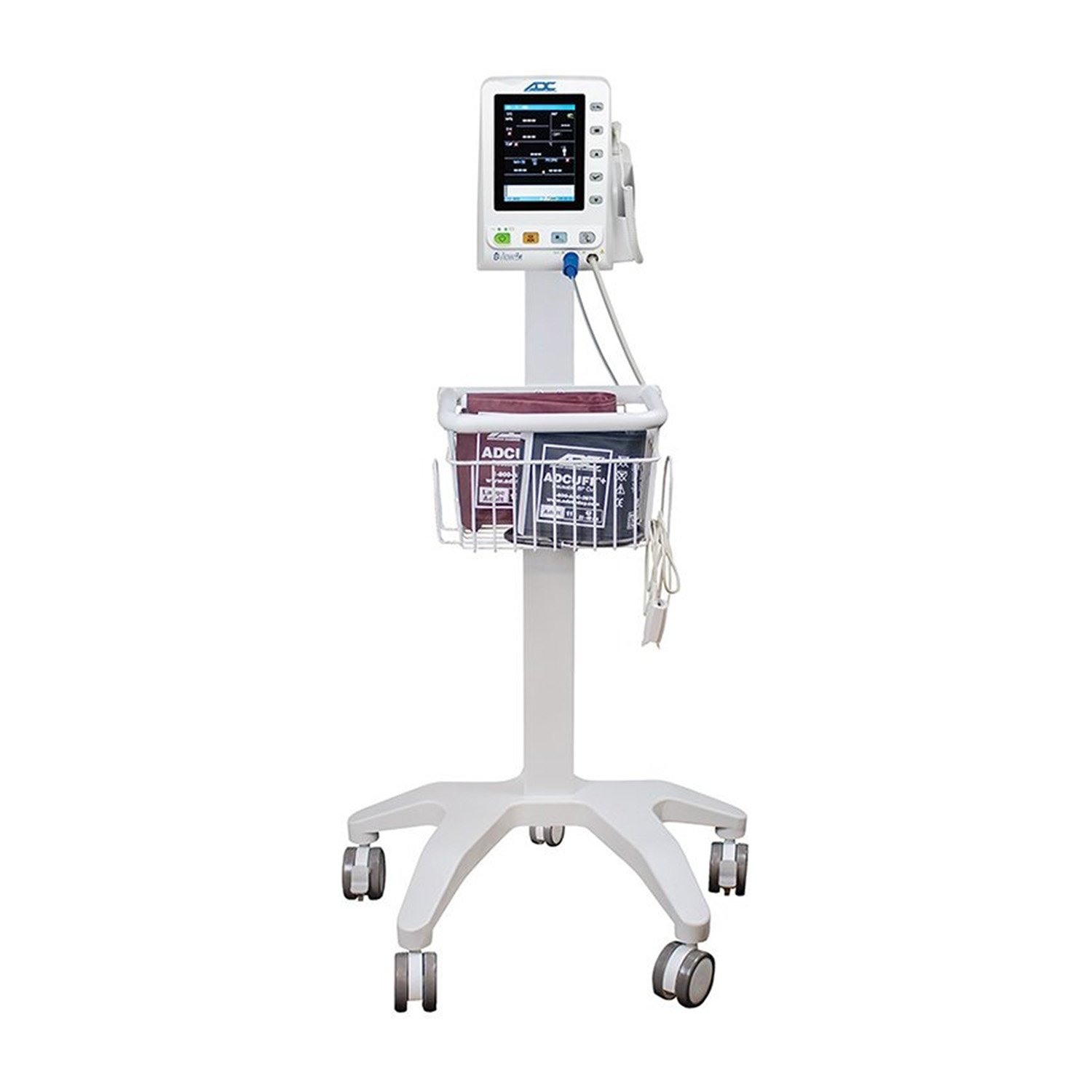

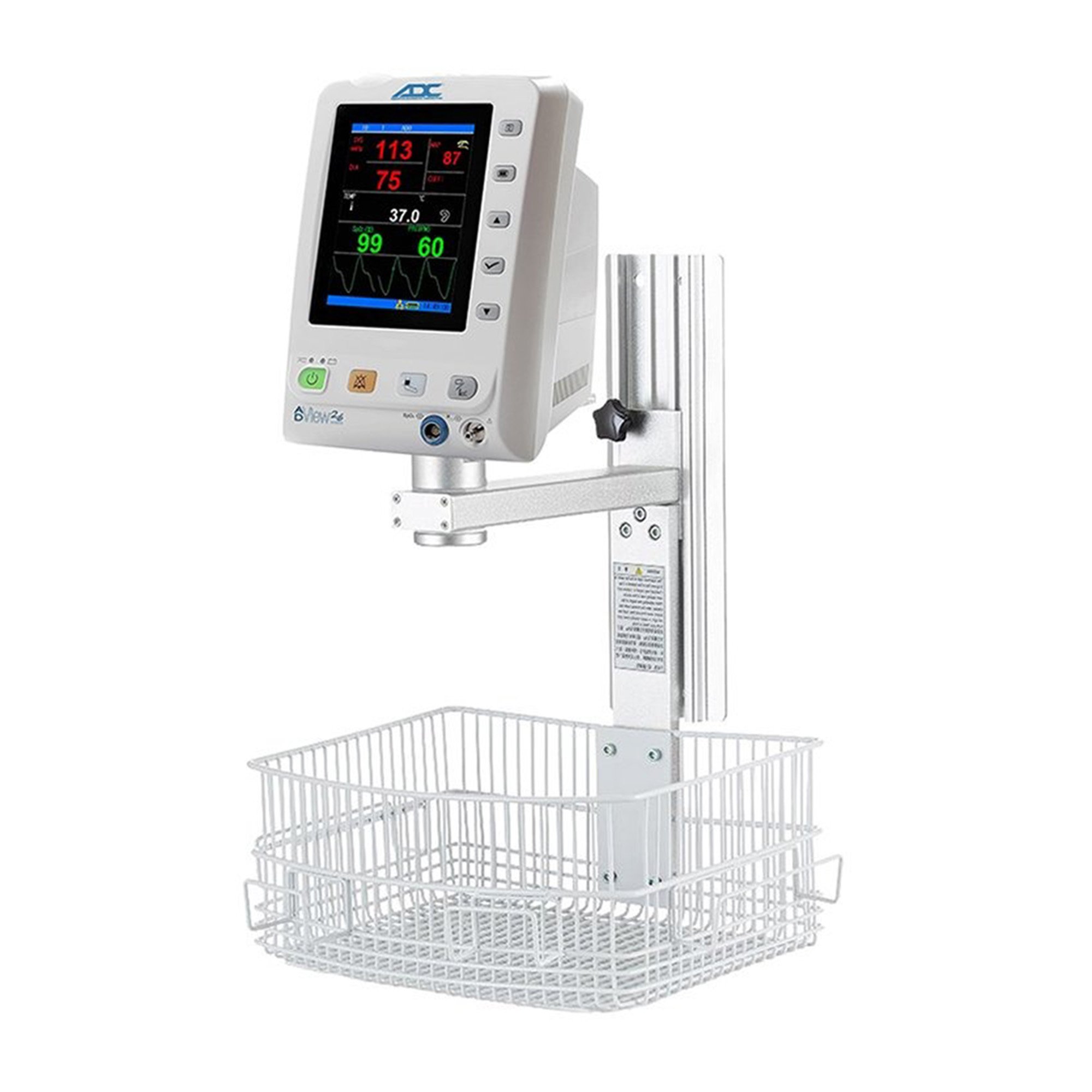

• Optional wall mount (9006WB) and mobile stand (9006M2) for optimized workflow

Adcuff+ cuffs Features:

• Bladderless construction from TPU-coated, 70 denier nylon that’s simple to use and easy to clean
• Surface-mounted tube ports for a more uniform fit around the patient's limb
• ADC’s proprietary size guide marking system, which helps prevent mis-cuffing
• Longer limb ranges for improved patient coverage
• Hook-and-loop adhesive rated for tens of thousands of cycles

Comes Standard With:

• All Models: (9006BPS, 9006BPSP, 9006BPSTT, 9006BPSTTP, 9006BPSTO, and 9006BPSTOP)

  • (1) Rechargeable lithium-ion battery
  • (1) U.S. power cord
  • (1) 10-foot tubing
  • (1) Adult finger sensor
  • (1) 8-foot extension cable
  • (1) Adult and (1) Large adult Adcuff+ cuffs
• *9006BPSTT and 9006BPSTTP:

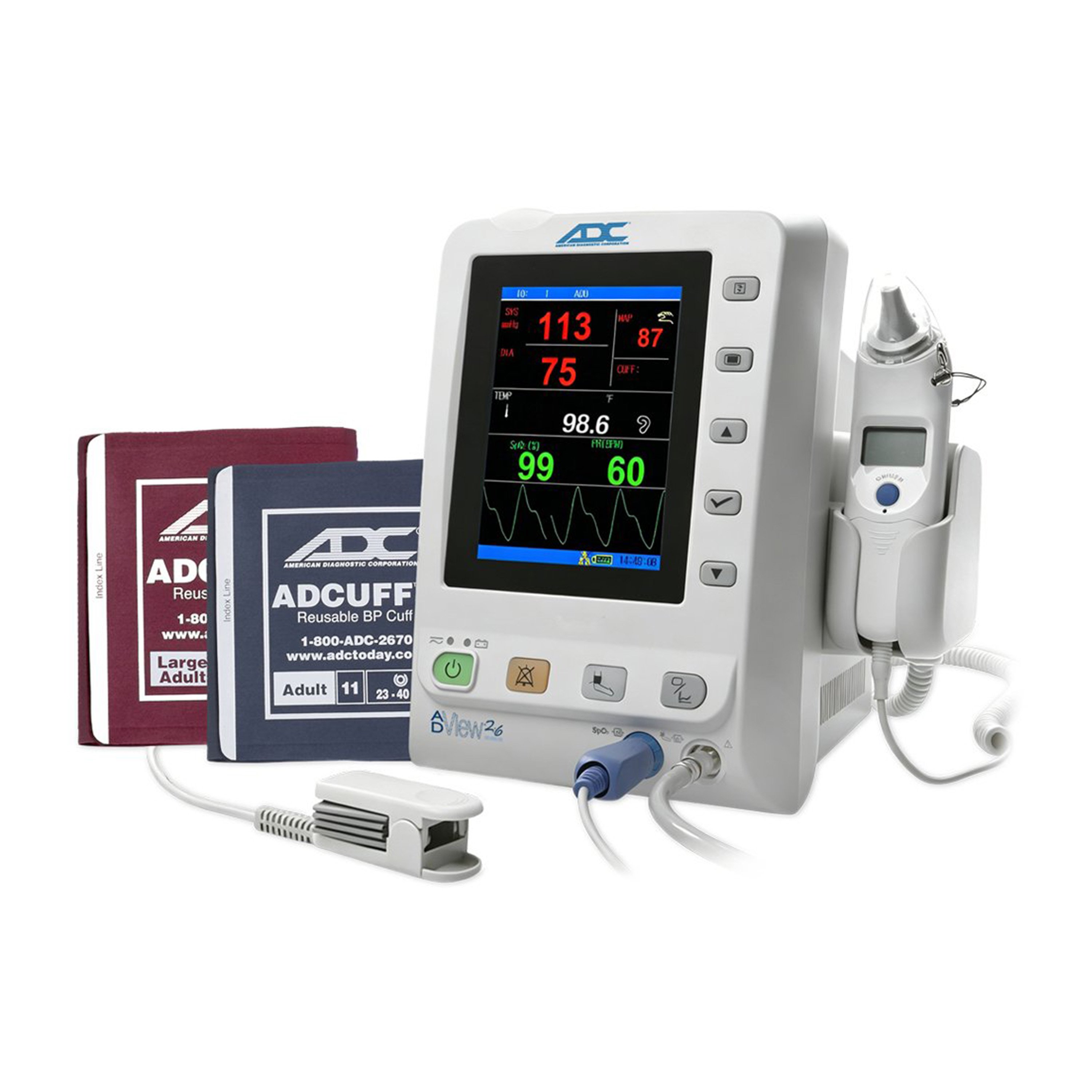

  • (1) Infrared thermometer
  • (1) Cradle
  • (1) Probe cover dispenser
  • (1) Box of 40 probe covers
• **9006BPSTO and 9006BPSTOP:

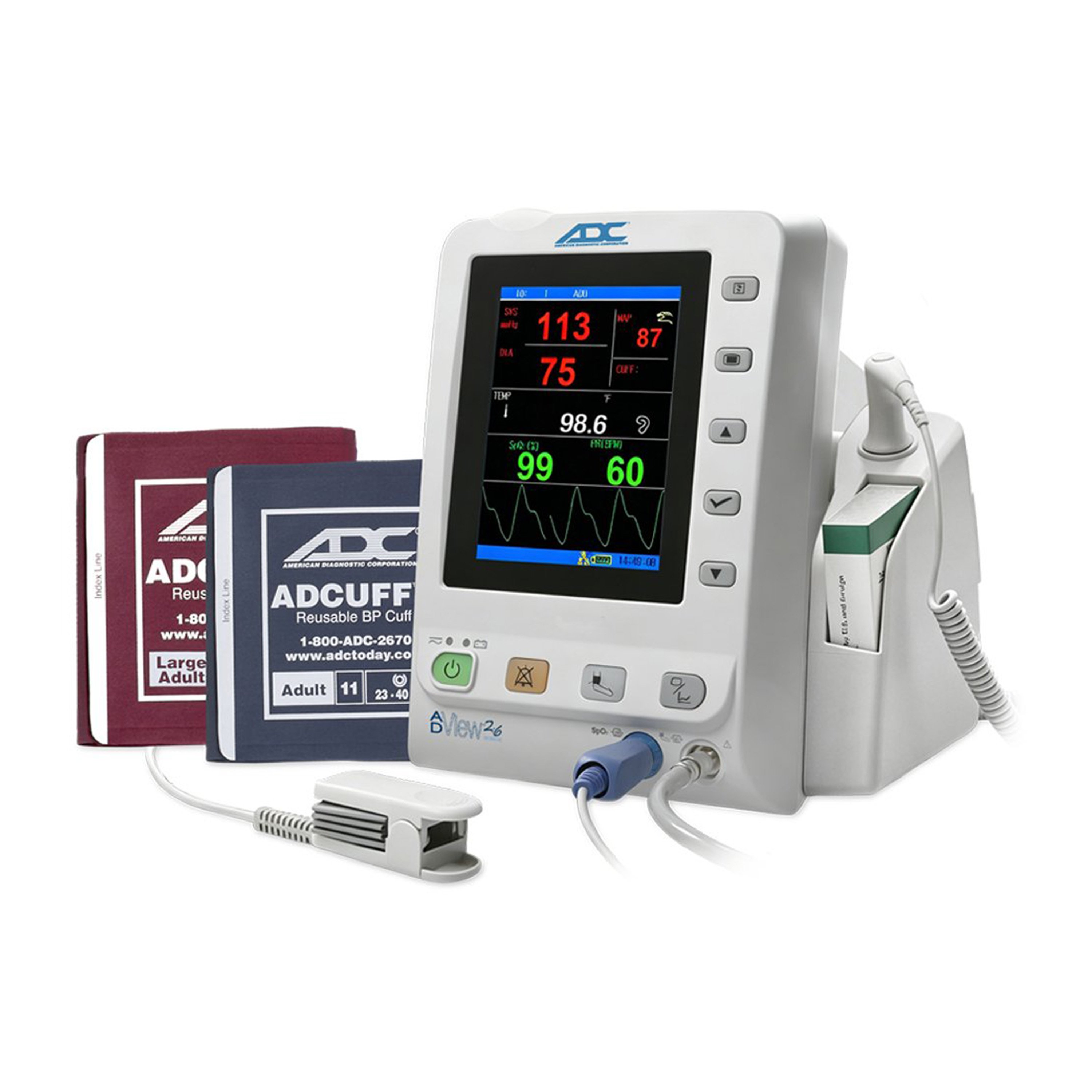

  • (1) Temperature probe
  • (1) Probe well
  • (1) Box of 25 probe covers

Technical Specifications:

• Sphyg Type: NIBP
• Sphyg Accuracy: +/-5 mmHg mean error with 8 mmHg SD
• Sphyg Accuracy at extended temperature range: 0°C - 40°C
• Storage Temperature: -20°C - 55°C
• Number of Tubes: 1
• Cuff Type: ADCUFF +
• Cuff Size: Adult and Large Adult
• Cuff Range:
  • Adult: 9.0" - 15.75"
  • Large Adult: 13.39" - 19.69"
• Display:
  • Screen: 5.6" color TFT
  • Resolution: 640 x 480
• Power Supply: 100-240V∼, 50/60 Hz
• Battery Type: Rechargeable lithium-ion
• Main Unit Overall Dimensions: 9.25" L x 6.85" W x 7.44" H
• Main Unit Approximate Product Weight (Battery not included): 5.50 lbs
• Warranty:
  • Adview® 2.6 Blood Pressure Diagnostic Station: 3 Years
  • Cuffs: 3 Years
  • SpO2 Sensor: 90 Days

Available Options:

Please note: The wall mount and mobile stand are sold separately. Other equipment and props shown in the photo are not included.
