Product Description

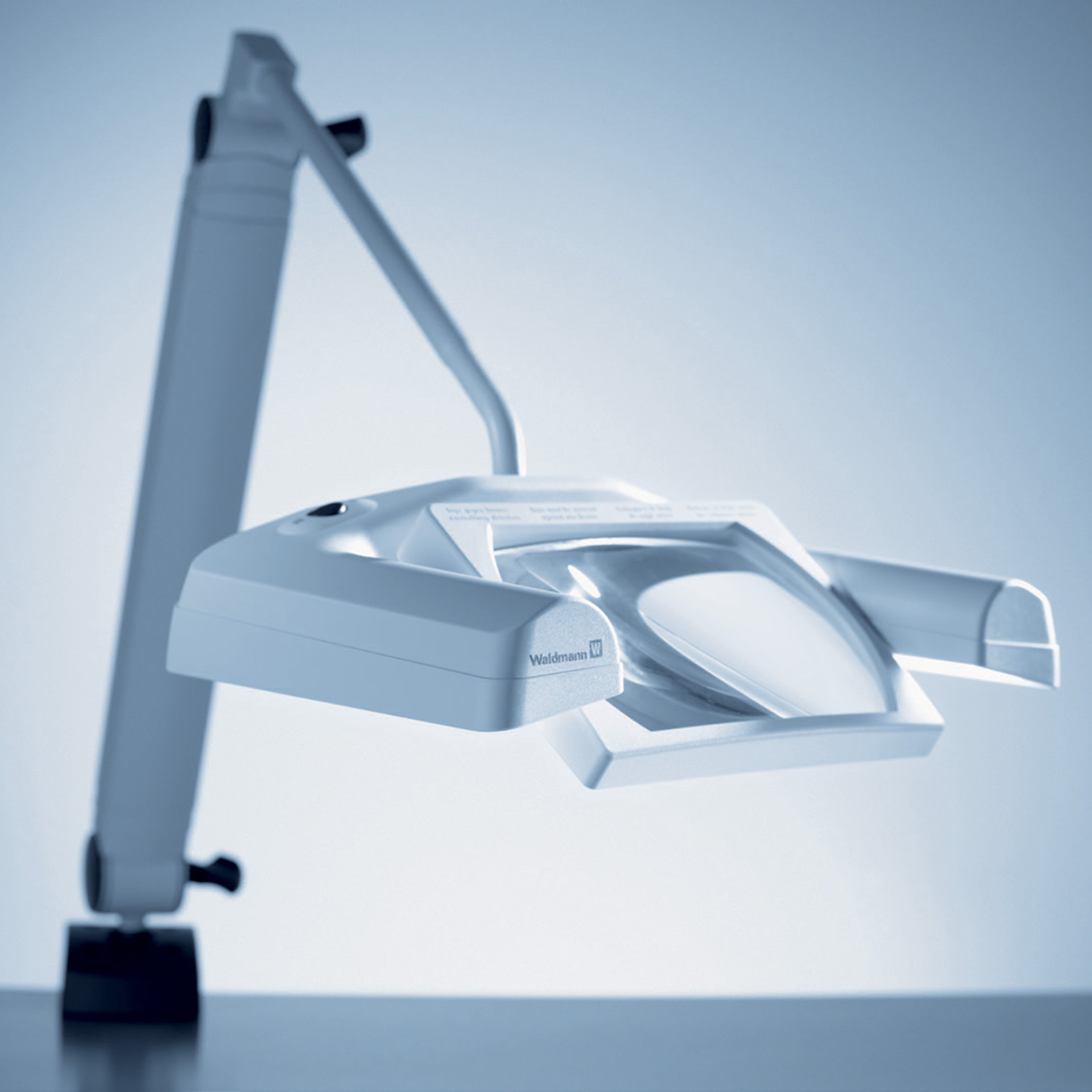

This OmnivueMax™ LED Magnifier Light features a distinctive, fully rotational stadium-shaped magnifier lens for precise positioning and wide area magnification. By positioning the magnifier independently of the light source, excellent visual contrast can be achieved, allowing for precise inspection. Two rocker switches, conveniently built into the luminaire head, provide on/off switching as well as options for the amount of light necessary for each individual task.


  • Three 3.5-watt LED modules provide two light levels: using either two side sections or all three for even more glare-free lighting
  • The magnifying lens tilts independently of the light source for optimum positioning
  • A 3-diopter (1.75 X) magnifying lens is made from optical-quality glass
  • With a 43” reach, it is ideal for production benches and workstations
  • Solid one-piece robust arm construction allows the Omnivue™ LED to stay in place.
  • Two optional Add-x lenses are available for additional magnification up to 15 diopters (Sold Separately)
  • Output is controlled with a 2-way-switch

Technical Data:

  • Product Type: Magnifier Light
  • IP Rating: IP 20
  • Class of Protection: Class I
  • Color Temperature: 5000K
  • Color Rendering Index (CRI): ≥80
  • Lumens: 1500
  • Voltage:  120V AC
  • Frequency: 50/60 Hz
  • Average Life Hours: 50000
  • Work Equipment: LED Converter
  • Color Finish: Light Gray
  • Arm Length: 35"
  • Arm Type: Articulating
  • Luminaire Body Material: Steel Tube, Painted, Light grey
  • Fitted With: 3 x 3.5 W LED modules
  • Certifications:
    • ETL/cETL Approved
    • CE marked
  • Magnifier/Lens:
    • Dimensions: 4.2" x 6.4"
    • Material: Borosilicate Glass
    • Strength: 3 Diopters
  • Magnification: 1.75x
  • Actual Product Weight: 10.4 lbs
  • Mounting Type: Table Clamp (Included)
SKU Plug Type Product Dimensions Wattage Cord Length
113178006 2-prong 11.7" L x 7.6" W x 38.6" H 13.2W 11 ft
113460006 3-prong 11.7" L x 7.6" W x 46.2" H 12W 9.84 ft


Manufacturer Waldmann
Latex Free Yes
Actual Product Weight 10.4 lbs
Country of Manufacture Germany
Item Ships From Illinois


(Size: 1.4 MB)
(Size: 623.9 KB)
(Size: 1.2 MB)
SKU: 113178006
(Size: 499.8 KB)
SKU: 113460006
(Size: 221.5 KB)


LIMITED WARRANTY: Waldmann warrants to the purchaser that for a period of five (5) years from the date of shipment (“Warranty Period”) of the qualified products, when delivered in new condition and in its original packaging, they will be free from defects in materials and workmanship and will conform to the published product specifications. Qualified product determined by Waldmann to be defective after return to Waldmann or to a service agent authorized by Waldmann during the Warranty Period will be, at Waldmann’s sole discretion and without charge to purchaser:

a.) Repaired utilizing new or comparable refurbished parts or;

b.) Exchanged for new or refurbished qualified product or;

c.) Refunded for the purchase price paid by purchaser for the defective qualified product.

Except where prohibited by law, the requirements under this Section shall be Waldmann’s sole obligation and liability to purchaser for claims under this Warranty. Qualified product that is repaired or replaced under this Warranty will continue to be covered for the longer of i.) one hundred eighty (180) days from the date of return shipment by Waldmann, or ii.) the remaining duration of the applicable Warranty period.

For Complete Warranty Details, please see the literature above.


Products must be returned in unused, resalable condition with the original packaging. Please contact Customer Service for a valid return authorization within 30 days of receipt of purchase. A minimum restocking fee of 20% of the purchase price will be deducted from the refund. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.

Custom made products are non returnable and non exchangeable.
