Burton Medical Epic® LED Magnifier
Product Description
Burton's Epic® LED Magnifier is specifically designed to withstand the rigors of everyday use in cosmetology, industrial, manufacturing, and cleanroom applications. It perfectly combines light quality, positionability, and large viewing area.
Features:
- The rugged and flexible arm and neck system stays exactly where it's positioned and doesn't require tightening or lock mechanism adjustments

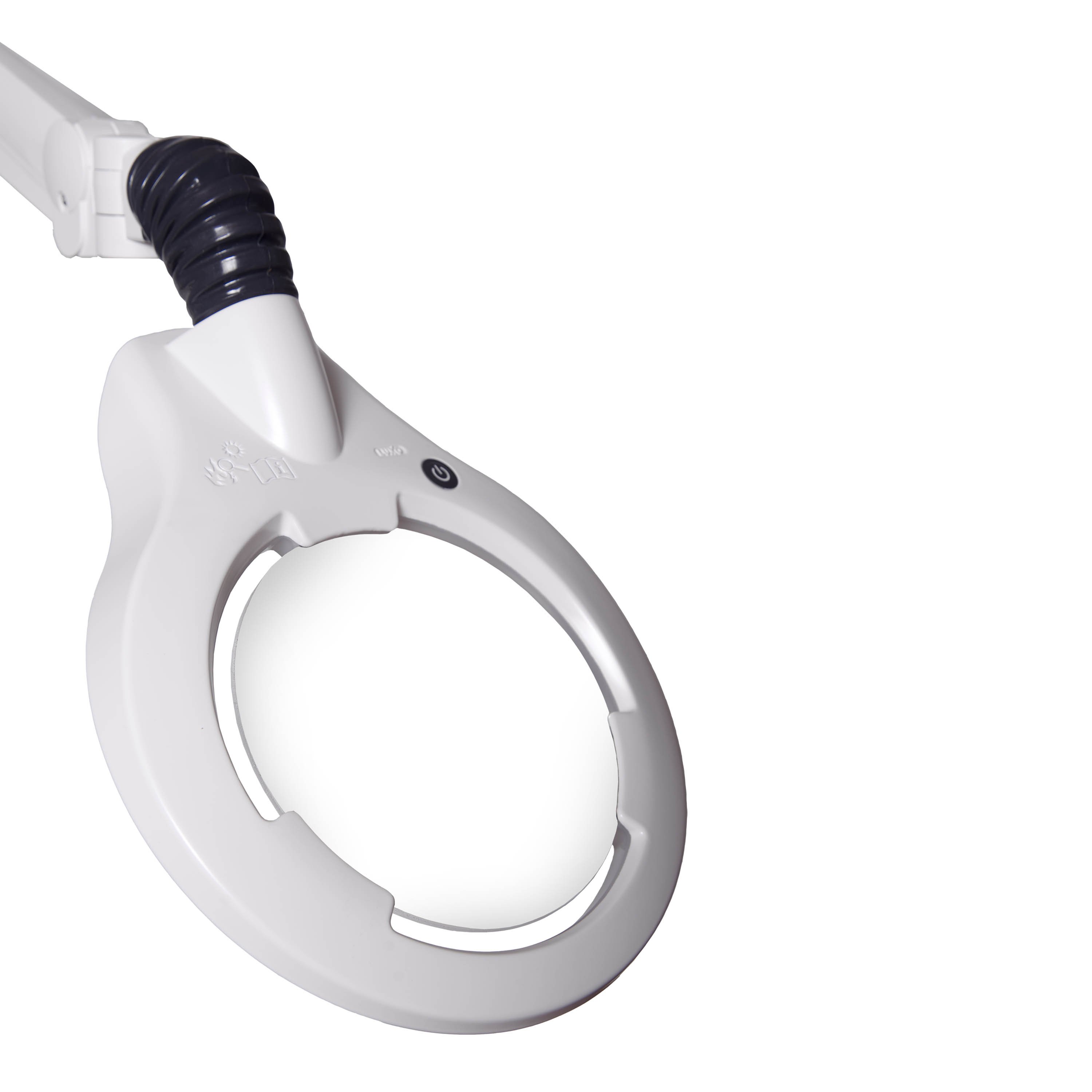

- Large lens, aluminum head, and a highly flexible self-balancing arm and shade neck
- The large lens also permits comfortable viewing for individuals with impaired vision

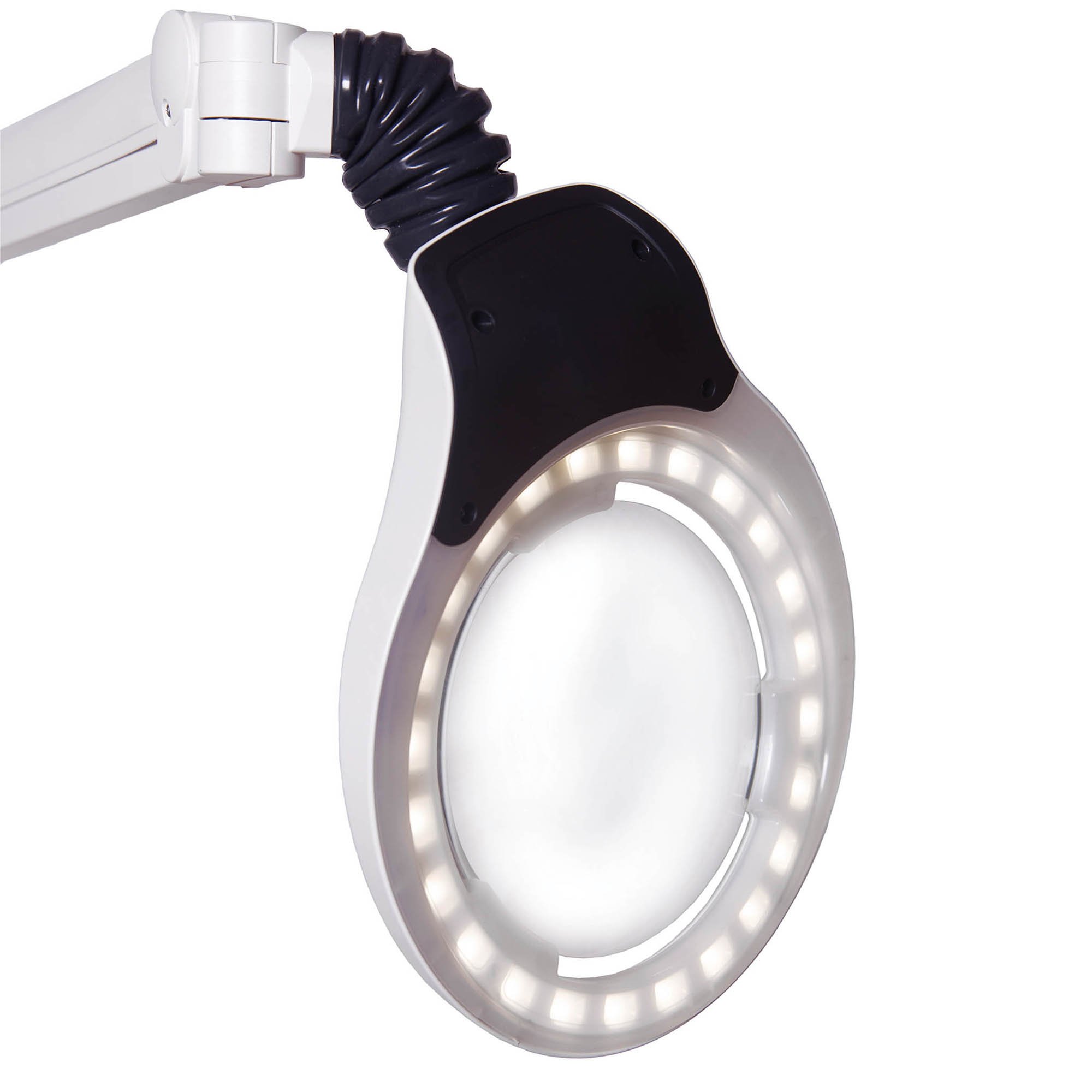

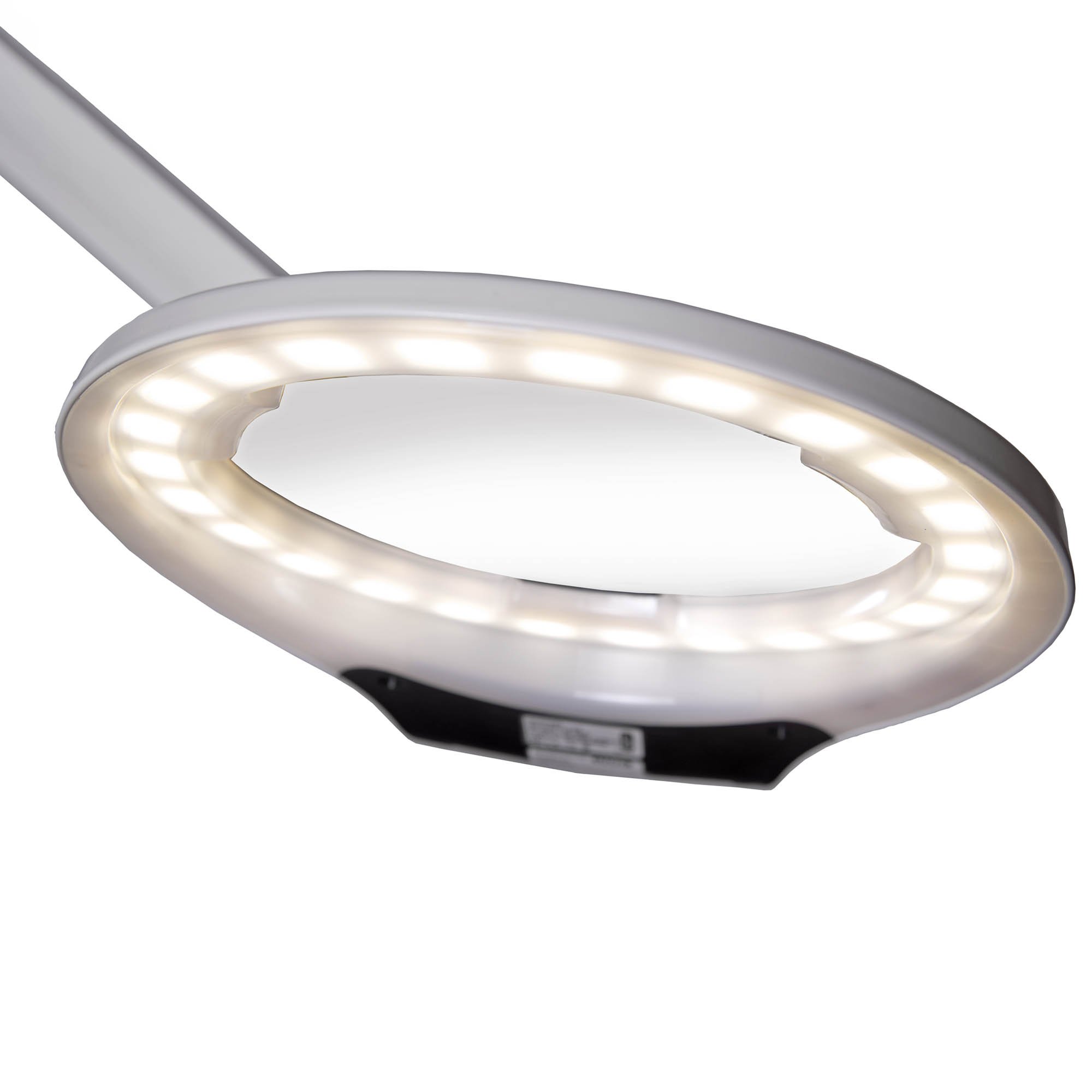

- Includes a circular LED module that virtually eliminates shadows and provides color rendering
- Superb light quality; 90 CRI, 4000 Kelvin
- 10-100% dimming capability
- Auto shut-off
- Low maintenance LED array
- Smooth surface, easy to clean, anti-microbial coating
- Medical standards approved
- Certifications/Approvals: IEC 60601-1 (SAFETY), EC 60601-1-2, (EMC), IEC60601-2-41, IEC 60601-1-6, CAN/CSA-22.2 60601-1:14
- 5-year limited warrant
Technical Data:
- Optics: 3.5 Diopter
- Total Magnification: 1.88X
- Magnification %: 188%
- Focal Length: 11"
- Viewing Area Diameter: 6.5" (16.5 cm)
- Illuminance:
- 1360 Lux (126 fc) at 8" (20 cm)
- 2000 Lux at 24″ (0.6 m)
- 3830 Lux (135 fc) at 11" (28 cm)
- Color Temperature: 4000 Kelvin
- Color Rendering Index (CRI): 90
- Light Sources: Light Emitting Diode (LED)
- Rated Life of LED: 50000-hours average rated LED life
- Power: 100-120V; 10 Watts
- Plug Type: NEMA 5-15P
- Maximum Arm Reach: 39" (99 cm)
- Applications: General examination
- Mounting Options:

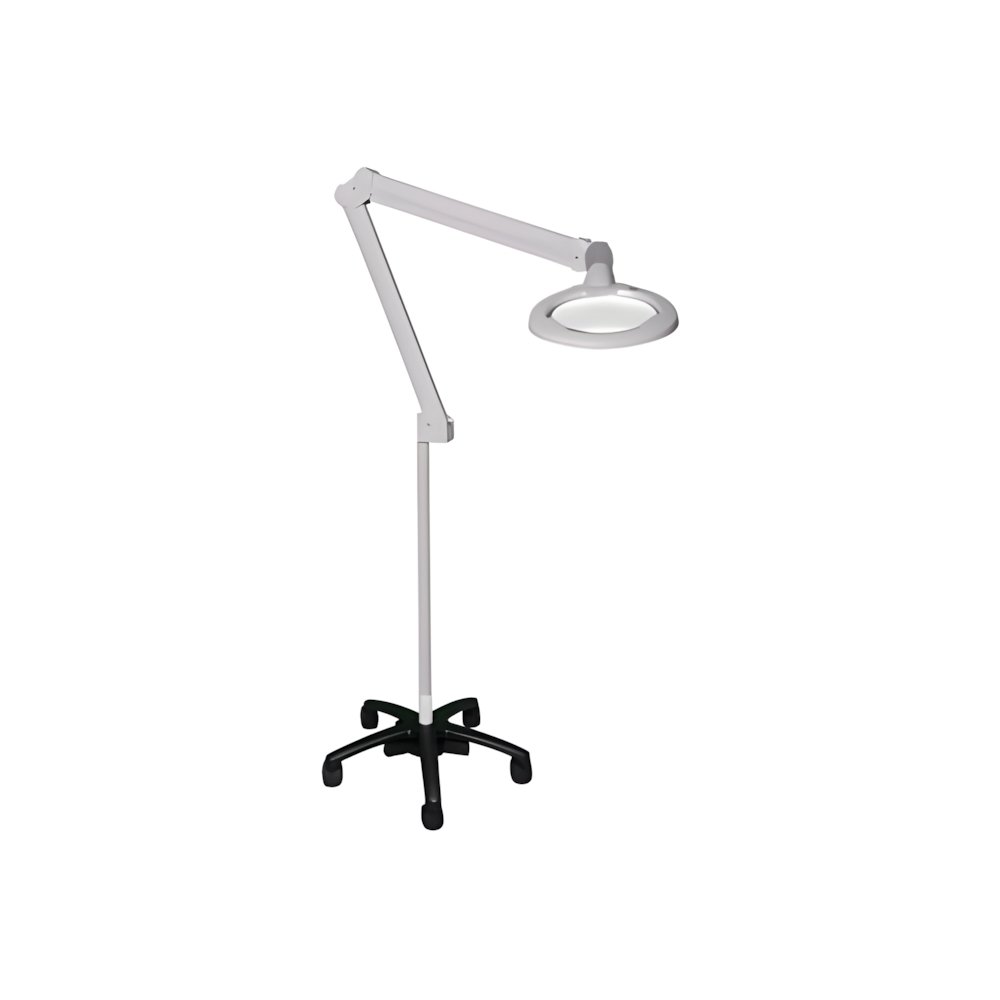

- Mobile Floor Stand (EMLFL)

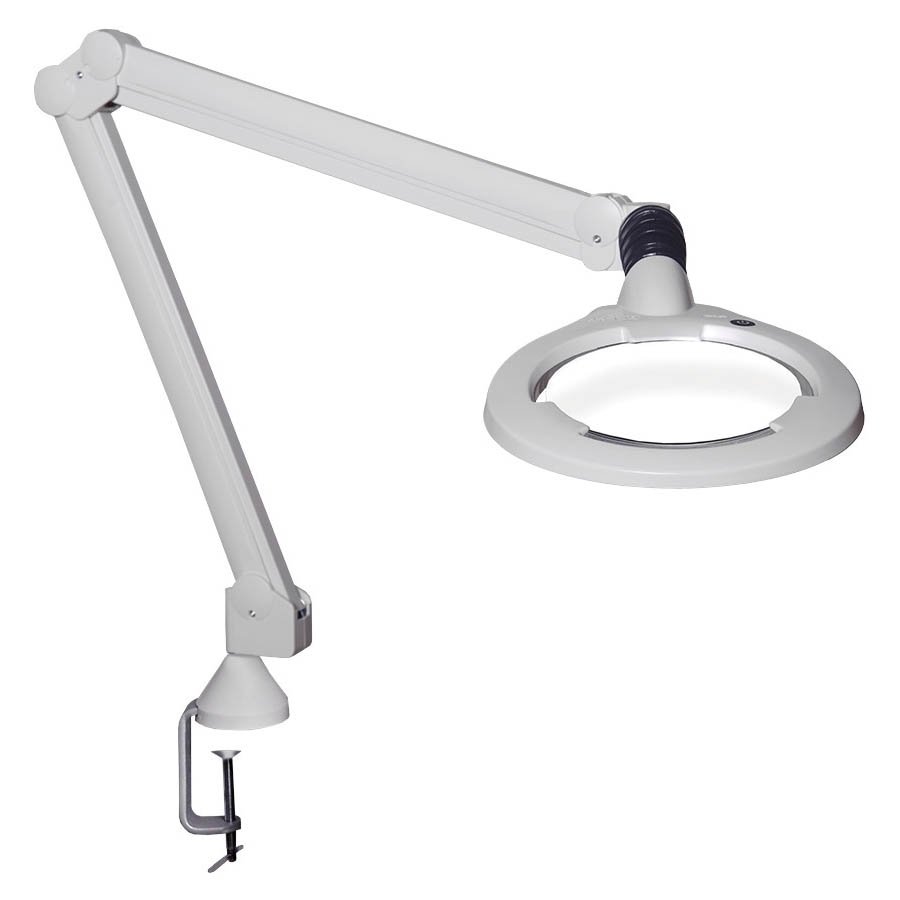

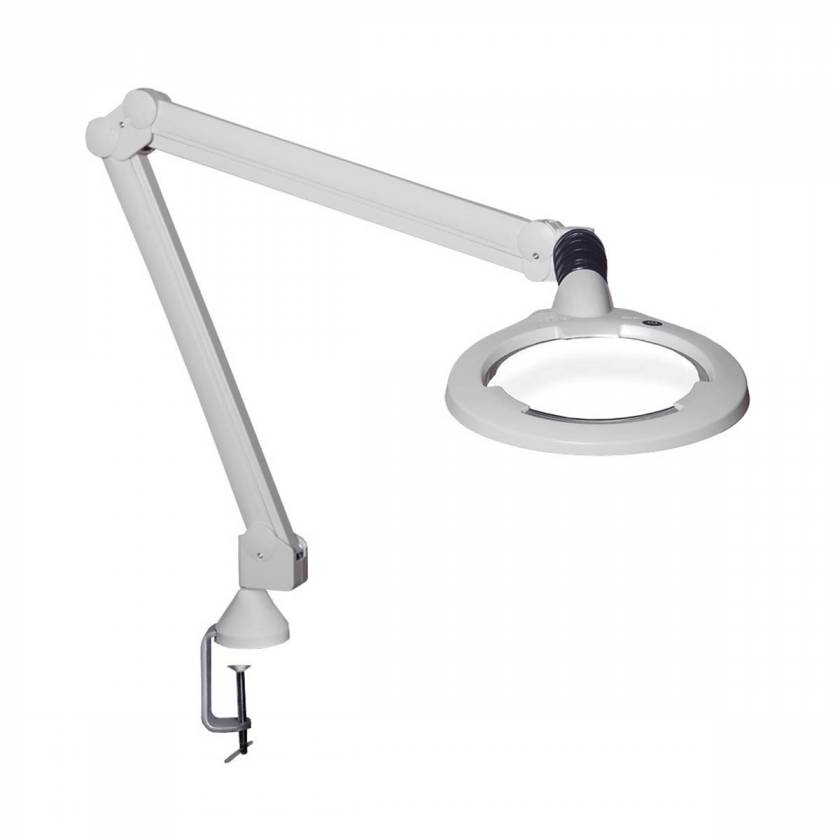

- Table Mount (EMLT)
- Wall Mount (EMLW)
About this Brand
Since 1928, Burton has been designing and manufacturing high-quality examination, procedure, and surgical lighting. The company is known for superior products that provide long-lasting solutions to complex lighting issues facing physicians, surgeons, and veterinarians. Accurate color visibility, energy efficiency, long lamp life, and flexible light placement are hallmarks of Burton medical lighting products.
Specifications
| Manufacturer | Burton Medical |
|---|---|
| Country of Manufacture | United States |
| Item Ships From | Illinois |
Literature
Product Videos
Instructions
Warranty: Mechanical components of Philips Burton products are warranted to provide the original owner 5 (five) years of free service from defects in material and workmanship. The warranty does not cover the following items: light sources, handles, fuses and consumables.
This warranty will not apply if the serial or lot number on the product has been altered, removed or made illegible. This warranty does not cover alterations, adaptations or adjustments made to the product. Periodic maintenance and repair or replacement of parts due to normal wear and tear is not covered. Also not covered are issues resulting from Abuse or misuse of the product. The warranty does not cover repairs performed by non-authorized service stations, dealers or the original owner. Warranty does not cover Accidents, lightning, water, fire, improper ventilation or any cause beyond the control of Philips Burton. Defects of the system into which the product is incorporated including installation and modification defects are not covered by this warranty.
