Product Description

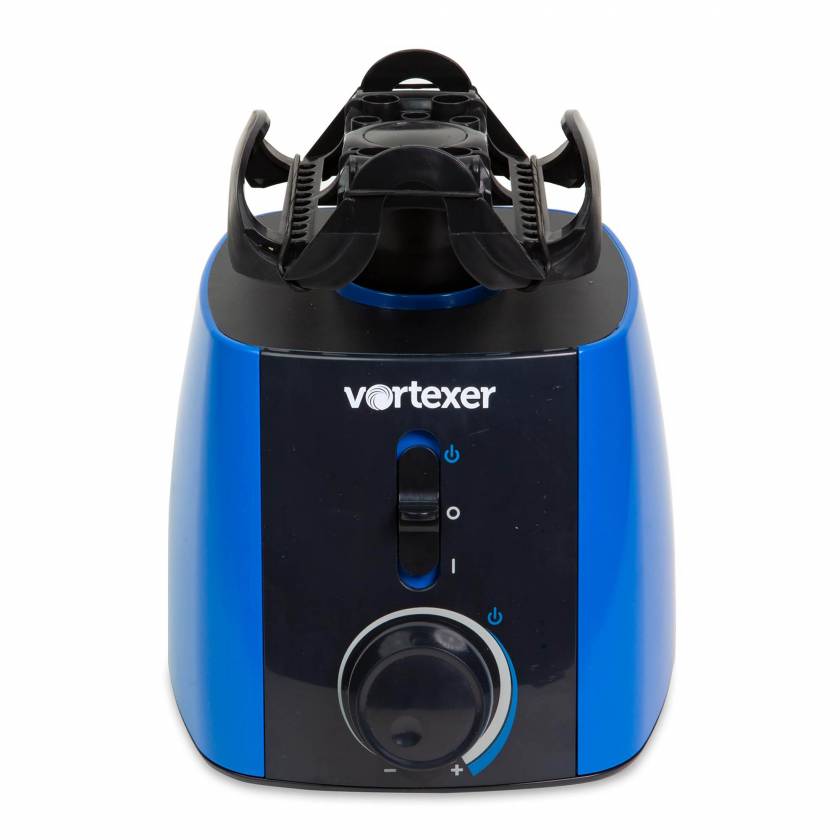

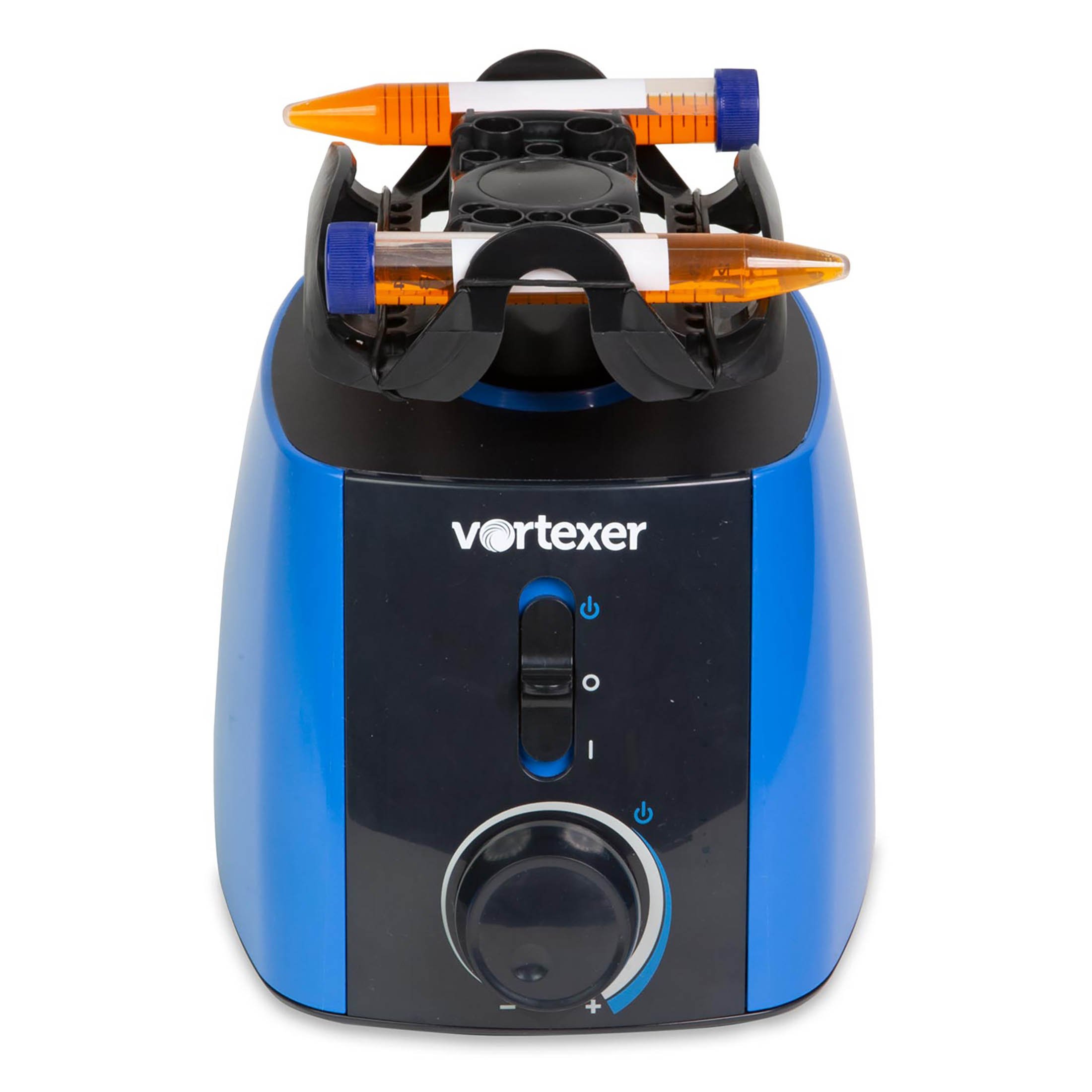

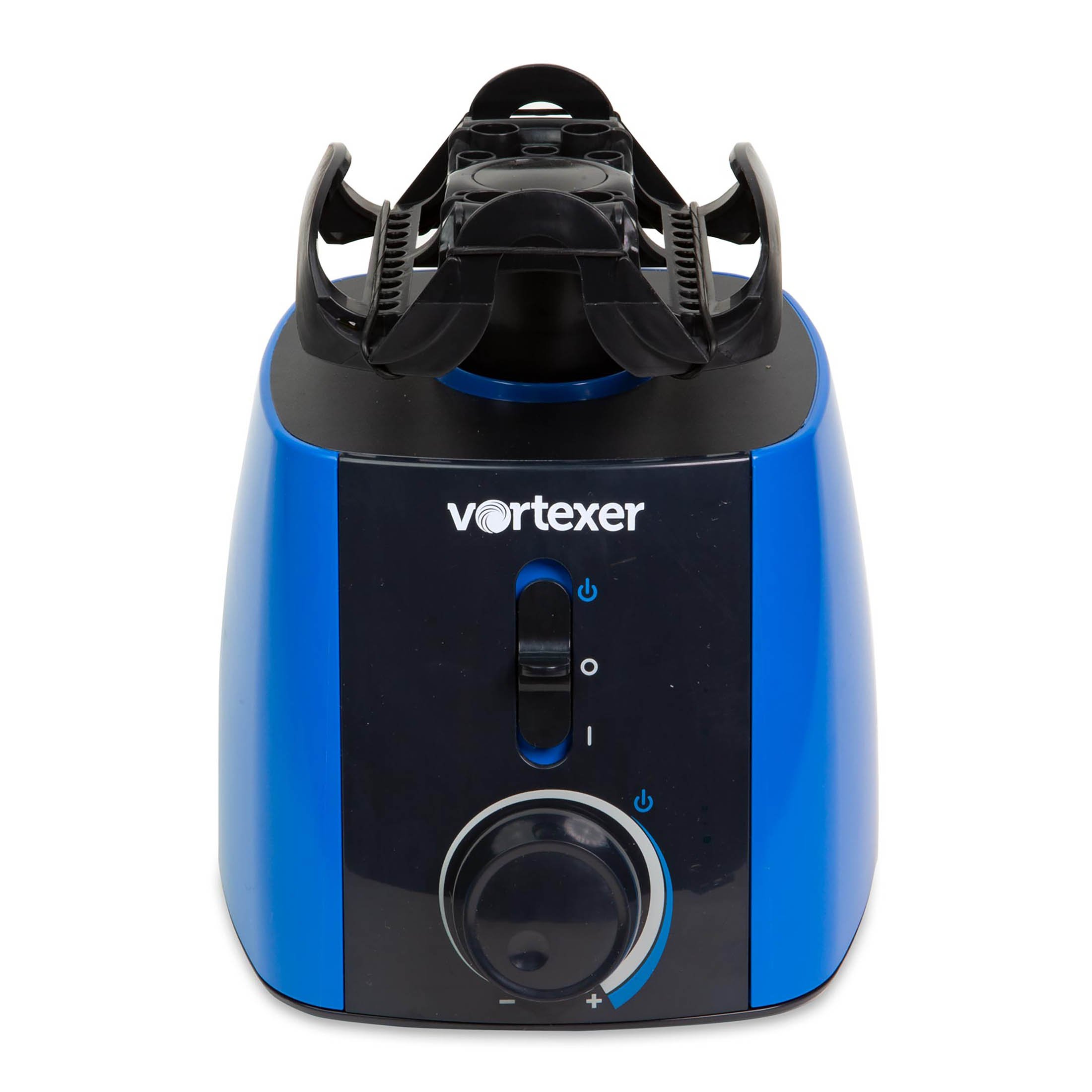

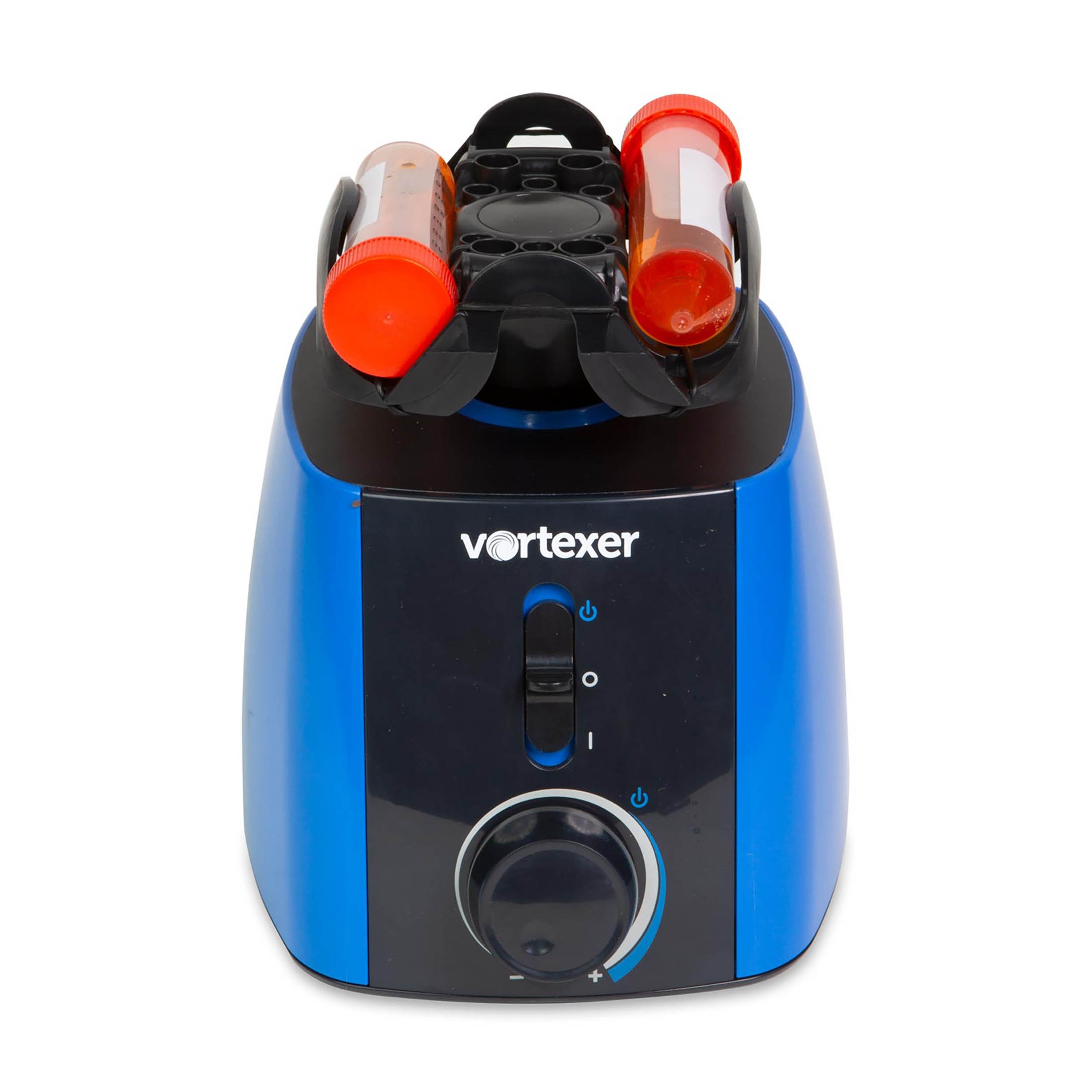

This sleek and modern designed vortex mixer is capable of meeting the mixing requirements of the most popular test tubes used in today’s lab without the need to swap out mixing head units. The innovative design makes maximum use of the space available, providing holding slots for no less than six different sizes of tube and a standard assay plate, while the center pad area can be used for quick hand-held mixing of a vast range of tubes and vessels.

Features:

  • Variable speed rotary dial provides pre-set speed control (1000, 2000, 3000 rpm) during vortex mixing
  • Stable elastomeric device feet, provide vibration dampening and prevent movement during operation
  • Innovative head can be removed for cleaning purposes
  • Body made from durable ABS to resist most commonly used chemicals, and is easy to clean
  • US Design Patent No. D787,085 - US Utility Patent No. 9895670

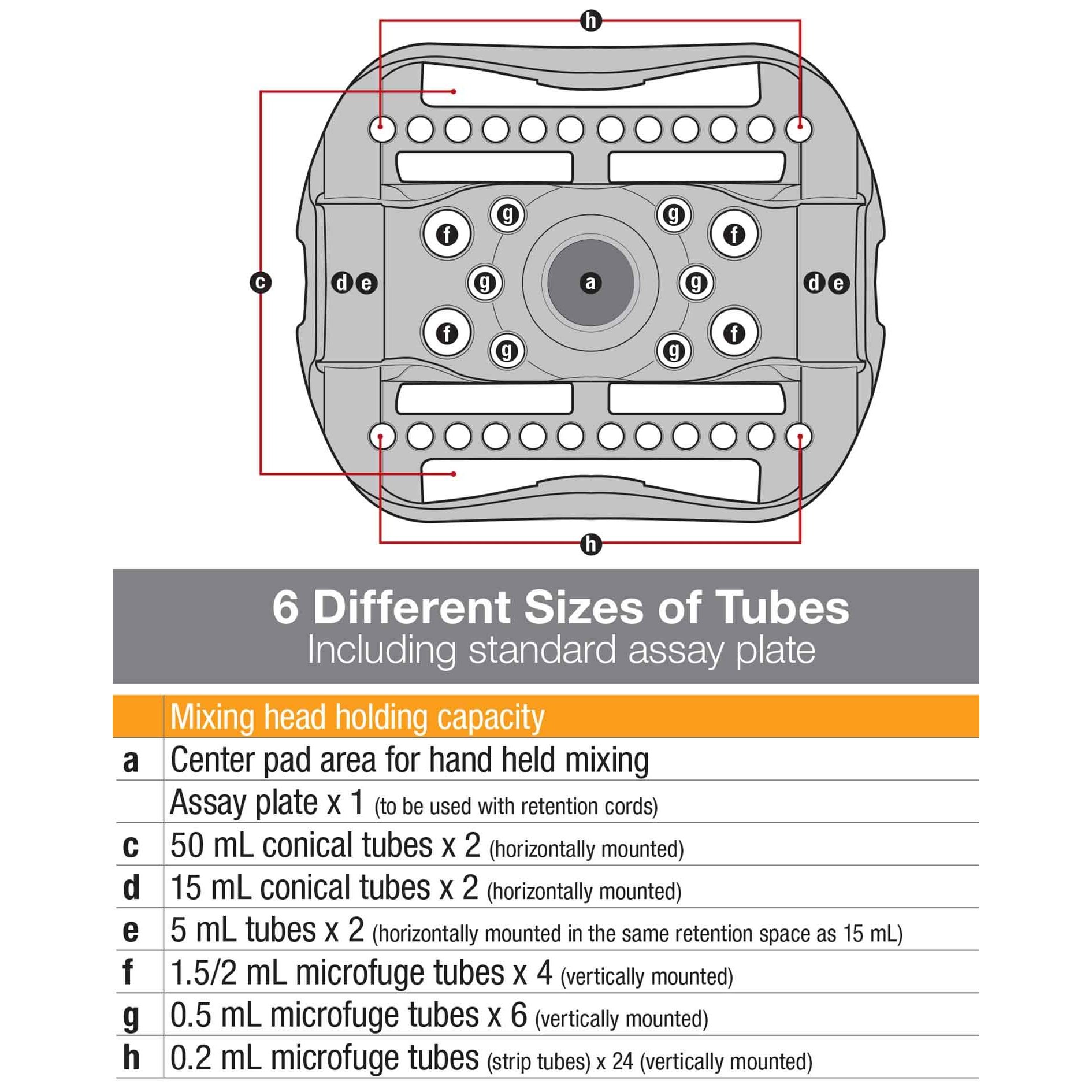

Mixing Head Holding Capacity:
  • Center pad area for hand held mixing
  • Assay plate x 1 (to be used with retention cords)
  • 50 mL conical tubes x 2 (horizontally mounted)
  • 15 mL conical tubes x 2 (horizontally mounted)
  • 5 mL tubes x 2 (horizontally mounted in the same retention space as 15 mL)
  • 1.5/2 mL microfuge tubes x 4 (vertically mounted)
  • 0.5 mL microfuge tubes x 6 (vertically mounted)
  • 0.2 mL microfuge tubes (strip tubes) x 24 (vertically mounted)
Specifications:
  Vortexer HS120209
Speed Range Pre-set 1000, 2000 and 3000 rpm (shaking to vortexing)
Orbit 3.7 mm
Control 3 Position Slider - (top) intermittent, (middle) off, (bottom) continuous
Power Supply 110-120V, 50-60 Hz, 50 Watts, 1.0 Amps
Environmental Ambient Temperature 2°C - 40°C (35.6°F - 104°F), 95% Humidity max. Relative humidity ≤ 80% non-condensing
Product Weight 8.66 lbs (3.93 kg)
Overall Dimensions (WxDxH) 6.7" x 7.5" x 7.8"  (17.1 cm x 19 cm x 19.7 cm) (with mixing head in place)
Certified Unit SGS-US-C, CE, CB Scheme, RoHS 2, PSE, and WEEE compliant
Warranty Two-year
Supplied Equipment

• 1 ea. Vortexer

• 1 ea. AC power cord

• 1 ea. mixing head

• 3 additional elastic retention cords

• 3 additional central pads for intermittent mixing area

Specifications

Specifications
Manufacturer Heathrow Scientific
Actual Product Weight 8.66 lbs
Overall Height 7.8"
Overall Length 7.5"
Overall Width 6.7"
Country of Manufacture China
Item Ships From Illinois

Literature 1

pdf
(Size: 578.9 KB)

Instructions

Limited Warranty: Heathrow Scientific® LLC warrants that your mini-centrifuge will be free from defects in workmanship and material under normal use and service for two years from the date of purchase.

Returns

Return authorization must be requested from Customer Service within 30 days of product receipt. A restocking fee may apply at the discretion of the manufacturer. All returns must be unopened, in their original condition and packaging. All sterilized items are not able to be returned. All unauthorized returns will be refused. All shipping fees are nonrefundable and remain payable by the purchaser.
