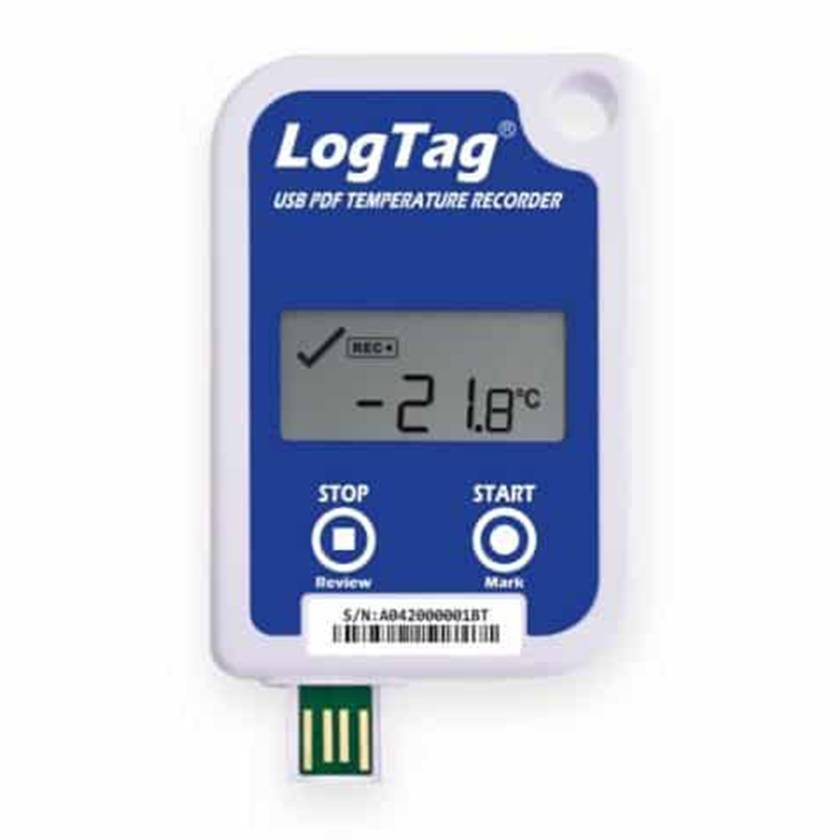

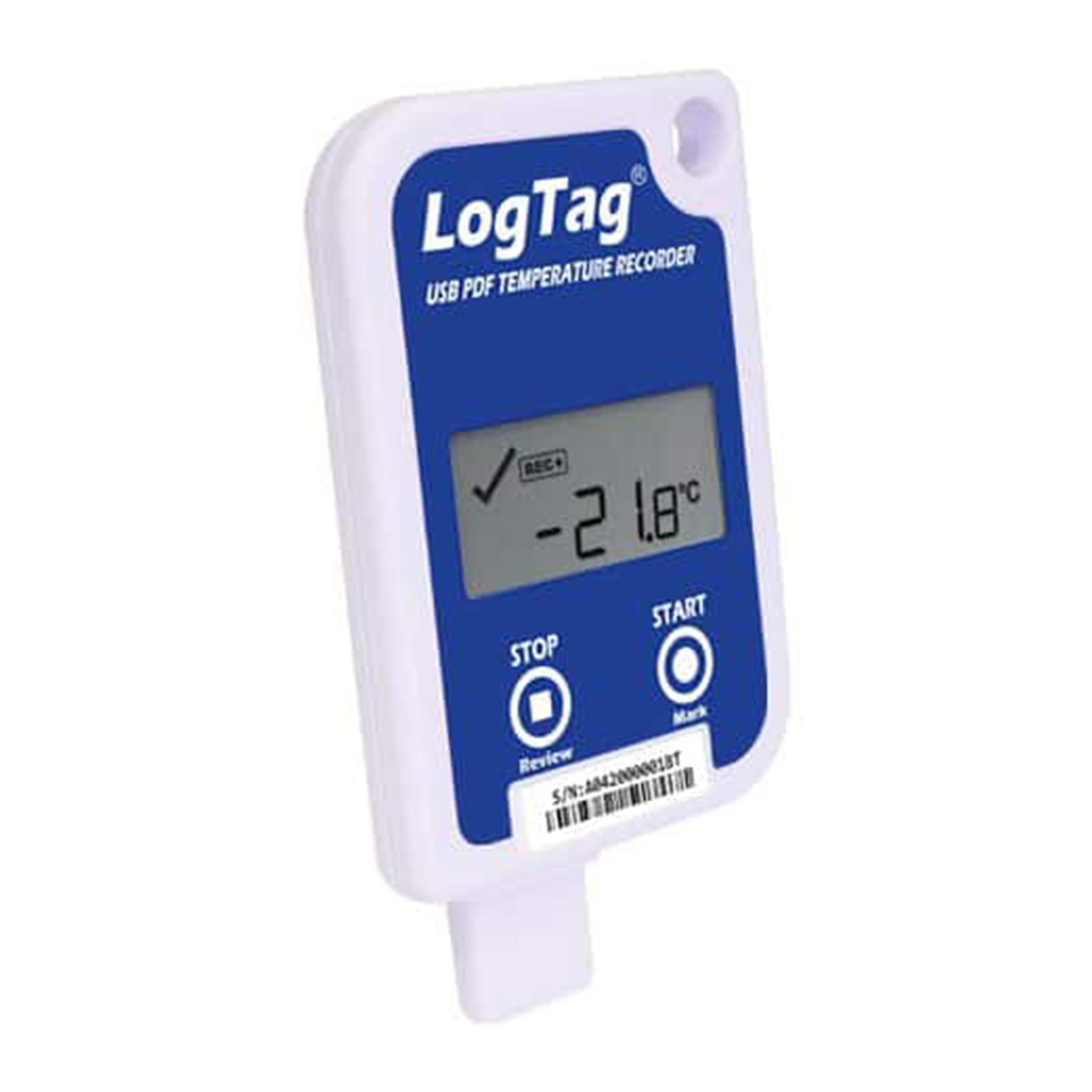

Thermco Single-Use USB and PDF Temperature Data Logger

The Thermco Single-Use USB and PDF Temperature Data Logger is a cost-effective and reliable recorder used to measure and store real-time temperatures. It is ideal for multiple independent receivers, clinical trials, and last-mile distribution.

Features:

• An integral USB connector with no separate interface cradle required
• Automatically generates a PDF report without special software
• Combines all the features of an advanced temperature recorder
• Generates an encrypted data file compatible with the widely used LogTag® Analyzer software and LogTag® Online platform
• Made with a robust and durable polycarbonate case
• A real-time clock that timestamps each temperature reading with the date and time
• An audible alert and red LED indicate a temperature alarm

Technical Specifications:

• Temperature Measurement Range: -30°C to 60°C
• Operating Temperature Range: -30°C to 60°C
• Storage Temperature Range: 0°C to 40°C
• Rated Temperature Reading Accuracy: Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration
  • Better than ±0.5°C for -5°C to 30°C
  • Better than ±0.8°C or better for measurements in other areas of the rated range.
• Rated Temperature Reading Resolution: Better than 0.1°C
• Memory: 16,129 temperature readings. 56 days at 5-minute logging
• Sampling Interval: Configurable from 30 seconds to several hours
• Sensor Reaction Time: Typically less than 7 minutes (T90) in moving air (1m/s)
• Logging Start Options: Push button start or specific date and time. Optional start delay of 1 minute to 72 hours
• Alarms: 1 upper and 1 lower alarm
• Download Time:
  • Typically, less than 20 seconds for full memory from time of insertion to availability of PDF report
  • Typically, less than 10 seconds from time of insertion to availability of the LTD file in LogTag® Analyzer (if configured)
• Power Source: CR2032 3V LiMnO2 Battery (Replaceable)
• Battery Life: 2 years storage, followed by 6 months normal use
• Real Time Clock:
  • Rated accuracy ±25 ppm @ 25°C (equivalent to 2.5 seconds/day).
  • Rated temperature coefficient is -0.034 ±0.006 ppm/°C (I.e typically +/- 0.00294 seconds/day/°C)
• Connection: USB 2.0, A-type plug
• Software: PDF Reader, LogTag® Analyzer 2.5 or higher
• Multi-language Support: English, Spanish, French, Russian, and German
• Certifications: FDA 21 CFR Part 11, EC Annex 11, IATA’s 2018 Dangerous Goods Regulations 59th Edition, FCC, CE, RCM, and RoHS
• Overall Dimensions (Including USB cap): 0.34" L x 2.1" W x 3.4" H
