Product Description

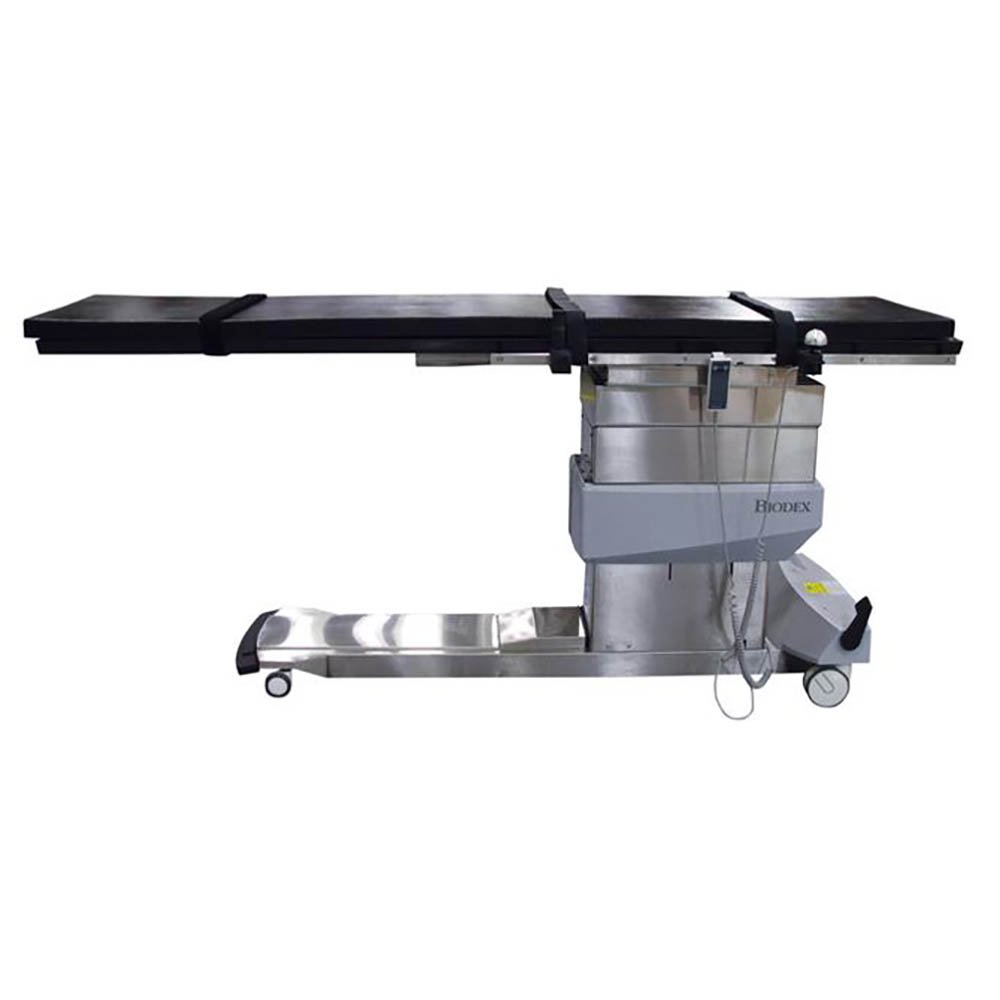

The NEW Surgical C-Arm Table - 846 features a free-float tabletop design that allows for quick and comfortable patient positioning at an affordable price.

  • Low attenuation carbon fiber tabletop with rectangular tabletop design
  • High-speed actuator for quick vertical movement
  • Free-float X-Y tabletop
  • Convenient positioning with portable hand-held controller
  • Low profile base for C-Arm clearance
  • 500-lb patient capacity
  • Accessory Rails

Excellent for image-guided procedures: Its large radiolucent area, motorized actuation of height and free-float tabletop make it ideal for both pain care and cardiovascular applications. The tabletops innovative contour design combines the advantages of square and contoured tabletops, offering additional space at the head-end of the table, while enabling the user to get the C-Arm close to the cervical spine for greater image resolution.
Automatic positioning with free-float: The portable hand-held controller can be positioned for convenient access from any point around the table and offers the freedom to adjust height from locations away from the table. The controller hangs on an accessory rail when not in use. A push-button release for the free-float feature is located at the end of a handgrip that can be placed at any point on the OR accessory rail.
Accommodates portable or ceiling-suspended C-Arms: Designed for procedures where stability, access and precise, quiet, vibration-free positioning are essential. A cantilevered low attenuation carbon fiber tabletop accommodates portable or ceiling-suspended C-Arms. The radiolucent area is free of cross members allowing full fluoroscopic visualization and unobstructed C-Arm positioning. Functional design provides complete access with reduced radiation exposure to clinicians. Two-inch thick table padding and three adjustable straps with hook and loop fastening assure patient comfort and stability.
Rectangular Tabletop offers additional spce to allow for superior image quality for long-leg runoff studies.


Optional Accessories are install by the customer.


  • Dimensions: 104" L x 26" W with OR accessory rails
  • Tabletop: 101" L x 24" W
  • Radiolucent Area: 51" L x 24" W unobstructed head to accessory rail - 20" L x 17.5" W additional, between accessory rails
  • Radiolucent Area: Total Length: 71" L
  • Tabletop Material: Carbon fiber with integral head section
  • Mattress: Seamless, 2" thick
  • Attenuation: •Tabletop: 0.7 mm Aluminum equivalence  •Mattress: 0.5 mm Aluminum equivalence
  • Motions: •Height Adjustable: 33.5" to 43.5"  •Tabletop X Motion (head-to-toe float): 20"  •Tabletop Y Motion (side-to-side float): 10"
  • Controls: •Hand Control: activates height  •Push Button: releases X-Y Tabletop motions
  • Wheels: •Head End 3" swivel casters, integral locking system on base  •Foot End 5" swivel casters with central locking
  • Accessory Rails: Standard OR accessory rails 49.5" x 1.12" x 0.375" mounted near foot end of table
  • Patient Restraints: Three body straps
  • Patient Capacity: 500 lb (227 kg); weight tested to four times the patient load rating
  • Lift Capacity: May vary between 460 lb - 500 lb based on line voltage
  • Power: 115 VAC
  • Certifications: ETL and cETL listed to UL-2601-1, CAN/CSA C22.2 No.: 601-1-M90, EN 60601-1, IEC 60601-1-2:2001-09

As required by law, all Biodex C-Arm tables are CDRH registered and FDA Device Listed. All motorized tables are ETL product listed to the UL-2601-1 Medical Electrical Equipment Safety Standard. Biodex is certified for ISO 9001:2008, ISO 13485:2003.


Please Note:

  • This item ships motor freight carrier. During the checkout process you will be required to indicate whether your facility requires liftgate or inside delivery services. (These services are described on our shipping information page.) In the order comments please include a name & phone number for the delivery point of contact. Please also include receiving hours and any other delivery requirements or instructions. If additional services necessitate an additional fee, you will be contacted by Customer Service. If you have questions about the motor freight delivery process please contact Customer Service prior to placing your order.

About this Brand


Manufacturer Biodex
Actual Product Weight 550
Overall Height 43.5
Overall Length 104
Overall Width 26
Weight Capacity 500
Country of Manufacture United States
Item Ships From New York
GSA Contract Number V797D-40002
