Product Description

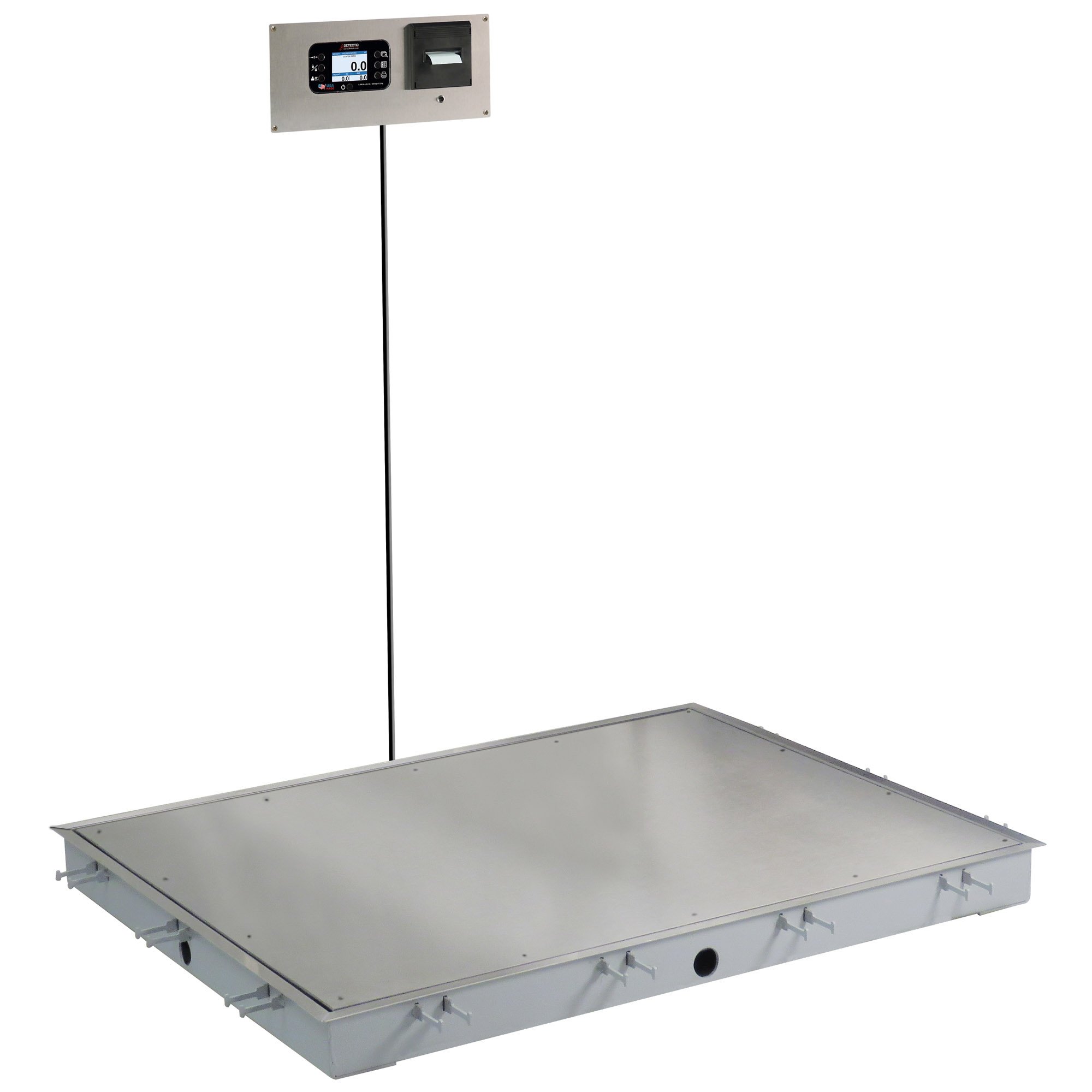

DETECTO'S Solace In-Floor Dialysis Scales are flush-mounted platform scales that feature stainless steel decks, and include a pit frame, trim ring, and interface cable to the included multi-color, touchscreen LCD indicator, and printer. The flush surface eliminates tripping hazards and hallway accessibility issues. These in-floor scales easily accommodate patients with walkers, canes, wheelchairs, or seated in dialysis chairs.

  • 1000 lb / 450 kg capacity
  • Flush-Mounted with floor for easy accessibility
  • Stainless steel, anti-corrosion weighing platform
  • Platform sizes: 3 x 3 ft, 4 x 3 ft, 4 x 4 ft, and 6 x 4 ft (accommodates stretchers)
  • Wall-Mounted multi-color touchscreen indicator
  • Built-in thermal printer makes it easy to print out a weight record for patient record-keeping
  • Large 0.9" high LCD weight digits
  • Push button or manual entry of tare weights for wheelchairs and stretchers
  • Automatically locks on weight temporarily for a few seconds in order to easily view and record measurement
  • Menu button provides quick access to user-friendly menu settings for scale customization
  • Standard 110V AC power 110V - 240V AC universal switching power supply
  • Solace In-Floor Dialysis Scale with Handrail models are available
  • 2-year warranty

Please Note: This item ships motor freight carrier. During the checkout process you will be required to indicate whether your facility requires liftgate or inside delivery services. (These services are described on our shipping information page.) In the order comments please include a name & phone number for the delivery point of contact. Please also include receiving hours and any other delivery requirements or instructions. If additional services necessitate an additional fee, you will be contacted by Customer Service. If you have questions about the motor freight delivery process please contact Customer Service prior to placing your order.



Model

ID-3636S-855RMP

ID-4836S-855RMP ID-4848S-855RMP ID-7248S-855RMP
Includes

Solace In-Floor Scales come with model 855RMP digital weight indicator/ printer combo,

pit frame, scale, stainless steel deck, and trim ring

Capacity 1000 lb x 0.2 lb / 450 kg x 0.1 kg
Platform Construction Anti-corrosion stainless steel
Platform Size 36" x 36" 48" x 36" 48" x 48" 72" x 48"
Indicator/Printer

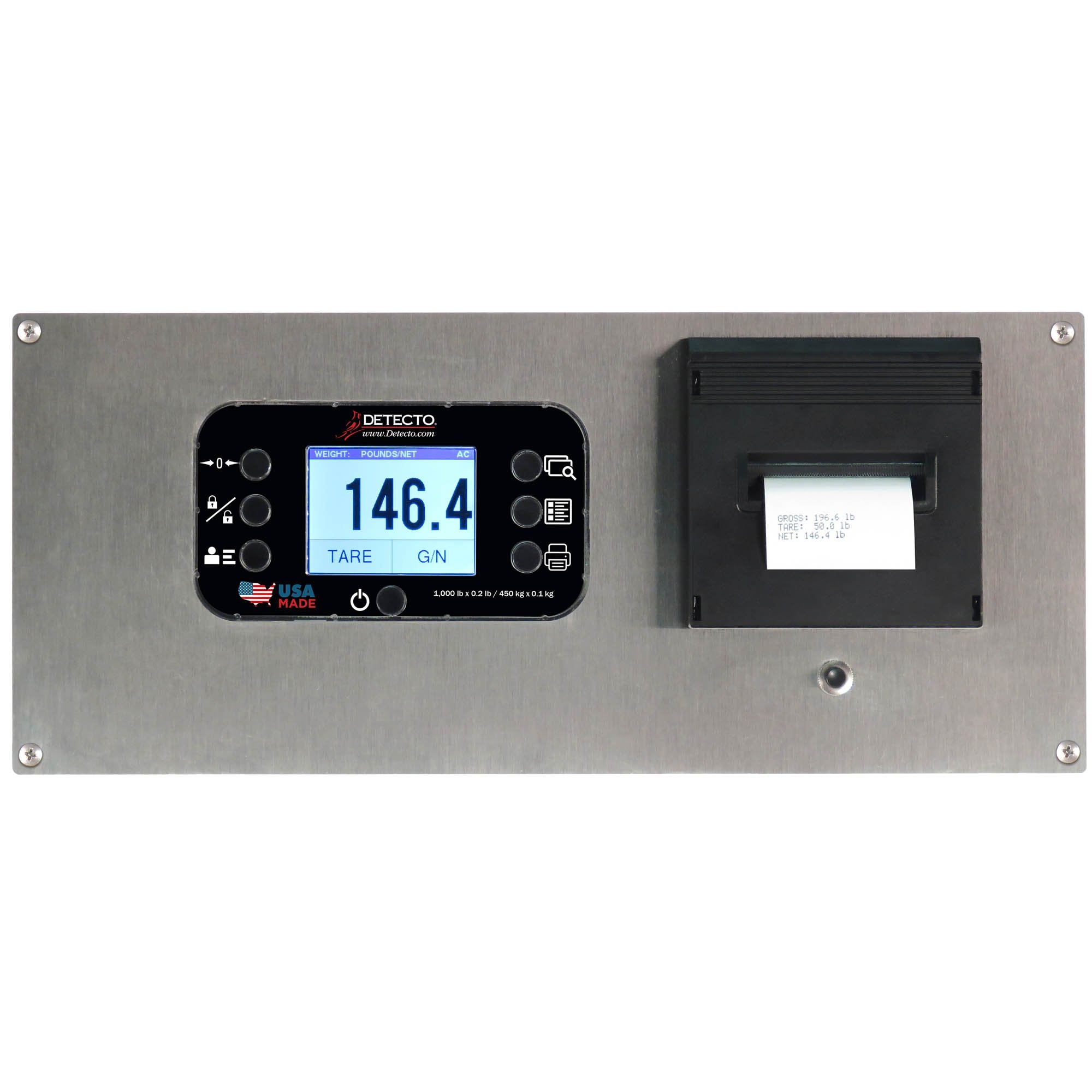

Recessed-mount, touchscreen model 855 indicator,

Thermal ticket printer combo with stainless steel cover plate

Display Type 3.2 in (diagonal) full color TFT display 320 x 240 resolution
Keypad

Mechanical switch type with 7 buttons:

Power, Zero, Lock/Release, ID, Cycle Display Mode, Menu, Print

Number of Character

Weight: 5 digit, 0.9 in (23 mm) high

Height: 4 digit, 0.35 in (9 mm) high

BMI: 3 digit, 0.35 in (9 mm) high

Operating Environment

Operating Temperature Range: 14 to 104°F (-10 to +40°C)

Humidity: 0 to 90% non-condensing

Digital Filtering StableSENSE® Adjustable Filtering
Power 110 to 240 VAC universal switching power supply
Approvals OIML
Country of Origin USA
Shipping Weight 255 lb 311 lb 388 lb 512 lb
UPC Code 809161203707 809161203905 809161204100 809161204308

Specifications

Specifications
Manufacturer Detecto Scales
Weight Capacity 1000 lb / 450 kg
Country of Manufacture United States
Item Ships From Missouri

Literature 9

Instructions

Warranty:

Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows:

  • Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of two (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
  • During the first ninety (90) days Detecto may choose to replace the product at no charge to the buyer upon inspection of the returned item.
  • After the first ninety (90) days, upon inspection of the returned item, Detecto will repair or replace it with a remanufactured product. The customer is responsible for paying for the freight both ways.



This warranty does not apply to peripheral equipment not manufactured by Detecto; this equipment will be covered by certain manufacturer’s warranty only.



This warranty does not include replacement of expendable or consumable parts. This does not apply to any item which has deteriorated or damaged due to wear, accident, misuse, abuse, improper line voltage, overloading, theft, lightning, fire, water or acts of God, or due to extended storage or exposure while in purchaser’s possession. This warranty does not apply to maintenance service. Purchased parts will have a ninety (90) day repair or replacement warranty only.



Conditions Which Void Limited Warranty

This warranty shall not apply to equipment which:

A.) Has been tampered with, defaced, mishandled or has had repairs and modifications not authorized by Detecto.

B.) Has had serial number altered, defaced, or removed.

C.) Has not been properly grounded according to Detecto’s recommended procedure.

Returns

A valid return authorization number must be obtained within 30 days of item receipt. Returned merchandise must be in new, undamaged condition and all return shipments must be prepaid. A minimum 25% restocking fee will be deducted.
