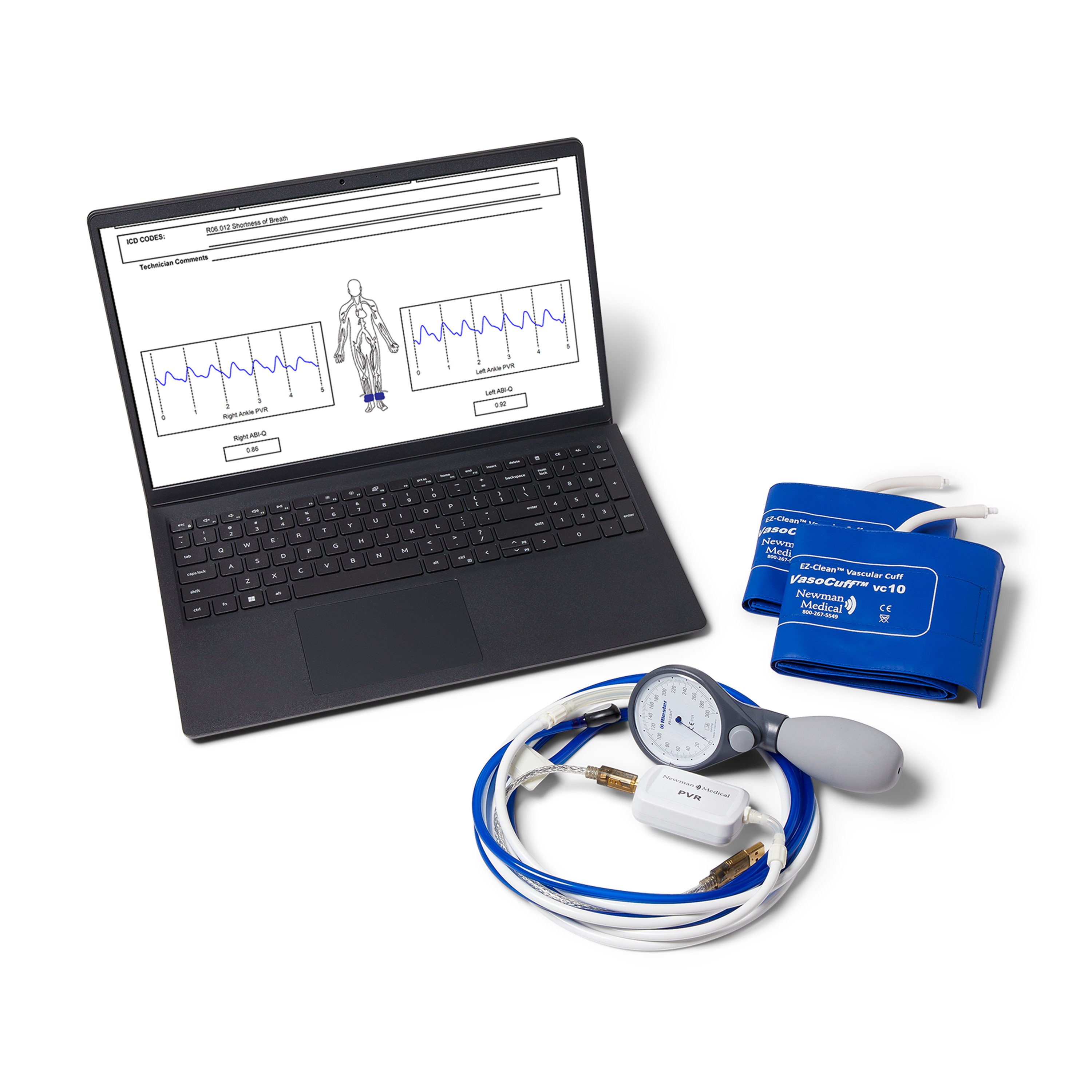

Newman Medical simpleABI PVR Based Rapid Testing - Single Level
Product Description
The Newman Medical simpleABI PVR Based Rapid Testing - Single Level is an innovative system that uses PVR waveforms and a proprietary software algorithm to deliver accurate PAD assessments in just 1–2 minutes, without requiring doppler expertise.
Features:
- Easily identify asymptomatic PAD to help reduce the risk of heart attack, stroke, and amputation
- Rapid, Push-Button Operation - Simplify your workflow with simple cuff inflation and one-click result
- It is accessible to all staff, requiring no specialized vascular expertise and enabling any team member to perform accurate PAD testing
- Reliable PVR Technology - Obtain accurate and consistent results, even in patients with diabetes or calcified arteries, bypassing traditional testing limits
- The system delivers dependable performance in any environment, regardless of temperature, lighting conditions, or skin pigmentation
- Can be easily moved between exam rooms, adapting to your clinical needs
- It features powerful yet easy-to-use software that sets it apart from other systems, saving you time and streamlining your workflow. Fully integrated into the system, the software requires no separate data downloads
- Software Features:
- Automatic index calculations, avoiding potential errors
- Automatically stores each exam with a time stamp
- Your logo and contact information can be shown on the report
- Your physicians, operators, and interpreters can be on drop-down, editable menus
- Drop-down ICD-10 codes
- Suggested CPT codes and interpretation of results are shown
- Multiple and selectable formats to store the reports: PDF, TIFF, CSV, BMP, JPG
- DICOM software is available as an option
- Software Features:
- simpleABI-Q software provides a fast, effective global test for the presence of PAD. The test that can be done includes:
- ABI-Q (Quick PVR Assessment) – A PVR based 1-2 minute exam to quickly assess the patient for the presence/absence of PAD
- Computer - Specifications are subject to change as computers change rapidly
- Operating system: Windows 11
- 11.6-inch diagonal screen
- 4 GB memory
- 64 GB HDD
- Wireless/Bluetooth capability
- 6 hours of battery
- Newman Medical software is already installed on the computer
- A PVR hardware that quickly and easily produces vascular waveforms. A PVR is a graph of the pulsatile change in limb volume from blood flow using constant pressure
- Cuffs - It comes with a complete set of specialized vascular cuffs that are washable and have soft material
- (2) 10 cm EZ-Clean Vasocuffs
- simpleABI Handheld PVR Stand (Optional) - A sturdy steel rolling stand that includes:
- A wide, five-legged anti-tip base
- A mounting plate for the computer
- A basket for storing cuffs, gel, etc.
- It also comes with the following:
- Manual cuff inflator
- Carry bag
- User manual
- Quick reference guide
- Two-Year Warranty (Includes all parts, labor, and accidental breakage)
Technical Specifications:
- Level of Protection Against Electrical Shock: Type B Applied Part, Class II Equipment
- Complies with the Following Standards: IEC60101-1, IEC60601-2
- Operating Temperature: 10° - 40°C (50° - 104°F)
- Operating Humidity: 30% - 75%
- Transport/Storage Temperature: -20° - 50°C (-4° - 122°F)
- Transport/Storage Humidity: 5% - 90%, non-condensing
- Battery Life: 10 hours
- Actual Product Weight: 6 lbs
Specifications
| Manufacturer | Newman Medical |
|---|---|
| Actual Product Weight | 6 lbs |
| Country of Manufacture | United States |
| Item Ships From | Colorado |
