Huntleigh Healthcare Dopplex® Ankle and Toe Pressure Kit

The Huntleigh Healthcare Dopplex® Ankle and Toe Pressure Kit is a unique combination of the DMX Doppler, probes, and accessories, providing the Vascular, diabetic, or Lymphatic specialist with a system to aid the assessment of arterial disease and neuropathy.

Features:

• Complete kit for easy measurement of the Toe Brachial Index (TBI) on the diabetic and lymphatic foot
• APPG probe that can be easily attached to the DMX Doppler Unit by simply swapping your Doppler probe with its adaptor
• Ability to connect to optional Dopplex Reporter 5 reporting software to store and view results electronically
• Internal Memory - PPG waveforms and pressures can be stored and reviewed at any time
• Waveforms can be transferred to the Dopplex Vascular Reporter software package for archiving, reviewing, and printing of reports
• Displays PPG Waveforms

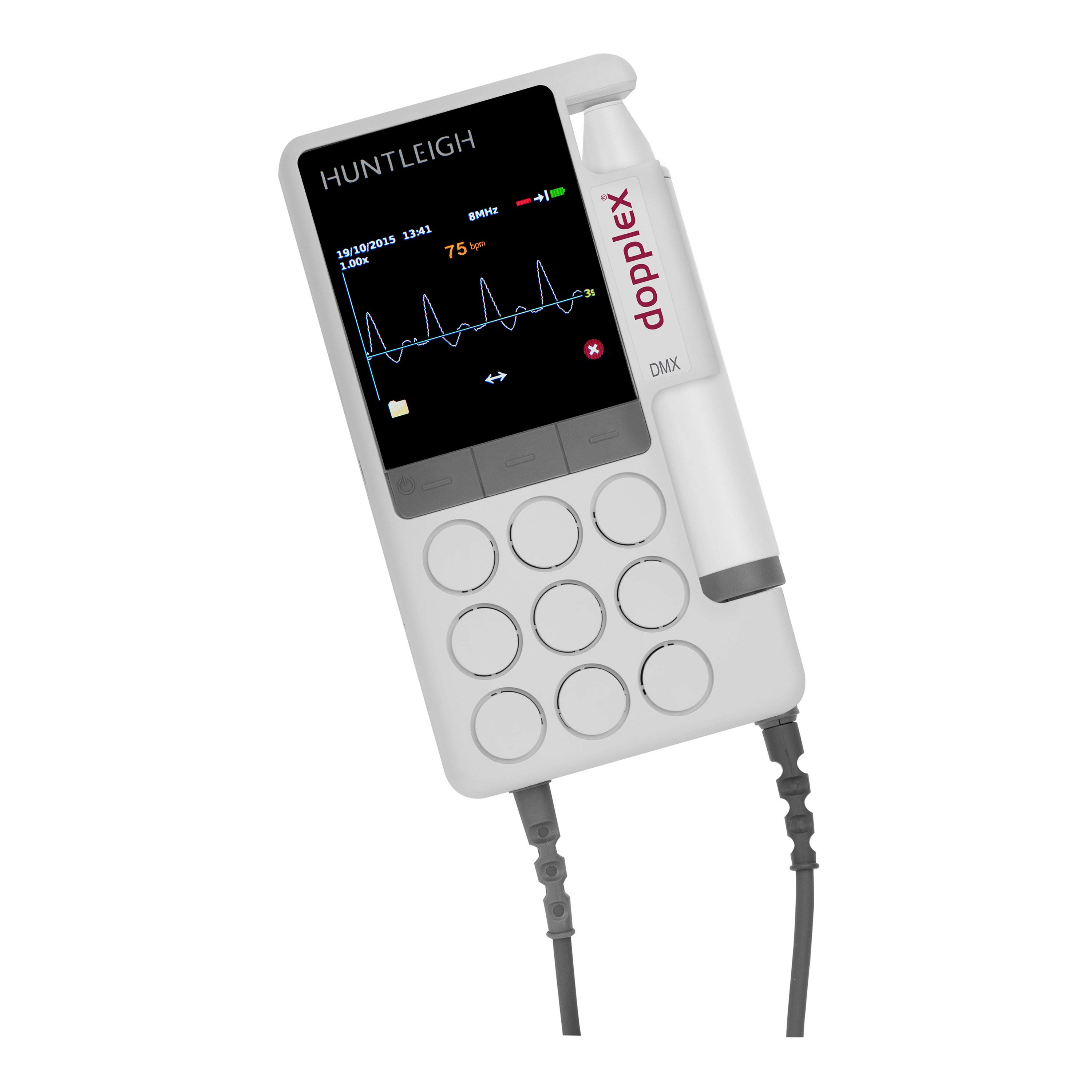

• Dopplex® DMX Digital Doppler Features:
  • High Resolution Color Display - Instantly visualise waveforms for pictorial evidence, displayed in high-definition, and wide viewing angle
  • Bi-directional waveform display
  • Audio Output - Flow-separated stereo headphone output
  • USB port for communication with our software
  • Convenient charging via USB port
  • Data Storage on Micro SD Card - Stores timestamped waveforms and sounds for review or training and transfers to optional Dopplex Vascular Reporter software package for reporting and archiving
  • Digital Sound Processing - Reduces background hiss and loud crackle when gel is applied
  • Probe Parking - Protection when probe not in use
  • High Sensitivity Interchangeable Probes - All probes have been calibrated and fine-tuned for optimum use
  • Integrated belt/pocket clip for convenient carrying and storage
• The Dopplex® Ankle Brachial Index Kit is Compatible with the Following Probes:
  • 8 MHz Wide-Beam Vascular Probe - Easily locate and maintain contact with vessels during cuff inflation and deflation
  • APPG Probe - For easy measurement of TBI
• Assessment of Arterial Disease or Neuropathy of the diabetic and lymphatic foot
• For use in conjunction with the Dopplex Vascular Reporter, software that facilitates a more detailed examination of Doppler waveforms stored on the DMX Doppler on a PC, including as a colour spectrum. It can be applied to various studies, and it also features an integrated PDF generator
• Available in options With Vascular Report Software (LUS-ATP-VASREP) or Without Vascular Report Software (ATP-USA)

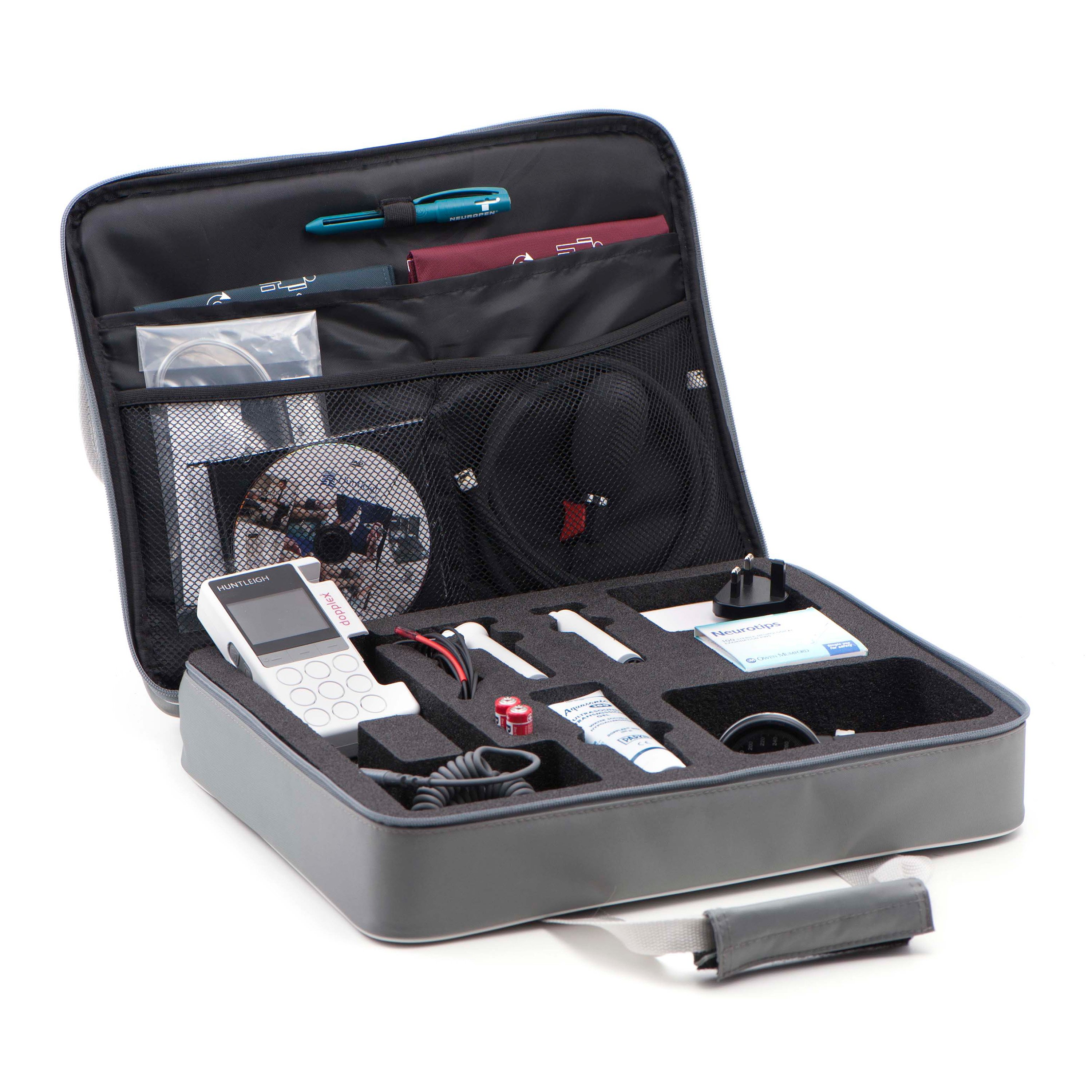

Comes Standard With:

• (1) Dopplex® DMX Digital Doppler
• (1) Medical Grade Recharging Kit
• (1) 8 MHz Wide-Beam Vascular Probe
• (1) APPG Probe
• (240) Adhesive Strips for APPG
• (1) Toe Cuffs and Inflator
• (1) Trigger-Operated Sphygmomanometer
• (1) Standard Arm/Ankle Cuffs
• (1) Large Arm/Ankle Cuffs
• (1) Neuropen and Box of Tips
• (1) Educational CD
• (1) Large Carry Bag
• (1) 60 g Tube of Ultrasound Gel

Technical Specifications:

• APPG Capability: Yes
• Noise Reduction: Digital Dynamic Noise Reduction (DDNR)
• Removable Micro SD Card Storage: Yes
• Scroll Memory: 20 seconds
• Timebase: 3, 6, and 12 seconds
• Compatible with Interchangeable XS Probes: Yes
• Integrated Loudspeaker: Yes
• Gain Control: Auto
• Dopplex Software Compatible: VR
• USB Capability: Micro
• Battery Type: (2) AA Rechargeable Batteries
• Power Supply: 110-240 V medical-grade recharging kit (Supplied with country adaptors)
• Battery Life (no. of 1-min exams): Over 700
• Warranty: 3 years on Doppler, 1 year on probes and accessories
