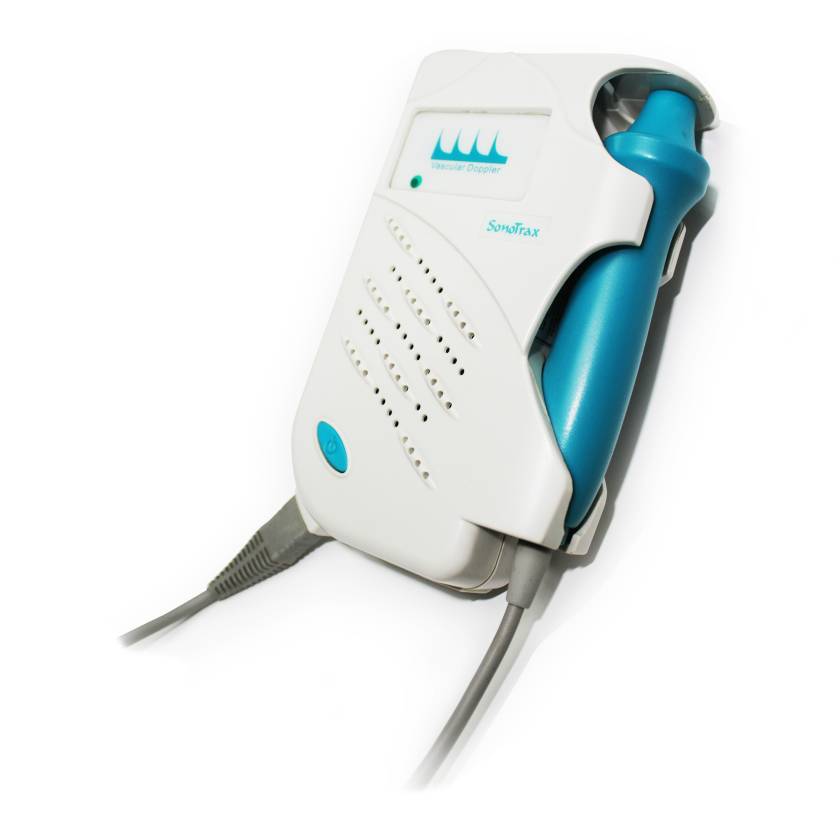

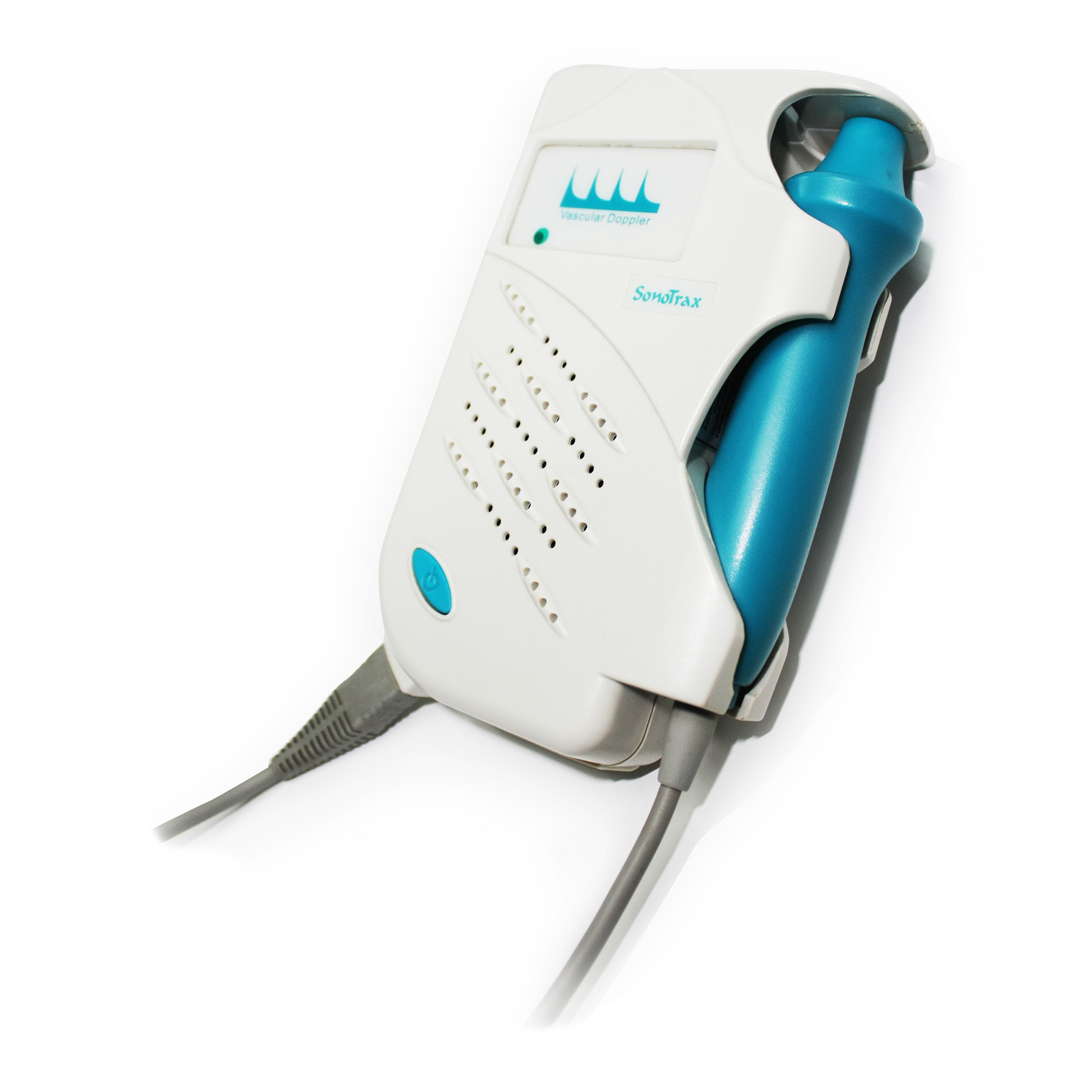

Edan SonoTrax Vascular Doppler, Non-Display with Vascular Probe

The Edan SonoTrax Vascular Doppler, Non-Display with Vascular Probe is a hand-held device used for assessment of peripheral vascular disease. Its portability makes it ideal for fast and effective assessment of both venous and arterial disease.

Features:

• It can locate both deep and superficial vessels while providing strong signals
• Compact, easy-to-use, and ergonomic design
• High-sensitivity interchangeable probe
• Accurate FHR detection that offers clear sound
• Long-time continuous use (about 8 hours)
• The SonoTrax Vascular is compatible with the following waterproof vascular probe choices:
  • Vascular Probes - Used for blood flow detection and vascular diagnosis

    • 12-01-14346 - 4 MHz
    • 02-01-104822 - 5 MHz
    • 12-01-14347 - 8 MHz (Intended to examine surface vessels while providing the highest resolution and a wider detecting range)
• It comes standard with:
  • Carry case
  • (1) Waterproof, interchangeable probe
• Available in different probe combinations

Note: The SonoTrax Vascular Doppler does not have a display screen.

Technical Specifications:

• Display: Two Brightness Adjustable
• Audio Output: 1 W
• Audio Sampling Frequency: 4 kHz
• Recording Length: 240 seconds
• Coupling Gel:
  • pH: 5.5 - 8.0
  • Acoustic Impedance: 1.5 x 10⁶Pa.s/m - 1.7 x 10⁶Pa.s/m (35°C/95°F)
• Temperature:
  • Working: 5°C - 40°C
  • Transport and Storage: -20°C - 55°C
• Relative Humidity:
  • Working: 25% - 80% (Non-condensing)
  • Transport and Storage: 25% - 93% (Non-condensing)
• Atmospheric Pressure:
  • Working: 86 kPa - 106 kPa
  • Transport and Storage: 70 kPa - 106 kPa
• Power Supply:
  • Alkaline Battery (AA LR6 1.5 V): Stand-by time of 9 hours
  • Rechargeable NI-MH Battery (AA R6 1.2 V): Stand-by time of 8 hours
• Vascular

  • Operating Mode: CW
  • Working Frequency: (4±10%) MHz/(5±10%) MHz/(8±10%) MHz
  • Nominal Frequency: 4 MHz/5 MHz/8 MHz
  • Ultrasound Output (4 MHz/5 MHz/8 MHz Probes):
    • p- < 1 MPa
    • Iob < 10 mW/cm²
    • Ispta < 100 mW/cm²
  • Effective Radiating Area of Transducer:
    • 4 MHz/ 5 MHz: (32±15%)mm²
    • 8 MHz: (14±15%)mm²
• Warranty: 1 Year
• Overall Dimensions: 1.34" D x 3.50" W x 5.55" H
