Product Description

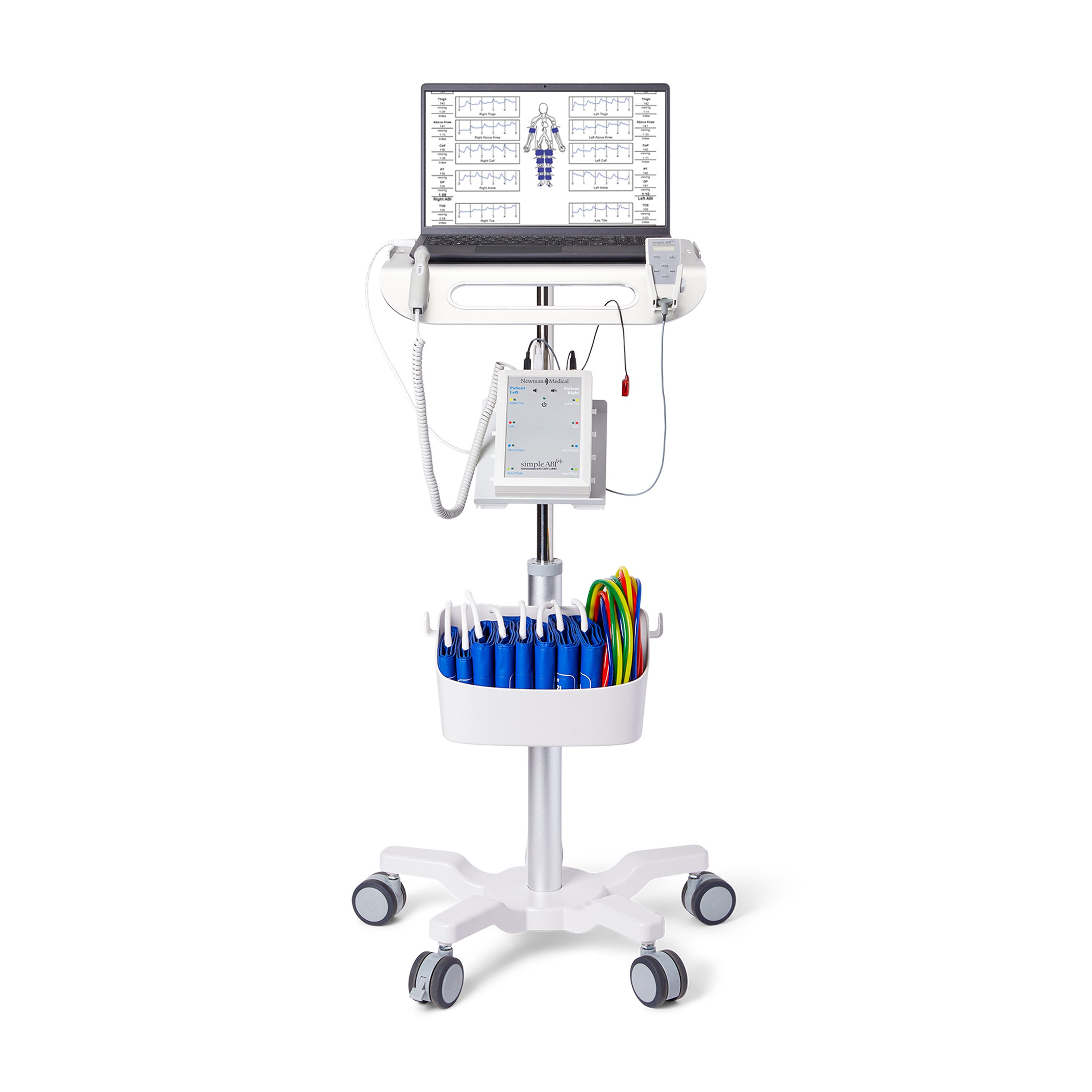

The Newman Medical simpleABI Advanced Automated Cuff-Link System - Multi-Level is an advanced solution designed for clinics that need efficient and reliable PAD testing. It supports dual testing modes, enabling both the Doppler-free rapid ABI-Q exam for quick screenings by any staff member and in-depth Doppler-based ABI and TBI exams for comprehensive diagnostics.

Features:

  • Empowers healthcare providers to identify Peripheral Artery Disease (P.A.D.) in its early stages
  • Perform efficient single-level ABI assessments for baseline PAD screening and segmental exams
  • Capture detailed PPG and toe waveforms for thorough vascular evaluation
  • Utilize the ABI-Q rapid exam – a Doppler-free assessment that any supporting staff member can easily perform, perfect for patients with calcified arteries
  • Automated cuff selection and inflation/deflation minimize user error
  • Portable height-adjustable stand roll-stand design moves easily between exam rooms with minimal assembly
  • Backup virtual remote guarantees uninterrupted operation
  • DICOM compatibility ensures seamless integration with your medical imaging systems
  • It features powerful yet easy-to-use software that sets it apart from other systems, saving you time and streamlining your workflow. Fully integrated into the system, the software requires no separate data downloads
    • Software Features:
      • Automatic index calculations, avoiding potential errors
      • Automatically stores each exam with a time stamp
      • Your logo and contact information can be shown on the report
      • Your physicians, operators, and interpreters can be on drop-down, editable menus
      • Drop-down ICD-10 codes
      • Suggested CPT codes and interpretation of results are shown
      • Multiple and selectable formats to store the reports: PDF, TIFF, CSV, BMP, JPG
      • DICOM software is available as an option
  • simpleABI-500CL software offers a full range of tests and reports for evaluating blood flow in the lower limbs and supports proper coding and reimbursement. The tests that can be done include:
    • Single-Level Exams - Used to diagnose obstruction. Performed using Doppler and meets equipment requirements for CPT code 93922
      • ABI-Q (Quick PVR Assessment) - A PVR based 1-2 minute exam to quickly assess the patient for the presence/absence of PAD
      • ABI (Ankle Brachial Index) - With dual ankle Doppler pressures and PVR waveforms. This is the fundamental PAD exam
      • ABI with Toe (Ankle Brachial Index + Toe or TBI) - With dual ankle Doppler pressures and PVR waveforms. PPG or Doppler can be used on toes. Typically used if the patient has calcified vessels the ABI cannot be obtained
    • Segmental Exams - Multi-level exams for determining the level of obstruction. Meets equipment requirements for CPT code 93923
      • Three cuff Segmental - With dual ankle Doppler pressures and PVR waveforms. Ankle, calf, above knee. This is the fundamental PAD exam.
      • Three cuff with Toe - With dual ankle Doppler pressures and PVR waveforms. PPG or Doppler can be used on toes. Typically used if the patient has calcified vessels the ABI cannot be obtained
      • Four cuff - With dual ankle Doppler pressures and PVR waveforms. Adds high thigh location to 3 cuff exam
      • Four Cuff with Toe - With dual ankle Doppler pressures and PVR waveforms. PPG or Doppler can be used on toes
    • Modern, efficient Segmental Exams - Multi-level exams done with PVR. These tests are much faster, easier on the patient, provide the information needed to determine the level of occlusion, and meet CPT requirements
  • Computer (Optional) - Specifications are subject to change as computers change rapidly
    • Operating system: Windows 11
    • 11.6-inch diagonal screen
    • 4 GB memory
    • 500 GB HDD
    • Wireless/Bluetooth capability
    • 6 to 8 hours of  battery
    • Newman Medical software is already installed on the computer
  • Cuff-Link Main Control - An integrated speed machine that integrates the following:
    • A 4-port cuff selector
    • Interchangeable Doppler probes
    • Pressure sensors
    • A pump
    • Control software
  • Cuff-Link Remote - Enables users to navigate the exam easily with the convenience of push-button control
    • Easily move between sites
    • Large, easy-to-read display of the current cuff pressure.
    • Push button inflation
    • Automated cuff deflation ensures accurate pressures.
    • One-button waveform creation
  • Doppler with 8 MHz and PPG probes (5 MHz probe is optional) - Dopplers have the sensitivity and audio response to allow you to hear the blood flow sounds quickly and clearly, while probes have a smooth contour design that is comfortable to hold, comfortable for the patient, and easy to clean
  • Cuffs - It comes with a complete set of specialized cuffs that are washable and made of soft material
    • (2) 10cm EZ-Clean Vasocuffs
    • (4) 12cm EZ-Clean Vasocuffs
    • (2) 12cm Long EZ-Clean Vasocuffs
    • (2) 1.9cm Disposable Digit Cuffs
  • Adjustable-Height Roll Stand - A sturdy steel rolling stand for the simpleABI system that includes the following:
    • A wide, five-legged anti-tip base
    • Mounting plate for the computer and a Cuff-link
    • Hooks on the basket for storing the hoses
    • Basket for storing cuffs, gel, etc.
  • The simpleABI-500CL also comes with:
    • DPPG probe
    • User manual
    • Quick reference guide
    • Two-Year Warranty (Includes all parts, labor, and accidental breakage)

Technical Specifications:

  • Level of Protection Against Electrical Shock: Type B Applied Part, Class II Equipment
  • Complies with the Following Standards: IEC60101-1, IEC60601-2, IEC60601-2-37
  • Operating Temperature: 10° - 40°C (50° - 104°F)
  • Operating Humidity: 30% - 75%
  • Transport/Storage Temperature: -20° - 50°C (-4° - 122°F)
  • Transport/Storage Humidity: 5% - 90%, non-condensing
  • Battery Life: 10 hours
  • Overall Height: 42"
  • Actual Product Weight: 12 lbs

Specifications

Specifications
Manufacturer Newman Medical
Actual Product Weight 12 lbs
Overall Height 42"
Country of Manufacture United States
Item Ships From Colorado
