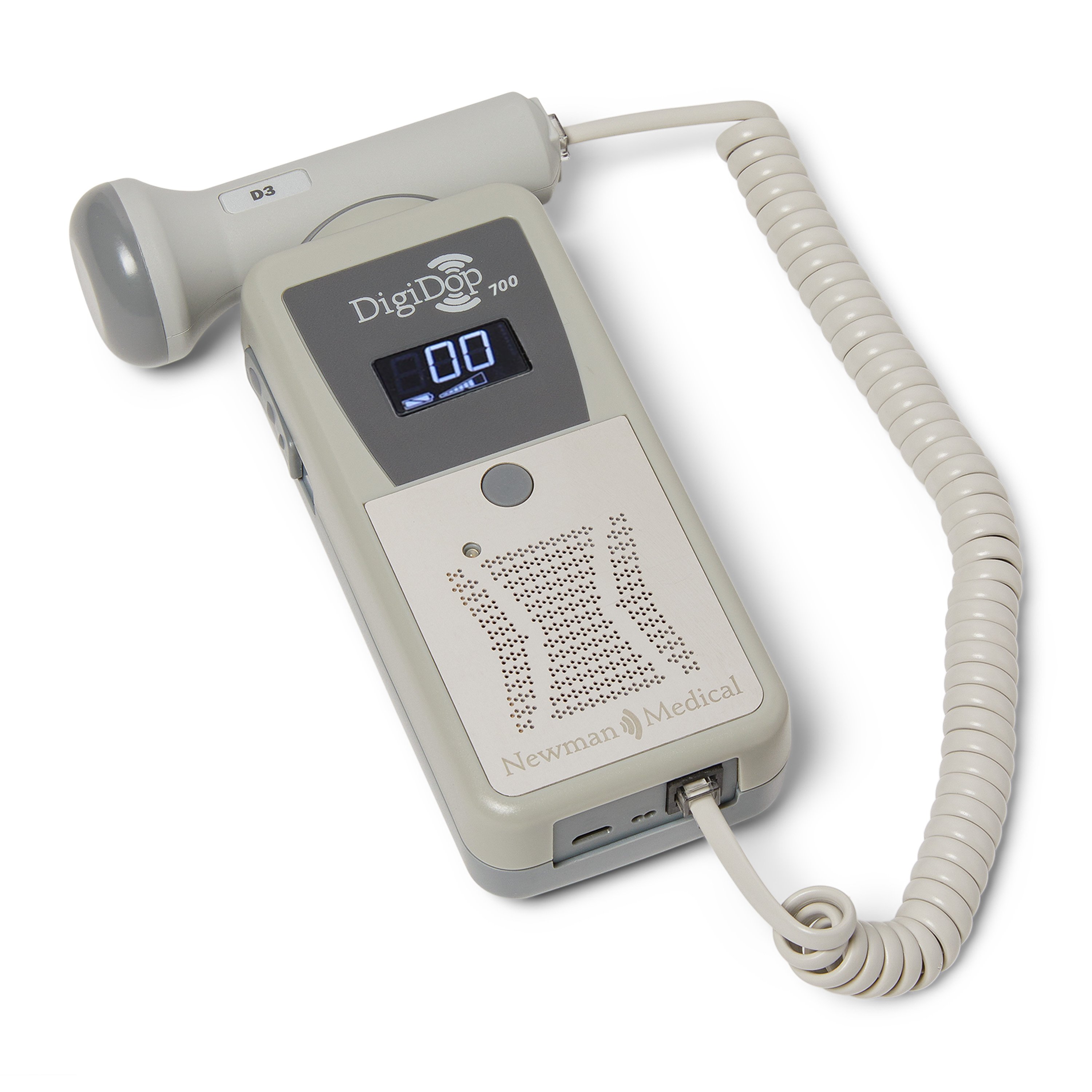

DigiDop-700 Digital Doppler, Heart-Rate Display with Probe
Product Description
The DigiDop-700 Digital Doppler, Heart-Rate Display with Probe offers excellent value for those who simply need clear and loud Doppler sounds. It features a display for battery condition, signal strength, and volume settings.
Features:
- Provides a large, sharp, bright display of the heart-rate
- Powerful Digital Processor - Performs a true auto-correlation calculation for fast, accurate heart-rate
- Sensitivity and Audio Response - Allows you to hear the fetal heart tones (for fetal probes) and blood flow sounds (for vascular probes) quickly and clearly
- Digital Sound Clarity (DSC™) - Enhances the sounds you want to hear while minimizing background noise
- Optimized for Each Probe Frequency - DSC™ is fine-tuned for optimal performance based on the specific frequency
- Powerful High-Fidelity Speaker - It delivers extraordinary smooth and rich Doppler sounds across the full range
- The body is made with a mixture of tough plastics with a unique stainless steel grill over the speaker
- The grill has micro-screen openings for protection, and the speaker has an internal sound-transparent fabric cover for dirt and dust protection
- Fetal probes utilize an eXtended Depth (XD™) technology. It creates more than 6 times as much signal at some depths than other probes
- Standard Professional Size
- Comfortable grip for extended use
- Unique Magnetic Probe Holder - Holds the probe without cracking and breaking. It gently cradles the probe when not being used and holds the probe without being sensitive to how it's rotated
- An open design that prevents dirt, gel, and germs from accumulating
- Alkaline Batteries - Offer hours of usage, enough for hundreds of typical exams
- The DigiDop-700 is compatible with the following two types of probes with different probe choices:
- Fetal Probes
- D2 - 2 MHz: Probes provide excellent deep penetration for late-term pregnancy or larger patients
- D2W - 2 MHz: A waterproof version of the D2 probe for water-assisted labor and delivery
- D3 - 3 MHz: Especially sensitive to early fetal hearts but can also be used throughout the pregnancy
- D3W - 3 MHz: A waterproof version of the D3 probe for water-assisted labor and delivery
- Vascular Probes
- D5 - 5 MHz: Probes provide excellent deep penetration for deeper arteries and deep veins
- D8 - 8 MHz: Especially sensitive for vessels near the surface like the radial, posterior tibial, and dorsalis pedis arteries
- Fetal Probes
- Available in different probe combinations
Various probes can be used interchangeably with any of the DigiDop Dopplers.
Technical Data:
- Level of Protection Against Electrical Shock: Type B Applied Part, Class II Equipment
- Complies with the Following Standards: IEC60101-1, IEC60601-2, IEC60601-2-37
- Operating Temperature: 10° - 40°C (50° - 104°F)
- Operating Humidity: 30% - 75%
- Transport/Storage Temperature: -20° - 50°C (-4° - 122°F)
- Transport/Storage Humidity: 5% - 90%, non-condensing
- Battery Life: 750, 1-minute exams (Alkaline)
- Battery Voltage, Type: 3 x 1.5 volts, AA Alkaline
- Heart Rate Range: 50 - 220 BPM
- Heart Rate Calculation Accuracy: ±3 BPM
- Sensitivity: 9 weeks gestation (3MHz)
- Audio Cable Interface: 3.5mm stereo plug
- Audio Bandwidth: 100Hz - 3000Hz, 1.0W
- Audio Output Power: 1.1W
- Overall Dimensions: 1.25" D x 2.5" W x 6" H
- Actual Product Weight (without batteries): 0.75 lbs
Specifications
| Manufacturer | Newman Medical |
|---|---|
| Actual Product Weight | 0.75 lbs |
| Overall Height | 6" |
| Overall Width | 2.5" |
| Overall Depth | 1.25" |
| Country of Manufacture | United States |
| Item Ships From | Colorado |
Literature
Instructions
Warranty: The product is guaranteed to be free from defects in materials and workmanship, including breakage, for 5 years from the original sale of the device. This guarantee includes all parts and labor required to repair or replace the unit, including shipping the unit back to the customer. The customer is responsible for the adequate packaging and return of the unit for servicing. Products will be repaired or replaced in a reasonable amount of time, to be determined by service personnel. The manufacturer and distributor of the product assume neither responsibility nor liability for incidental or consequential damages arising from the purchase of this product. The manufacturer and distributor of the product are not responsible for damages occurring from misuse or neglectful handling of the device. Any abuse, neglect, or alteration of the equipment, including dismantling of the unit (other than by trained service personnel) from its original specifications, nullifies all stated and implied warranties.
