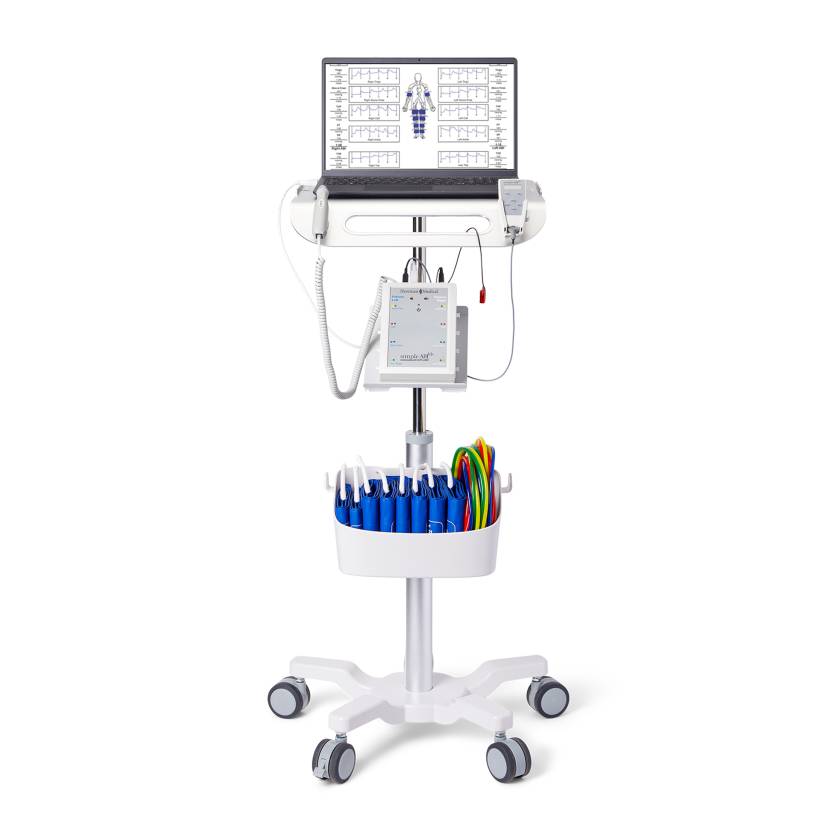

Newman Medical simpleABI Advanced Automated Cuff-Link System - Multi-Level + Exercise

The Newman Medical simpleABI Advanced Automated Cuff-Link System - Multi-Level + Exercise is an advanced solution designed for clinics that need efficient and reliable PAD testing. It supports dual testing modes, enabling both the Doppler-free rapid ABI-Q exam for quick screenings by any staff member and in-depth Doppler-based ABI and TBI exams for comprehensive diagnostics.

Features:

• Empowers healthcare providers to identify Peripheral Artery Disease (P.A.D.) in its early stages
• Complete ABI assessment capabilities: single-level, segmental, exercise, and stress exams
• Detailed PPG and toe waveforms for precise vascular evaluation
• Utilize the ABI-Q rapid exam – a Doppler-free assessment that any supporting staff member can easily perform, perfect for patients with calcified arteries
• Automated cuff selection and inflation/deflation minimize user error
• Portable height-adjustable stand roll-stand design moves easily between exam rooms with minimal assembly
• Backup virtual remote guarantees uninterrupted operation
• DICOM compatibility ensures seamless integration with your medical imaging systems
• It features powerful yet easy-to-use software that sets it apart from other systems, saving you time and streamlining your workflow. Fully integrated into the system, the software requires no separate data downloads
  • Software Features:
    • Automatic index calculations, avoiding potential errors
    • Automatically stores each exam with a time stamp
    • Your logo and contact information can be shown on the report
    • Your physicians, operators, and interpreters can be on drop-down, editable menus
    • Drop-down ICD-10 codes
    • Suggested CPT codes and interpretation of results are shown
    • Multiple and selectable formats to store the reports: PDF, TIFF, CSV, BMP, JPG
    • DICOM software is available as an option
• simpleABI-600CL software offers a full range of tests and reports for evaluating blood flow in the lower limbs and supports proper coding and reimbursement. The tests that can be done include:
  • Single-Level Exams - Used to diagnose obstruction. Performed using Doppler and meets equipment requirements for CPT code 93922
    • ABI-Q (Quick PVR Assessment) - A PVR-based 1-2 minute exam to quickly assess the patient for the presence/absence of PAD
    • ABI (Ankle Brachial Index) - With dual ankle Doppler pressures and PVR waveforms. This is the fundamental PAD exam
    • ABI with Toe (Ankle Brachial Index + Toe or TBI) - With dual ankle Doppler pressures and PVR waveforms. PPG or Doppler can be used on toes. Typically used if the patient has calcified vessels the ABI cannot be obtained
  • Segmental Exams - Multi-level exams are used to determine the level of obstruction. Meets equipment requirements for CPT code 93923
    • Three cuff Segmental - With dual ankle Doppler pressures and PVR waveforms. Ankle, calf, above knee. This is the fundamental PAD exam.
    • Three cuff with Toe - With dual ankle Doppler pressures and PVR waveforms. PPG or Doppler can be used on toes. Typically used if the patient has calcified vessels the ABI cannot be obtained
    • Four cuff - With dual ankle Doppler pressures and PVR waveforms. Adds high thigh location to the 3-cuff exam
    • Four Cuff with Toe - With dual ankle Doppler pressures and PVR waveforms. PPG or Doppler can be used on toes
  • Modern, efficient Segmental Exams - Multi-level exams done with PVR. These tests are much faster, easier on the patient, provide the information needed to determine the level of occlusion, and meet CPT requirements
  • ABI Exercise Exams – Vascular exercise exams. Useful for pseudo-claudication if the patient has PAD symptoms but the resting ABI is normal or questionable
    • ABI with Exercise – Single level exam performed pre and post-exercise. Can be done with provocative maneuvers or a treadmill protocol. Meets requirements for CPT code 93923
    • ABI Stress with Treadmill – Single level exam performed pre and post-exercise. When used with the specified treadmill protocol meets equipment requirements for CPT code 93924
• Computer (Optional) - Specifications are subject to change as computers change rapidly
  • Operating system: Windows 11
  • 14-inch diagonal screen
  • 4 GB memory
  • 128 GB HDD
  • Wireless/Bluetooth capability
  • 6 to 8 hours of  battery
  • Newman Medical software is already installed on the computer
• Cuff-Link Main Control - An integrated speed machine that integrates the following:
  • A 4-port cuff selector
  • Interchangeable Doppler probes
  • Pressure sensors
  • A pump
  • Control software
• Cuff-Link Remote - Enables users to navigate the exam easily with the convenience of push-button control
  • Easily move between sites
  • Large, easy-to-read display of the current cuff pressure.
  • Push button inflation
  • Automated cuff deflation ensures accurate pressures.
  • One-button waveform creation
• Doppler with 8 MHz and PPG probes (5 MHz probe is optional) - Dopplers have the sensitivity and audio response to allow you to hear the blood flow sounds quickly and clearly, while probes have a smooth contour design that is comfortable to hold, comfortable for the patient, and easy to clean
• Cuffs - It comes with a complete set of specialized cuffs that are washable and made of soft material
  • (2) 10cm EZ-Clean Vasocuffs
  • (4) 12cm EZ-Clean Vasocuffs
  • (2) 12cm Long EZ-Clean Vasocuffs
  • (2) 1.9cm Disposable Digit Cuffs
• Adjustable-Height Roll Stand - A sturdy steel rolling stand for the simpleABI system that includes the following:
  • A wide, five-legged anti-tip base
  • Mounting plate for the computer and a Cuff-link
  • Hooks on the basket for storing the hoses
  • Basket for storing cuffs, gel, etc.
• The simpleABI-600CL also comes with:

  • DPPG probe
  • User manual
  • Quick reference guide
  • Two-Year Warranty (Includes all parts, labor, and accidental breakage)

Technical Specifications:

• Level of Protection Against Electrical Shock: Type B Applied Part, Class II Equipment
• Complies with the Following Standards: IEC60101-1, IEC60601-2, IEC60601-2-37
• Operating Temperature: 10° - 40°C (50° - 104°F)
• Operating Humidity: 30% - 75%
• Transport/Storage Temperature: -20° - 50°C (-4° - 122°F)
• Transport/Storage Humidity: 5% - 90%, non-condensing
• Battery Life: 10 hours
• Overall Height: 42"
• Actual Product Weight: 12 lbs
