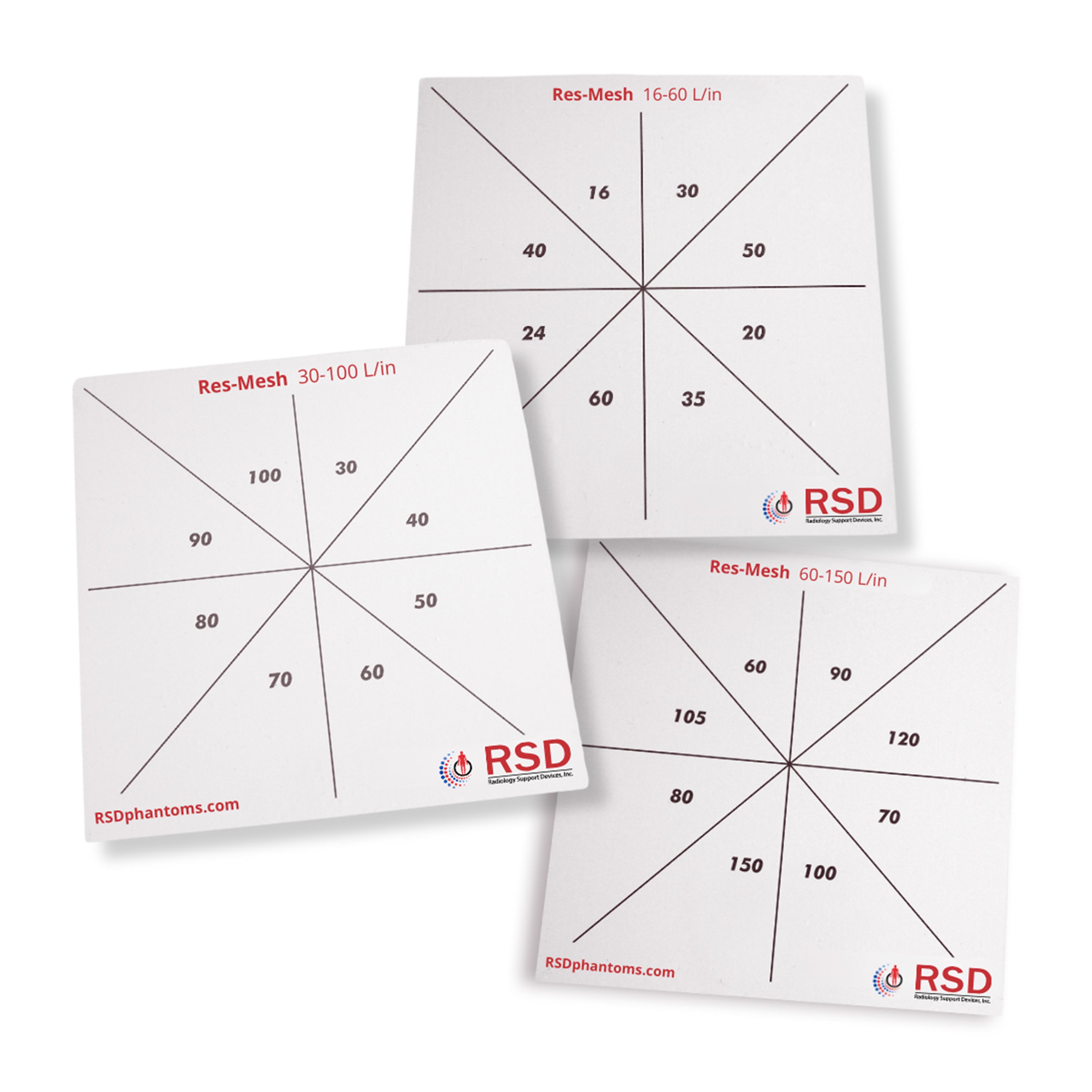

RSD Res-Mesh Phantom Set
Product Description

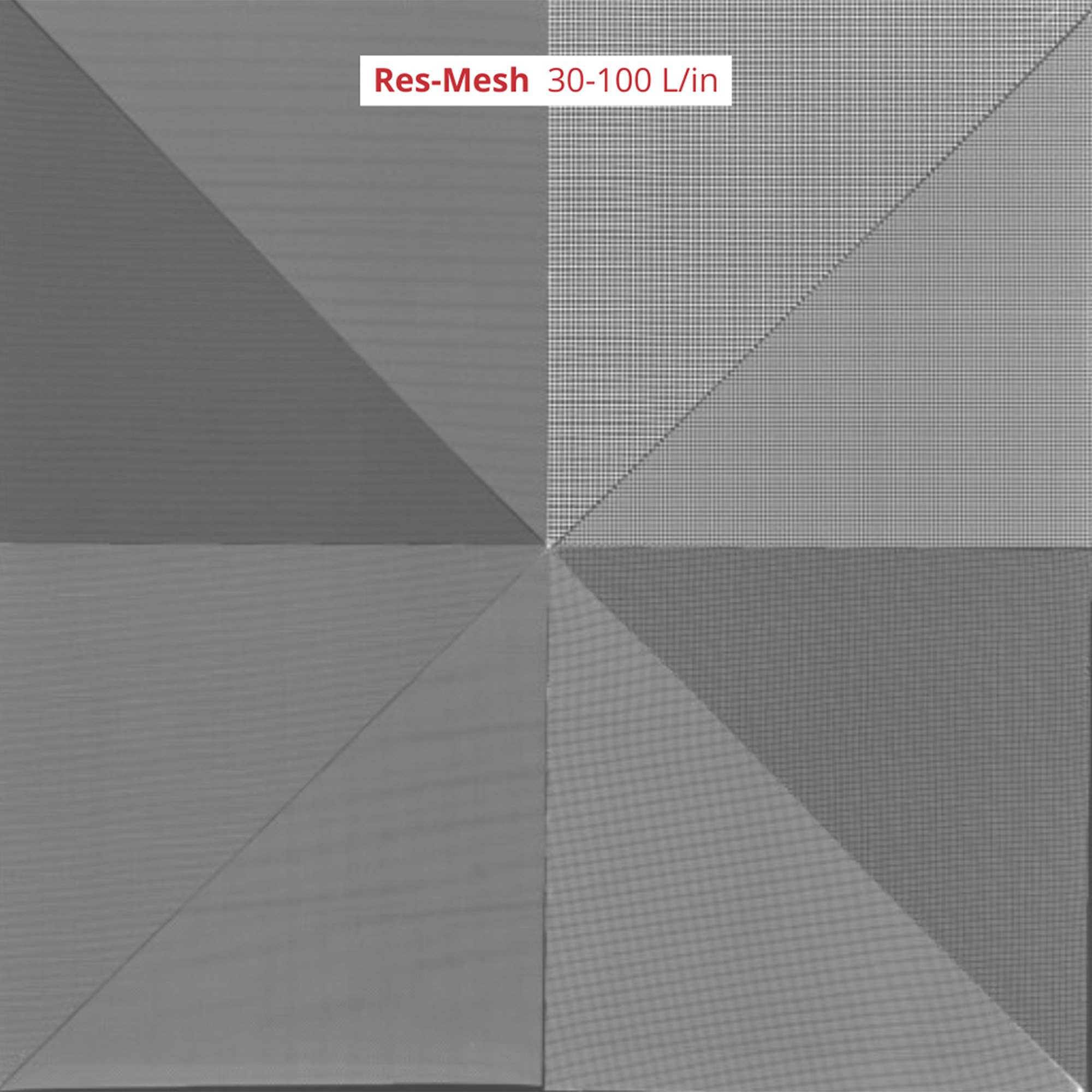

The RSD Res-Mesh Phantom Set is designed for routine quality assurance of fluoroscopic imaging systems. It allows precise evaluation of resolution performance by assessing mesh pattern detail.
Features:
- Versatile Resolution Testing - Includes mesh patterns with various line densities (16-60, 30-100, and 60-150 lines per inch) for comprehensive system evaluation
- Simple Performance Monitoring - Quickly identify deviations in image quality, indicating potential system deterioration
- Maintain Imaging Excellence - Regular testing ensures consistent and high-resolution fluoroscopic images
- Early Issue Detection - Spot potential problems before they affect patient outcomes
- Streamlined Workflow - User-friendly design simplifies the QA process, saving time and effort
- Enhanced System Longevity - Proactive maintenance helps extend the life of your fluoroscopic equipment
- Durable Construction - Built to withstand regular use while delivering reliable and repeatable results
- Compact Design - Lightweight and easy to handle, making it ideal for daily use in busy imaging environments
- Standards Compliance:
- IEC 61223-3-1: Evaluation and routine testing in medical imaging departments – Part 3-1: Acceptance tests – Imaging performance of X-ray equipment for radiographic and radioscopic systems
- Comes Standard With:
- Comprehensive product manual
- Sturdy carrying case

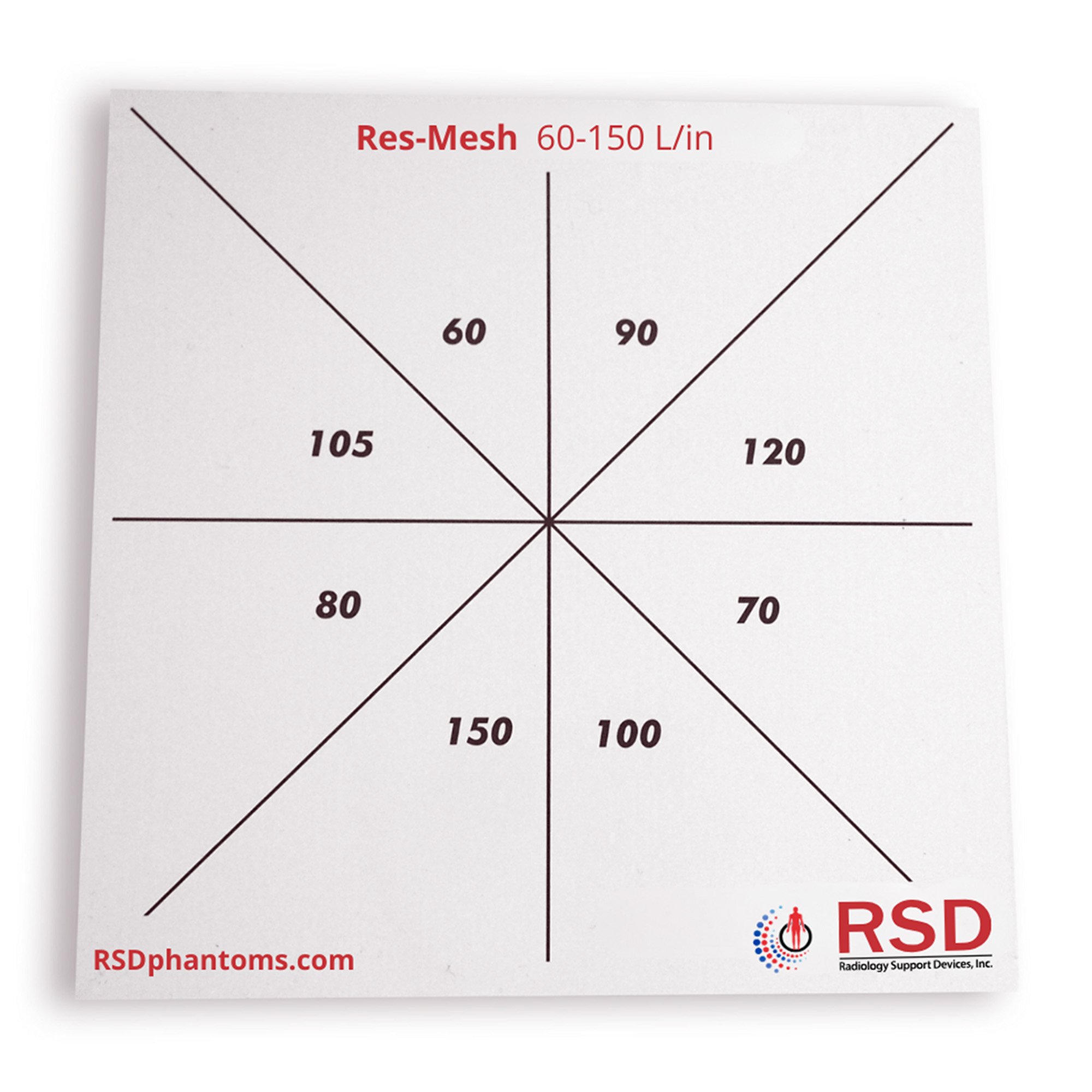

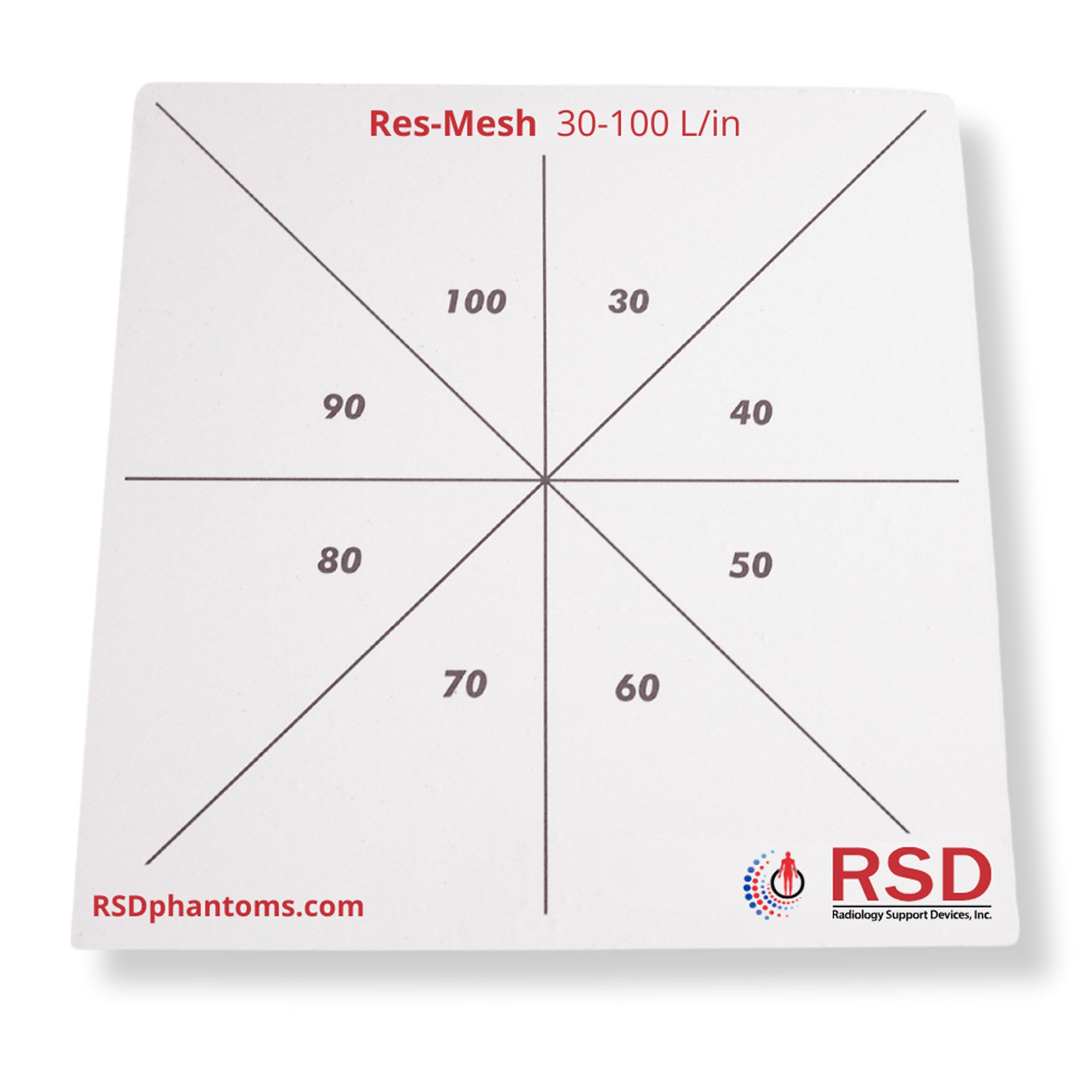

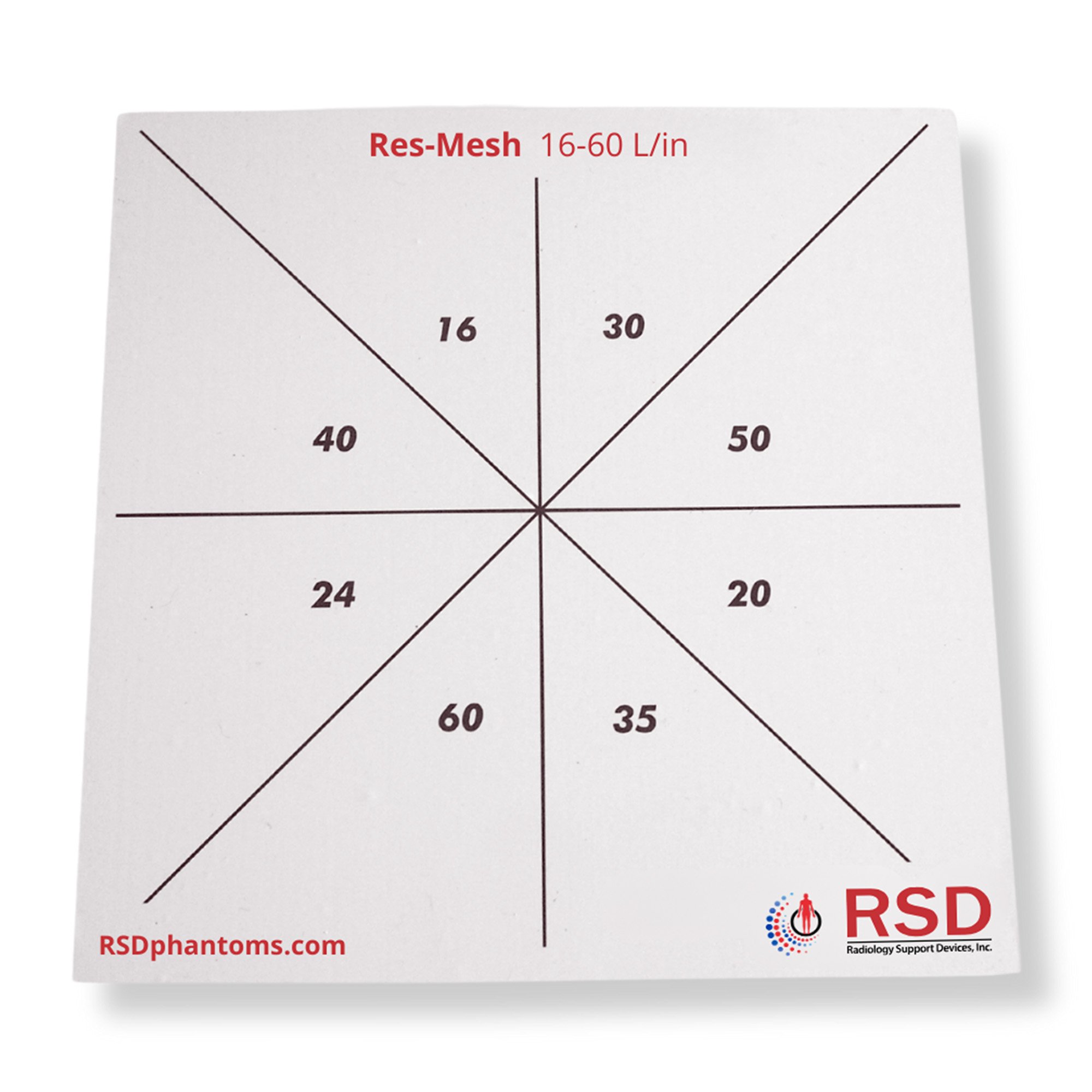

- Available Resolution Meshes: 16-60 lines per inch, 30-100 lines per inch, and 60-150 lines per inch
- Overall Dimensions: 180 mm L x 180 mm W x 10 mm Thickness
- Actual Product Weight: 1.1 lbs
About this Brand
After developing the first anthropomorphic test dummy for the aviation industry in the late 1940's, the RSD team directed its impactful R & D to revolutionize healthcare diagnostic imaging with anthropomorphic phantoms. RSD diagnostic imaging phantoms are routinely used to perform quality control on imaging equipment and to train healthcare professionals in best practices. The company has become the leading supplier of QC and educational solutions for medical diagnostics and radiation therapy, featuring products such as anthropomorphic phantoms and dosimetry verification phantoms.
Specifications
| Manufacturer | RSD |
|---|---|
| Latex Free | Yes |
| Actual Product Weight | 1.1 lbs |
| Overall Width | 180 mm |
| Overall Length | 180 mm |
| Overall Thickness | 10 mm |
| Country of Manufacture | United Kingdom |
| Item Ships From | California |
Literature
Instructions
Warranty: Labor and Parts, for a period of one (1) year from the date of purchase, if this Product is determined to be defective, RSD will repair or replace the Product, at its option, or pay the labor charges to any RSD authorized service facility. After the Warranty Period, you must pay for all labor charges. In addition, RSD will supply, at no charge, new or rebuilt replacements in exchange for defective parts for a period of one (1) year.
For Complete Warranty Details, please see the literature above.
