RSD Fluoro/Digital Radiography Aluminum Step Wedge
Product Description
The RSD Fluoro/Digital Radiography Aluminum Step Wedge provides a reliable and consistent method for evaluating the performance of radiography and fluoroscopy systems, including both dynamic and film screen systems.
Features:
- Comprehensive System Testing - Designed to assess a wide range of imaging parameters for radiography and fluoroscopy systems, including dynamic and film-screen configurations
- Precision Fabrication - Uniform step thickness ensures consistent attenuation and repeatable testing results for accurate quality assessments
- 11- and 21-Step Configurations - Multiple-step options provide flexibility for evaluating contrast resolution, dynamic range, and image quality across various imaging conditions
- High-Purity Aluminum - Constructed with 99.5% pure aluminum to ensure consistent and accurate attenuation properties for reliable imaging evaluations
- Versatile Applications - Suitable for routine quality assurance, system calibration, and research purposes across a variety of imaging modalities
- Standards Compliance:
- IEC 61223-3-1: Evaluation and routine testing in medical imaging departments – Part 3-1: Acceptance tests – Imaging performance of X-ray equipment for radiographic and radioscopic systems

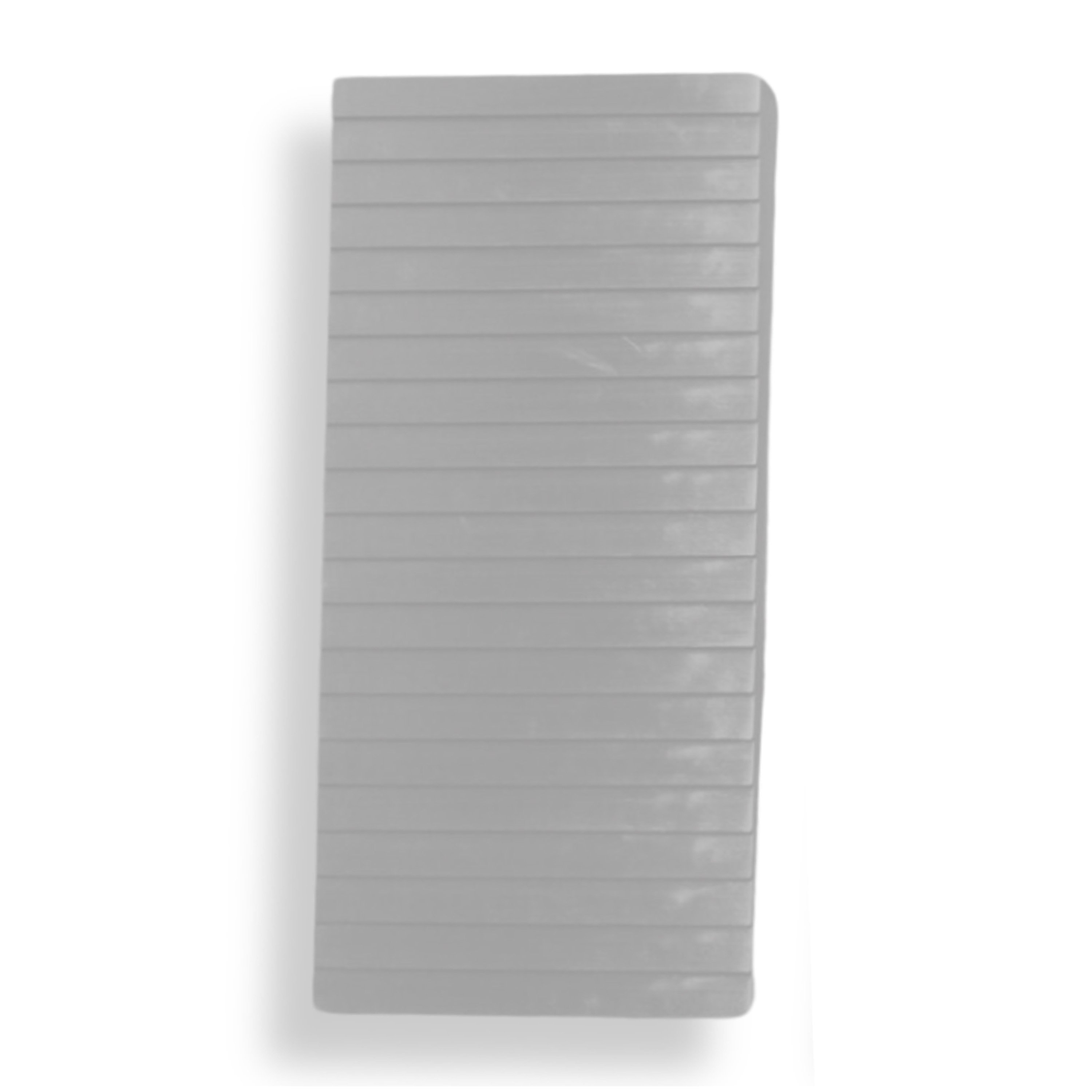

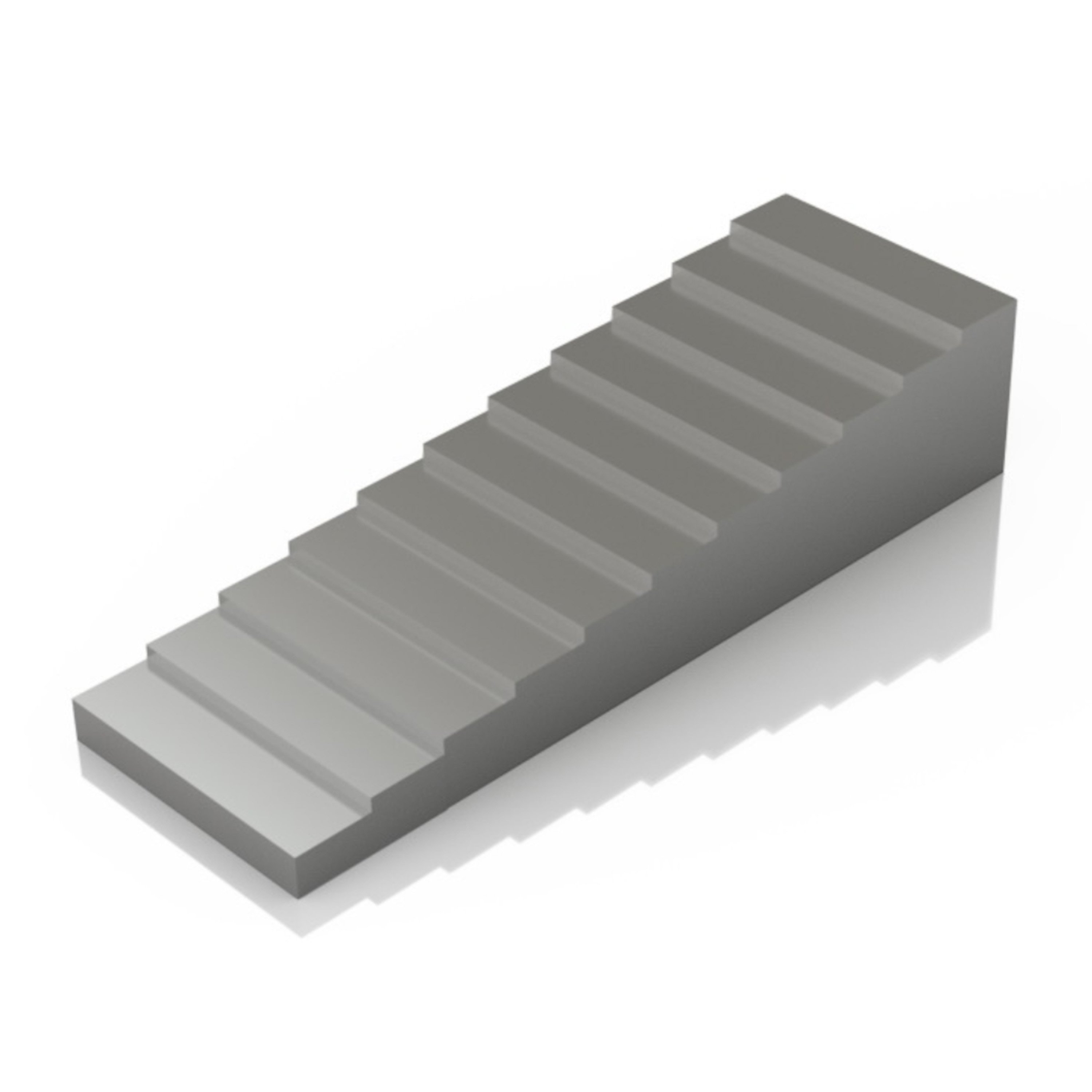

- Available in Two Options: 11-Step Wedge and 21-Step Wedge
Technical Specifications:
- Steps range from 3 mm to 12 mm high
- Overall Dimensions:
- 11-Step Wedge: 230 mm L x 60 mm W x 20 mm H
- 21-Step Wedge: 230 mm L x 110 mm W x 30.5 mm H
About this Brand
After developing the first anthropomorphic test dummy for the aviation industry in the late 1940's, the RSD team directed its impactful R & D to revolutionize healthcare diagnostic imaging with anthropomorphic phantoms. RSD diagnostic imaging phantoms are routinely used to perform quality control on imaging equipment and to train healthcare professionals in best practices. The company has become the leading supplier of QC and educational solutions for medical diagnostics and radiation therapy, featuring products such as anthropomorphic phantoms and dosimetry verification phantoms.
Specifications
| Manufacturer | RSD |
|---|---|
| Latex Free | Yes |
| Country of Manufacture | United Kingdom |
| Item Ships From | California |
Literature
Instructions
Warranty: Labor and Parts, for a period of one (1) year from the date of purchase, if this Product is determined to be defective, RSD will repair or replace the Product, at its option, or pay the labor charges to any RSD authorized service facility. After the Warranty Period, you must pay for all labor charges. In addition, RSD will supply, at no charge, new or rebuilt replacements in exchange for defective parts for a period of one (1) year.
For Complete Warranty Details, please see the literature above.
