Product Description

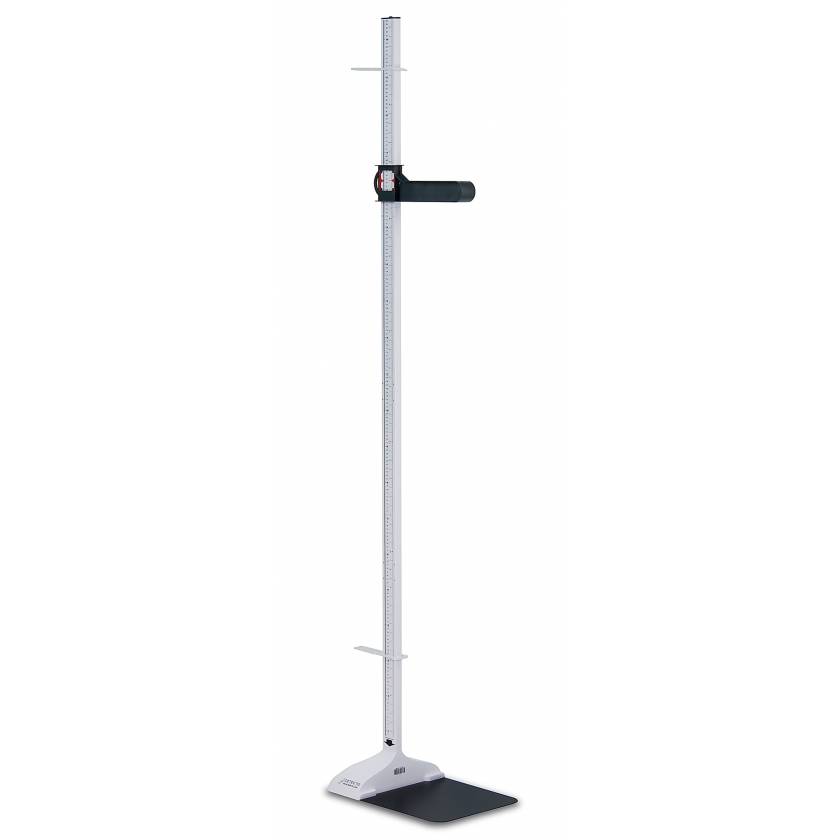

DETECTO's PHR portable free-standing mechanical height rod is simple to set up and easy to use. There'ss no wall fastening necessary and it may be positioned against a wall or completely free standing due to its large floor plate. Two spacers provide additional stability when placed against a wall. The large floor plate ensures complete stability and permits the height rod to be used anywhere.



Smooth-Gliding Head Piece

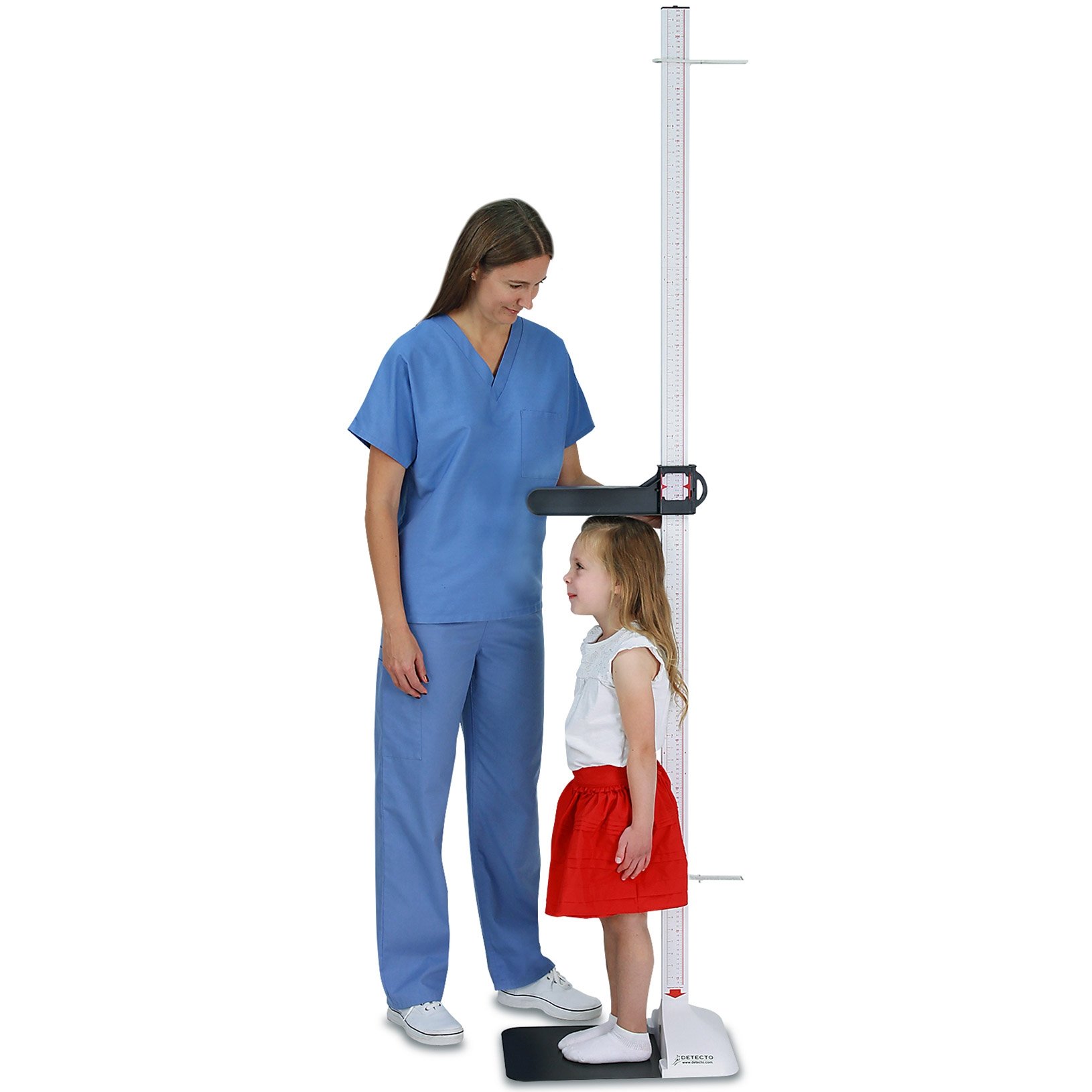

Adjusting the smooth-gliding measuring head piece is easy due to the non-warping plastic construction of the height rod. Measurements are readable from either side of the height rod in bold, clearly visible numbering with bright-red pointer for optimal patient measurement.



Reversible Head Piece to Accommodate the DR400C Scale

The PHR stadiometer features a unique flipping head piece that lets you add a DETECTO DR400C digital floor scale at the base to measure weight and height simultaneously. If you use the PHR without a DR400C scale at the base, simply flip the head piece upside down to convert it for accurate height readings only. The head piece is sized exactly to compensate for the specific height of the scale platform when used with the DR400C low-profile scale.

  • Portable, reliable height measurement accuracy
  • 4.5" - 81" / 11.5 cm - 205 cm Height Range with 0.125" / 0.1 cm graduations
  • Works in conjunction with DETECTO's DR400C Scale
  • From pediatric to adult measurement
  • Height rod disassembles easily into 4 sections and stores conveniently with head piece and base
  • Exclusive reversible head piece for use with or without DR400C scale
  • Two stabilizers for use against a wall
  • Durable and lightweight all-plastic construction
  • An optional PHR-CASE carrying case with shoulder strap is available that fits the PHR and DR400C

Please Note: Image 3 shown PHR with DR400C scale (not included)



  PHR
Height Range
4.5" - 81" / 11.5cm - 205 cm
Graduations 0.25" / 0.1 cm
Construction Plastic
Number of Pieces 8 total
Product Dimensions
13" W x 19.8" D x 83.5" H
Product Weight
8.5 lbs
Storage Dimensions 15" W x 23.5" D x 3.8" H
Shipping Dimensions 14" W x 23.5" D x 6.25" H
Shipping Weight 12 lbs

Specifications

Specifications
Manufacturer Detecto Scales
Actual Product Weight 8.5 lb
Overall Height 83.5"
Overall Length 19.8"
Overall Width 13"
Country of Manufacture China
Item Ships From Missouri

Literature 1

pdf
(Size: 214 KB)

Instructions

Warranty: Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows: Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of two (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect. During the first ninety (90) days Detecto may choose to replace the product at no charge to the buyer upon inspection of the returned item. After the first ninety (90) days, upon inspection of the returned item, Detecto will repair or replace it with a remanufactured product. The customer is responsible for paying for the freight both ways.

Returns

A valid return authorization number must be obtained within 30 days of item receipt. Returned merchandise must be in new, undamaged condition and all return shipments must be prepaid. A minimum 25% restocking fee will be deducted.
