Product Description

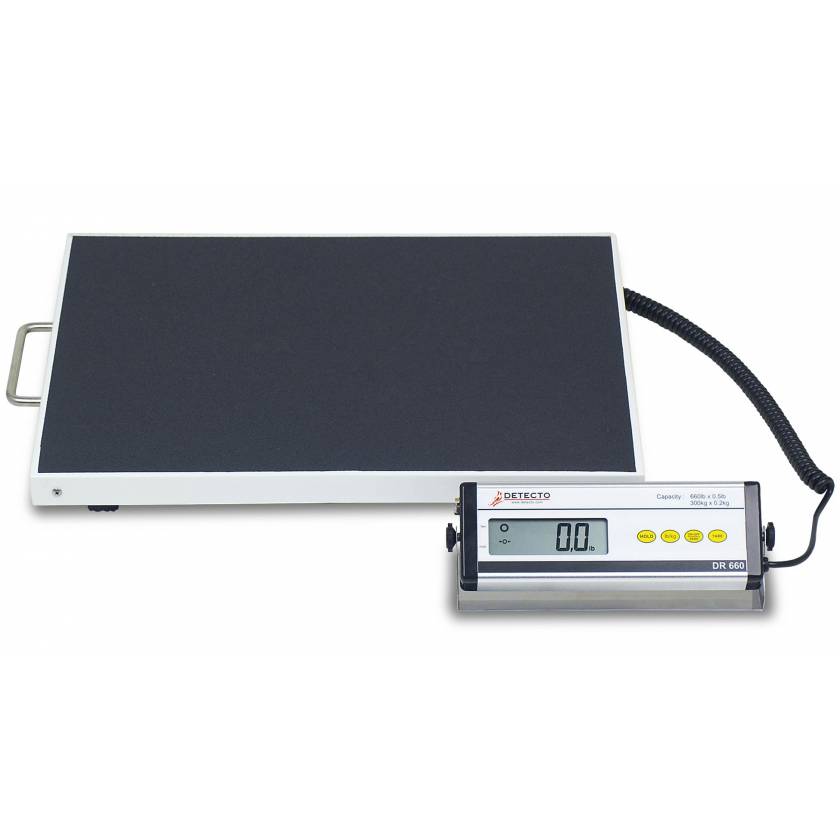

Detecto's DR660 Portable Bariatric Scale is edeal for home healthcare patient weighing.

  • Lightweight spacious weighing platform
  • Integral carrying handle
  • RS232 serial output
  • Rubber non-skid mat
  • The DR660's feet may be easily by adjusted for aligment with various weighing surfaces due to transport from one location to another
  • 1" (25 mm) high LCD digits
  • HOLD Key: Weigh may continue to be displayed after the patient steps off the scale allosing full attention to the patient before recording measurements
  • TARE Key: Helpful when weight from patient-carried items need to be removed from the patient's weight
  • Built-in rechargeable battery power
  • Remote display may be mounted on a wall or placed on a tabletop
  • Pigtail display cable flexes from 34-126"
  • Interface with a PC or printer via the serial port for quick data transfer
  • Operator may select optional times for automatic shutoff to conserve battery life
  • 660 lb capacity
  • Optional stainless steel wall-mount grab bars also available for patient stability (GBSS18-WM)



  DR660
Capacity
660 lb x 0.5 lb / 300 kg x 0.2 kg
Weight Display
7 digit, 1" (25 mm) high characters LCD
Display Dimensions
10.6" W x 3.5" D x 1.8" H (27cm W x 9cm D x 5cm H)
Platform Dimensions
21.5" W x 17.2" D x 1.97" H (56cm W x 44cm D x 5cm H)
Display Cable Length
Flexes from 34" to 126" (86cm to 320cm)
Power

Built-in rechargeable battery pack (7.2 VDC / 1200mA)

or 120 VAC 60Hz powering a 15 VDC 300 mA wall plug-in UL/CUL listed power supply (included)

Battery Usage
8 hr continuous (with 14 hr recharge time)
Tare 100% full scale capacity
Operating Temperature 40 to 105°F (5 to 35°C)
Humidity 25% ~95% RH
Keys HOLD, Lb/Kg, ON/ZERO/OFF, TARE
Features  Low battery indicator, power-saving selectable timing auto shut-off
Shipping Weight 28 lb / 12.5 kg

Specifications

Specifications
Manufacturer Detecto Scales
Latex Free Yes
Weight Capacity 660 lbs
Country of Manufacture China
Item Ships From Missouri

Literature

pdf
(Size: 152.4 KB)

Instructions

Warranty:

Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows:

  • Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of two (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
  • During the first ninety (90) days Detecto may choose to replace the product at no charge to the buyer upon inspection of the returned item.
  • After the first ninety (90) days, upon inspection of the returned item, Detecto will repair or replace it with a remanufactured product. The customer is responsible for paying for the freight both ways.

Returns

A valid return authorization number must be obtained within 30 days of item receipt. Returned merchandise must be in new, undamaged condition and all return shipments must be prepaid. A minimum 25% restocking fee will be deducted.
