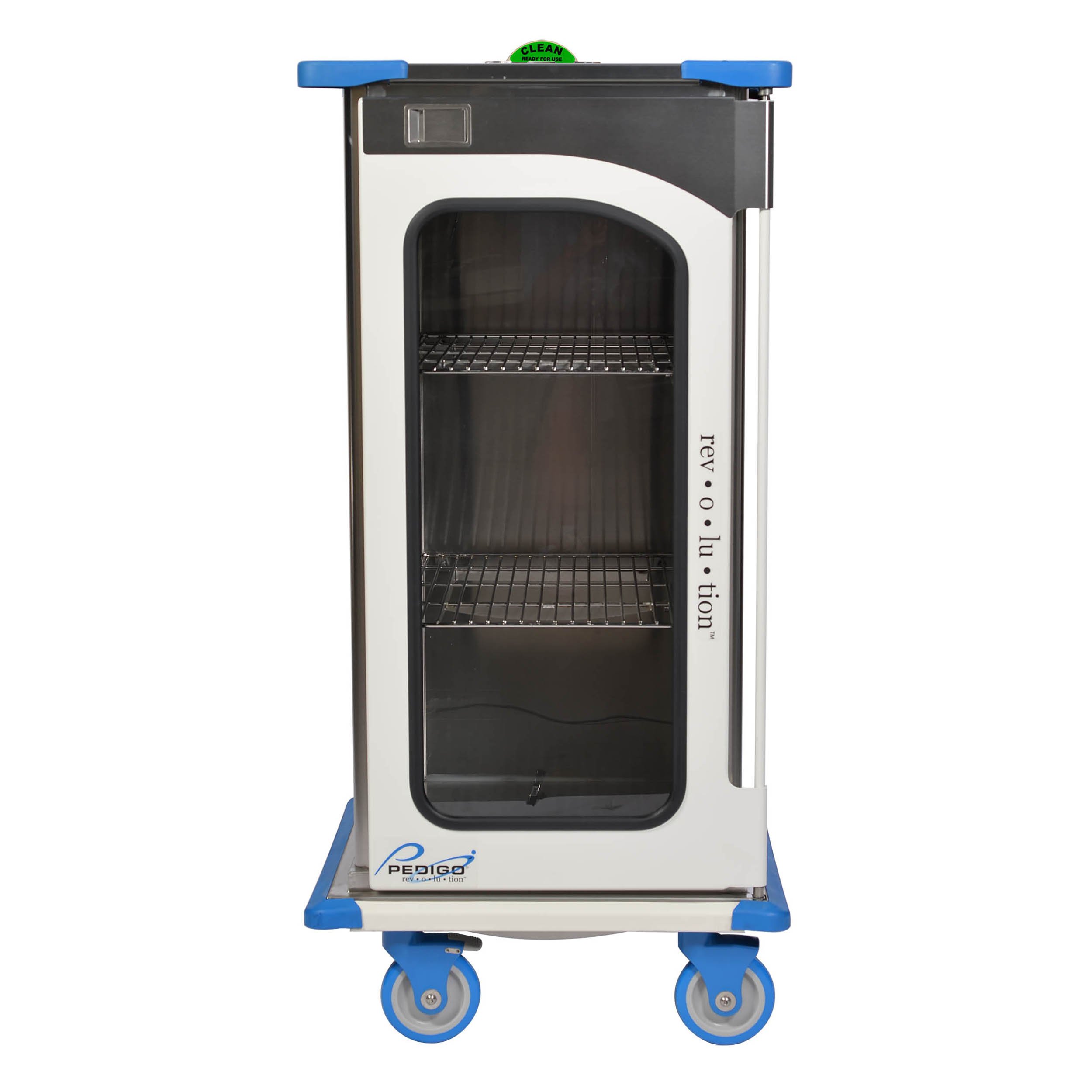

The Revolution™ Closed Surgical Case Cart RCC-233-B is ergonomically designed to be lightweight and easy to handle, requiring less push/pull force than standard case carts. Unique features make the cart safe and easy to use.
Overall Outside Dimensions: 29"W x 27.5"D x 59"H
Usable Interior Space: 20"W x 23.5"D x 44.75"H
Single Windowed Door:
Scratch and impact resistant clear polycarbonate window
Rubber gasket seals window & interior contents
Custom high-temp, chip resistant aluminum powder-coated door
Adjustable door hinge for proper alignment
Aluminum and stainless steel construction
Roll-out shelves (sold separately) with two position, spring loaded arm mechanism securely locks the shelf in the extended or retracted position. With the shelf fixed in the extended position, staff can easily and safely load the cart without movement from the shelf.
Biohazard/Clean ID Wheel clearly communicate the contents and destination of the cart - supports staff safety and sterility. Designed for compliance with OSHA standard CFR 1910.1030, ANSI/AAMI ST 79.
Revolve™ 6" diameter, maintenance-free, high-temp, engineered thermoplastic casters with two direction and two total lock casters
Glass-flled polymer handle system with integrated door catch mechanism
Polymer handle is cooler to the touch after cart washing
Integrated body, ﬂoor and doors increases overall cart rigidity
Inside ﬂoor is sloped 1.5 degrees to the rear of cart to contain ﬂuids
High temp, impact resistant bumper is mounted directly to the cart body to reduce overall footprint
Cart is designed to quickly drain during cart washing to minimize residual water
Horizontal mounted paddle latches
Overall weight of cart reduced
Shelving: Please note, carts do not come with any shelving. Please see the above "You May Also Need" section for these available configurations:
RCC-233-SS Stainless Steel Solid Shelf
RCC-233-SSRO Stainless Steel Roll-Out Solid Shelf
RCC-233-WS Stainless Steel Wire Shelf
RCC-233-WSRO Stainless Steel Roll-Out Wire Shelf
Revolve™ Caster Features: New maintenance-free re•volve™ caster is made from engineered thermoplastic. Rated to 280° Fahrenheit, this high temp caster features four precision bearings in each caster - best in the industry. Twin sets of precision stainless steel sealed ball bearings in the axle and swivel improves cart handling, maneuverability and reduces the overall push/pull force by 32%.
Direction Lock: Two pedal activated swivel lock casters are located at the back side of the cart. Direction lock is integrated into the saddle of the caster allowing for upgrades or caster replacement to take place in the field. When engaged, improves the steering of the cart. Caster is bolt mounted.
Total Lock: To secure the cart in a stationary position for loading and unloading of contents, engage the two Total Lock casters located at the front of the cart.
Please Note: This item ships motor freight carrier. During the checkout process you will be required to indicate whether your facility requires liftgate or inside delivery services. (These services are described on our shipping information page.) In the order comments please include a name & phone number for the delivery point of contact. Please also include receiving hours and any other delivery requirements or instructions. If additional services necessitate an additional fee, you will be contacted by Customer Service. If you have questions about the motor freight delivery process please contact Customer Service prior to placing your order.
About this Brand
Since 1947, family-owned Pedigo has been making chrome and stainless steel products for the healthcare industry. They have earned a reputation for products that are built to last. From its Vancouver, Washington manufacturing facility in the Portland, OR metro area, they make over 200 products, including stools, instrument tables, IV stands, surgical case carts, exchange and distribution carts, bassinets, and stretchers/gurneys. Pedigo strives to make quality products in the USA while remaining conscious of their environmental footprint. They actively work to minimize the impact of their manufacturing practices on the planet.
Warranty: PEDIGO equipment is warranted to be free from defects in materials and workmanship for a period of three years from date of purchase under normal use and service.
