Product Description

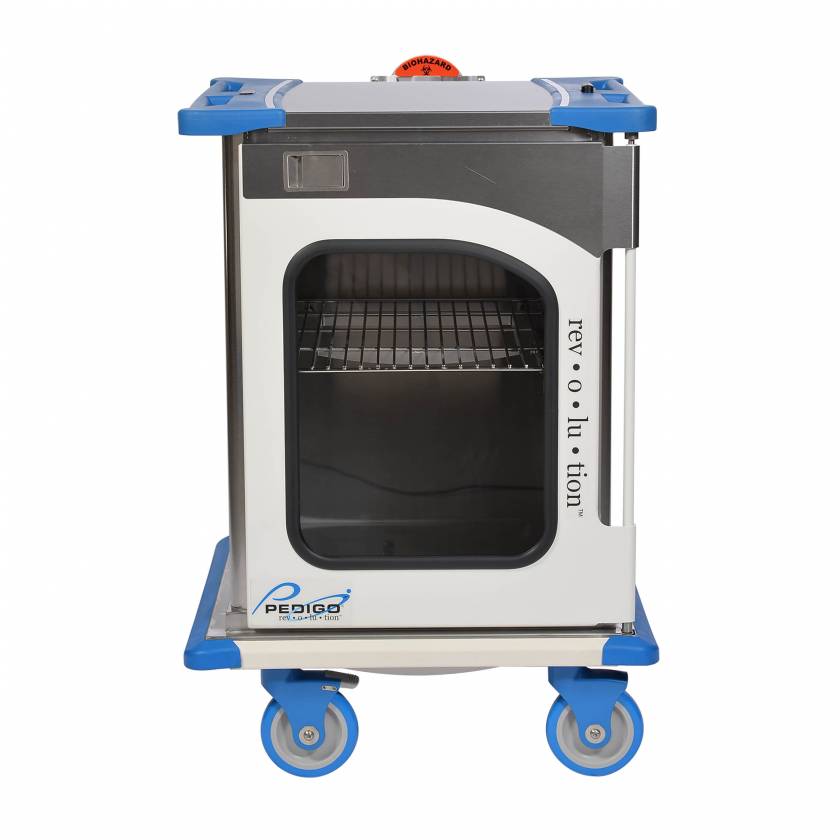

The Revolution™ Closed Surgical Case Cart RCC-256-MS-B is ergonomically designed to be lightweight and easy to handle, requiring less push/pull force than standard case carts. Unique features make the cart safe and easy to use.

Cart Features:

  • Overall Outside Dimensions: 29"W x 27.5"D x 42"H
  • Usable Interior Space: 20"W x 23.5"D x 27.75"H
  • Single Windowed Door:
    • Scratch and impact resistant clear polycarbonate window
    • Rubber gasket seals window & interior contents
    • Custom high-temp, chip resistant aluminum powder-coated door
    • Adjustable door hinge for proper alignment
  • Aluminum and stainless steel construction
  • Roll-out shelves (sold separately) with two position, spring loaded arm mechanism securely locks the shelf in the extended or retracted position. With the shelf fixed in the extended position, staff can easily and safely load the cart without movement from the shelf.
  • Biohazard/Clean ID Wheel clearly communicate the contents and destination of the cart - supports staff safety and sterility. Designed for compliance with OSHA standard CFR 1910.1030, ANSI/AAMI ST 79.
  • Revolve™ 6" diameter, maintenance-free, high-temp, engineered thermoplastic casters with two direction and two total lock casters
  • Glass-flled polymer handle system with integrated door catch mechanism
  • Polymer handle is cooler to the touch after cart washing
  • Integrated body, floor and doors increases overall cart rigidity
  • Inside floor is sloped 1.5 degrees to the rear of cart to contain fluids
  • High temp, impact resistant bumper is mounted directly to the cart body to reduce overall footprint
  • Cart is designed to quickly drain during cart washing to minimize residual water
  • Horizontal mounted paddle latches
  • Overall weight of cart reduced

Shelving: Please note, carts do not come with any shelving. Please see the above "You May Also Need" section for these available configurations:

  • RCC-233-SS Stainless Steel Solid Shelf
  • RCC-233-SSRO Stainless Steel Roll-Out Solid Shelf
  • RCC-233-WS Stainless Steel Wire Shelf
  • RCC-233-WSRO Stainless Steel Roll-Out Wire Shelf

Revolve™ Caster Features: New maintenance-free re•volve™ caster is made from engineered thermoplastic. Rated to 280° Fahrenheit, this high temp caster features four precision bearings in each caster - best in the industry. Twin sets of precision stainless steel sealed ball bearings in the axle and swivel improves cart handling, maneuverability and reduces the overall push/pull force by 32%.

  • Direction Lock: Two pedal activated swivel lock casters are located at the back side of the cart. Direction lock is integrated into the saddle of the caster allowing for upgrades or caster replacement to take place in the field. When engaged, improves the steering of the cart. Caster is bolt mounted.
  • Total Lock: To secure the cart in a stationary position for loading and unloading of contents, engage the two Total Lock casters located at the front of the cart.

Please Note: This item ships motor freight carrier. During the checkout process you will be required to indicate whether your facility requires liftgate or inside delivery services. (These services are described on our shipping information page.) In the order comments please include a name & phone number for the delivery point of contact. Please also include receiving hours and any other delivery requirements or instructions. If additional services necessitate an additional fee, you will be contacted by Customer Service. If you have questions about the motor freight delivery process please contact Customer Service prior to placing your order.

About this Brand

Specifications

Specifications
Manufacturer Pedigo
Actual Product Weight 71 lbs
Overall Height 42"
Overall Length 27.5"
Overall Width 29"
Country of Manufacture United States
Item Ships From Washington

Literature 1

pdf
(Size: 678.4 KB)

Instructions

Warranty: PEDIGO equipment is warranted to be free from defects in materials and workmanship for a period of three years from date of purchase under normal use and service.
