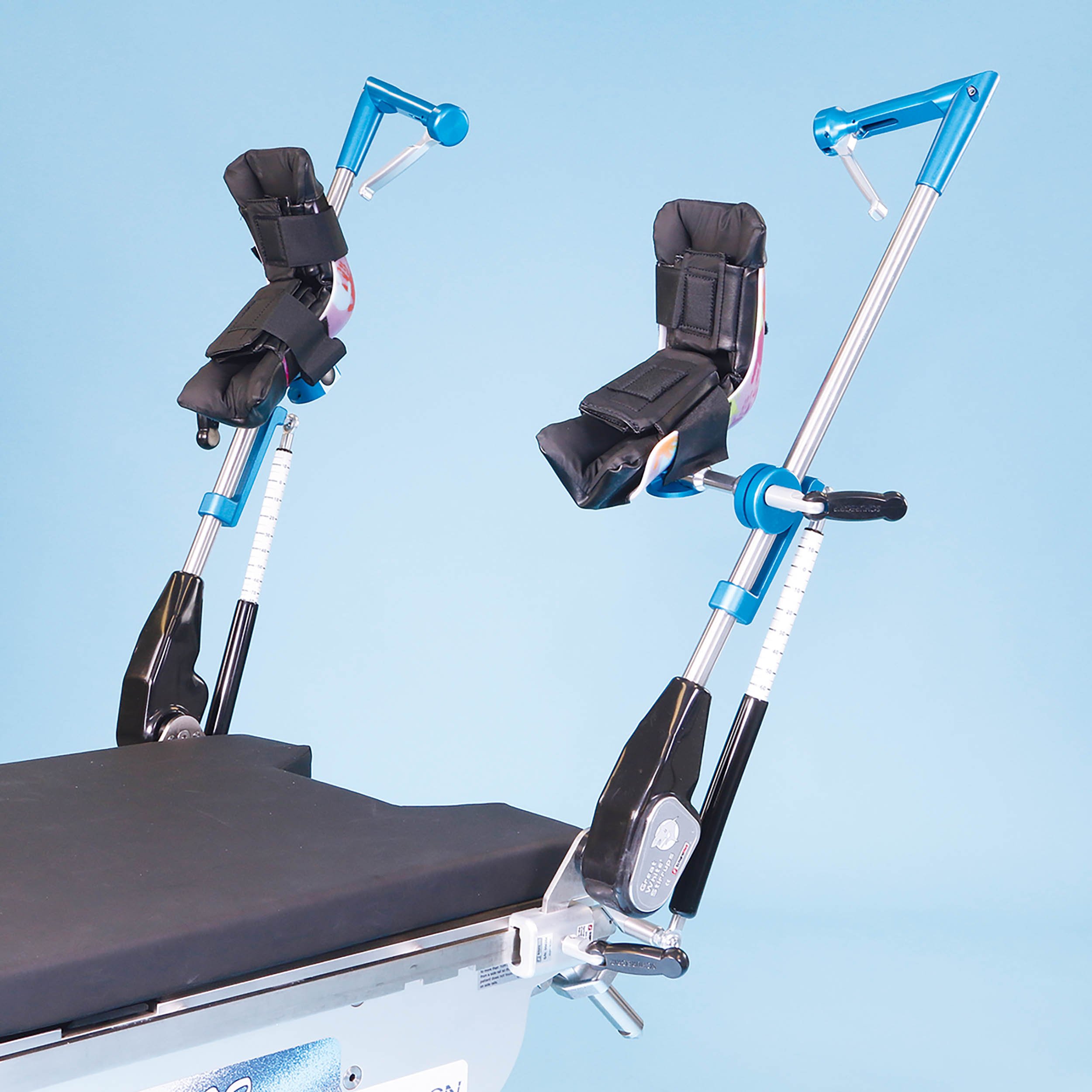

SchureMed Pediatric E-Z Lift Stirrups

The Pediatric E-Z Lift Stirrups are as easy-to-use as its forerunner. Exclusive axial rotation from the handle for superior patient positioning. Boot adjusts with a single clamp which simplifies patient positioning. Boot pads included.

• Exclusive axial rotation from the handle for superior patient positioning
• E-Z Lift feature easily control the patient's leg when moving it into the operative position
• Floating boot automatically adjusts when repositioning the pediatric boot stirrup
• Two required SpringLoc Clamps sold separately

General Specifications: Device Dimensions (maximum)

• Length: 35" +/- 0.5"
• Width: 9" +/- 0.5"
• Depth: 14" +/- 0.5"
• Device Weight Per Stirrup: 8 +/- 0.5 lbs. (with pad)
• Range: Abduction +25°, Adduction -9°, Lithotomy range of +75° to -30° & externally rotates out 20°
• Attaches to rail of surgical table at any point on the rail
• Single-person installation

Please be advised that you must have an OR table with a side rail on each side that extends from the back section through to the foot section. If your exam or procedure table does NOT have side rails you will be unable to affix this product to your table.

Required Accessory: Purchase Two SpringLoc Clamp #800-0338 (sold separately)

Optional Accessories: Pediatric Stirrups Dolly #800-0074-P

Replacement Pads:

• PUPS Boot Pads #508-1295
• KIDS Boot Pads #508-1296
