SchureMed Great White HD 1000 Stirrup Boot System
Product Description
Discover innovation in our interchangeable stirrup boot system with 1,000 lb patient weight capacity.

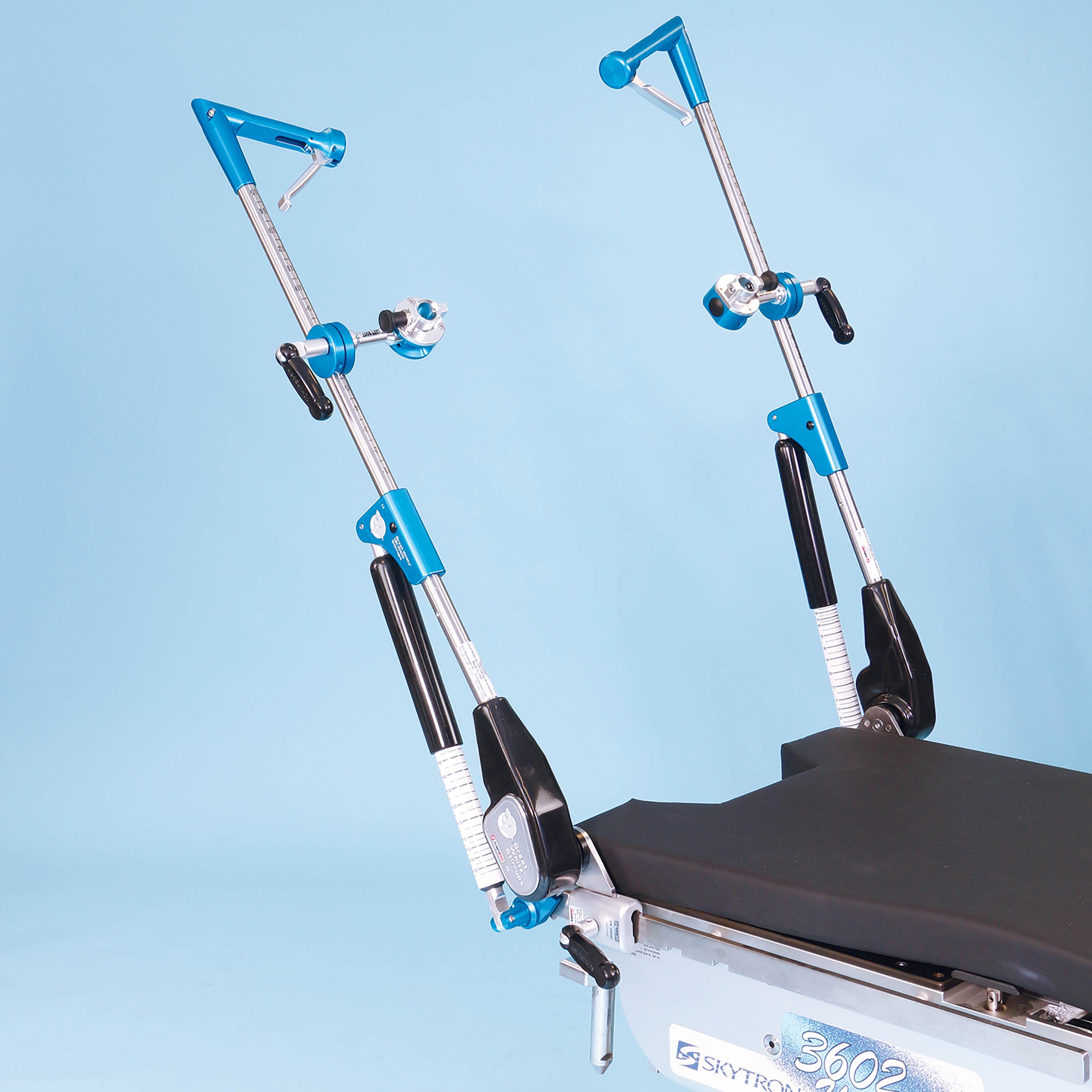

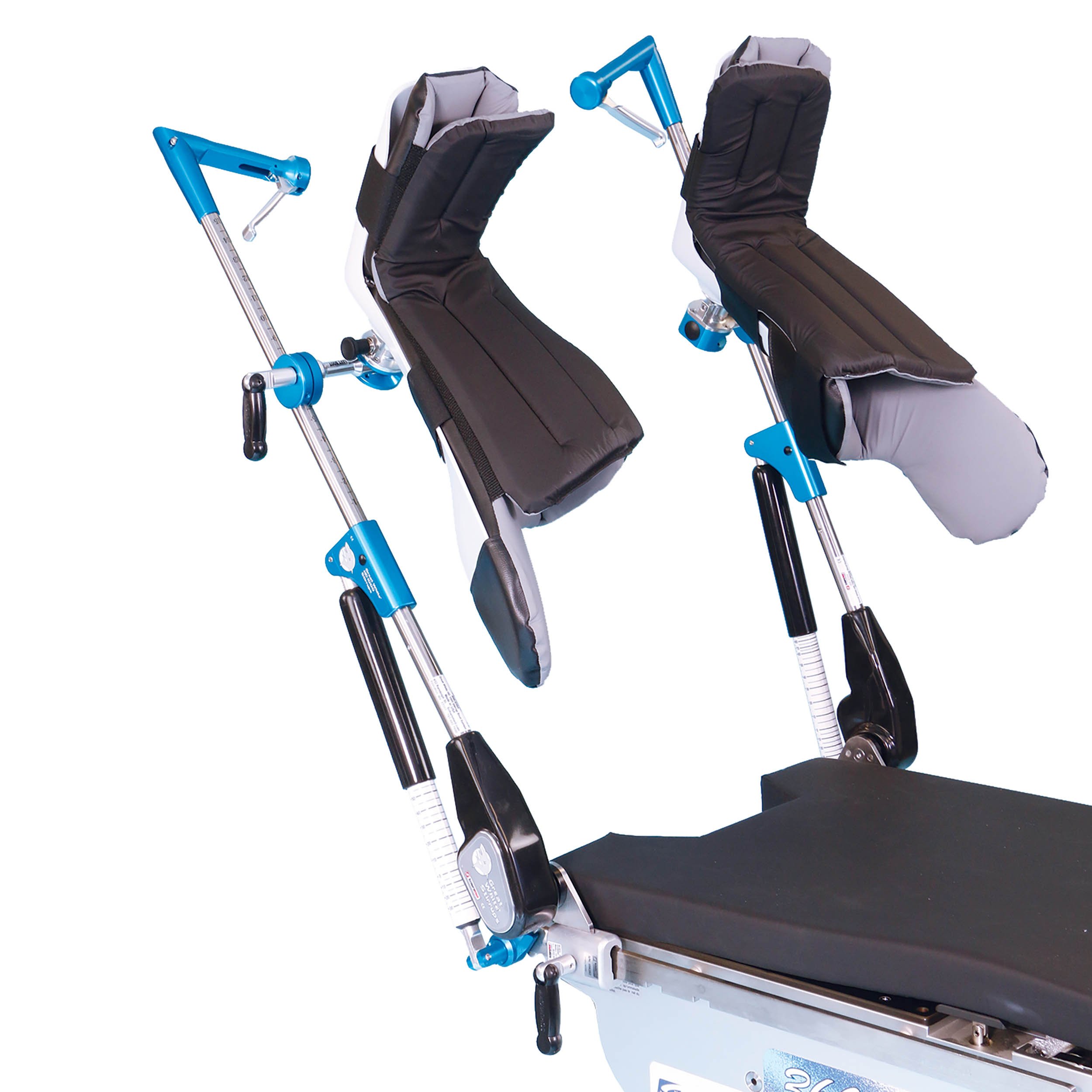

The Great White® HD 1000 Stirrups from SchureMed are a patient positioning accessory used in gynecology, urology, and laparoscopic procedures. They provide a safe system for positioning the legs of up to 1,000 lb patients in a variety of lithotomy/abduction positions. The interchangeable boots allow the user to perform different procedures without switching the stirrup.

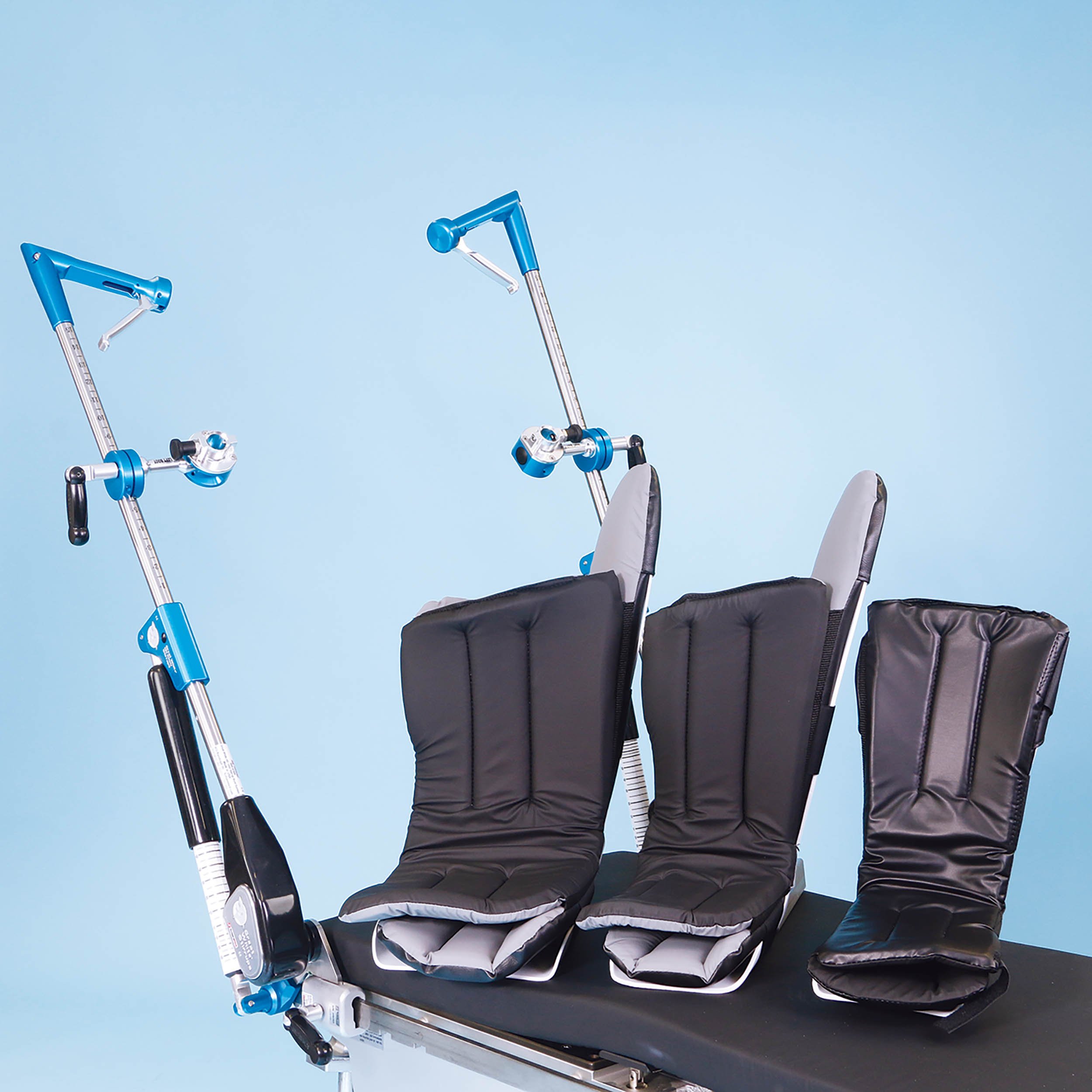

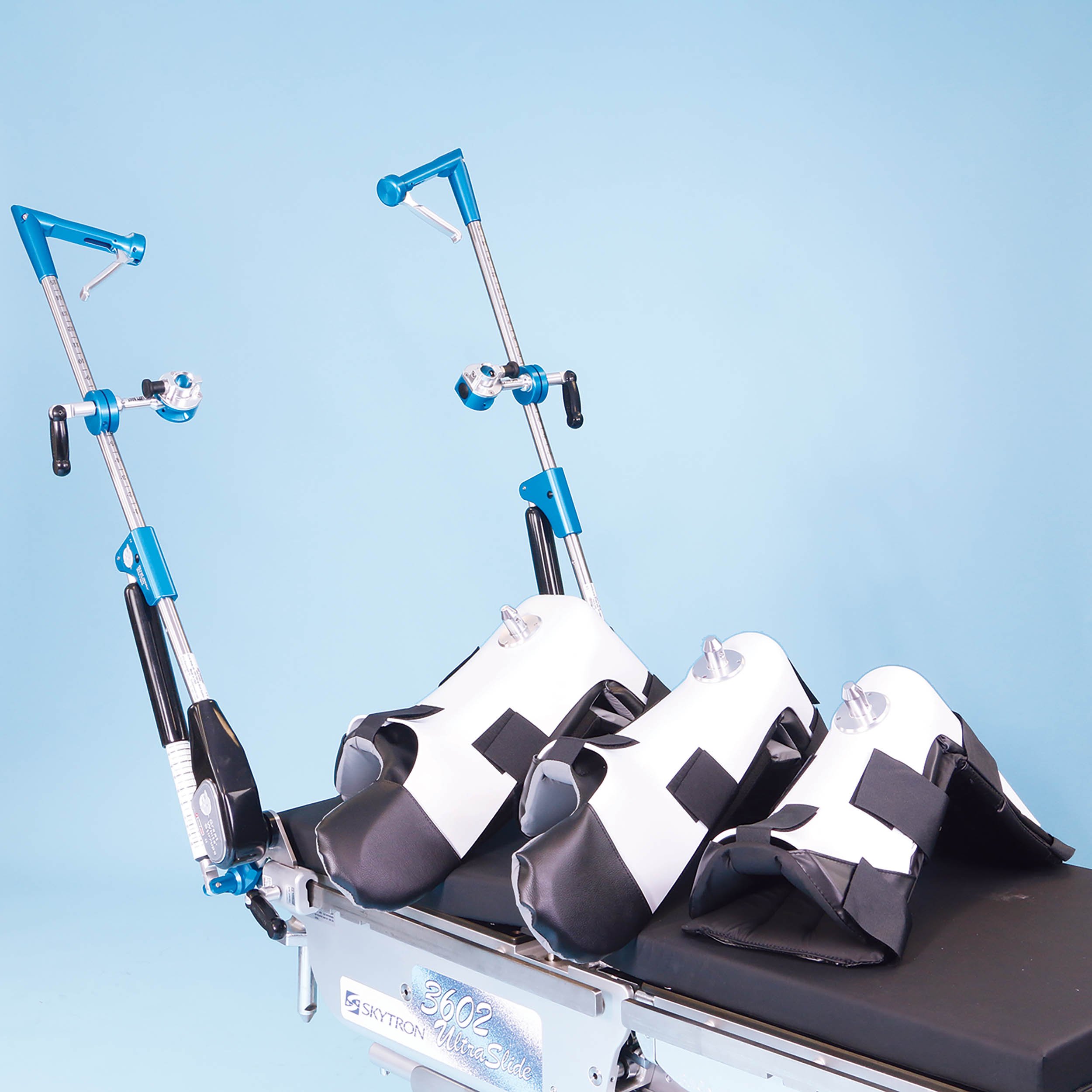

Proprietary 3-in-1 System includes three pairs of Stirrup Boots: Premium, Platinum & Bariatric
Stronger! A new, engineered stainless steel tube increases load capacity to 1000 lb

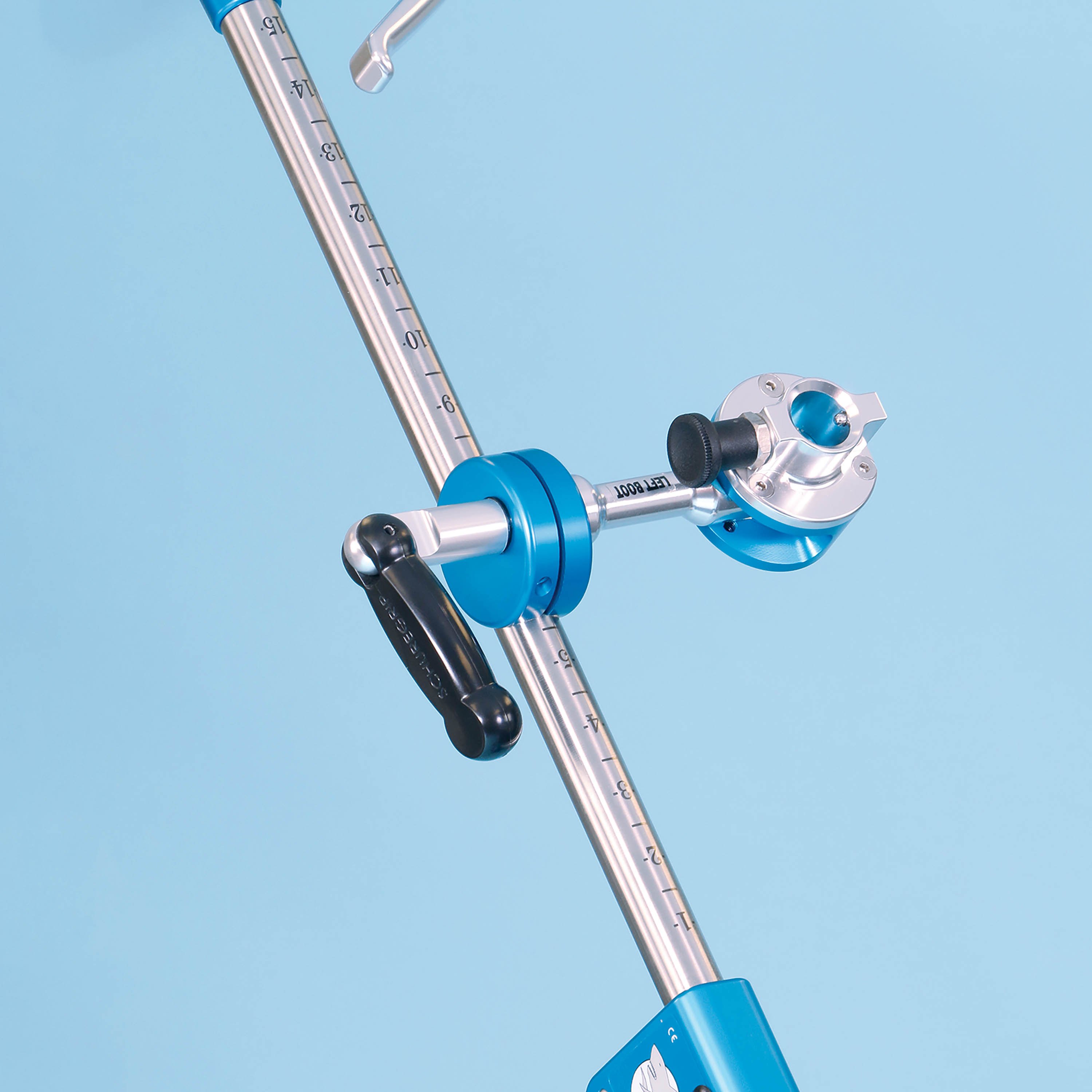

Redesigned! 3-axis control handle mimics the human hip's motion for smooth and accurate high/low lithotomy, adduction & abduction positioning
Locking Gas Spring locks stirrup in place - stays locked until trigger is pulled
Ranges Lithotomy Range -25° low to 75° high; Adduction -9° and abduction +25°
Included Premier boot liners wrap the foot, ankle & calf providing safe, comfortable & secure patient positioning

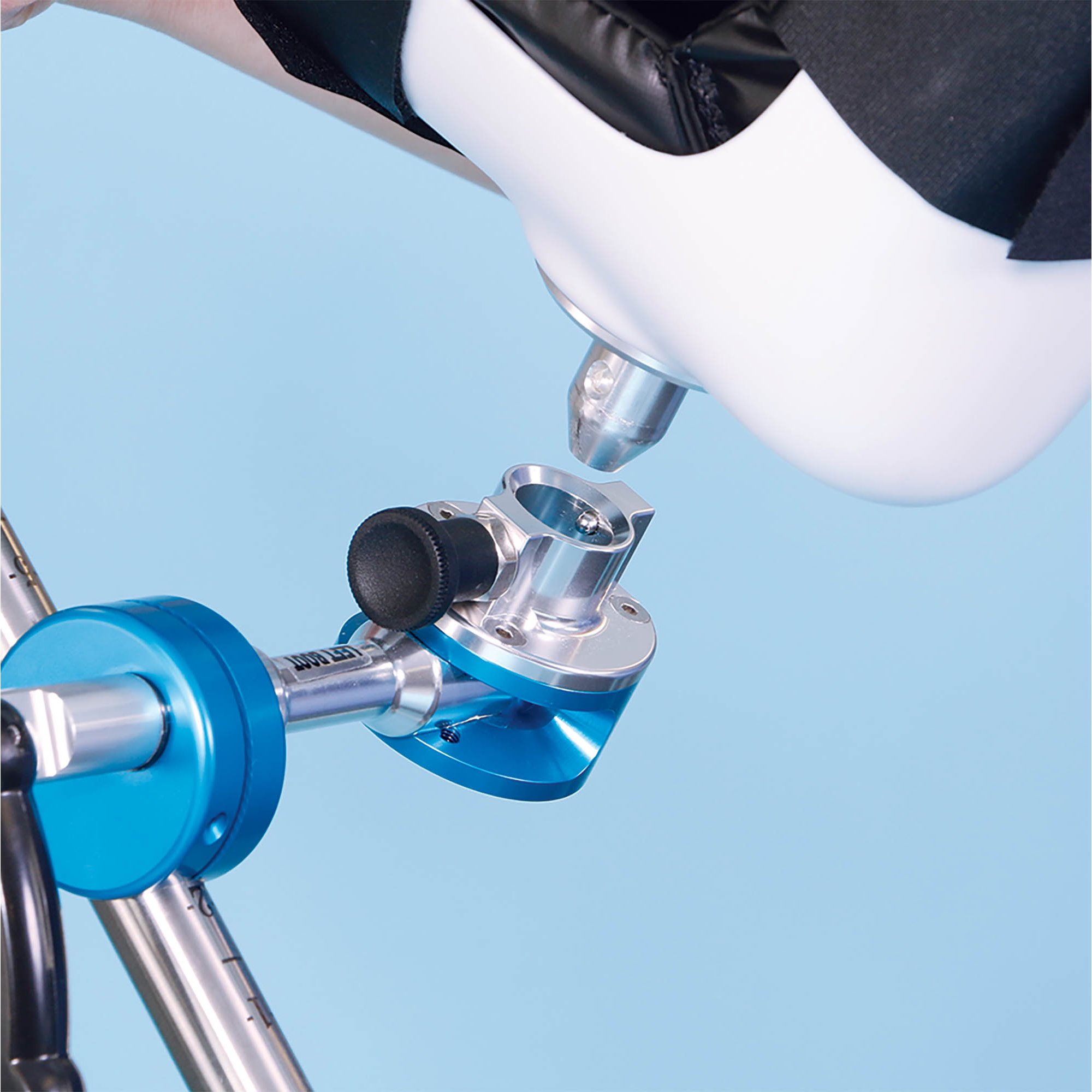

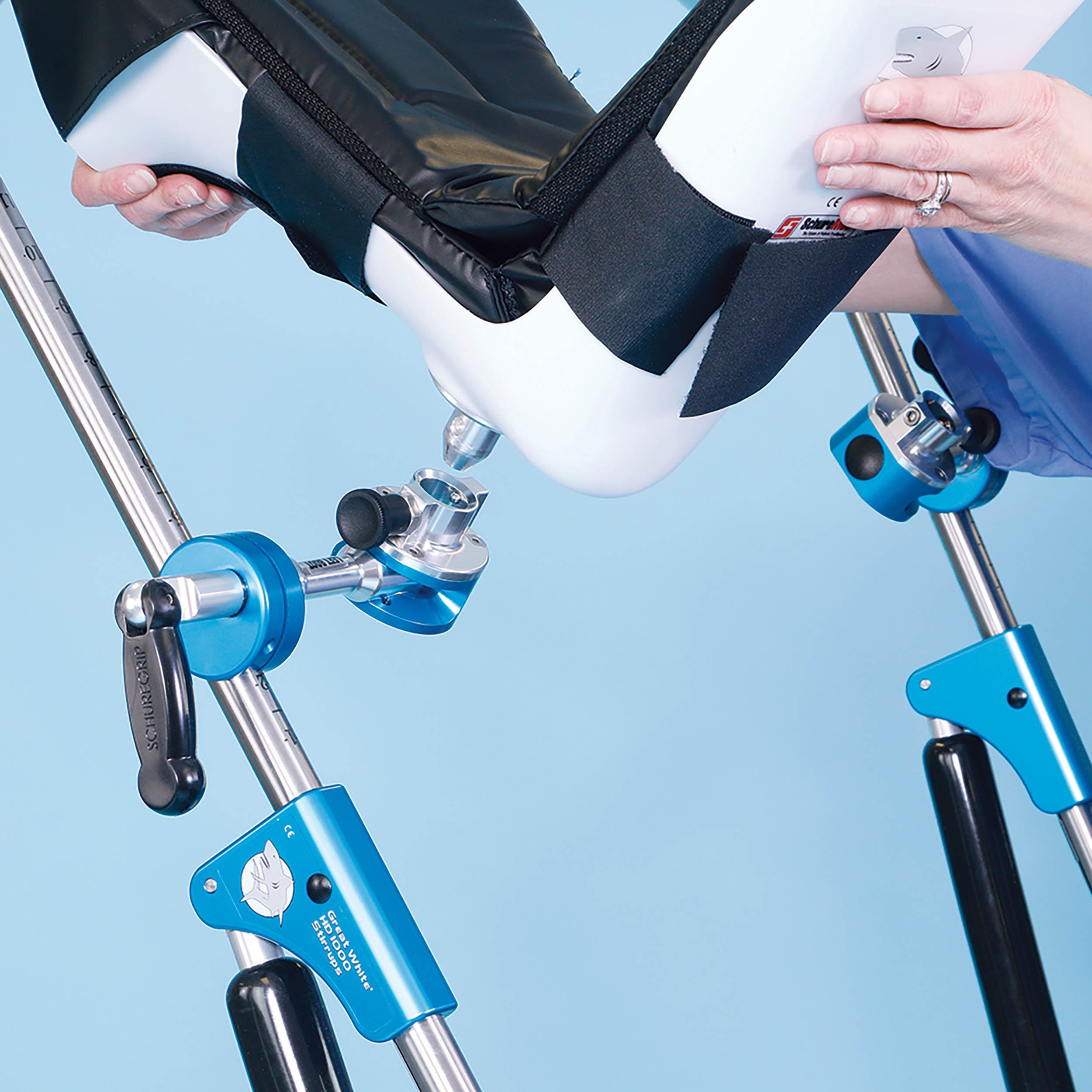

Reduced Setup Quick, easy connection reduces setup time, training and downtime. Single person installation.
Easily Repositions Lithotomy indicators accurately reposition legs
Capacity 1000 lb patient weight
General Specifications: Device Dimensions (maximum)
- Height: 40.25" +/- 0.5"
- Width: 9" +/- 0.5"
- Depth: 14" +/- 0.5"
- Range of Motion: -25° to 75° lithotomy range, -9° to 25° adduction to abduction
- Device Weight Per Stirrup:
- 14.7 +/- 0.5 lbs. (with Maxima pads)
- 14 +/- 0.5 lbs. (with Platinum pads)
- 13.7 +/- 0.5 lbs. (with Premium pads)
- 10.5 +/- 0.5 lbs. (without Boot)
- Single-person installation
Please be advised that you must have an OR table with a side rail on each side that extends from the back section through to the foot section. If your exam or procedure table does NOT have side rails you will be unable to affix this product to your table.
Required Accessory: Purchase Two Stirrup Clamp #800-0396 (sold separately)
Replacement Pads (Sold Separately):
- Platinum Stirrup Boot Pads, Set #508-1415
- Premium Stirrup Boot Pads, Set #508-1354
- Bariatric Maxima Boot Pads, Set#508-1502
About this Brand
SchureMed manufactures innovative surgical patient positioning equipment and devices to improve patient safety and comfort. It's a leader in addressing the critical patient positioning challenges that gynecological, urological, laparoscopic, and orthopedic surgical procedures present. It maintains that leadership by keeping its world class surgical device engineers in close touch with doctors, nurses and other members of the medical community to create advanced solutions for today and the next-generation of surgical positioning equipment for tomorrow. SchureMed offers a complete suite of surgical table positioning devices and operating room accessories proudly proudly built in the USA at its Abington, Massachusetts manufacturing facility.
Specifications
| Manufacturer | SchureMed |
|---|---|
| Latex Free | Yes |
| Overall Height | 40.25" |
| Overall Length | 14" |
| Overall Width | 9" |
| Weight Capacity | 1000 lbs |
| Country of Manufacture | United States |
| Item Ships From | Massachusetts |
Literature
Product Video
Instructions
Cleaning Recommendation: Follow current Association of Operative Registered Nurses (AORN) Journal Guidelines for proper cleaning and disinfection procedure.
WARNING! Adhere to standards for blood-borne pathogens from the Occupational Safety and Health Administration (OSHA). Use recommended protective clothing, gloves, masks and eye protection to clean accessory.
CAUTION Strictly read/follow manufacturer's directions for cleaning fluids. DO NOT use cleaners containing phenolics.
- Remove major contaminants from accessory with disposable materials. Follow appropriate bio-hazard waste disposal procedures.
- Apply cleaning fluid liberally to entire accessory and wipe with clean, lint-free cloth until all moisture and cleaning fluid is removed from accessory.
- Let accessory dry
