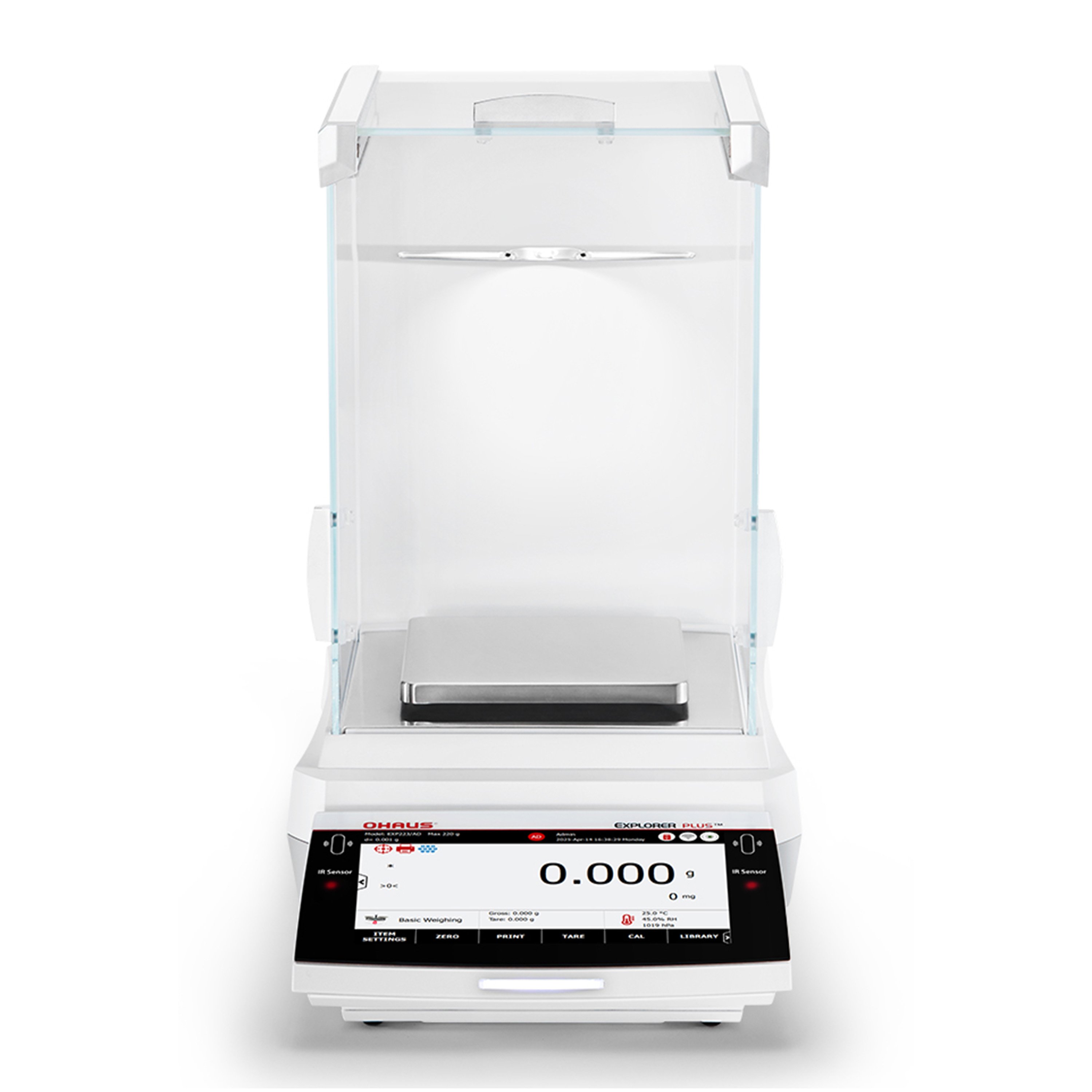

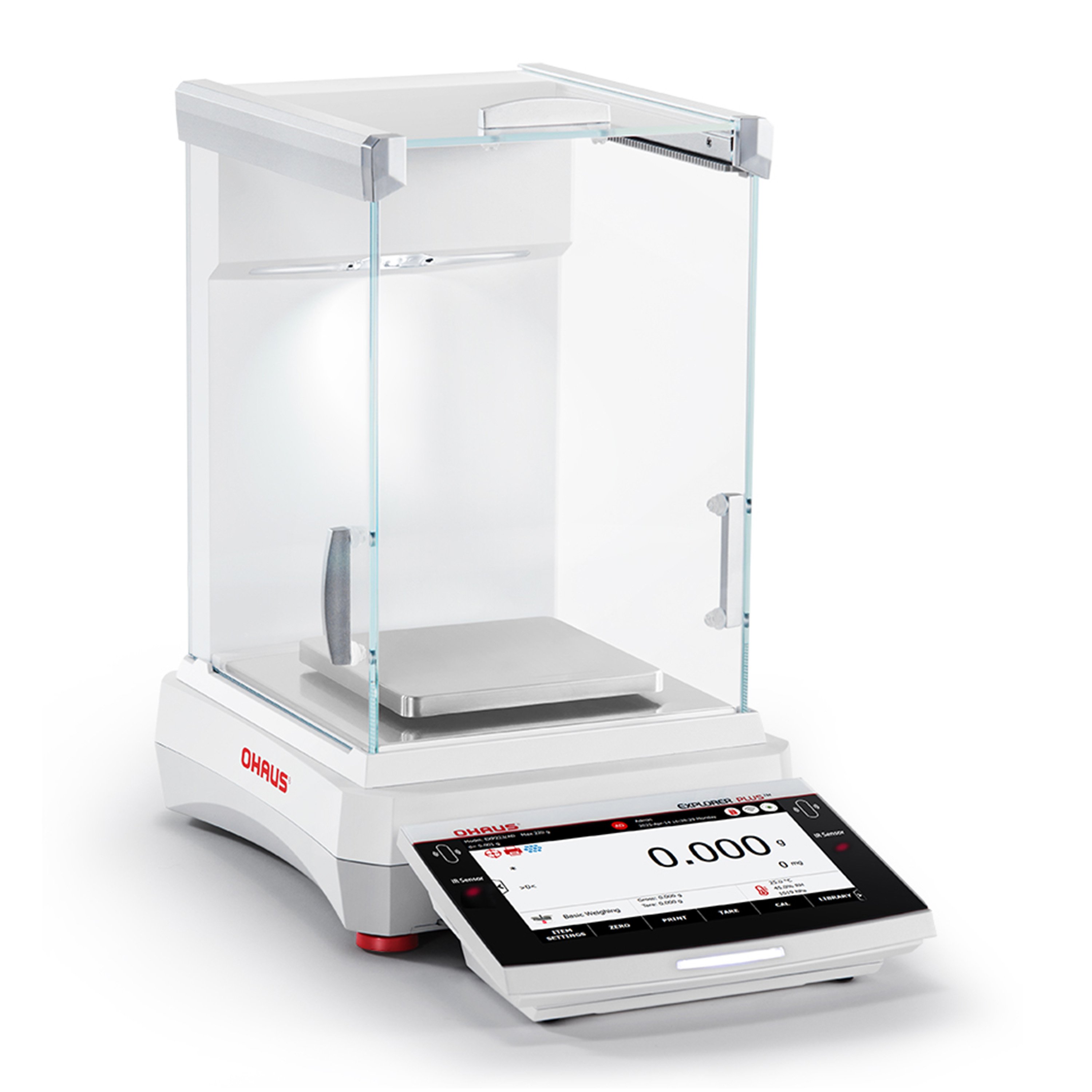

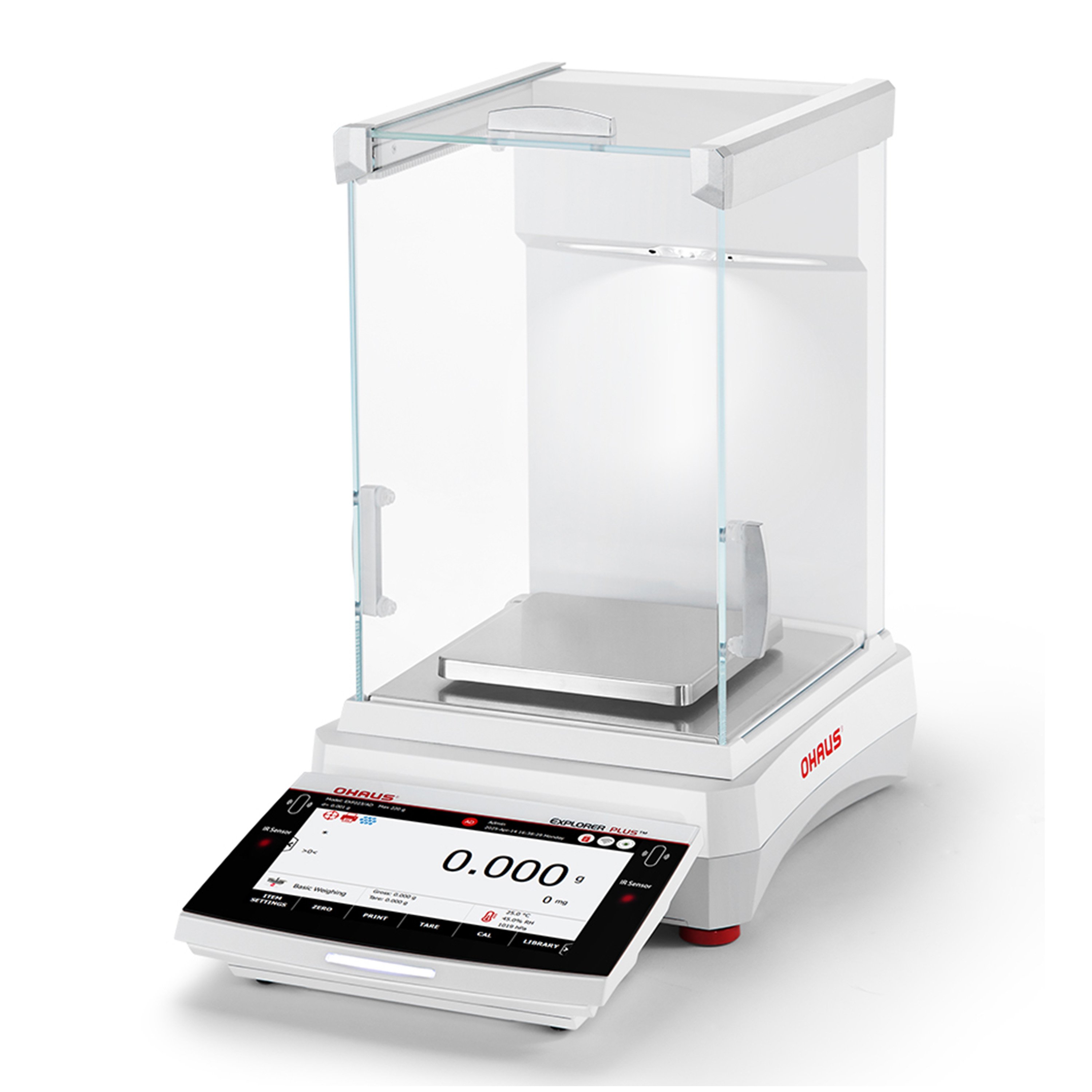

OHAUS Explorer Plus™ Precision Balance with Draftshield

The OHAUS Explorer Plus™ Precision Balance with Draftshield offers a premium weighing performance, compliance support, and data traceability to meet the most demanding requirements of modern scientific research.

Features:

• Intelligent User Experience:

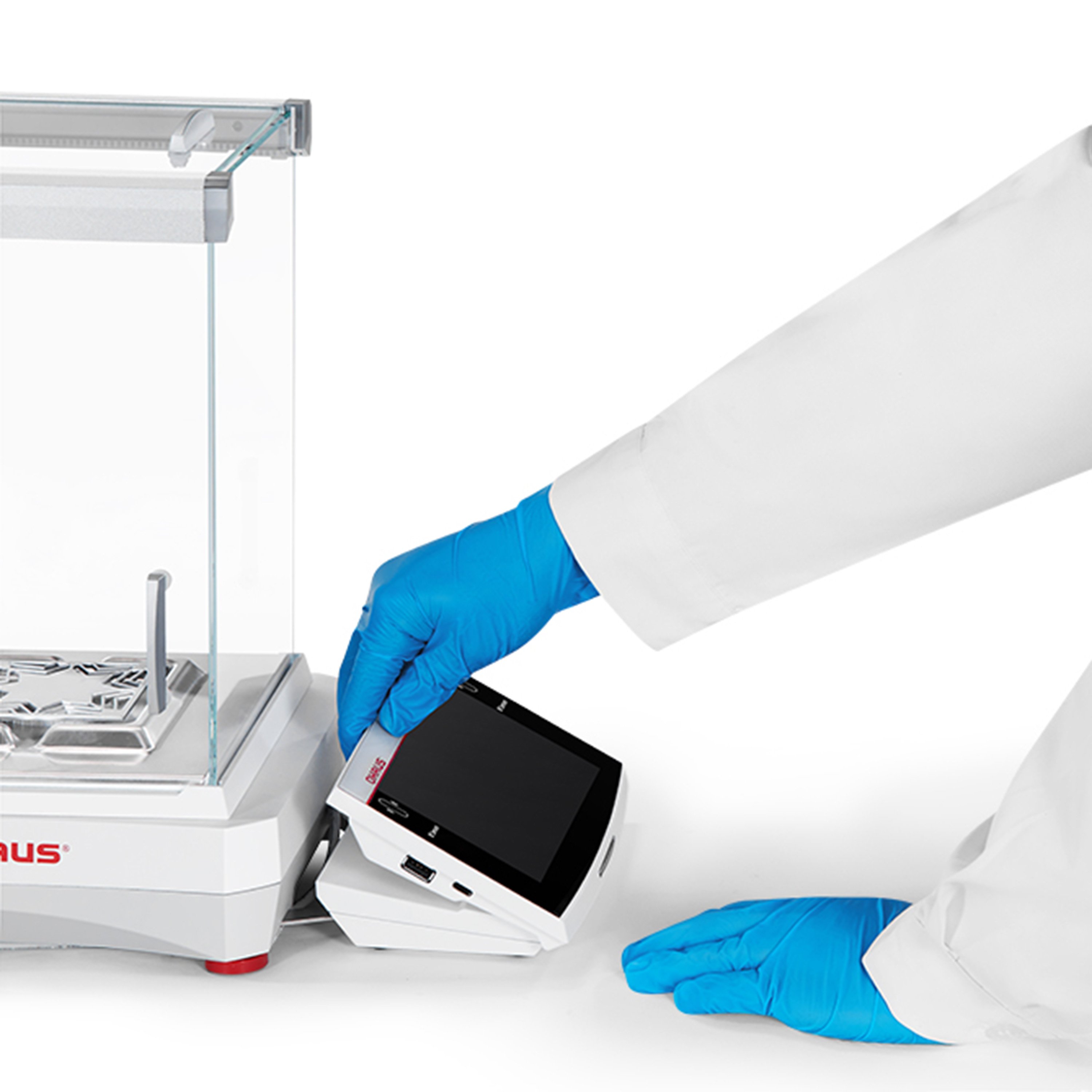

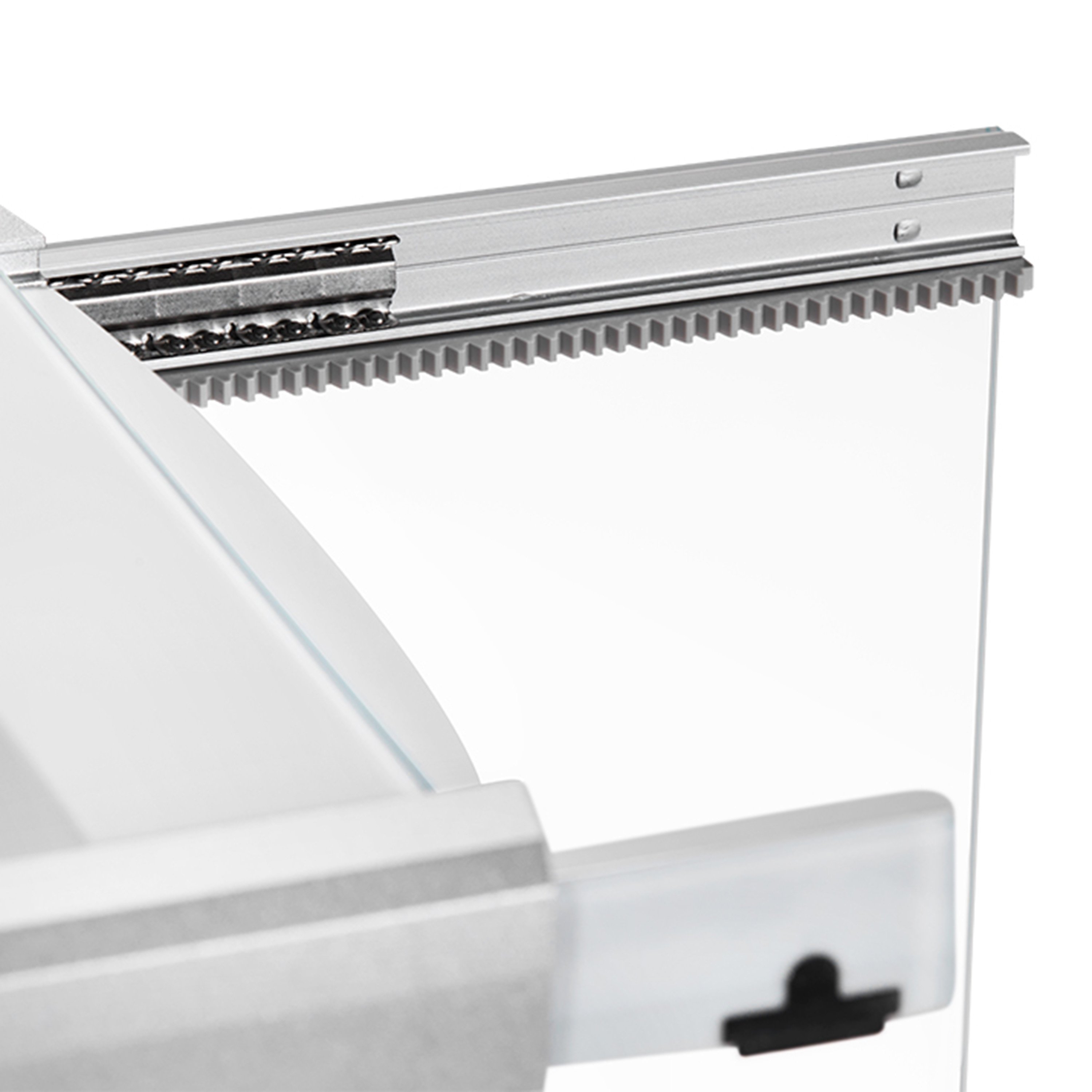

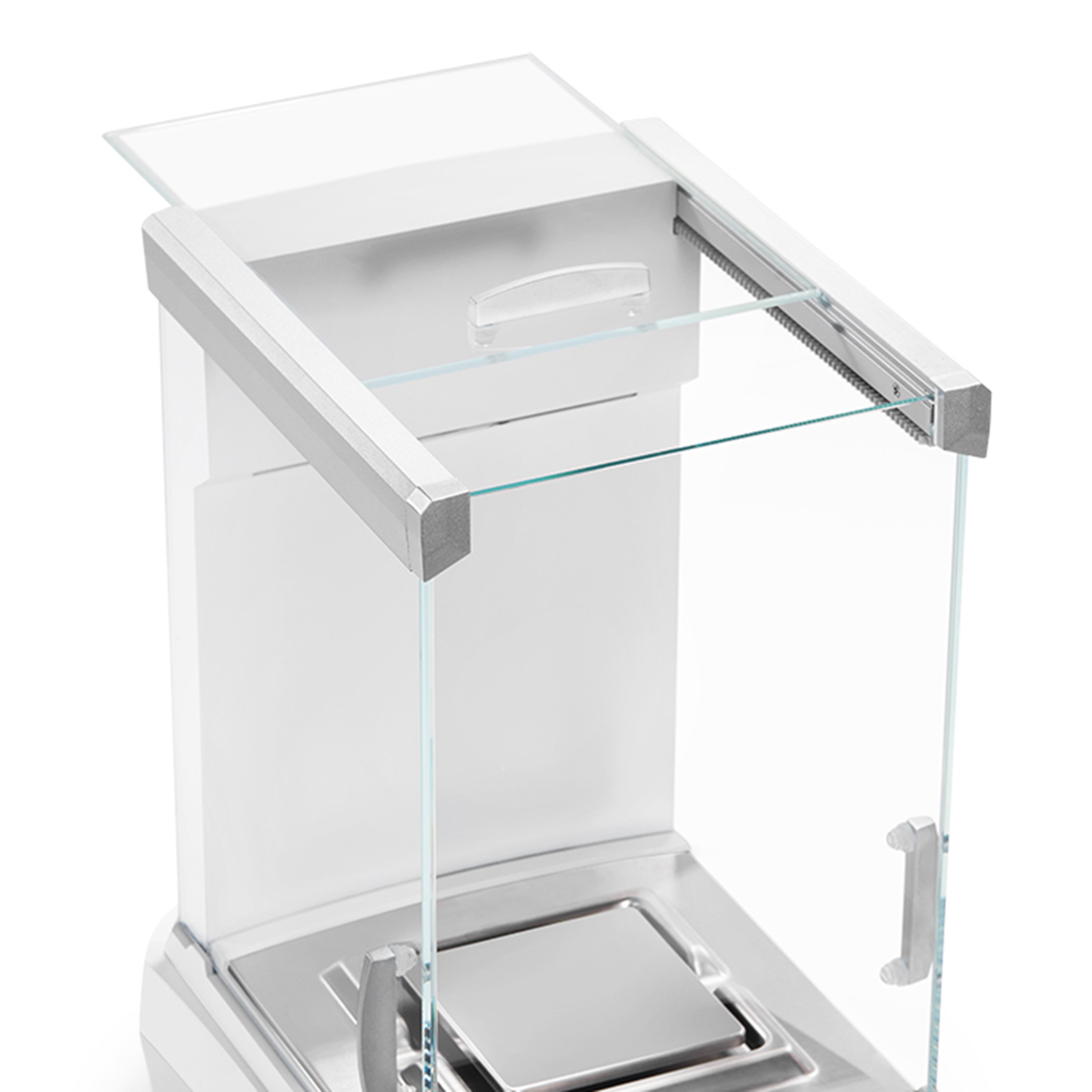

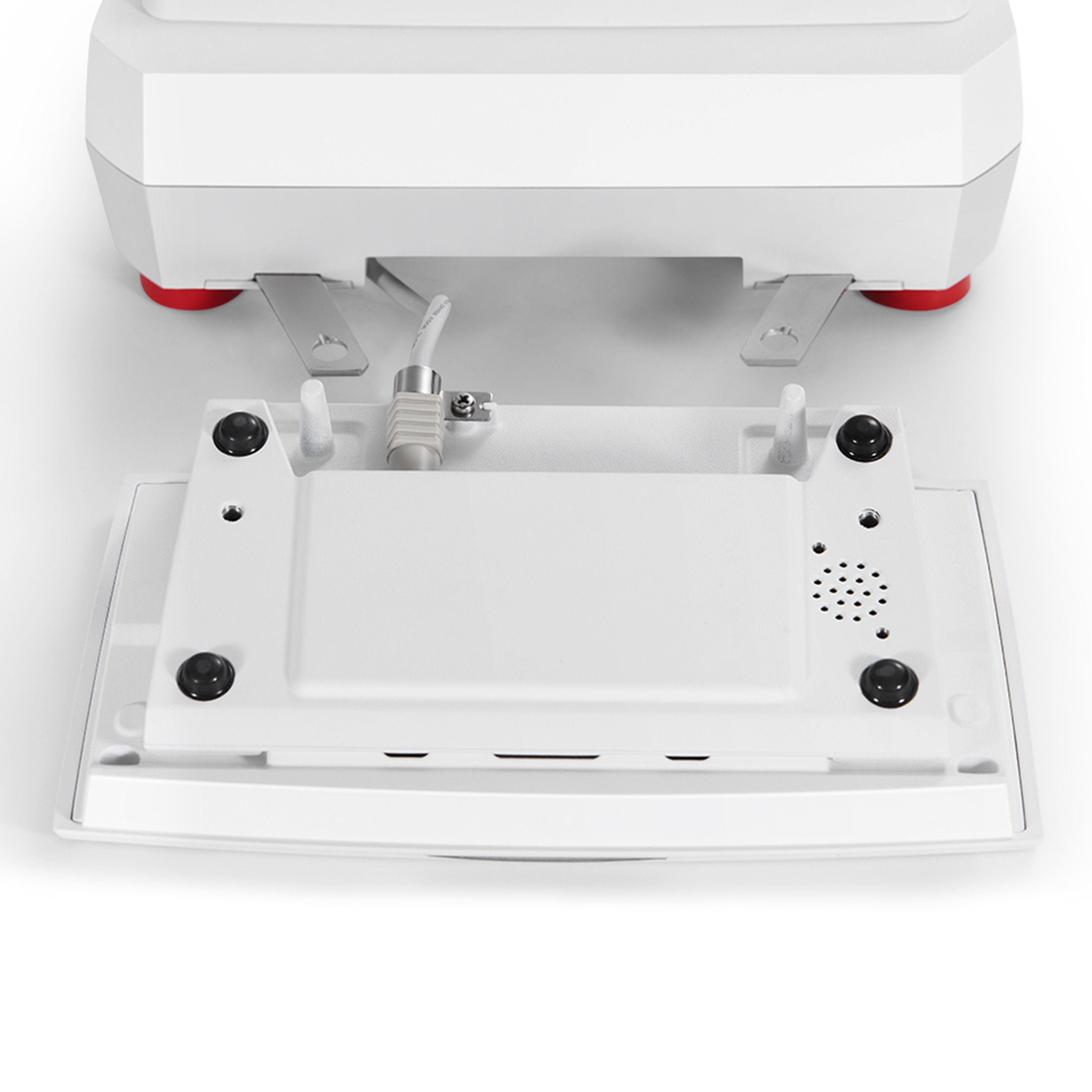

  • Seamless setup with a 7" glass touchscreen display, detachable terminal and base, enhanced automatic doors with anti-pinch safety protection, top-mounted sliding door, in-use cover, weigh-below hook, touchless sensors, chemical protection, and out-of-box packaging

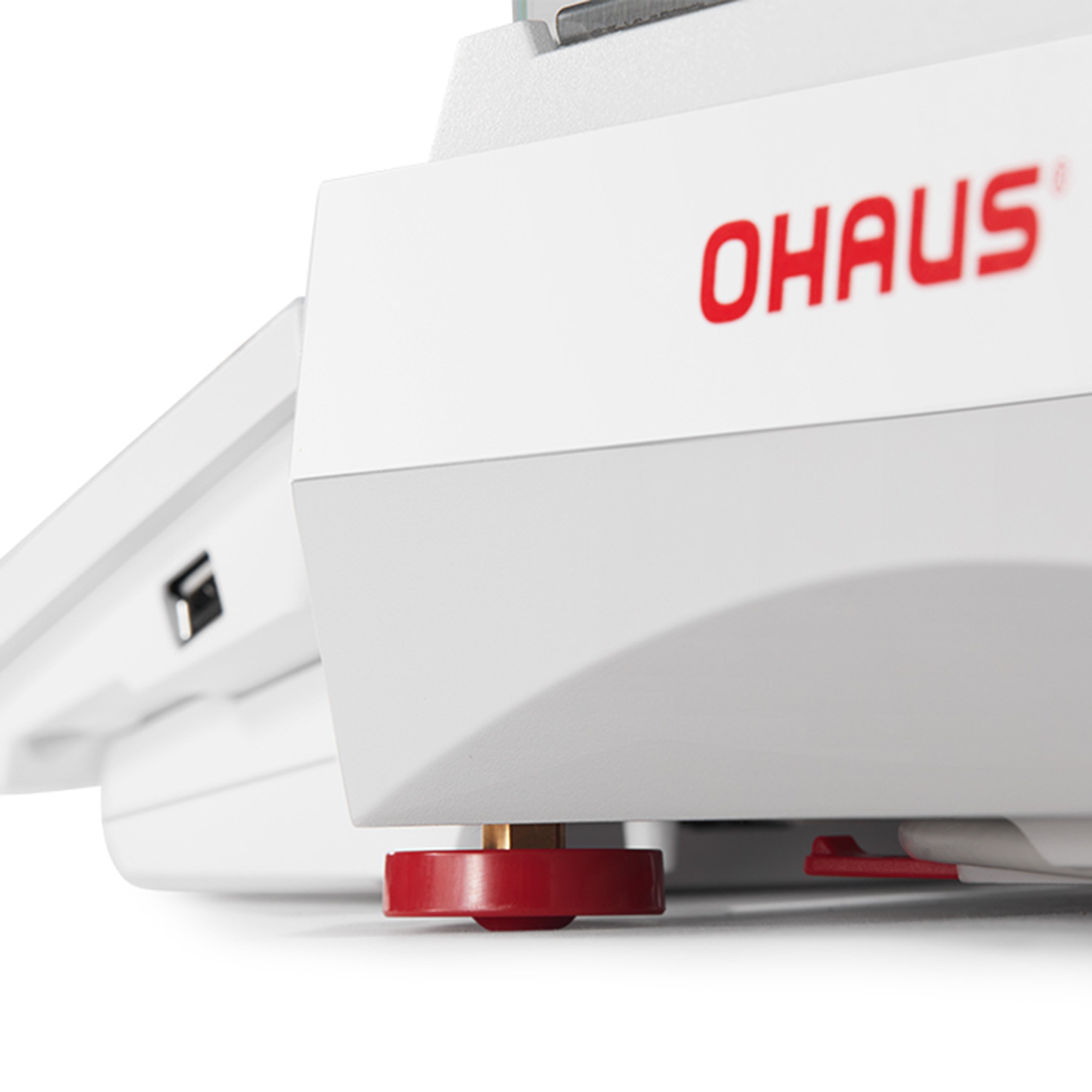

  • Effortless monitoring via a motorized leveling system guided by a digital-level bubble for a smooth and straightforward setup
  • Intuitive sample handling and reliable status indicators through an intuitive sample spotlight for clear visibility and precise sample handling, and customized terminal and draftshield status lights for immediate feedback
• Outstanding Weighing Performance:
  • Equipped with internal calibration systems (AutoCal™), a digital high-speed load cell, an elevated digital load cell platform with three ambient sensors, a removable draftshield, a built-in ionizer, and a routine repeatability test for long-term accuracy and reliability
  • Enhanced security and user management with an optional fingerprint login system (not included), password protection, and a 4-level user management system with an internal system log capacity of 100,000 entries and 3,000 application sample libraries
• Supports Compliance for Data Traceability:
  • Utilizes multiple USB ports for flexibility, hassle-free data transfer with a driverless Human Interface Device (HID) for easy data input, advanced communication capabilities with straightforward integration to Laboratory Information Management System (LIMS) and Manufacturing Execution System (MES)
  • Features time synchronization via Network Time Protocol (NTP) for accurate timekeeping, electronic signature, direct data transfer, label printing function, and a system log for record-keeping
• Construction: Large weighing chamber, eco-friendly modular design, metal base and top housing, stainless steel (SST 316) weighing pan, and anti-static glass draftshield
• Available in 220 g, 420 g, 620 g, and 1200 g Capacities

Technical Specifications:

• Terminal Display: 7" TFT 16.7M Color Touch Screen with Glass Overlay, Detachable Terminal
• Display Resolution: 800 x 480 Pixels
• Communication:
  • 2 USB Host (Type A)
  • 1 USB Device (Type B)
  • 1 USB Device (Type C)
  • 1 Ethernet (RJ45)
  • 1 RS232
  • Optional Wi-Fi/Bluetooth Dongle (Not Included)
• Leveling System: Motorized Leveling System with Digital Leveling Bubble
• Weighing Pan Size: 5.12" x 5.12" (Square Pan)
• Built-in Ionizer: Standard
• Environmental Sensor (Load Cell):
  • Temperature Sensor
  • Relative Humidity (RH) Sensor
  • Air Pressure Sensor
• Touchless Sensor: 2 Touchless Sensors on the Terminal
• Draftshield with Anti-Static Coating: Standard
• Automatic Draftshield Door Function: Standard
• Draftshield Door Open Range: Half Open and Fully Open
• Draftshield and Terminal Status Lights: Standard, 7-Color Selectable
• Sample Spotlight: Standard, White
• Auxiliary Display Model (Not Included): Available as an Accessory
• Power Supply:
  • AC Adapter Input: 100-240 V AC, 0.5 A, 50-60 Hz
  • AC Adapter Output: 12 V DC, 1.5 A
• Metrology: NIST Handbook 44, Measurement Canada Weights and Measures Regulations
• Product Safety: IEC/EN 61010-1, CAN/CSA C22.2 61010-1, UL 61010-1
• Electromagnetic Compatibility: IEC/EN 61326-1 (Class B, Basic Environments), FCC Part 15 (Class A), Canada ICES-003 (Class A)
• Operational Condition: 10°C to 30°C, 80% RH, Non-Condensing
• Material:
  • Top and Bottom Housing: Die-Cast Aluminum, Painted
  • Terminal: Glass, Die-Cast Aluminum
  • Weighing Platform: Plastic (PC)
  • Weighing Pan: Stainless Steel (SST 316)

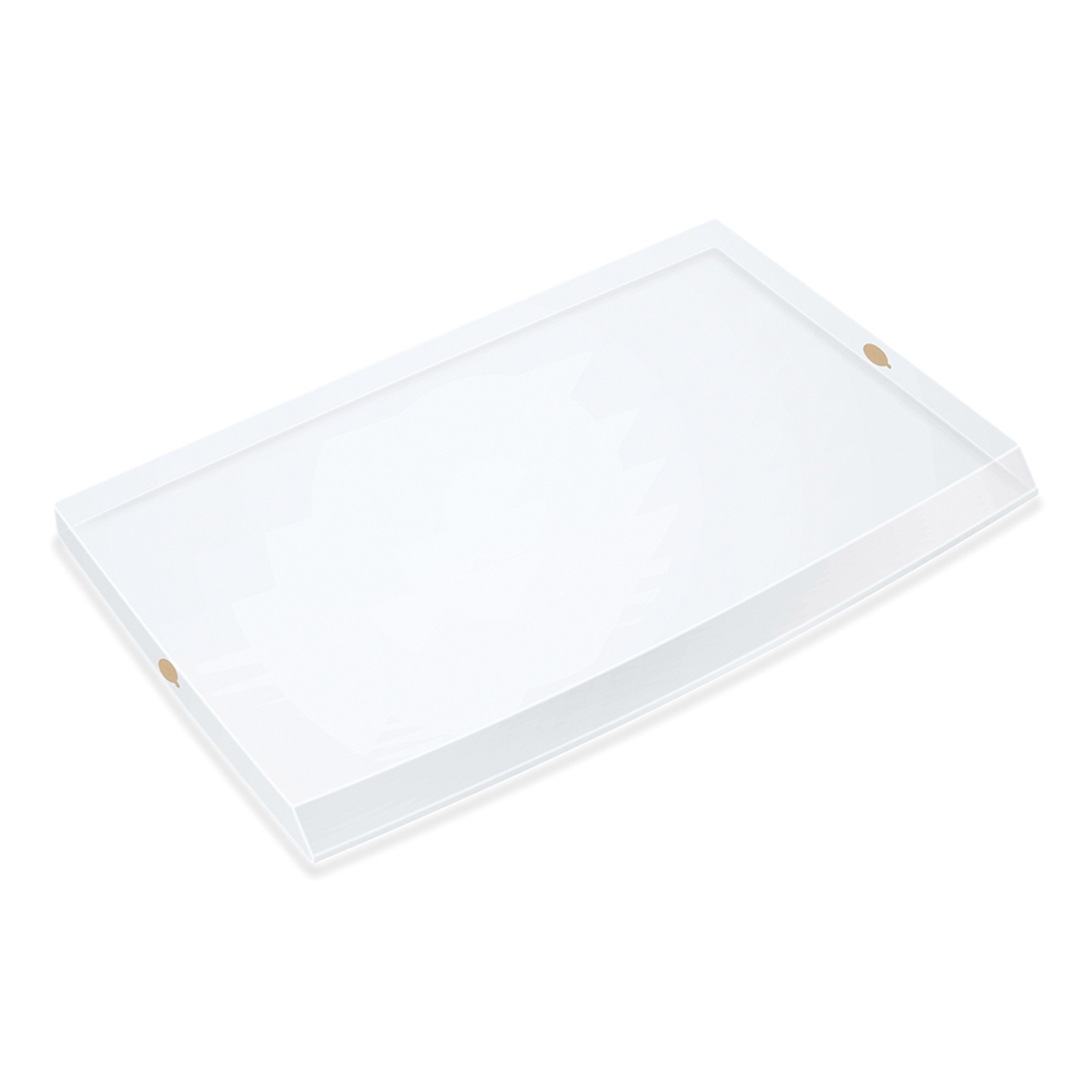

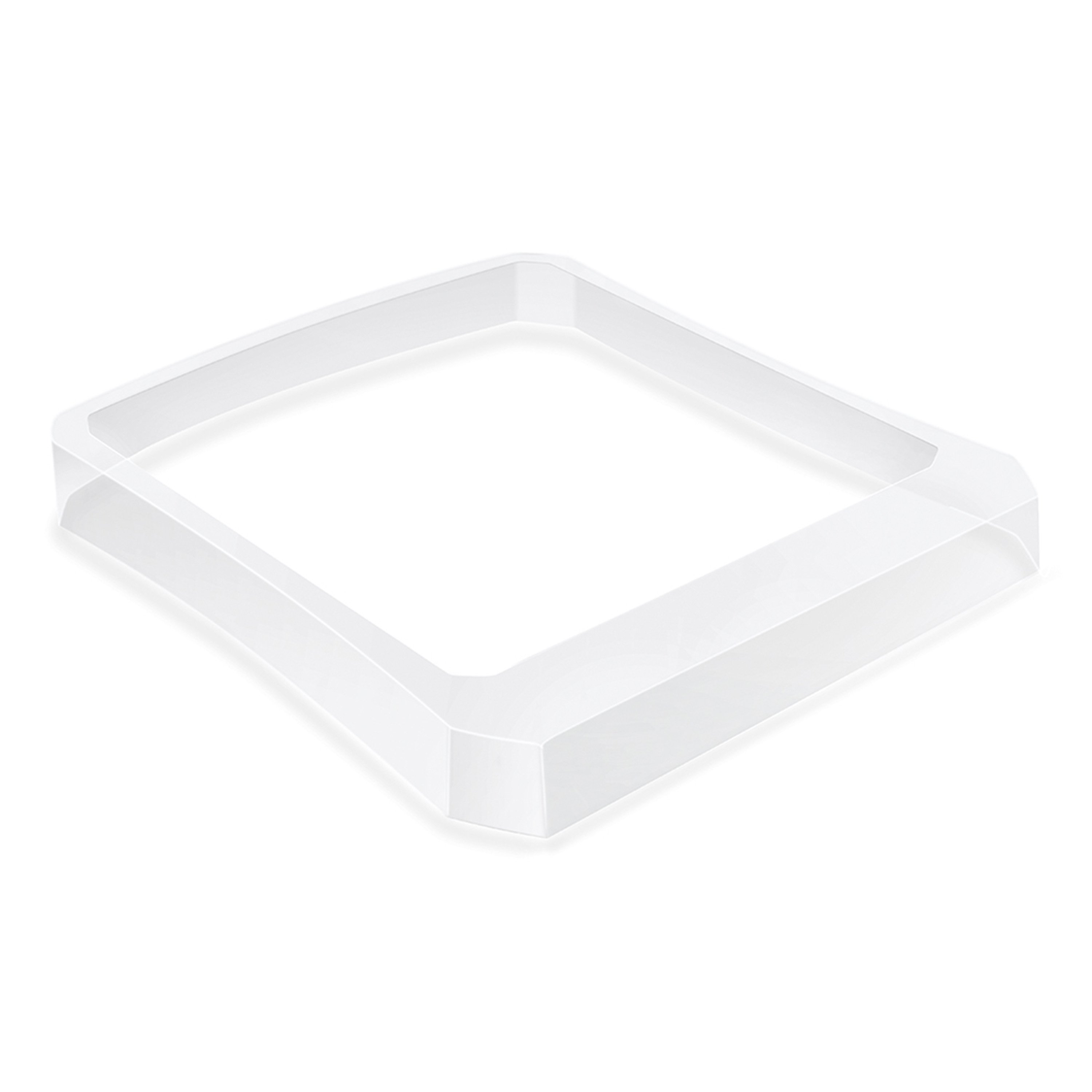

  • In-Use Cover: Plastic (PET)
  • Draftshield: Glass, Aluminum, Plastic
• Tare Range: To Capacity by Subtraction
• Weighing Units: g, mg, ct, N, oz, ozt, Grain, dwt, mo, msg, tl H, tl S, tl T, tcl, tola, baht, Custom 1, Custom 2, lb (For 31059178 and 31059179 Only), kg (For 31059179 Only)
• Applications: Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold, Pipette Adjustment, SQC, Fill Weight Variation, Flow Rate Control
• Terminal Housing Dimensions: 4.96" L x 8.07" W x 2.60" H
• Base Housing Dimensions: 10.83" L x 9.02" W x 3.07" H
• Overall Dimensions: 16.06" L x 9.02" W x 14.65" H
• Actual Product Weight: 17.20 lbs

Models Comparison:

Please note: The fingerprint scanner, Wi-Fi/Bluetooth dongle, and auxiliary display model are not included.
