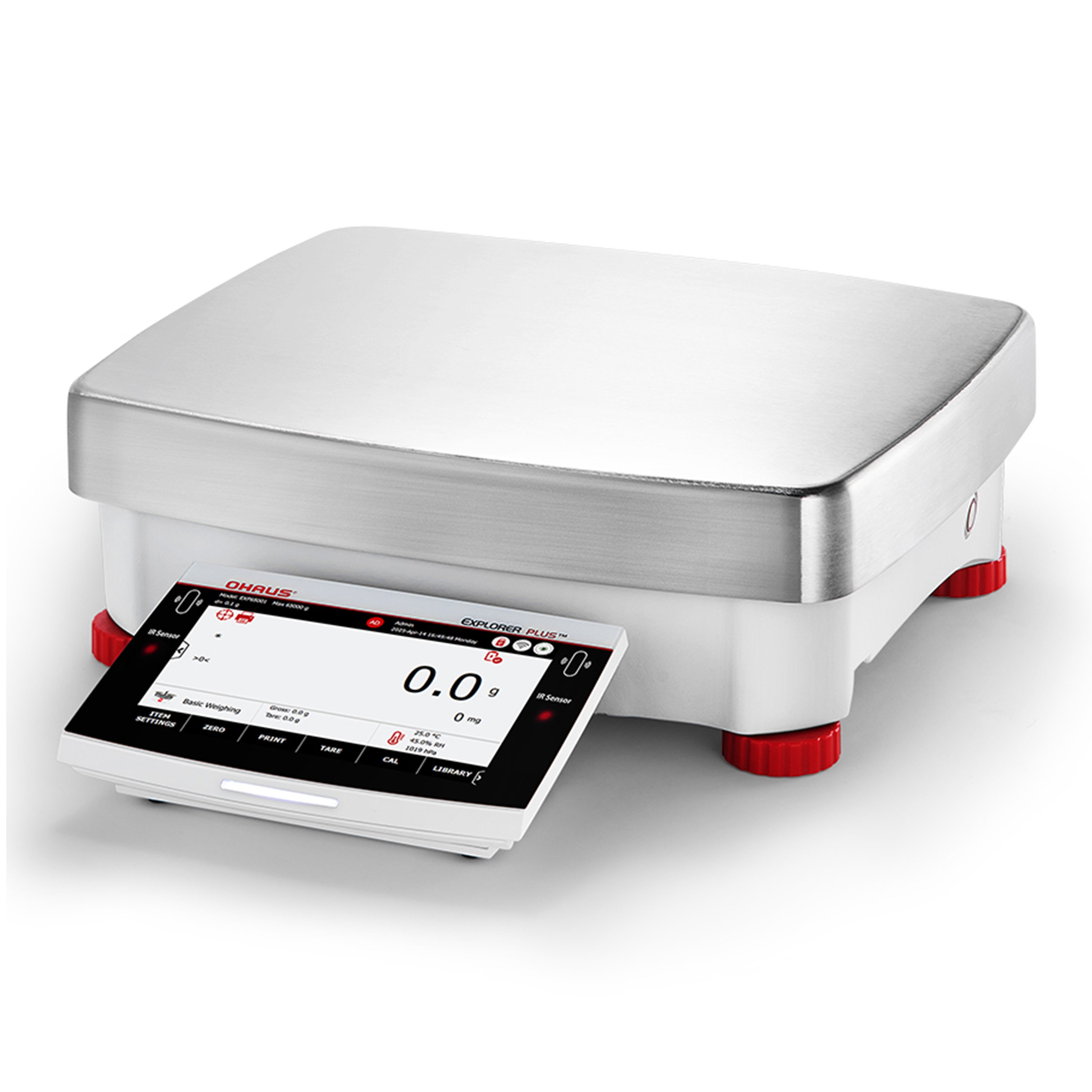

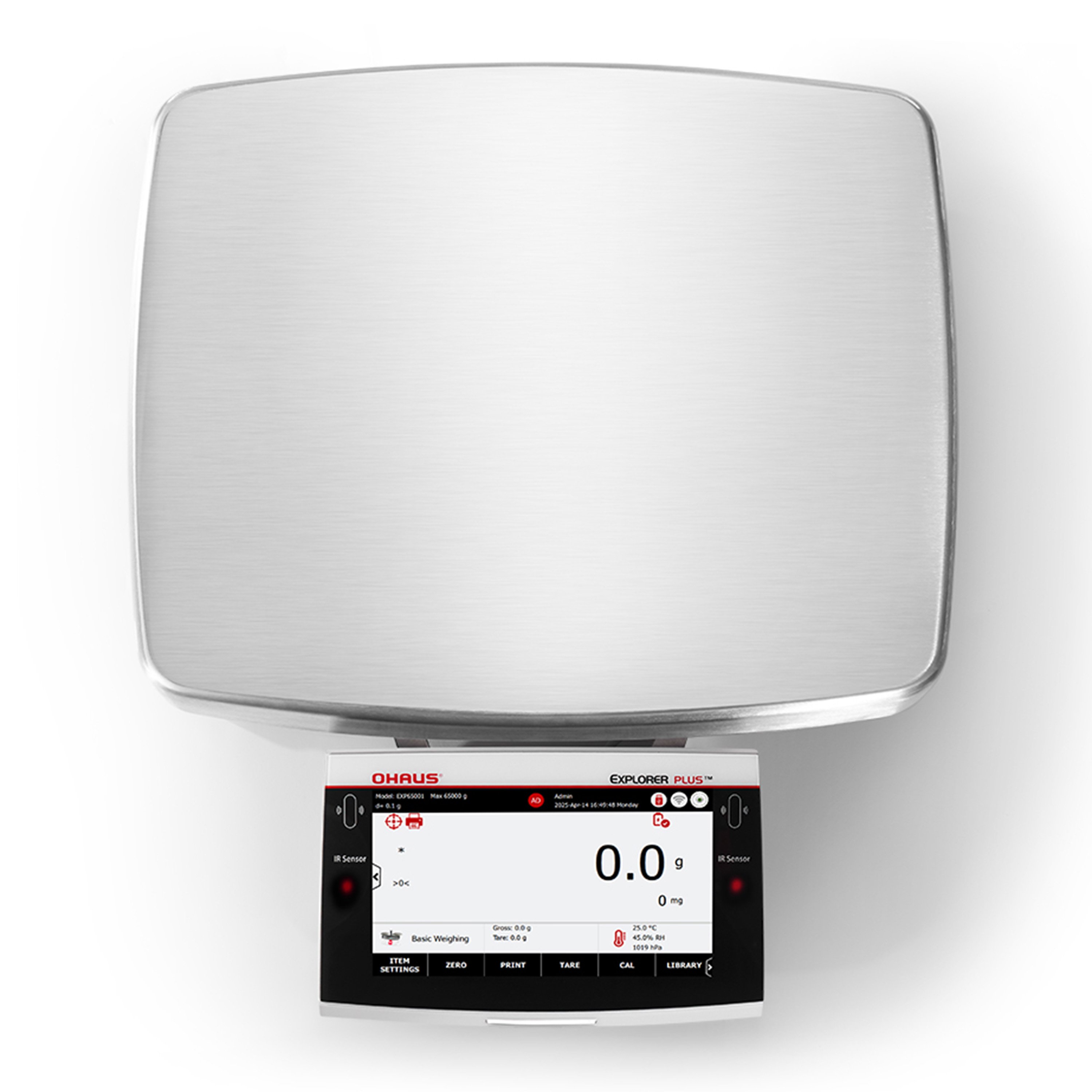

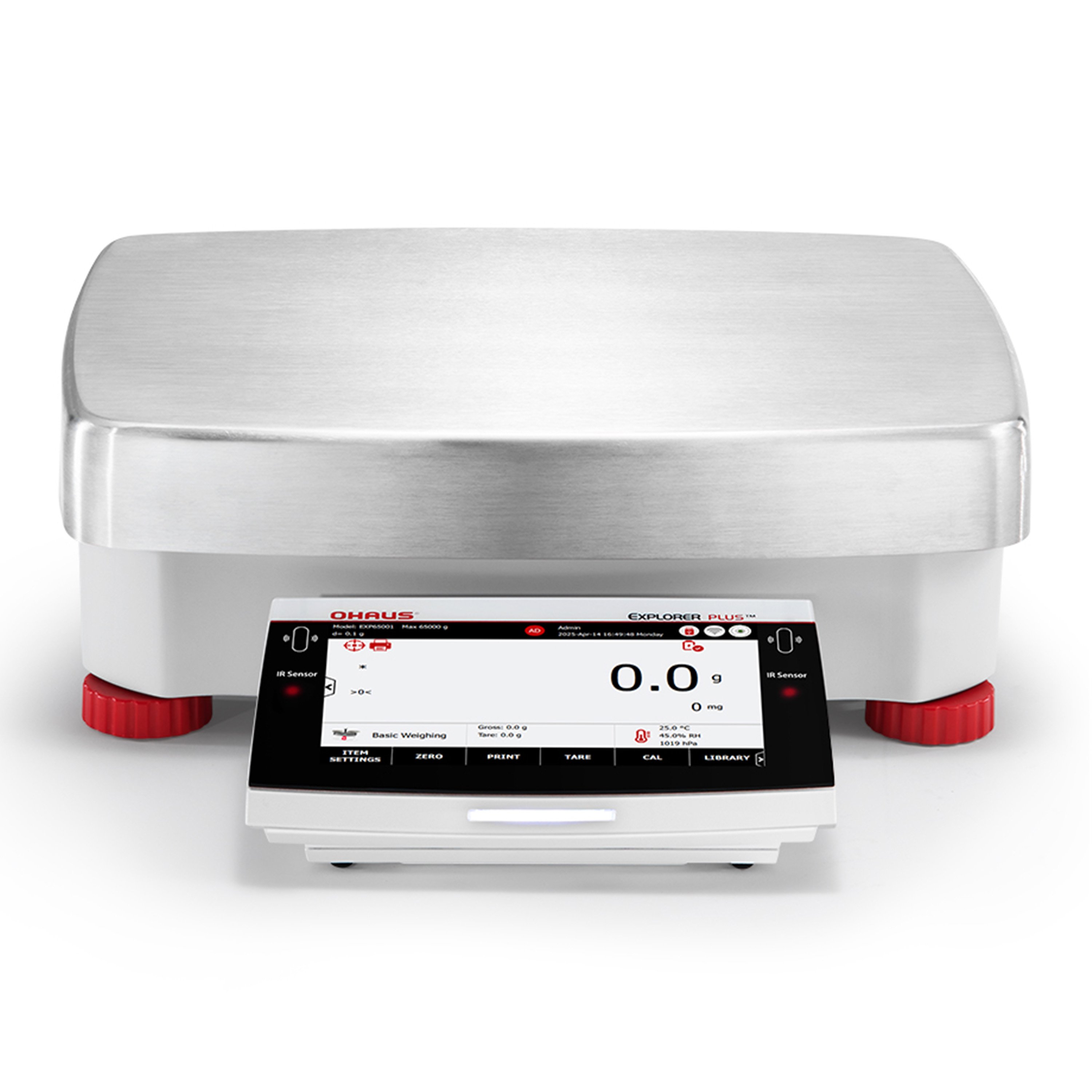

OHAUS Explorer Plus™ High Capacity Balance

The OHAUS Explorer Plus™ High Capacity Balance offers a premium weighing performance, compliance support, and data traceability to meet the most demanding requirements of modern scientific research.

Features:

• Intelligent User Experience:

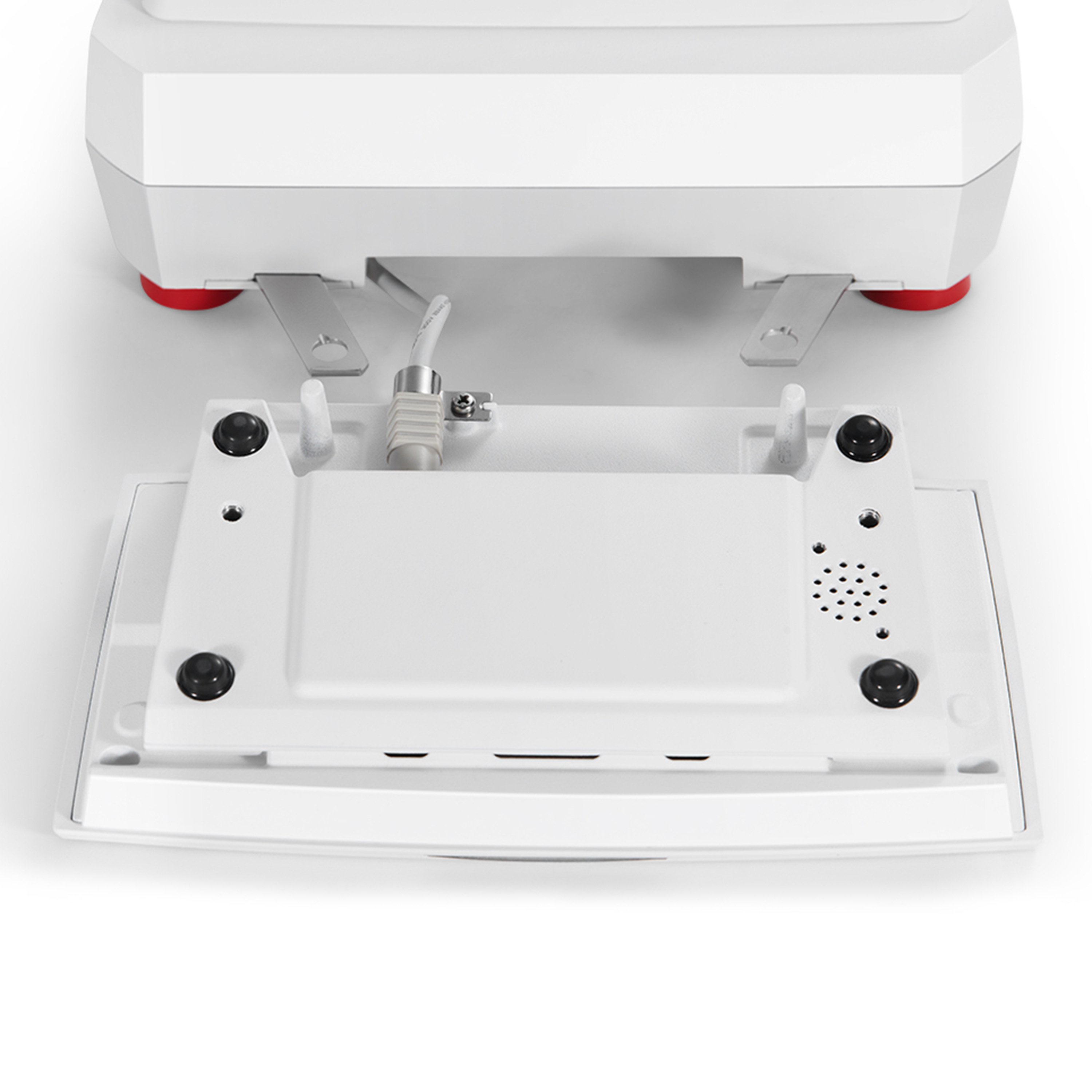

  • Seamless setup with a 7" glass touchscreen display, detachable terminal and base, in-use cover, weigh-below hook, touchless sensors, chemical protection, and out-of-box packaging

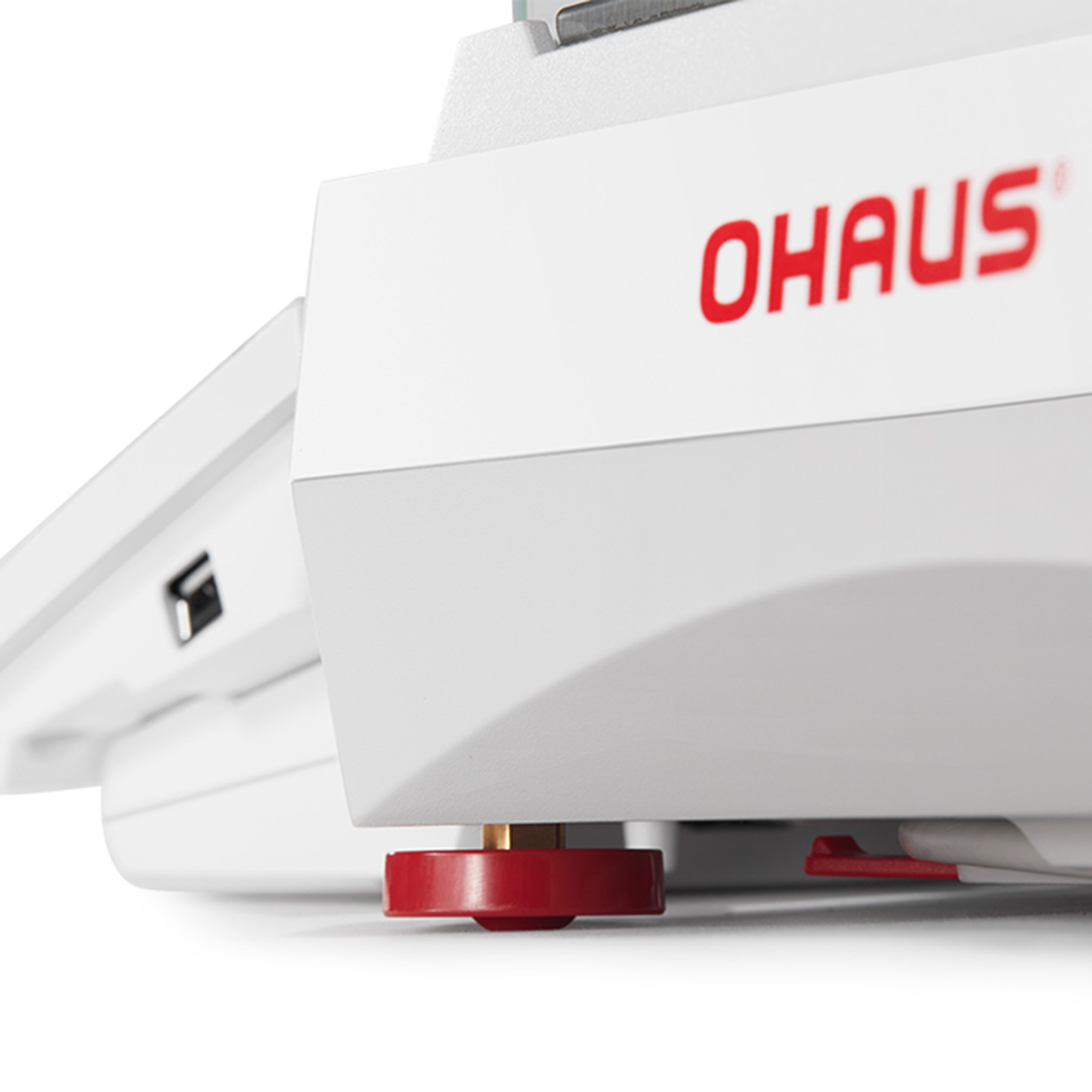

  • Effortless monitoring via a motorized leveling system guided by a digital-level bubble for a smooth and straightforward setup
  • Reliable status indicators through customized terminal status lights for immediate feedback
• Outstanding Weighing Performance:
  • Equipped with internal calibration systems (AutoCal™), a digital high-speed load cell, an elevated digital load cell platform with three ambient sensors, and a routine repeatability test for long-term accuracy and reliability
  • Enhanced security and user management with an optional fingerprint login system (not included), password protection, and a 4-level user management system with an internal system log capacity of 100,000 entries and 3,000 application sample libraries
• Supports Compliance for Data Traceability:
  • Utilizes multiple USB ports for flexibility, hassle-free data transfer with a driverless Human Interface Device (HID) for easy data input, advanced communication capabilities with straightforward integration to Laboratory Information Management System (LIMS) and Manufacturing Execution System (MES)
  • Features time synchronization via Network Time Protocol (NTP) for accurate timekeeping, electronic signature, direct data transfer, label printing function, and a system log for record-keeping

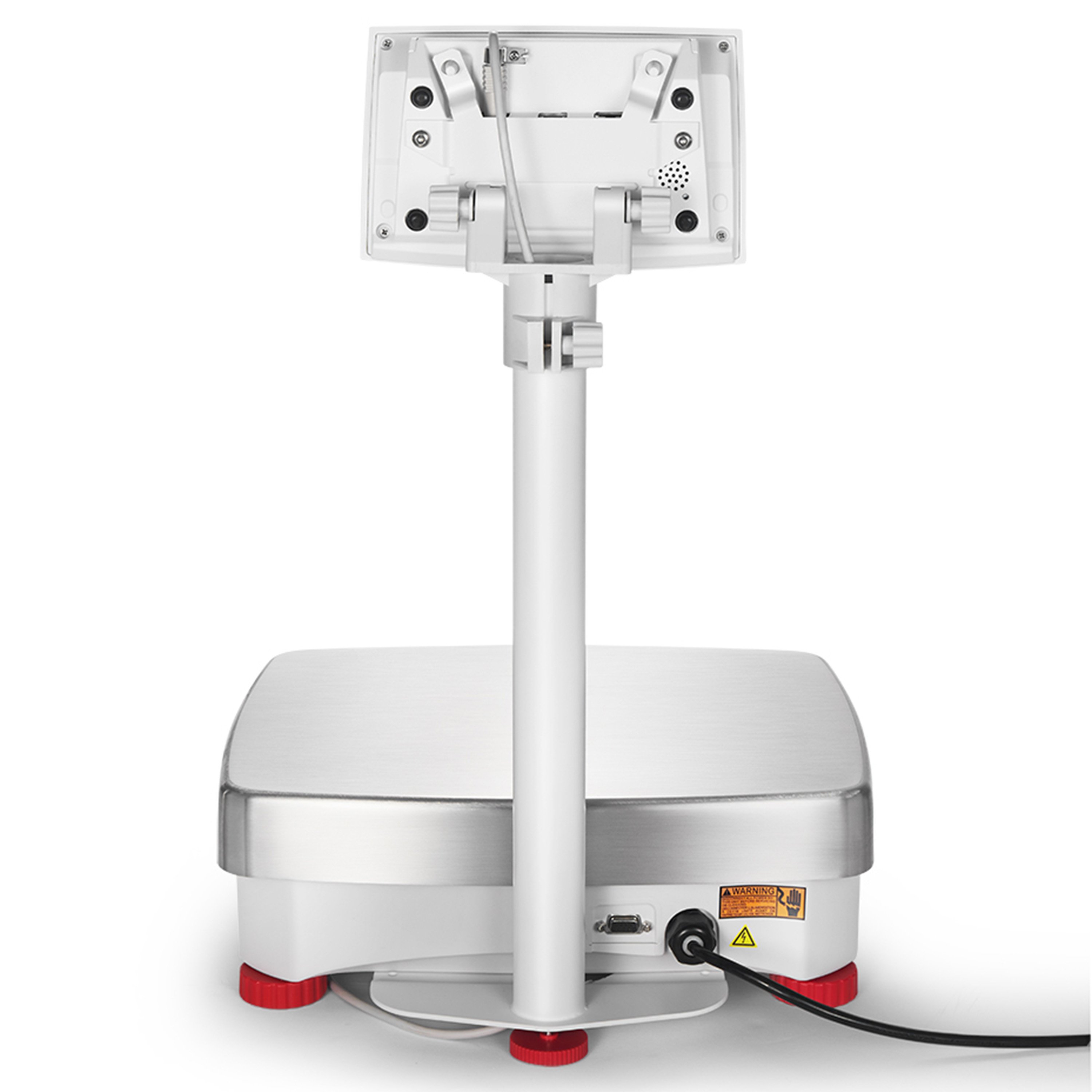

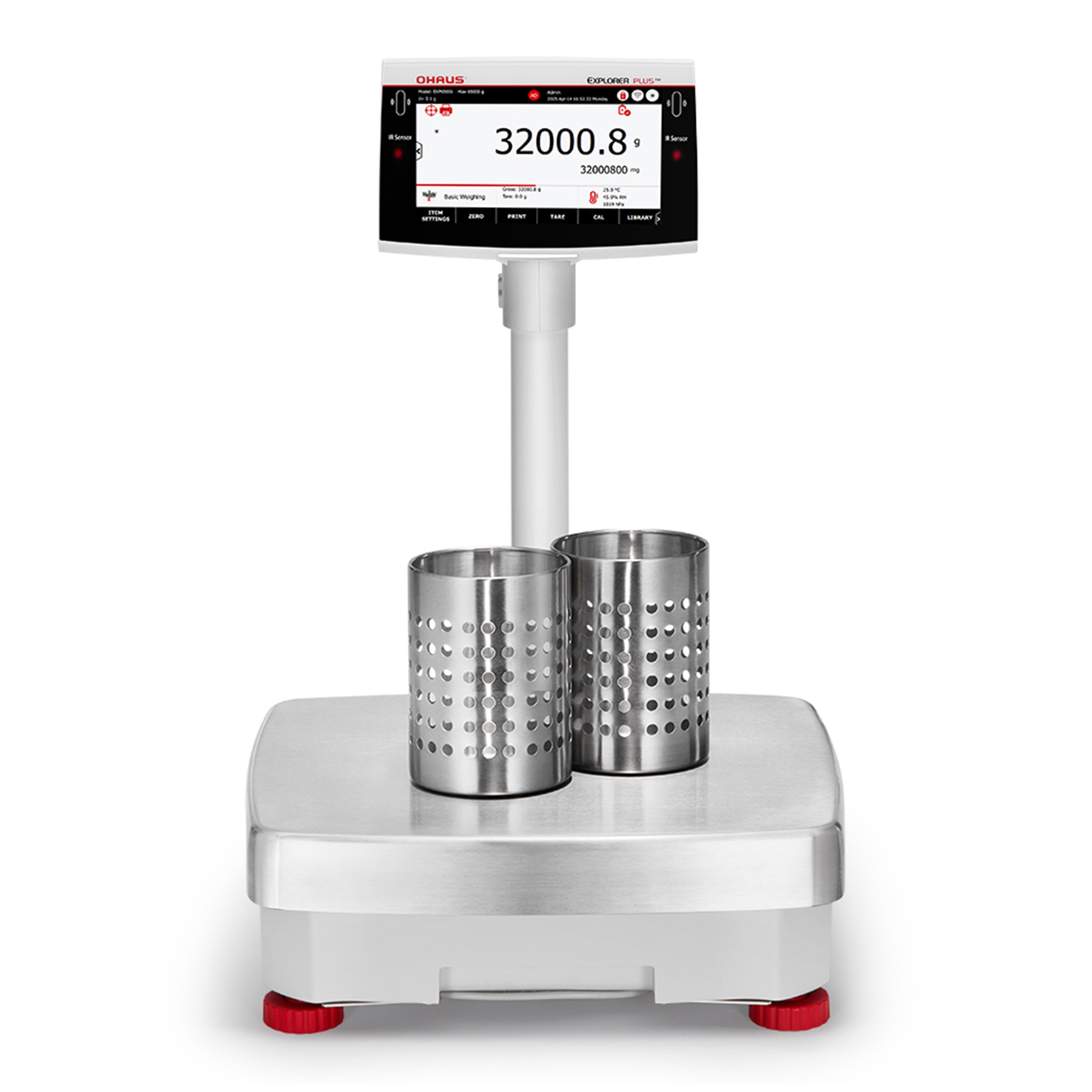

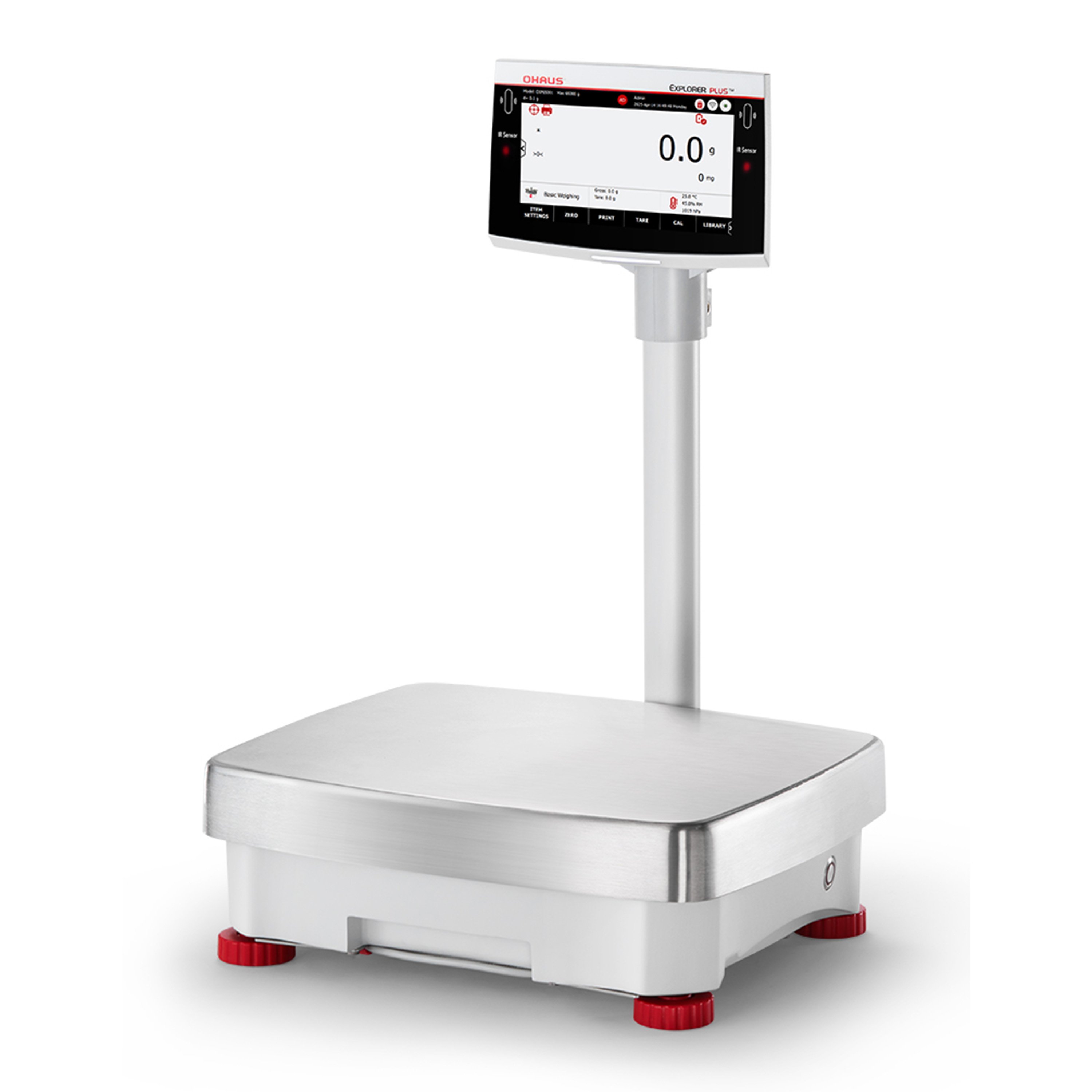

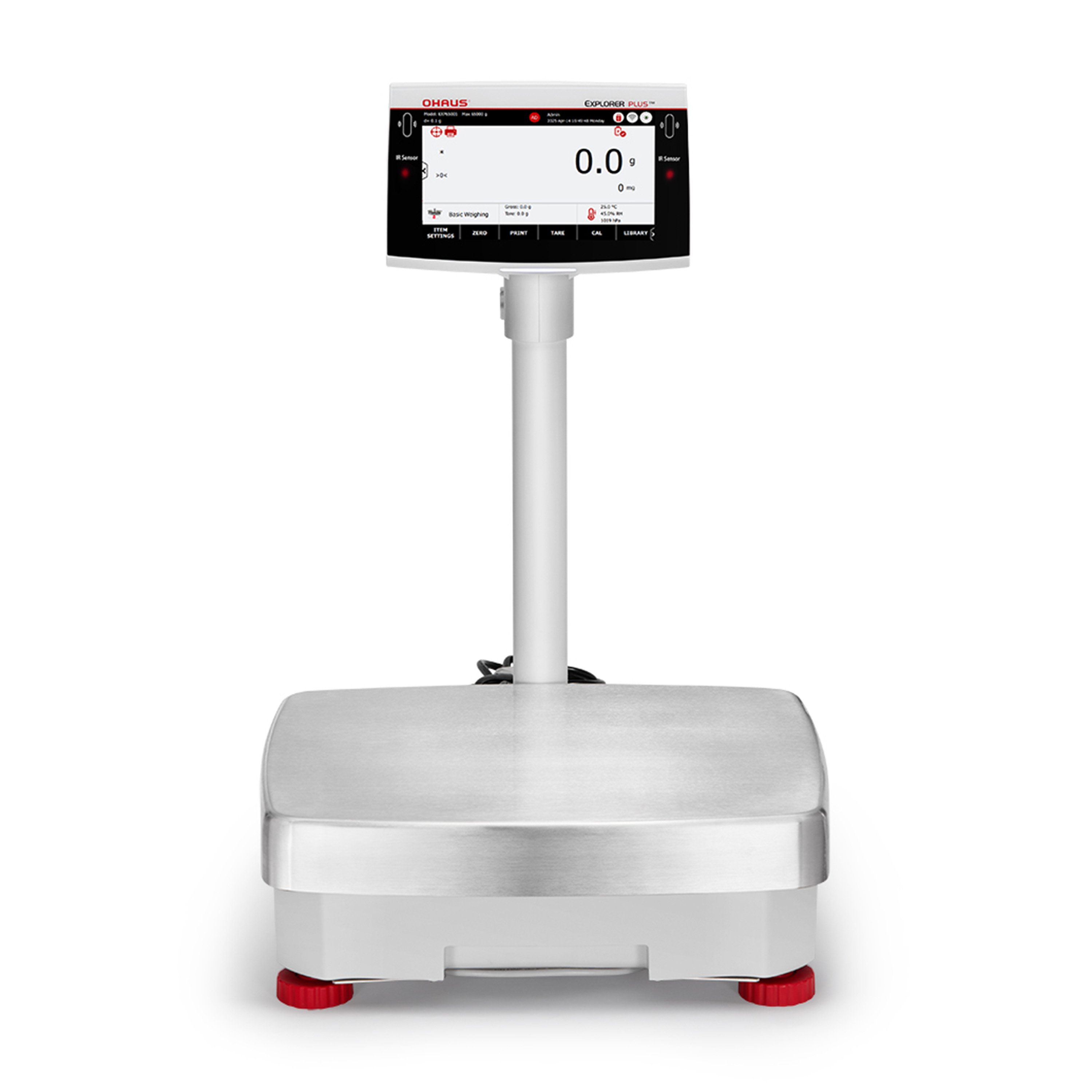

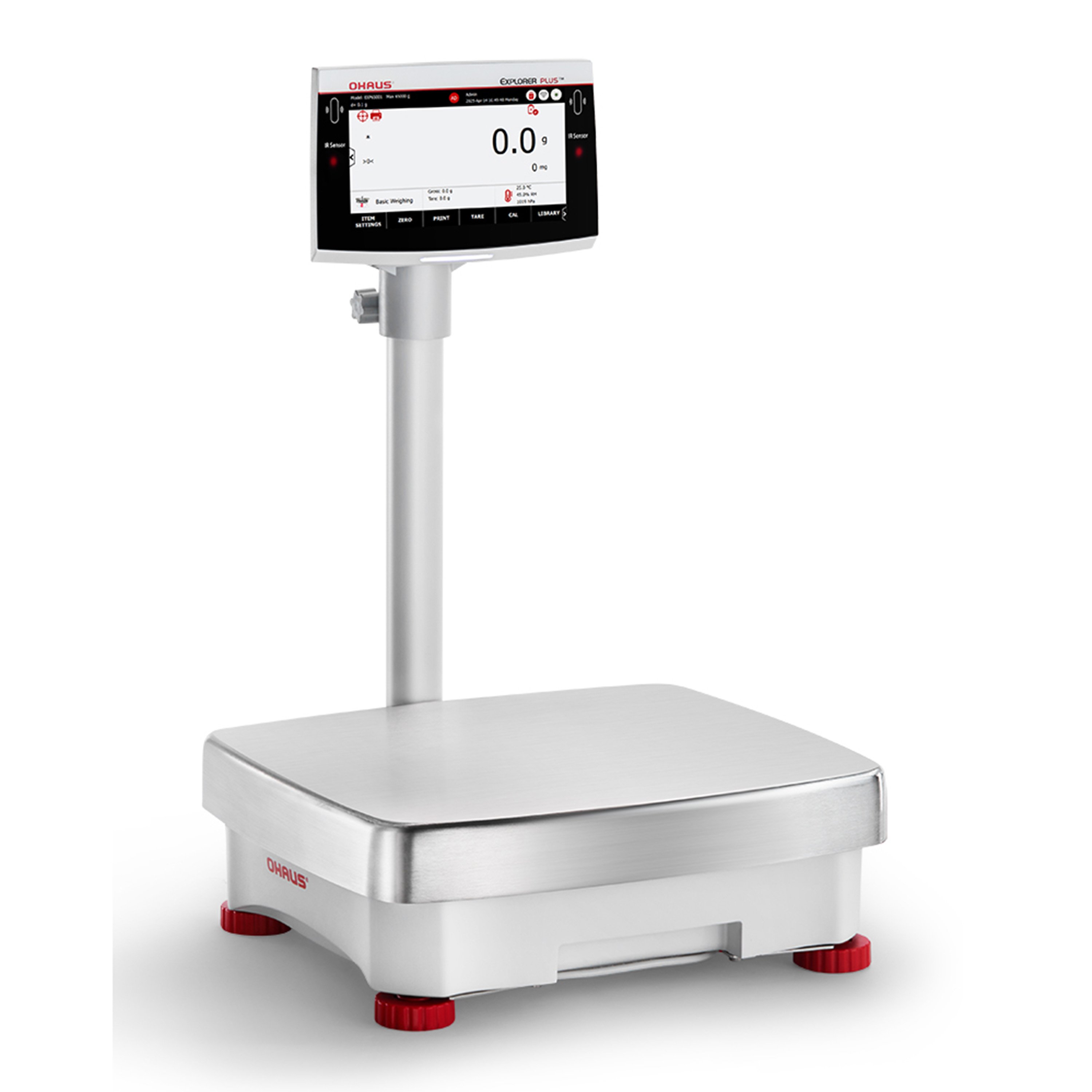

• Construction: Eco-friendly modular design, IP54-rated base, metal base and housing, large stainless steel (SST 304) weighing pan, and optional tower kit (not included)
• Available in 24000 g, 35000 g, and 65000 g Capacities

Technical Specifications:

• Terminal Display: 7" TFT 16.7M Color Touch Screen with Glass Overlay, Detachable Terminal
• Display Resolution: 800 x 480 Pixels
• Communication:
  • 2 USB Host (Type A)
  • 1 USB Device (Type B)
  • 1 USB Device (Type C)
  • 1 Ethernet (RJ45)
  • 1 RS232
  • Optional Wi-Fi/Bluetooth Dongle (Not Included)

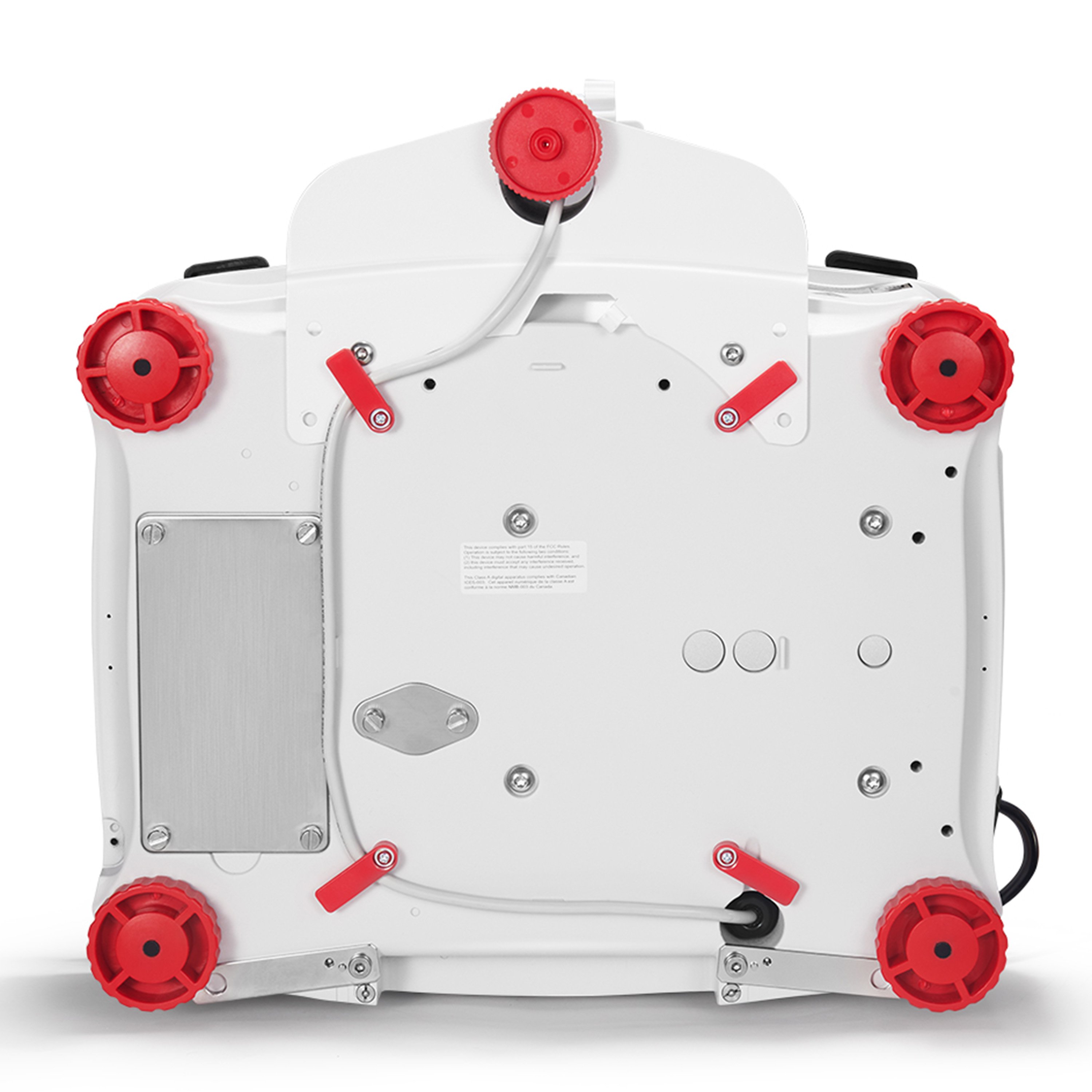

• Leveling System: 4 Leveling Feet with Digital Leveling Bubble
• Weighing Pan Size: 14.84" x 12.24" (Trapezoid Pan)
• Environmental Sensor (Load Cell):
  • Temperature Sensor
  • Relative Humidity (RH) Sensor
  • Air Pressure Sensor
• Touchless Sensor: 2 Touchless Sensors on the Terminal
• Terminal Status Lights: Standard, 7-Color Selectable
• Auxiliary Display Model (Not Included): Available as an Accessory
• Power Supply (AC Input): 100-240 V AC, 0.5 A, 50-60 Hz

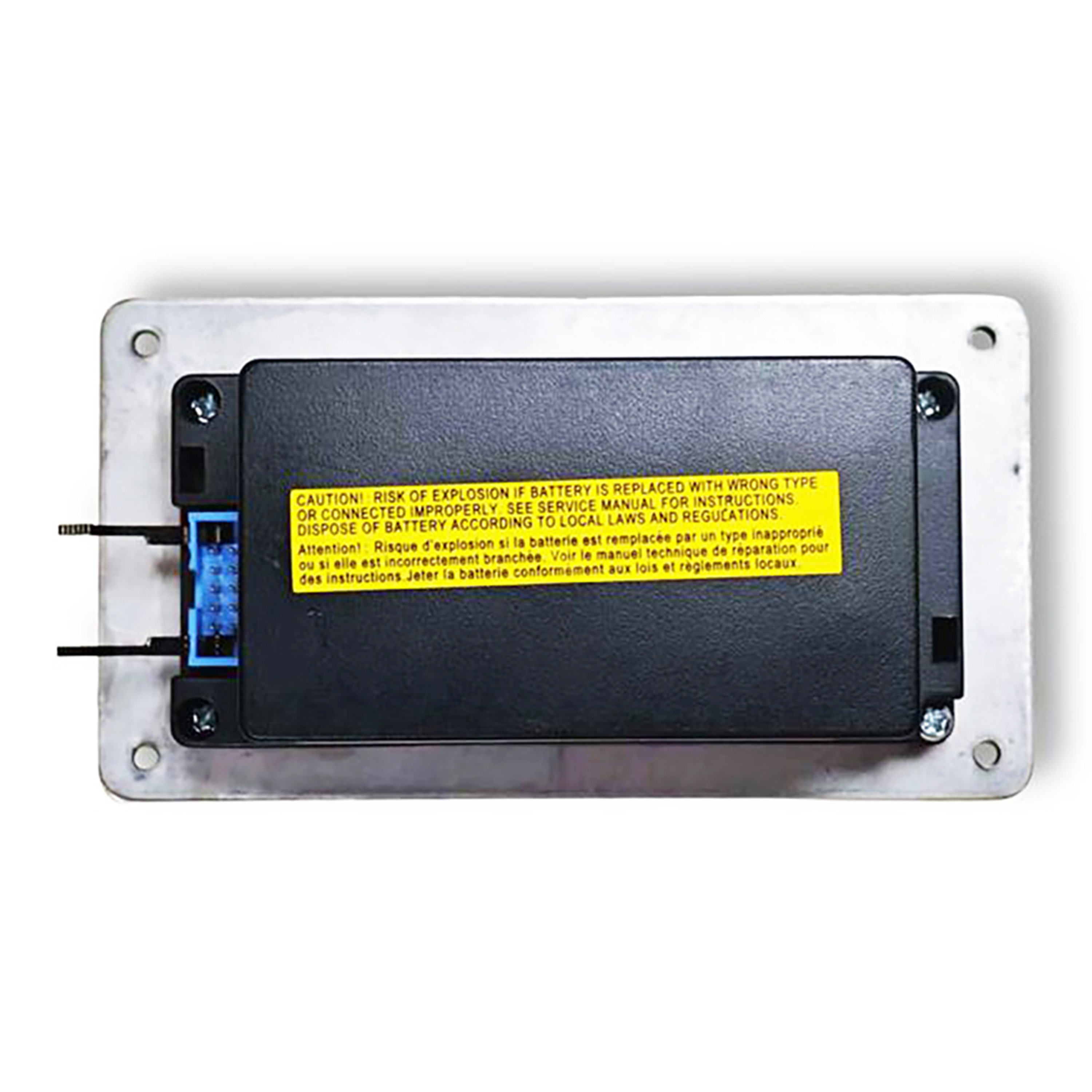

• Optional Rechargeable Battery (Not Included): Li-ion, ICR18650, 14.4 V, 2600 mAh
• Battery Life:
  • Brightness ≤ 50%: Up to 8 Hours
  • Brightness ≤ 90%: Up to 5 Hours
  • Full Charging Time: 6 Hours
• Base IP Rating: IP54
• Metrology: NIST Handbook 44, Measurement Canada Weights and Measures Regulations
• Product Safety: IEC/EN 61010-1, CAN/CSA C22.2 61010-1, UL 61010-1
• Electromagnetic Compatibility: IEC/EN 61326-1 (Class B, Basic Environments), FCC Part 15 (Class A), Canada ICES-003 (Class A)
• Operational Condition: 10°C to 30°C, 80% RH, Non-Condensing
• Material:
  • Top Housing: Die-Cast Aluminum, Painted
  • Bottom Housing: IP54 Waterproof Protected Base
  • Terminal: Glass, Die-Cast Aluminum
  • Weighing Platform: Die-Cast Aluminum
  • Weighing Pan: Stainless Steel (SST 304)

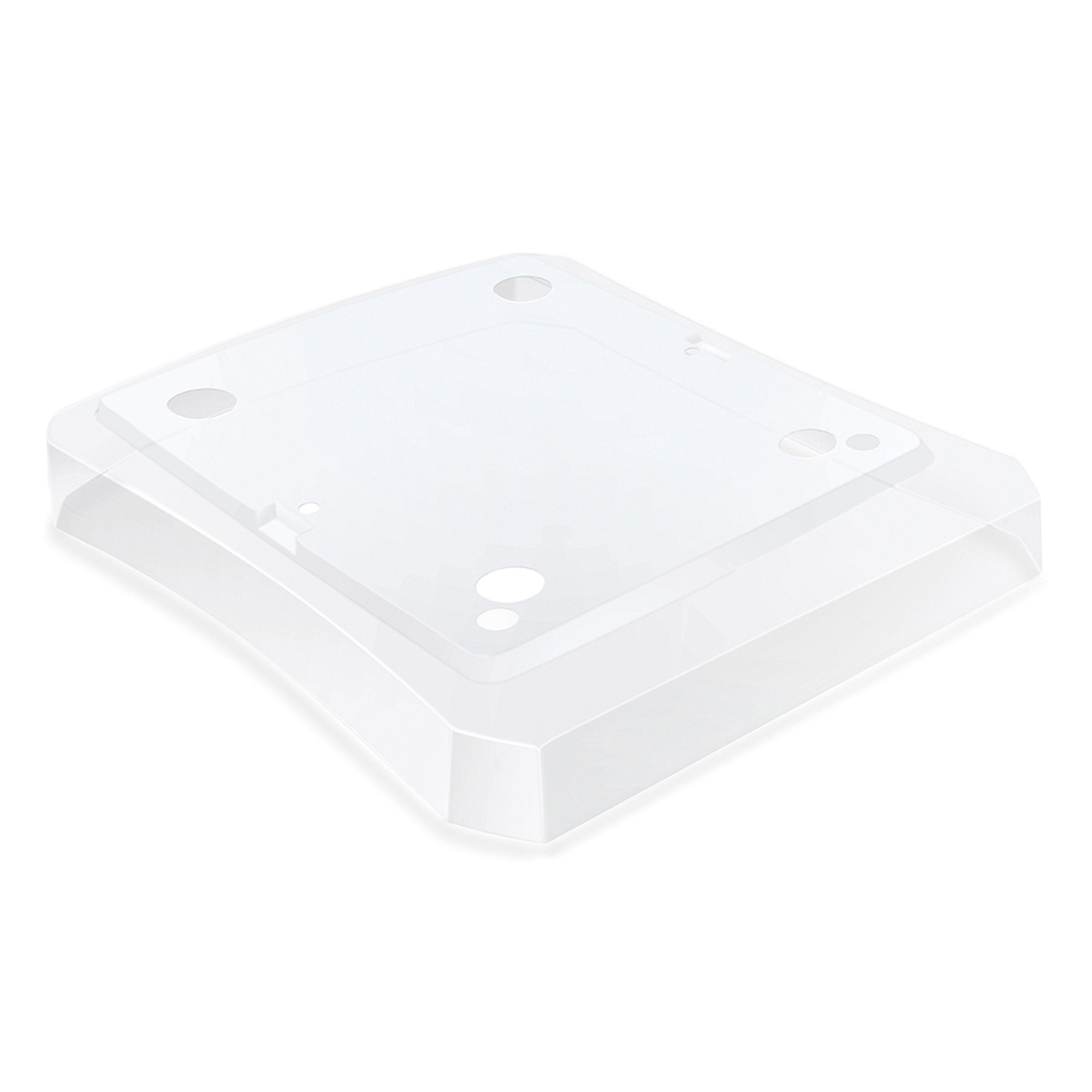

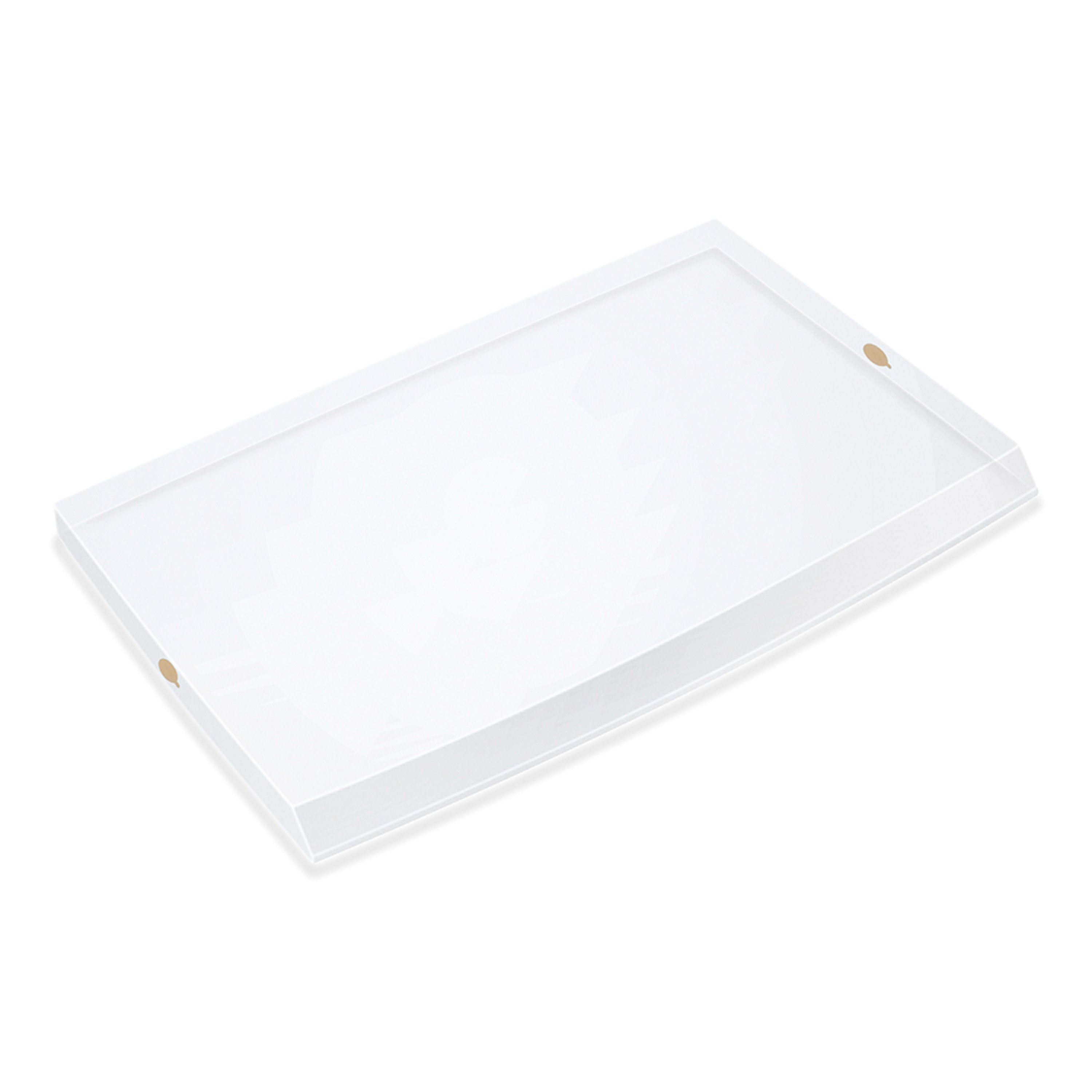

  • In-Use Cover: Plastic (PET)
• Tare Range: To Capacity by Subtraction
• Weighing Units: g, ct, N, oz, ozt, Grain, dwt, mo, msg, tl H, tl S, tl T, tcl, tola, baht, lb, kg, Custom 1, Custom 2

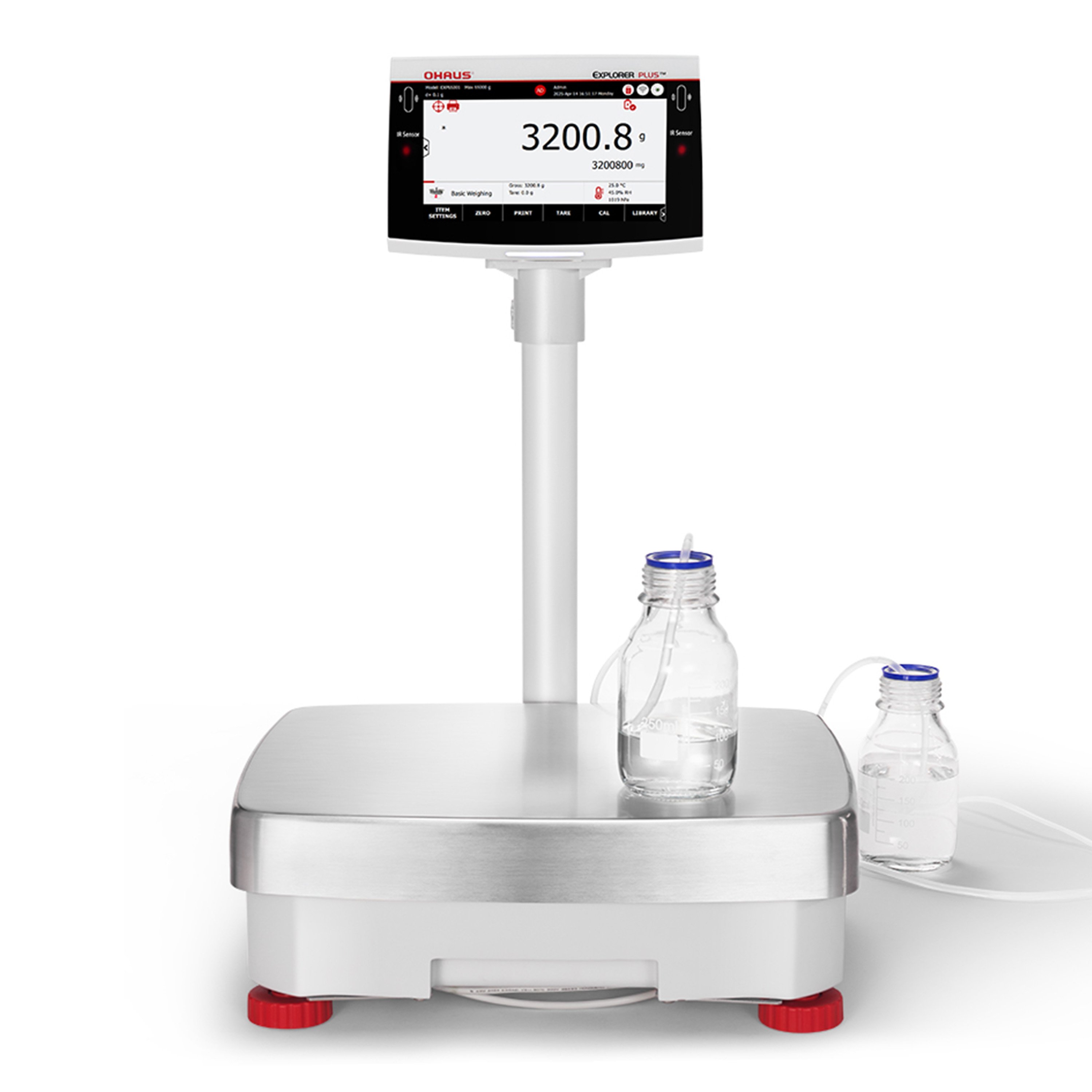

• Applications: Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold, SQC, Fill Weight Variation, Flow Rate Control
• Terminal Housing Dimensions: 4.96" L x 8.07" W x 2.60" H
• Base Housing Dimensions: 12.24" L x 14.88" W x 4.92" H
• Overall Dimensions: 17.24" L x 14.88" W x 4.92" H
• Actual Product Weight: 24.25 lbs

Models Comparison:

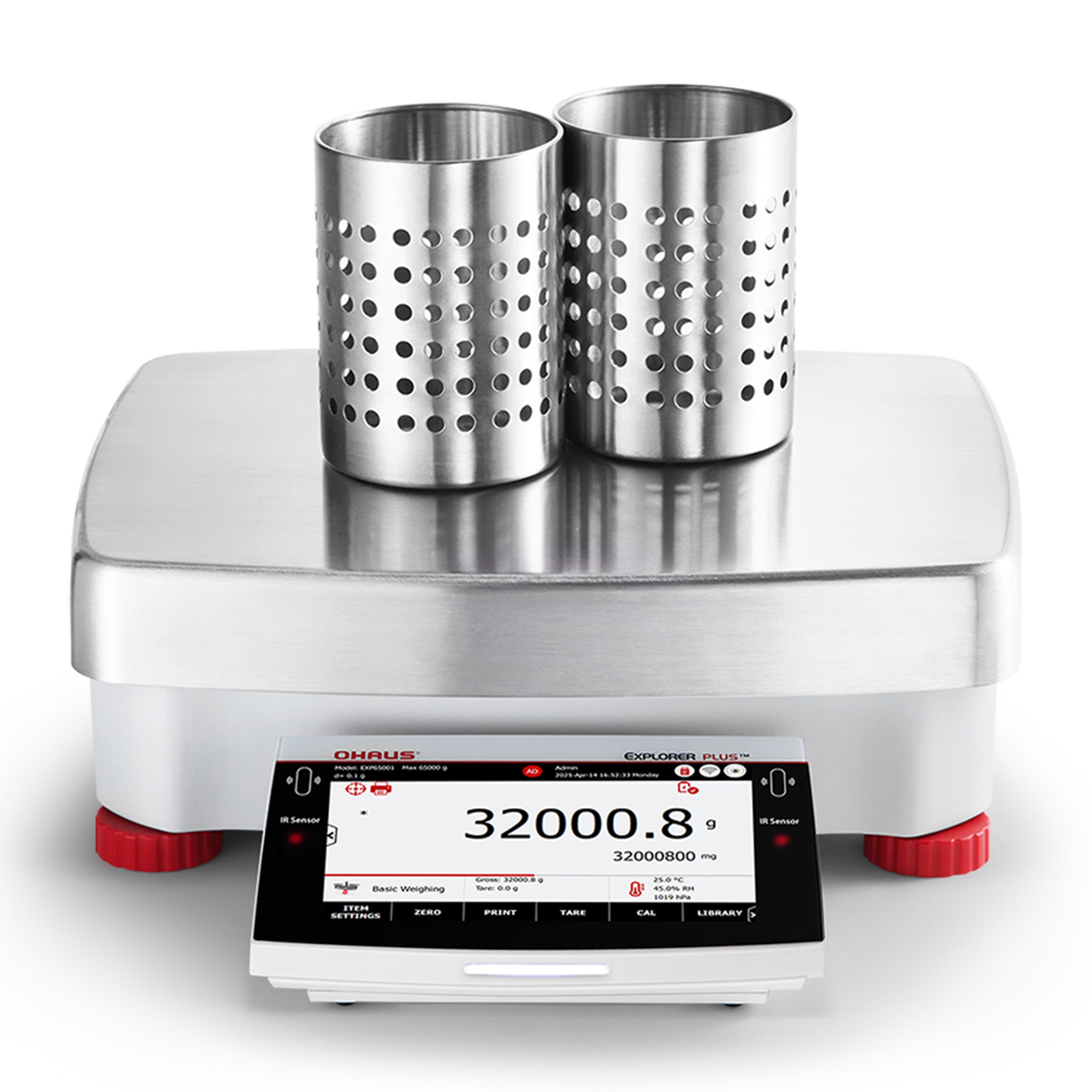

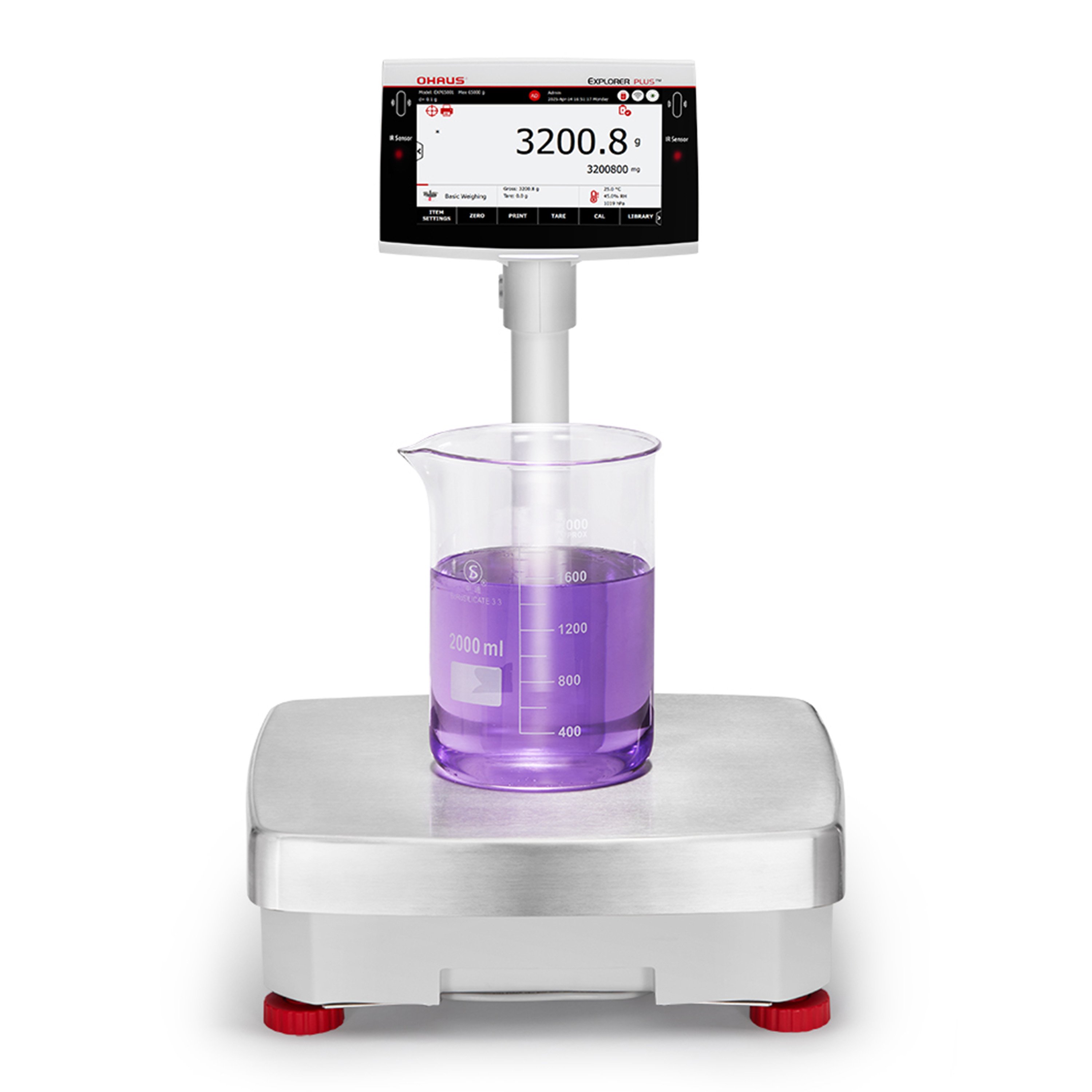

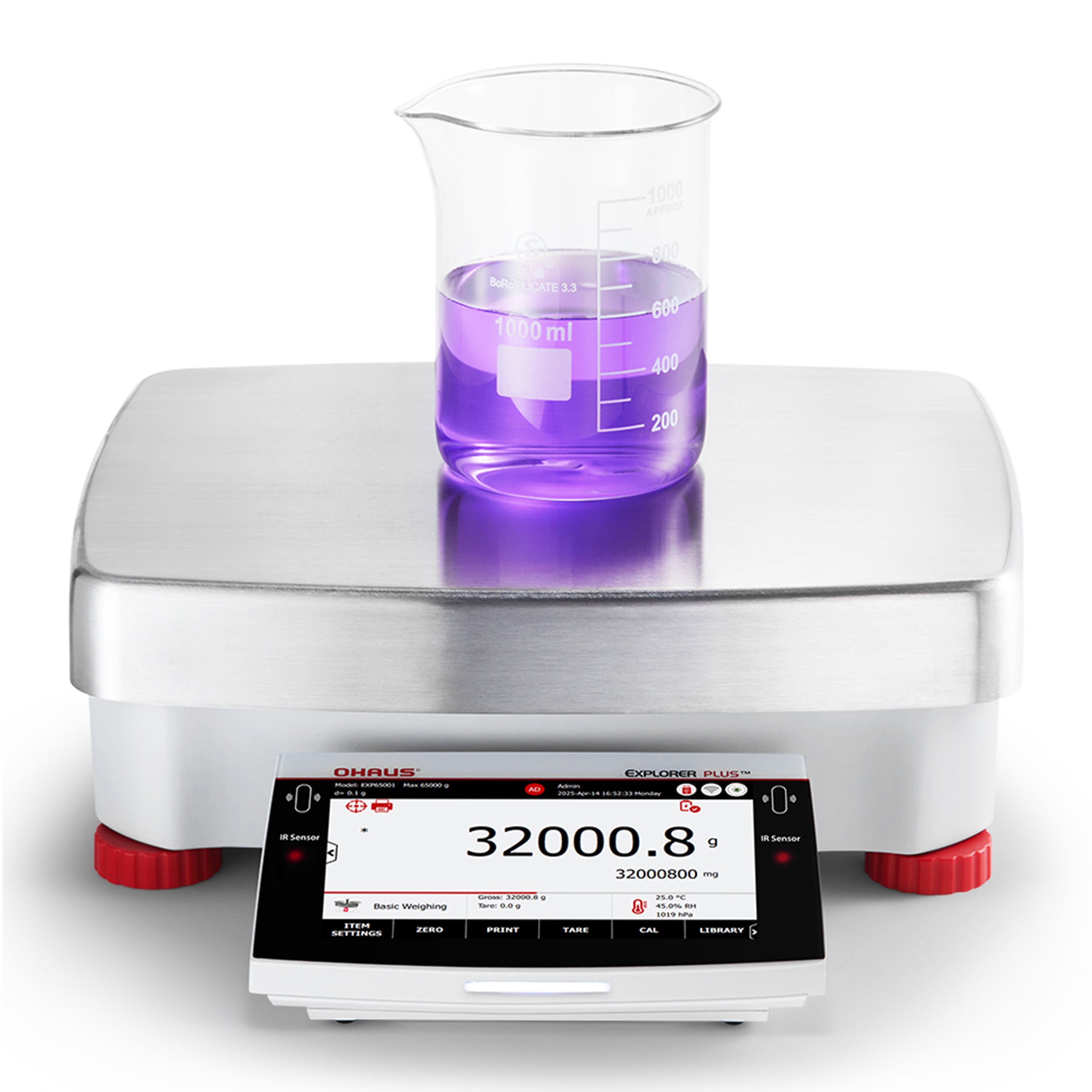

Please note: The tower kit, stainless steel cans, beaker, reagent bottles, tubing, rechargeable battery, fingerprint scanner, Wi-Fi/Bluetooth dongle, and auxiliary display model are not included.
