Product Description

Oakworks new Ergonomic Advantage (EA) Line of Ultrasound Tables incorporates all of the ergonomic features and comfort their tables have had for years with new powered features that speed up exam times and make positioning patients easier.

  • Designed for use as exam chair or table with many optional features to customize the table to fit your needs
  • Designed by leading Ergonomic Specialists and exceeds the "Industry Standards for Sonography"
  • Sleek base design promotes unobstructed compatibility with ultrasound equipment ensuring better ergonomic conditions for the sonographer

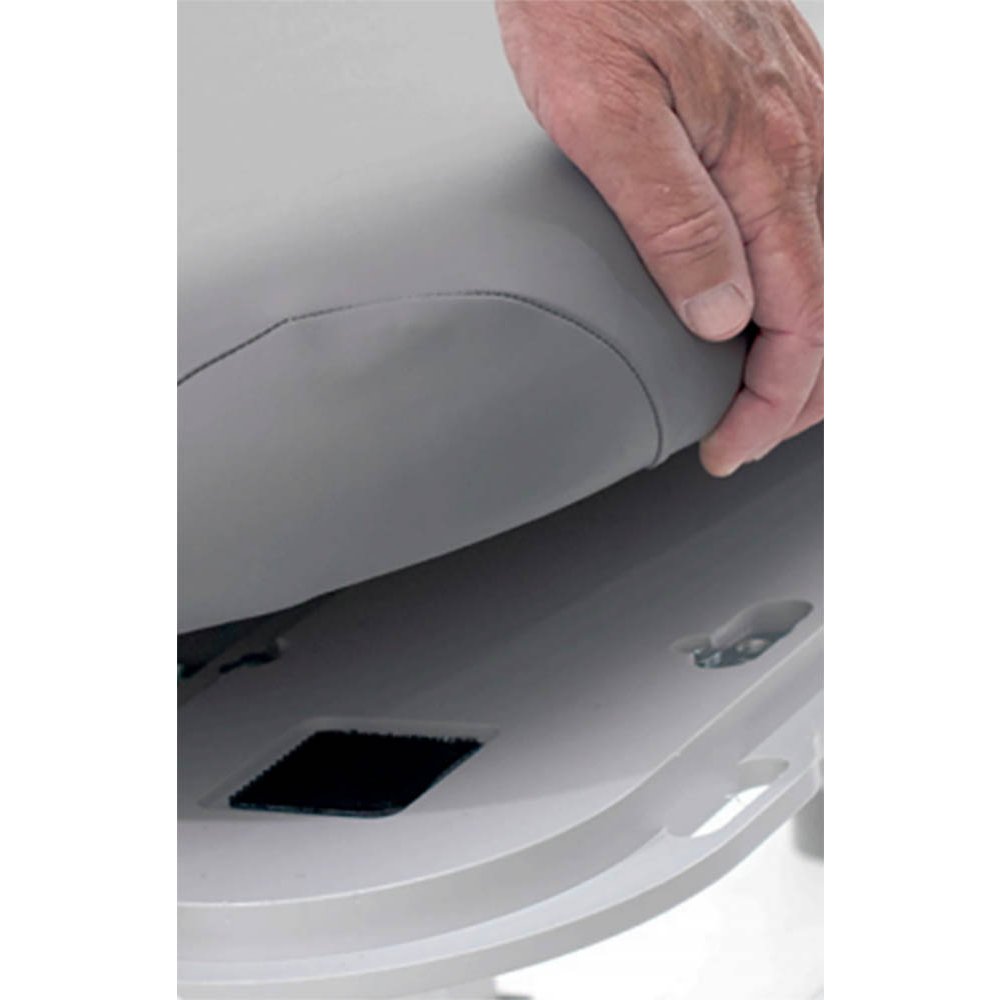

  • 3-section top with removable pads for easy cleaning/replacement
  • New electronics with graphic interface hand control allow you to easily and quickly change the position of the backrest
  • Powered leg rest easily lifts patients legs and can be used with the stirrups extended
  • Multi-function hand control
  • Twin lifting towers create a rigid support system with trendelenburg and reverse trendelenburg standard
  • Base design makes it easy to move in close anywhere around the table on a chair
  • Locking casters' double wheel design makes positioning the table easy
  • Paper roll holder holds up to 21" rolls (paper roll not included)

Options (must be ordered with table):

  • Powered Central Base Locking item #83033
  • Foot Control item #85978
  • Side Rails item #83034
  • Procedure Tray item #84754
  • Battery Backup item #81347
  • Retractable Foot Rests - Stirrups item #83904

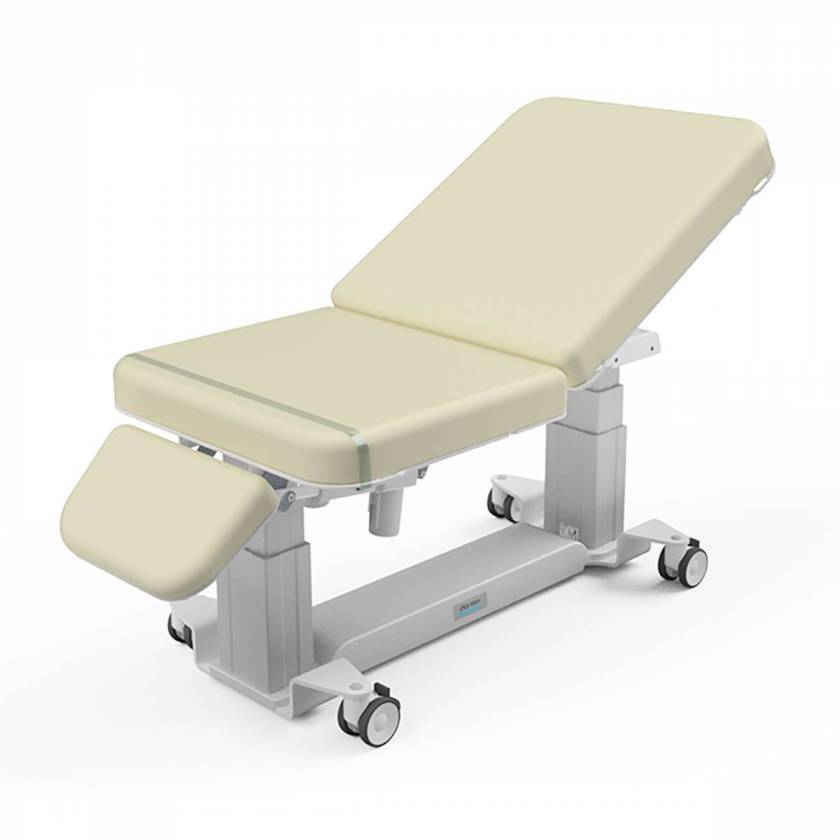

Oakworks General 3-Section EA Ultrasound Table - 26" Width, SKU 84783
Overall Dimensions 26" wide x 72" long (for 30" wide table, please see item #83892)
Backrest 34" long
Seat 26" long
Leg Rest 19" wide x 11" long
Motion 1 Electric Height Range 19" - 33"
Motion 2 Electric Trendelenburg/Reverse Tilt ±18°
Motion 3 Electric Fowler Backrest 0-75°
Motion 4 Electric Leg Rest 0-90°
Controls Multi-function hand control
Locking Casters 4" diameter double wheel
Removable Padding 3" Comfort Foam™
Fabric Premium, PVC free TerraTouch™
Electrical System 120V/60Hz
Weight Capacity 550 lbs
Product Weight 359 lbs
Warranty 3 years parts, 2 years labor
Safety Listings FDA listed, CE marked, cETLus listed, CB Certificate


Manufacturer Oakworks Inc
Latex Free Yes
Actual Product Weight 359 lbs
Weight Capacity 550 lbs
Country of Manufacture United States
Item Ships From Pennsylvania



Limited Warranty: Oakworks warrants to the original end user all products manufactured by the company to be free from defects in material and workmanship under normal use and service for the period of three (3) years on manufactured parts and two (2) years on labor from the date of purchase. Normal wear and tear and damage caused by improper set-up, accident, misuse, improper maintenance, harsh operating environments, or neglect (which includes tears in the upholstery and damage caused by harsh chemical-based cleaners) are not covered under this warranty. Failure to follow the preventative maintenance schedule on equipment and instructions for upholstery care will void the warranty. Any unauthorized modifications or repairs will also invalidate the warranty and immediately terminate all liability by the manufacturer for the product or damages caused by its use.

Freight Shipping

Please Note: This item ships via motor freight carrier. Shipping fees often have to be re-quoted when purchasing this item. Our website estimates freight charges based on delivery to a location with a truck height dock. Examples of additional services include liftgate service, inside delivery, call ahead service, or limited access. If you would like to know the total delivery charges in advance of placing an order, we recommend requesting a quote for this item prior to placing your order. At quote or order submission, please make note of your receiving hours and specific delivery needs. Customer Service will reach out to you if additional details are needed. If you have questions about the motor freight delivery process please contact Customer Service.


All returns require return authorization within 15 days of receipt. Please contact Customer Service to request a return authorization. Returned Products must be in original packaging and arrive in new condition. All returns are subject to a minimum 30% restocking charge. The purchaser is responsible for all shipping charges, and the correct re-packing of products when returned to ensure damage does not occur during shipment.

If the product was put into service, the purchaser is responsible for cleaning and disinfecting the product prior to return. A Decontamination Certificate must also be completed and returned with the table. Failure to complete these steps for a table that was put into service, will result in the deduction of additional fees.
