Product Description

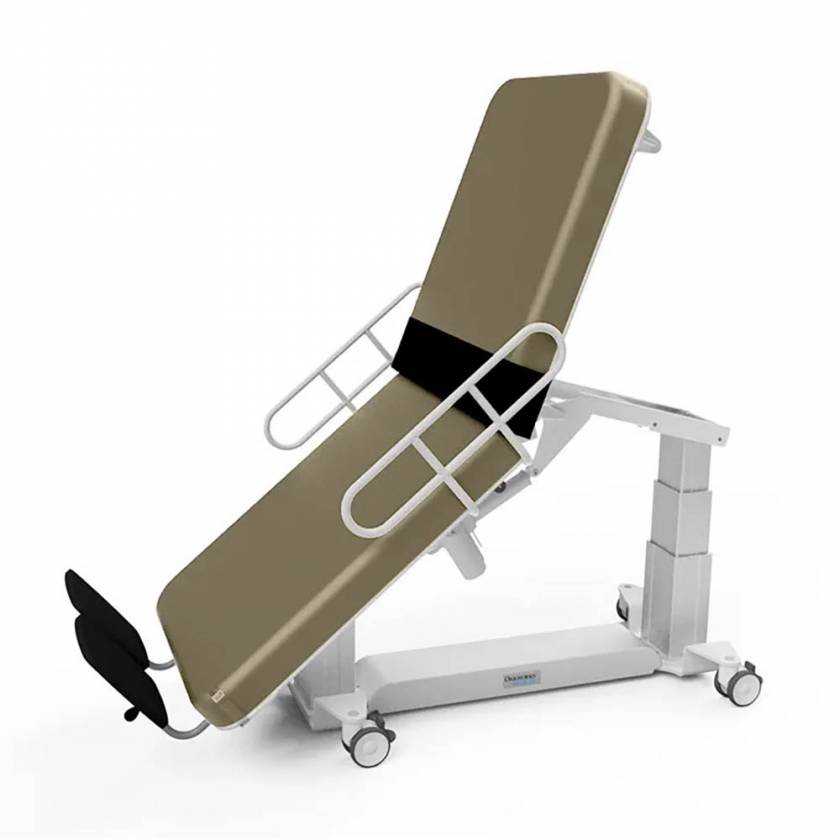

Oakworks new Ergonomic Advantage (EA) Line of Ultrasound Tables incorporates all of the ergonomic features and comfort their tables have had for years with new powered features that speed up exam times and make positioning patients easier (not recommended for tilt testing).

  • Dual towers & electric fowler makes 70° Reverse Trendelenburg a reality
  • Safely position clients for Venous Reflux studies
  • Designed by leading Ergonomic Specialists and exceeds the "Industry Standards for Sonography"
  • Sleek base design promotes unobstructed compatibility with ultrasound equipment ensuring better ergonomic conditions for the sonographer

Features:

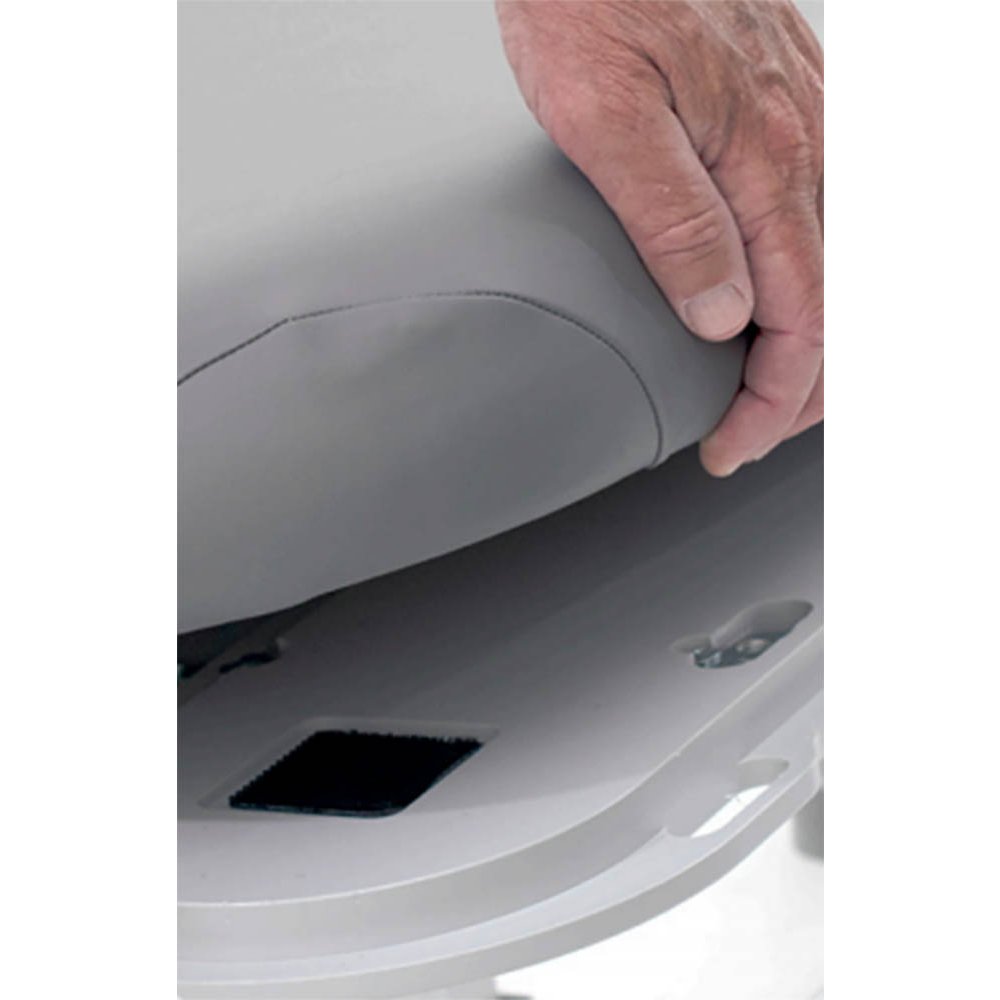

  • 2-section top with removable pads for easy cleaning/replacement
  • With a touch of a button the tables can go from horizontal to functionally 70º reverse trendelenburg

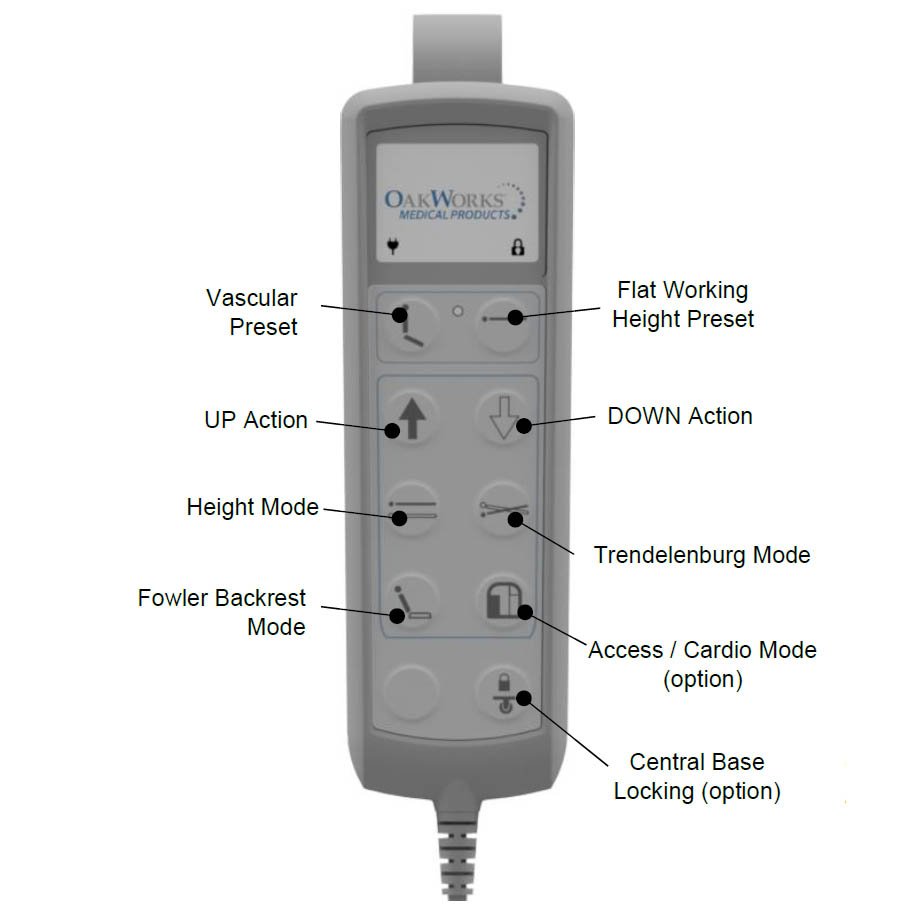

  • Multi-function hand control
  • Twin lifting towers create a rigid support system with trendelenburg and reverse trendelenburg standard
  • Small base footprint for better access
  • Locking casters' double wheel design makes positioning the table easy
  • Paper roll holder holds up to 21" rolls (paper roll not included)

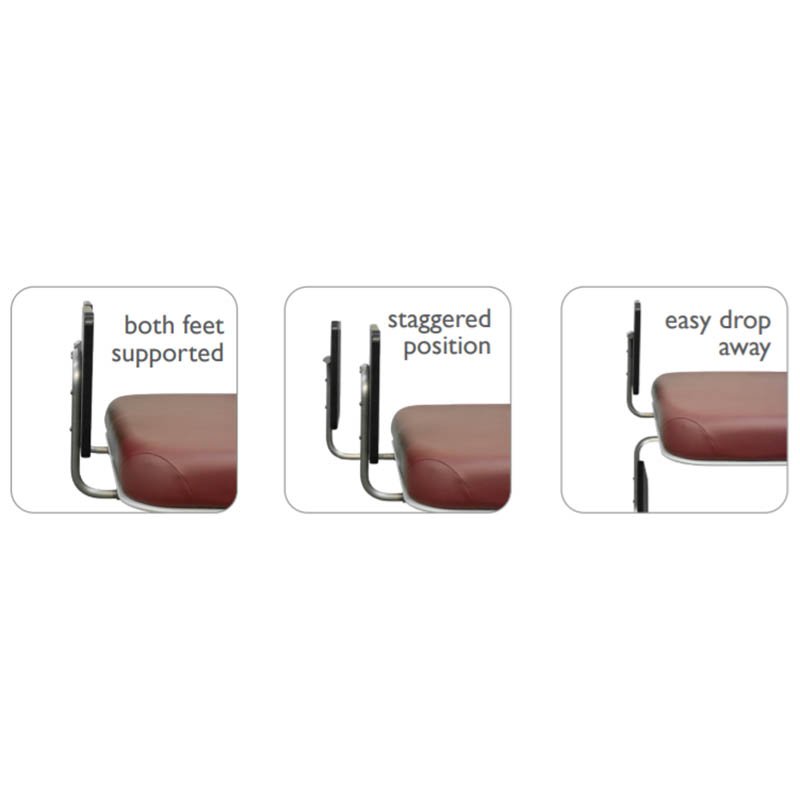

  • Split foot board design allows non-weight bearing exams and fold down out of the way for carotid artery exams. Foot rests are completely removable.
  • Patient safety strap

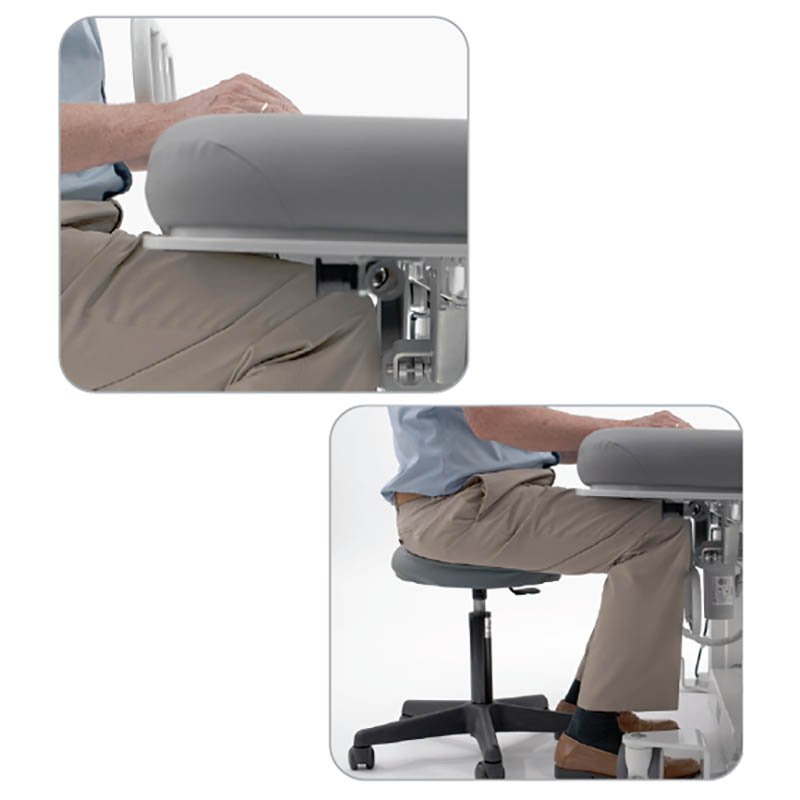

  • Side rails fold down completely out of the way when not in use

Recommended For:

  • Venous reflux studies
  • All other vascular exams
  • Abdominal & superficial structures exams
  • Musculoskeletal exams
  • Biopsies

Options (must be ordered with table):

  • Powered Central Base Locking item #83033
  • Foot Control item #85977
  • Battery Backup item #81347
  • Adjustable Access Back Support Right Panel item #85809 and Powered Sliding Cardio Left Panel item #85810 (MUST purchase together)

Specifications:

Oakworks Vascular with Fowler EA Ultrasound Table - 30" Width, SKU 83917
Overall Dimensions 30" wide x 72" long (for 26" wide table, please see item #84792)
Backrest 34" long
Seat 38" long
Motion 1 Electric Height Range 19" - 33"
Motion 2 Electric Trendelenburg/Reverse Tilt ±18°
Motion 3 Electric Additional Reverse Trendelenburg 0-25° (40° total)
Motion 4 Electric 0-75° Backrest (at 40° max tilt, 70° functional)
Foot Boards Split, drop away and removable
(2) Side Rails 25" long x 6" tall (from surface of table)
Controls Multi-function hand control
Locking Casters 4" diameter double wheel
Removable Padding 3" Comfort Foam™
Fabric Premium, PVC free TerraTouch™
Electrical System 120V/60Hz
Weight Capacity 550 lbs
Product Weight 359 lbs
Warranty 3 years parts, 2 years labor
Safety Listings FDA listed, CE marked, cETLus listed, CB Certificate

Please Note: This item ships via motor freight carrier. Our website estimates freight charges based on delivery to a location with a truck height dock. As every location does not have a truck height dock, shipping fees often have to be re-quoted when purchasing this item. Examples of additional services include liftgate service, inside delivery, call ahead service, or limited access. If you would like to know the total delivery charges in advance of placing an order, we recommend requesting a quote for this item prior to placing your order. At quote or order submission, please make note of your receiving hours and specific delivery needs. Customer Service will reach out to you if additional details are needed. If you have questions about the motor freight delivery process please contact Customer Service.

Specifications

Specifications
Manufacturer Oakworks Inc
Latex Free Yes
Actual Product Weight 359 lbs
Weight Capacity 550 lbs
Country of Manufacture United States
Item Ships From Pennsylvania

Literature

Instructions

Limited Warranty: Oakworks warrants to the original end user all products manufactured by the company to be free from defects in material and workmanship under normal use and service for the period of three (3) years on manufactured parts and two (2) years on labor from the date of purchase. Normal wear and tear and damage caused by improper set-up, accident, misuse, improper maintenance, harsh operating environments, or neglect (which includes tears in the upholstery and damage caused by harsh chemical-based cleaners) are not covered under this warranty. Failure to follow the preventative maintenance schedule on equipment and instructions for upholstery care will void the warranty. Any unauthorized modifications or repairs will also invalidate the warranty and immediately terminate all liability by the manufacturer for the product or damages caused by its use.

Returns

All returns require return authorization within 15 days of receipt. Please contact Customer Service to request a return authorization. Returned Products must be in original packaging and arrive in new condition. All returns are subject to a minimum 30% restocking charge. The purchaser is responsible for all shipping charges, and the correct re-packing of products when returned to ensure damage does not occur during shipment.
