Product Description

Higher performance and value for the practitioner - enhanced comfort for the patient through its dual intensity setting.
  • Nova Exam LED meets the demands of today's clinical examination applications
  • The LED light source produces a cool light that enhances physician/patient comfort while delivering a uniform beam pattern and higher illumination levels

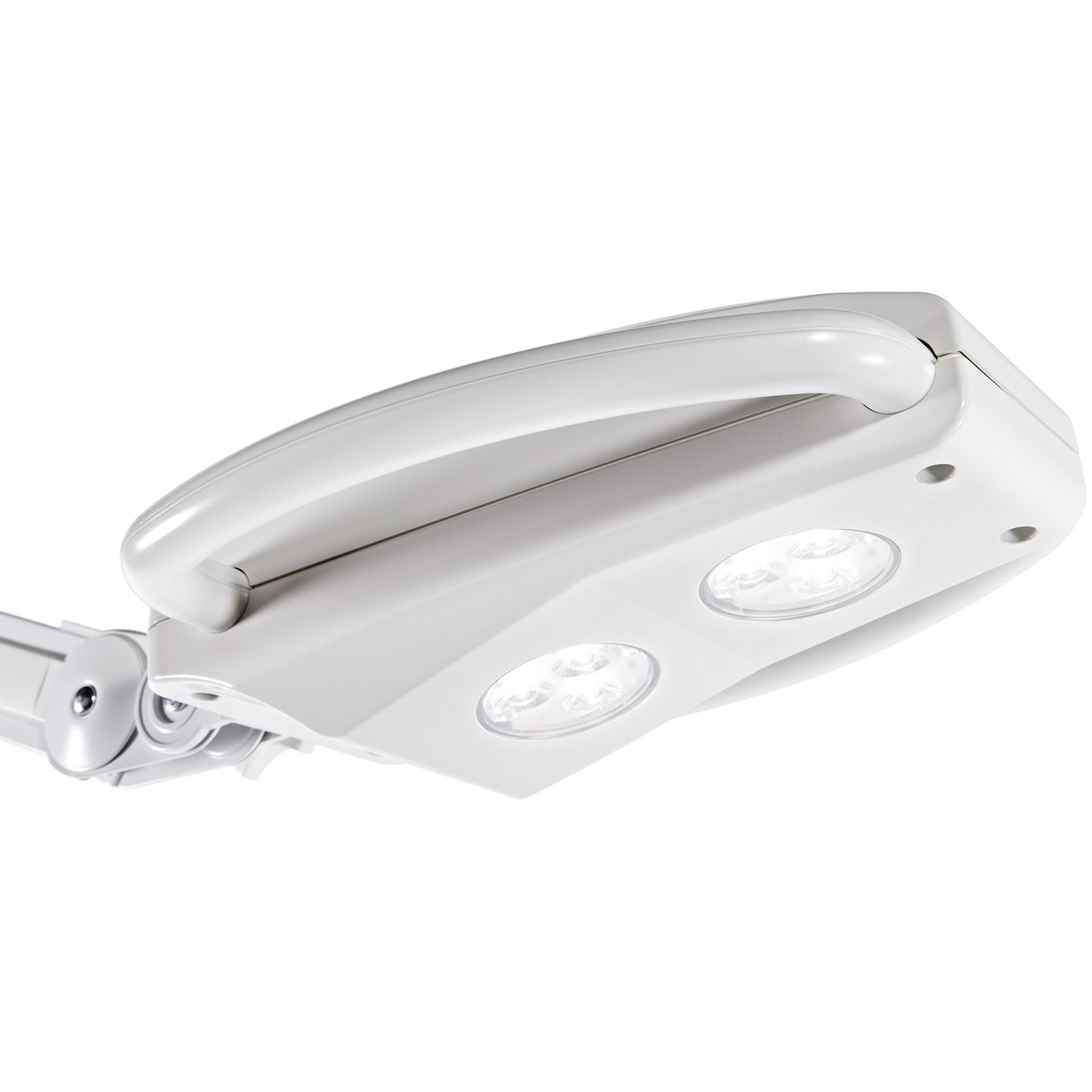

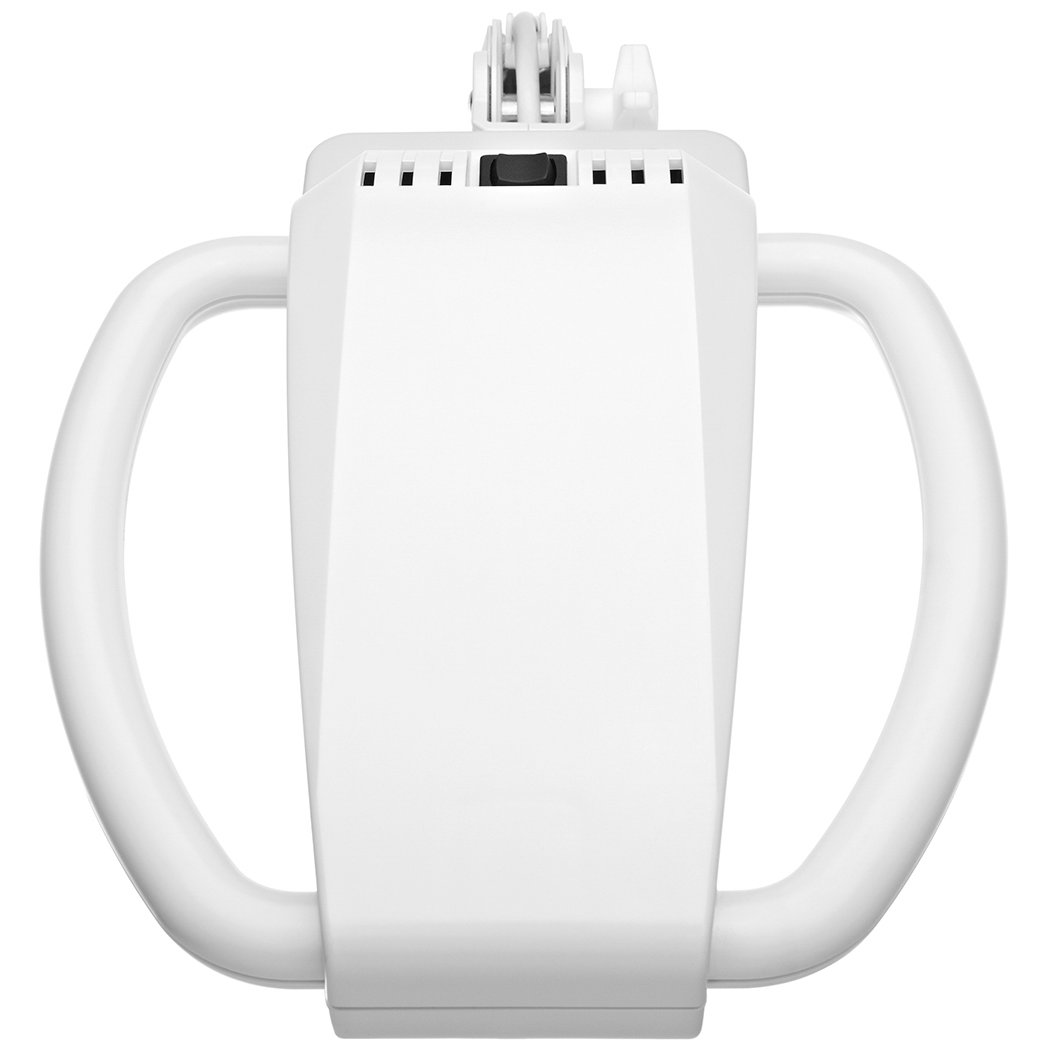

  • A sleek head design, combined with a patented K-arm, allows quick and reliable positioning while being easy to clean and maintain
  • The operational benefits include lower power consumption and longer light source life
Lower cost of ownership:
  • The sleek light head aids routine cleaning
  • The LED source offers 10x the operational life of traditional halogen solutions
  • 58% energy savings over comparable halogen options (at low light level setting) and 18% savings when providing double the illumination
Technical Specifications:
  • Illuminance: Low Level: 25,000 lux (2323 fc) at 18" (46 cm)
  • Illuminance: High Level: 50,000 lux (4645 fc) at 18" (46 cm)
  • Color Temperature: 4600 K
  • CRI (Color Rendering Index): 93
  • Light Source: Light Emitting Diode (LED)
  • Rated Life of LED: 40,000 hours average LED life
  • Power: 18 Watts
  • Power Supply: Integral electronic driver

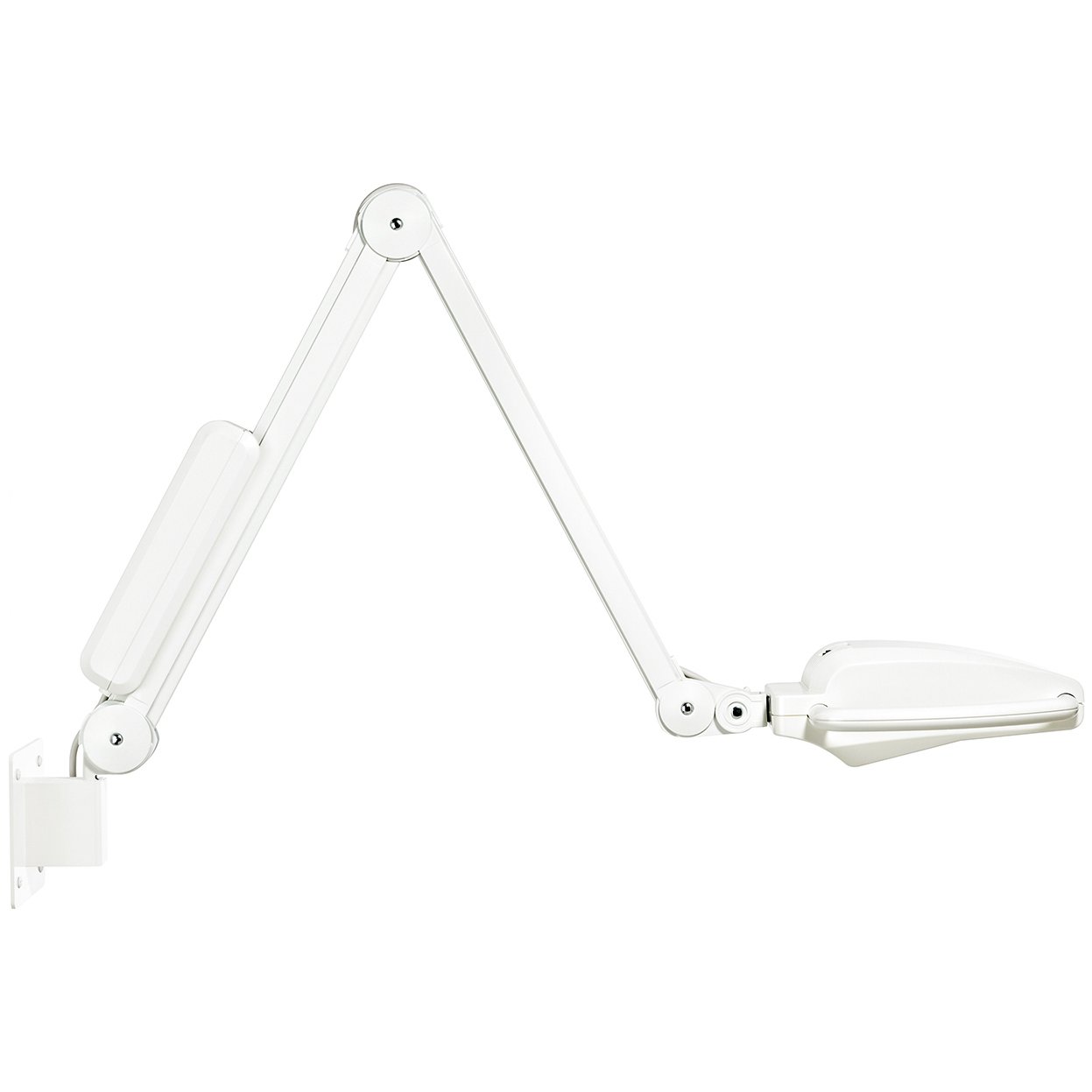

  • Additional Mounting Options Available: Floorstand, Table, or Ceiling

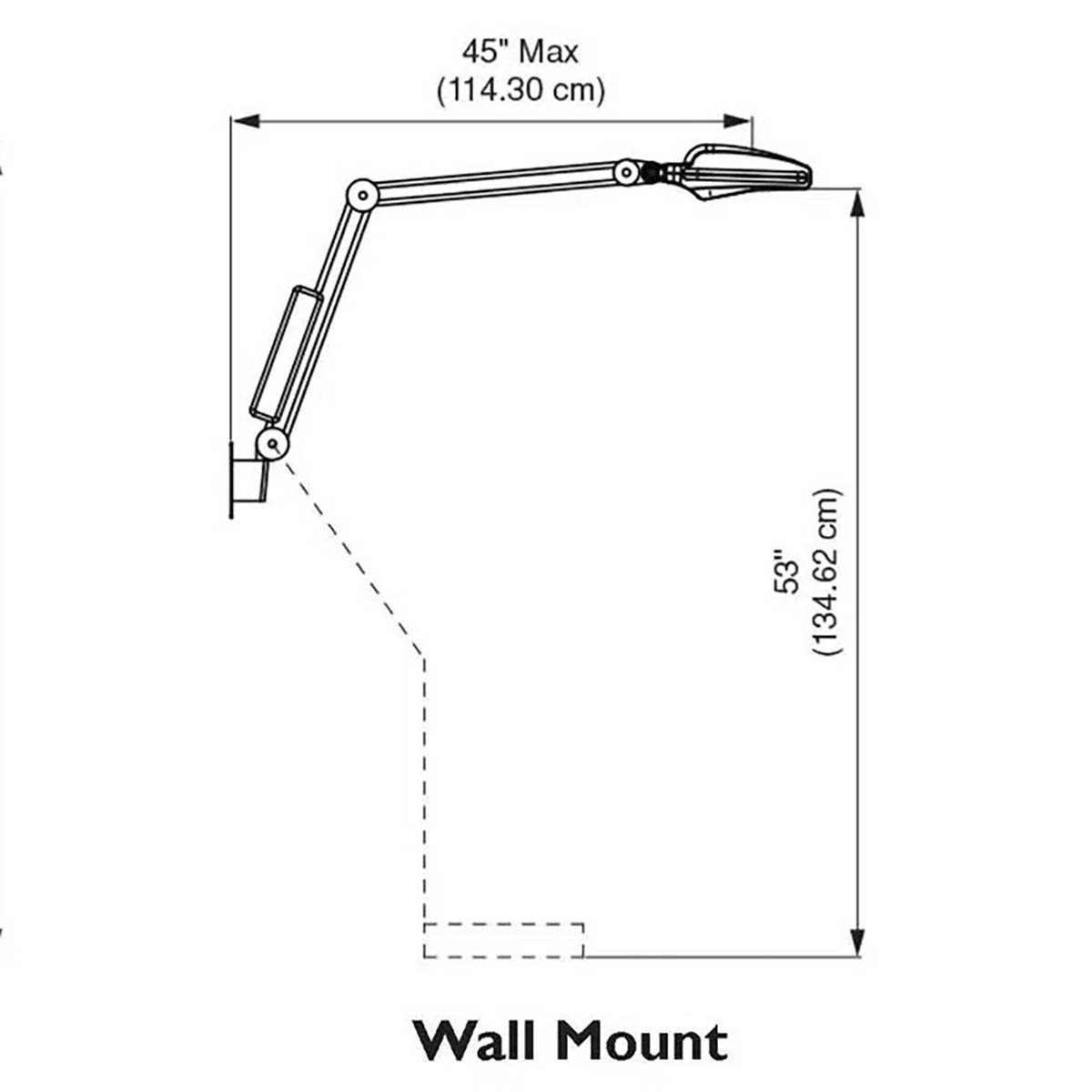

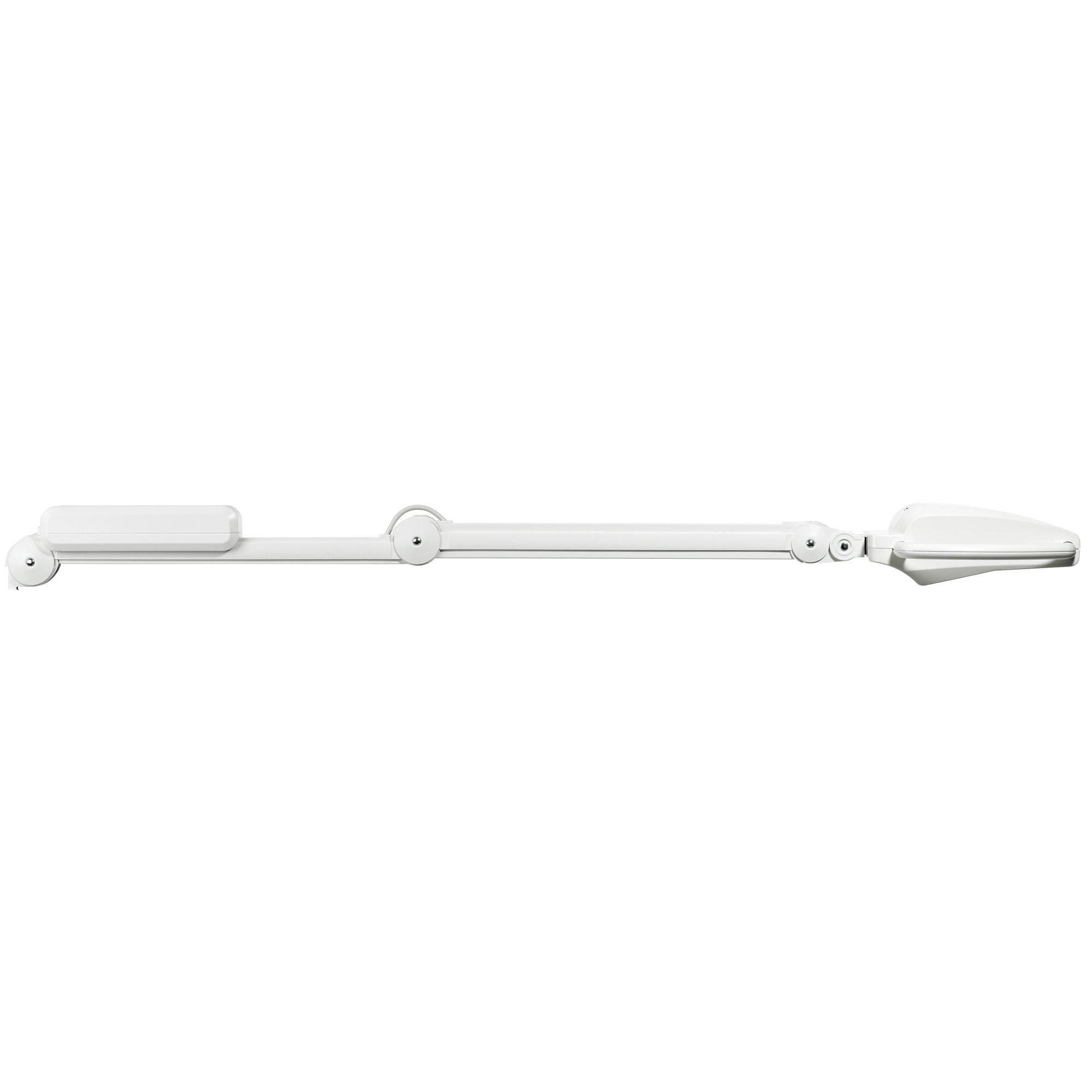

  • Maximum Arm Reach: 45" (114.30 cm)
  • 120V model standard, 230 / 240V models available
  • 5-year limited product warranty
Certifications/Approvals:
  • UL/IEC 60601-1/60601-1-2 3rd Edition
  • UL/IEC 60601-2-41
  • CB Certified
