Product Description

The perfect combination of light quality, positionability and large viewing area. Burton's Epic® LED Magnifier has an arm and neck system that is rugged and flexible. It stays exactly where it's positioned and doesn't require tightening or lock mechanism adjustments.

    • Large optical viewing area
    • Superb light quality; 90 CRI, 4000 Kelvin
    • 10-100% dimming capability
    • Auto shut-off
    • Smooth surface, easy to clean, anti-microbial coating
    • Low maintenance LED array
    • Medical standards approved
    • 5-year limited warrant



Technical Data

Epic® LED Magnifiers

Optics: 3.5 Dipoter
Total Magnification: 1.88X
Maginfication %: 188%
Focal Length: 11"
Viewing Area Diameter: 6.5" (16.5 cm)
Illuminance:

1360 lux (126 fc) at 8" (20 cm)

3830 lux (135 fc) at 11" (28 cm)

Color Temperature: 4000 Kelvin
Color Rendering Index (CRI): 90
Light Sources: Light Emmitting Diode (LED)
Rated Life of LED 50000-hours average rated LED life
Power: 100-120V; 10 Watts

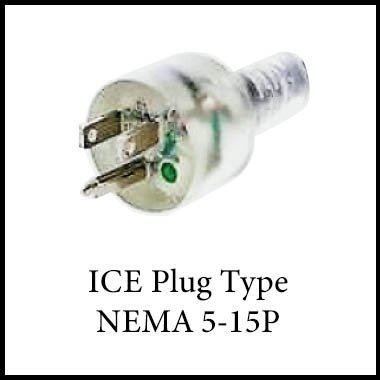

Plug Type: NEMA 5-15P
Mounting Options:

Mobile Floor Stand (EMLFL)

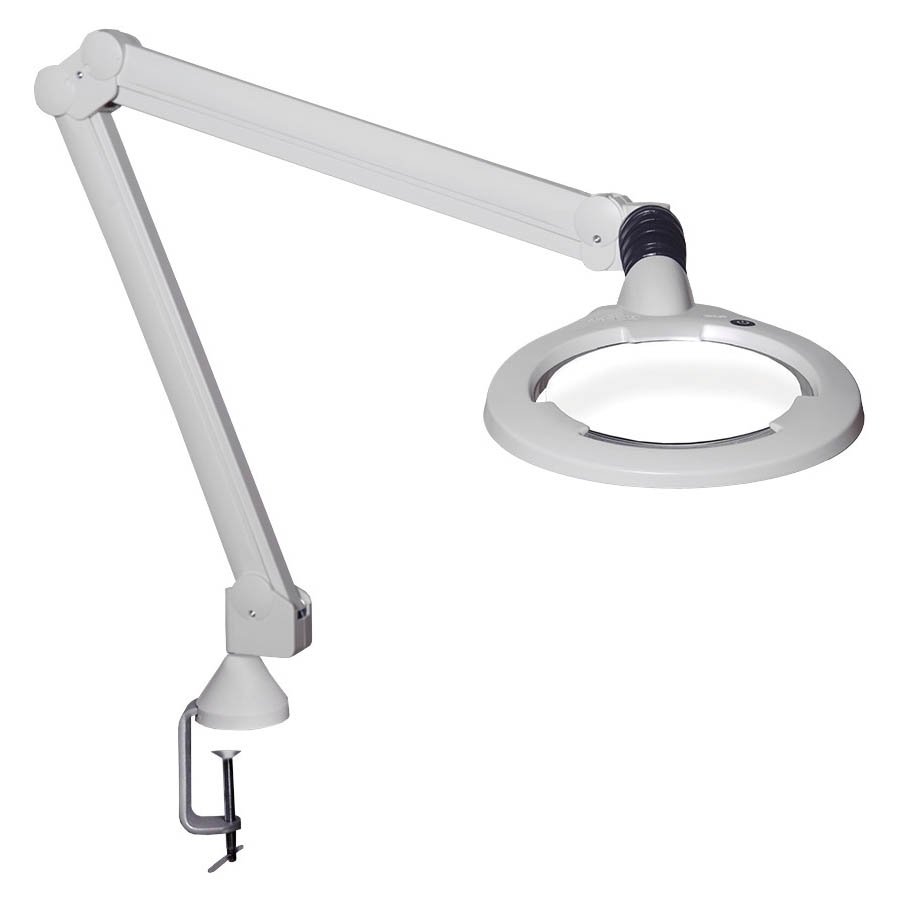

Table Mount (EMLT)

Wall Mount (EMLW)

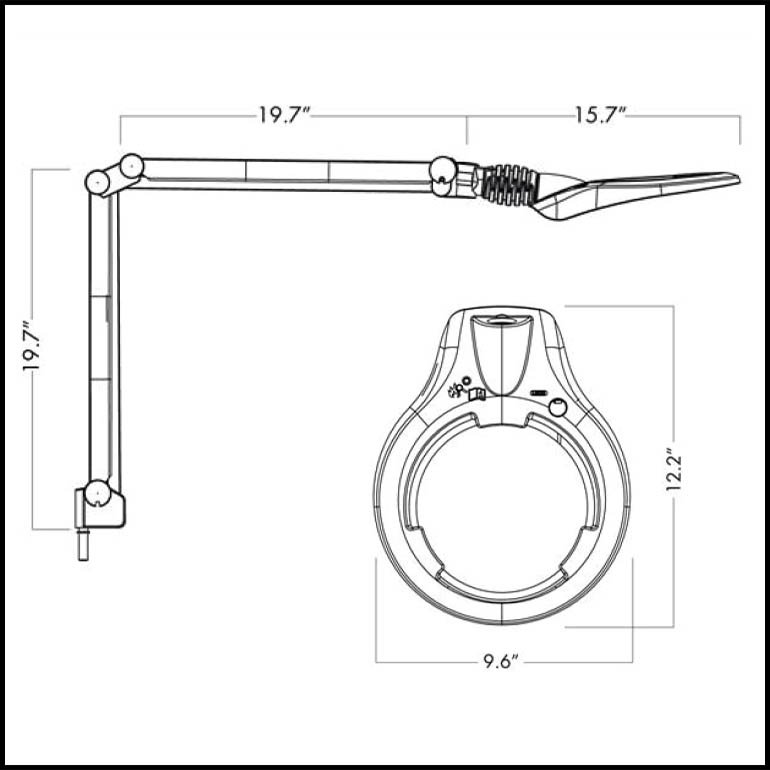

Maximum Arm Reach: 39" (99 cm)
Applications: General examination
Certifications/Approvals: IEC 60601-1 (SAFETY), EC 60601-1-2, (EMC)
Product Warranty: 5-year limited

Specifications

Specifications
Manufacturer Burton
Country of Manufacture United States
Item Ships From Illinois

Instructions

Warranty: Mechanical components of Philips Burton products are warranted to provide the original owner 5 (five) years of free service from defects in material and workmanship. The warranty does not cover the following items: light sources, handles, fuses and consumables. This warranty will not apply if the serial or lot number on the product has been altered, removed or made illegible. This warranty does not cover alterations, adaptations or adjustments made to the product. Periodic maintenance and repair or replacement of parts due to normal wear and tear is not covered. Also not covered are issues resulting from Abuse or misuse of the product. The warranty does not cover repairs performed by non-authorized service stations, dealers or the original owner. Warranty does not cover Accidents, lightning, water, fire, improper ventilation or any cause beyond the control of Philips Burton. Defects of the system into which the product is incorporated including installation and modification defects are not covered by this warranty.

Returns

Unauthorized returns will not be accepted, please contact Customer Service within 30 days of product shipment date and indicate the reason for your return. Returned items must be in new, unused condition in all original packaging. It is customer's responsibility to review product specifications, certifications, listings, etc. prior to purchase. A standard 18 percent restocking fee plus all freight charges will be applied to any product returned. A cancellation fee of up to $250 may apply at discretion of manufacturer. Cancellation charges for custom-built products may be subject to additional penalty fees at any time.
