Microscope HD-Mini Color Camera with 13" HD Screen
Product Description
The HD-Mini Camera with 13" HD Screen is the perfect solution for modern microscopy in industrial and laboratory applications where real time images are needed. This HD image quality camera can be used for biological, metallurgical, or stereo microscopes. The real-time images generated with this camera provide excellent color rendering at high frame rates and is user friendly.
Features:
-
High definition 1080P color camera
-

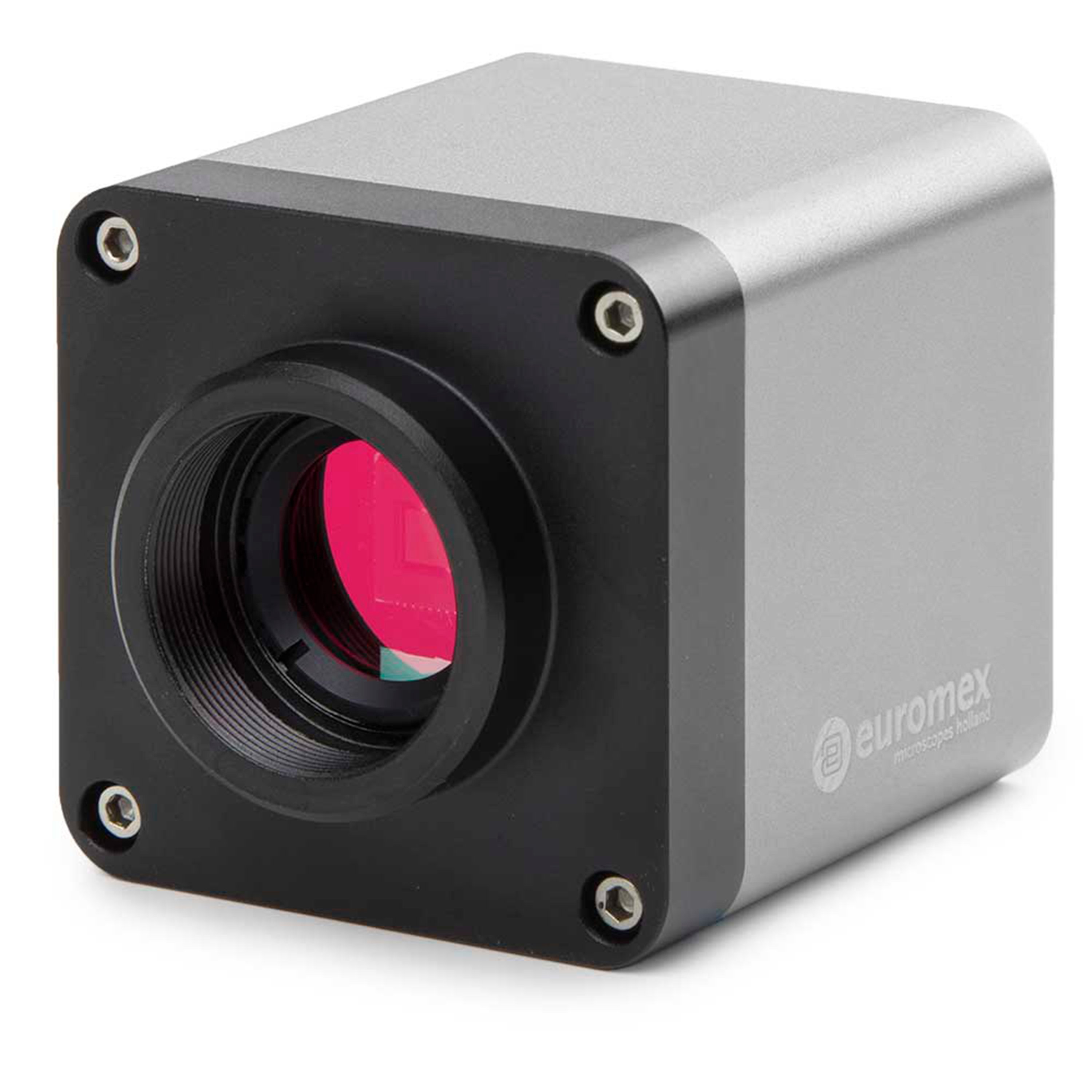

C-mount interface with c-mount lens (23.2) included
-

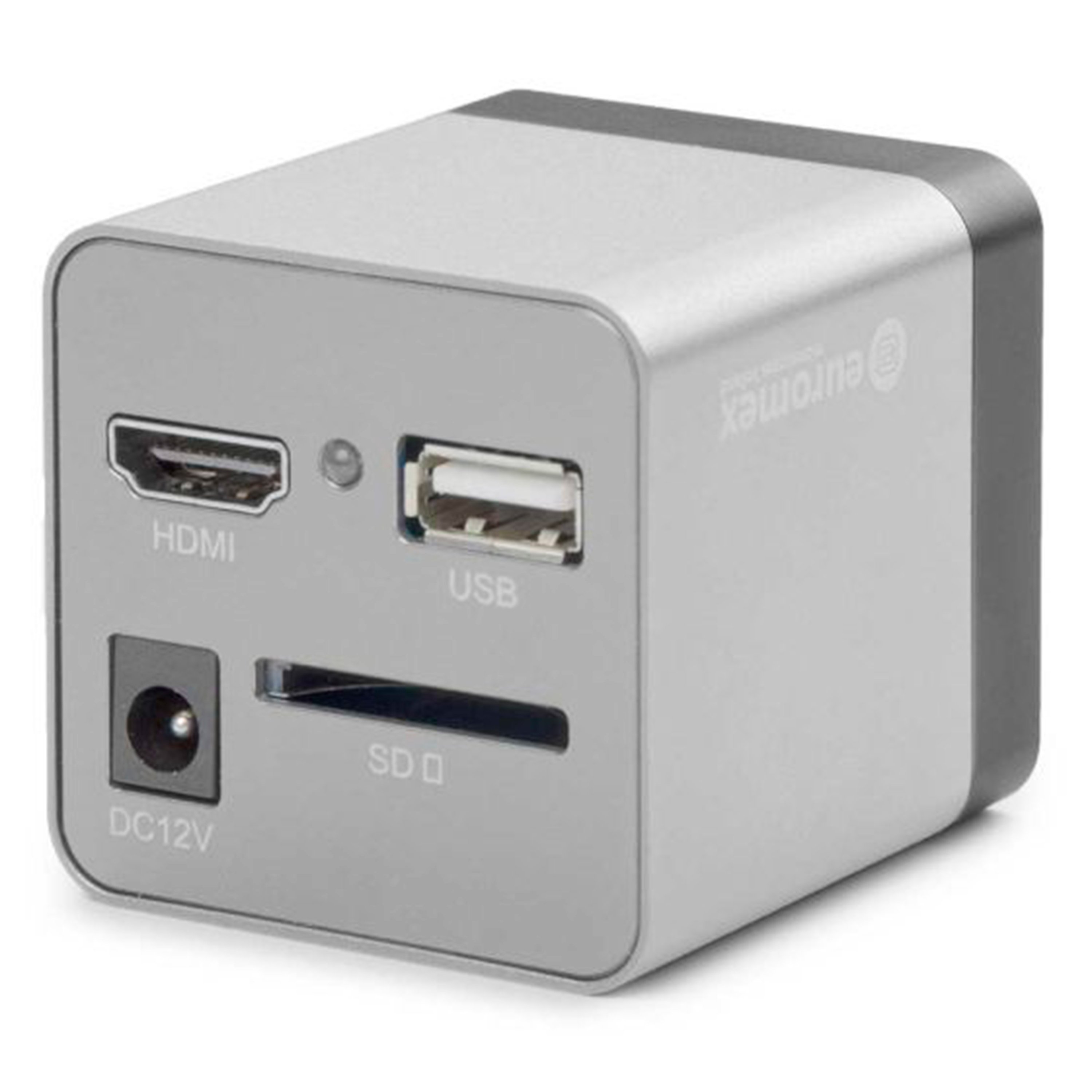

HDMI and SD memory card
-
Real time images directly on screen
-
Built-in mouse-controlled software
-
13-inch HD screen included
Stand-Alone Capabilities:
No need for a computer or any computer knowledge to use this camera. Most camera settings are performed automatically making this camera very user friendly. Simply connect the camera to a high-definition HD screen, TV-HD, or HD-beamer with an HDMI input, and the system is ready to go. The mouse-driven built-in software of the cameras enables capturing 1920 x 1080 pixels jpg images on the integrated SD memory card.
The embedded software of the camera features functions including:
-
Image and video Capture
-
White balance
-
Auto/ Manual exposure
-
Zoom In/ Out
-
Horizontal/ Vertical Flip
-
Video Freeze/ Cancel Video Freeze
-
Grid
-
Display/ Hide Camera Control Panel
-
Color Adjustment (Sharpness/Noise Reduction/Saturation/Gamma/Contrast)
-
Wide array of measurement functions
These key features make the camera an ideal choice for real time inspections, educational purposes and live demonstrations.
Technical Information:
| Sensor | HDMI 2.0 Mega pixels CMOS high sensitive sensor (Sony) |
| Format | 1/2.8", HDTV 1080p |
| Pixels | 1920 x 1080 (viewing and capture mode), HDMI 60 fps |
| Pixel Size | 2.9 x 2.9μm |
| Scan | Progressive scan |
| Noise | 3D Noise reduction |
| Color Rendering | 12 Bits |
| Signal/Noise | 42 db |
| Dynamic | 69 db |
| White Balance | Automatic / manual / ROI |
| Video Format | 1920 x 1080, H264 encoded MP4 file (50-60fps) |
| Image Format | 2MP JPEG, up to 10x digital zoom function |
| Sensitivity | 1.3 V/lux/s, dynamic range 85.3dB and S/N ratio 44dB |
| Interface | Digital HDMI 1.4 |
| Data Storage | Images are saved to a standard high speed 32 GB SD memory card (Recommend using SD card of class 4 or higher and ≤128GB) |
| Mounting | C-mount interface |
| Power Supply | 12VDC/1A adapter |
| Operation Temperature | -10 - 50 Celsius, 30 - 80%RH |
| Storage Temperature | -20 - 60 Celsius, 10 - 60%RH |
| Compatibility | Suitable for all HDMI screens, monitors and beamers |
| Package Content |
HD-Mini color camera, 13" HD screen, HDMI cable, DC 12VDC/1A power supply, 32GB SD Card, USB mouse, 0.5x c-mount adapter, 23.2 - 30.0/30.5mm adapter rings. Please note, do not use HDMI cable on laptop or PC. The HDMI connection is for direct view on TV monitors or screens only. |
Specifications
| Manufacturer | Globe Scientific |
|---|---|
| Actual Product Weight | 4.41 lbs |
| Overall Height | 8.07" |
| Overall Width | 15.35" |
| Overall Length | 11.61" |
| Country of Manufacture | China |
| Item Ships From | New Jersey |
