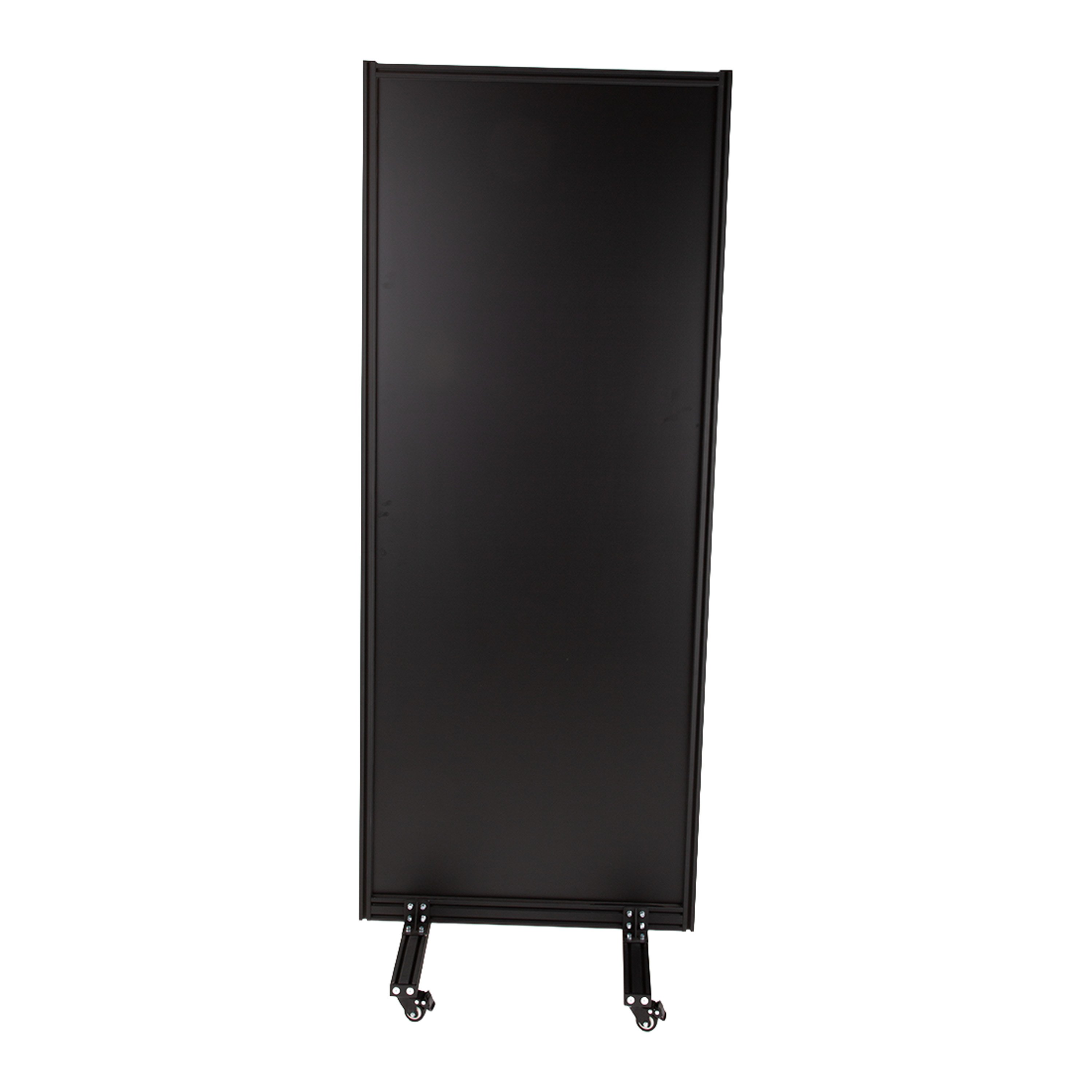

LaserEdge Pro Ridged Laser Safety Barrier
Usually Ships in 7-10 Business Days
In stock
Product Description
The LaserEdge Pro Ridged Laser Safety Barrier is engineered for high-output industrial environments, providing reliable containment for large work cells and multi-operator safety zones. Tested at 1070 nm and designed to withstand prolonged laser exposure, it combines exceptional thermal resistance with durable construction for demanding manufacturing applications.
Features:
- Wide-format rigid laser barrier for high-power industrial laser environments
- Provides a large safety footprint for enclosing work cells and multi-operator areas
- Industrial-grade construction with a professional appearance
- Designed to withstand the rigors of 24/7 manufacturing environments
- Mounted on a support base with integrated casters
- Rated for a Permissible Exposure Limit (PEL) exceeding 258.09 W/cm²
- Tested at 1070 nm, the standard wavelength for high-power fiber lasers used in cutting and cleaning applications
- Tested for 100 seconds of sustained laser exposure, providing an added safety margin over standard barriers
- Exceptional thermal management and resistance to high power densities
- Verified using a 1 mm beam diameter to simulate a highly concentrated, worst-case laser strike scenario
- Creates "safety corridors" around CNC fiber laser cutters and helps manage 1070 nm back-reflections from reflective metals, including brass, copper, and aluminum
- Supports laser rust and paint removal operations by allowing operators to position a backstop behind the area being cleaned and helping contain laser over-travel during rapid scanning
- Can be linked together to form semi-permanent walls in robotic welding lines
- Provides additional assurance during material testing and ballistics applications involving prolonged laser exposure and localized heat buildup
- The rigid construction is easier to decontaminate than flexible curtains, making it suitable for semiconductor and medical device manufacturing environments
- Safety Standards: EN60825 and IEC60825 compliant
- Overall Dimensions: 59" W x 78.75" H x 20.10" Depth
- Actual Product Weight: 65 lbs
About this Brand
The Phillips family's deep roots in the optical business were planted over 115 years ago with producing glasses for Bausch & Lomb in 1905. With the creation of Phillips Safety Products in 2001, the company began to focus its extensive optical experience on occupational safety, specifically protecting the eyes of customers using X-ray and laser equipment for healthcare, education, and military purposes. As the company has grown, its experience safeguarding professionals working with X-rays has led to the creation of innovative radiation protection barriers that provide both radiation protection and patient visibility. Phillips' state-of-the-art computer numeric control (CNC) edging facility enables them to produce the highest quality products, ensuring accurate production of both spherical and aspheric lenses. With a wide range of both designer and affordable classic frames coupled with its capability to incorporate prescriptions in safety glasses, Phillips Safety stands apart for blending the best and most affordable styles with the necessary safety functions to keep your eyes protected.
Specifications
| Manufacturer | Phillips Safety Products |
|---|---|
| Latex Free | Yes |
| Actual Product Weight | 65 lbs |
| Overall Height | 78.75" |
| Overall Width | 59" |
| Overall Depth | 20.10" |
| Country of Manufacture | United States |
| Item Ships From | New Jersey |
Literature
Instructions
Warranty: Phillips Safety products are fully guaranteed against manufacturer defects (material and workmanship) for 1 year from the date of purchase. This does not cover negligent use of the product. Phillips-Safety will, at their discretion, repair or replace any defective merchandise at no charge. All shipping charges remain payable by the purchaser.
Freight Shipping
Please Note: This item ships via motor freight carrier. Shipping fees often have to be re-quoted when purchasing this item. Our website estimates freight charges based on delivery to a location with a truck height dock. Examples of additional services include liftgate service, inside delivery, call ahead service, or limited access. If you would like to know the total delivery charges in advance of placing an order, we recommend requesting a quote for this item prior to placing your order. At quote or order submission, please make note of your receiving hours and specific delivery needs. Customer Service will reach out to you if additional details are needed. If you have questions about the motor freight delivery process please contact Customer Service.
Returns
This item cannot be returned as it is made to order.
