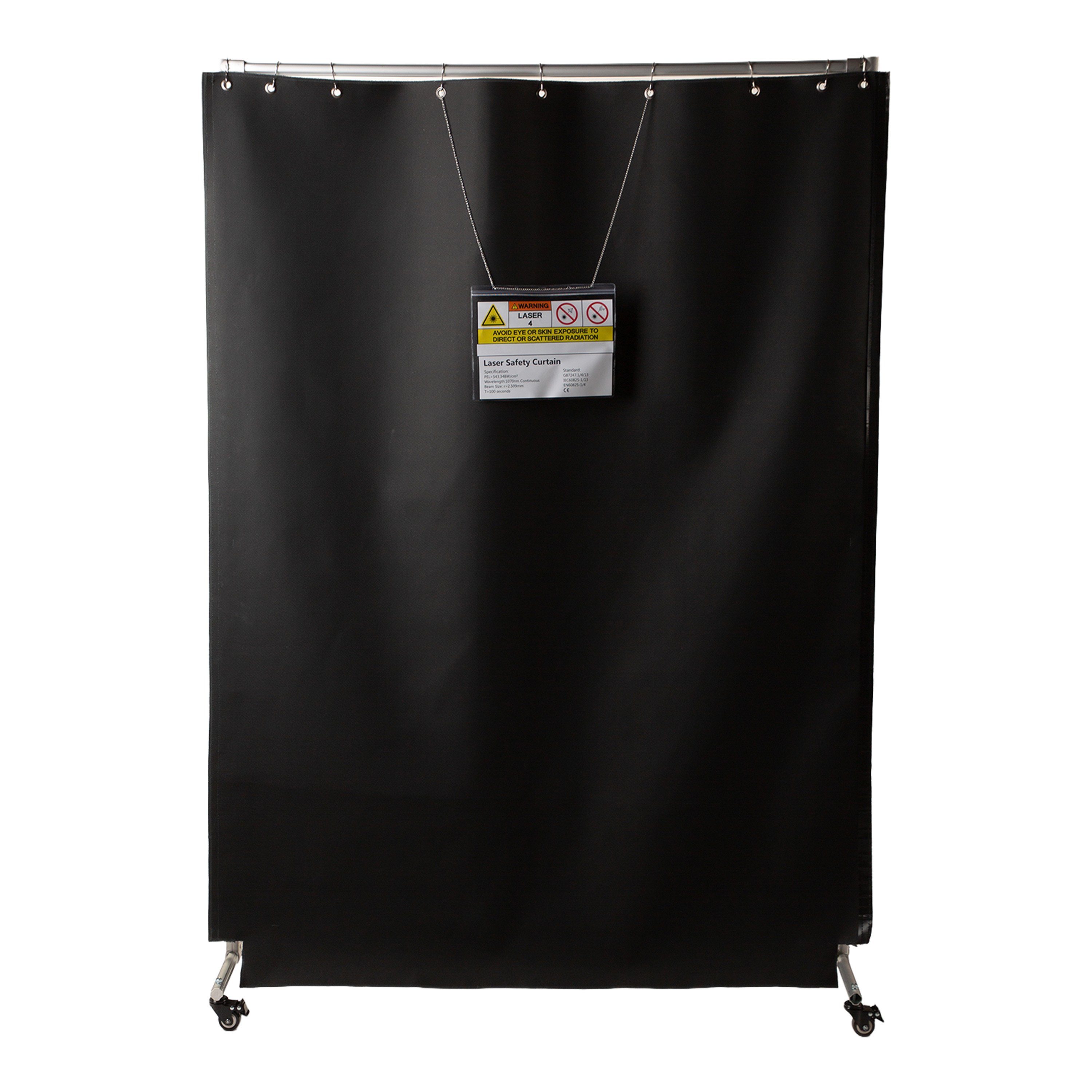

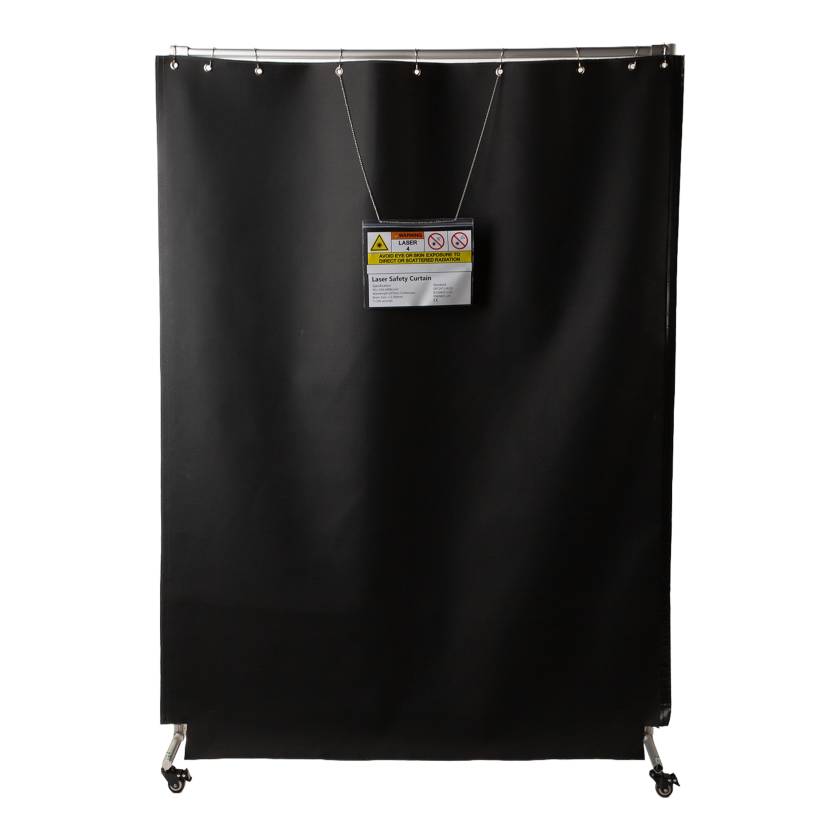

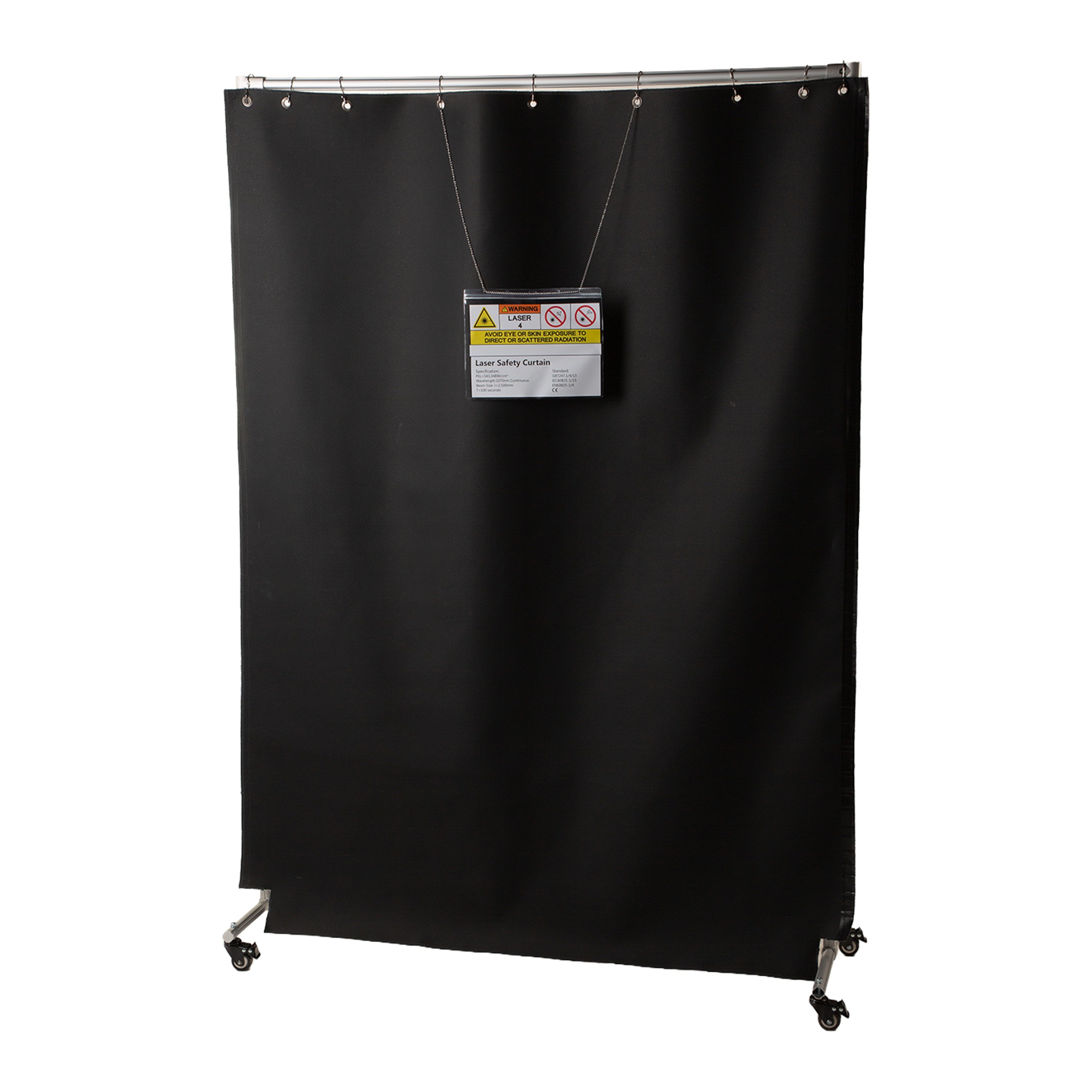

LaserEdge Pro Laser Safety Barrier
Usually Ships in 7-10 Business Days
In stock
Product Description
The LaserEdge Pro Laser Safety Barrier is designed to provide full-body protection in high-output laser environments. Engineered for durability and mobility, it enables rapid deployment and reconfiguration of Laser Controlled Areas (LCAs) while helping protect personnel operating high-power laser systems.
Features:
- Premium, large-format laser safety shield designed to provide a secure perimeter in high optical environments
- Provides full-body protection for personnel operating near high-power laser systems
- Constructed with an aluminium frame
- Heavy-duty caster base for rapid deployment and reconfiguration of Laser Controlled Areas (LCAs)
- Optimized for 1064 nm wavelengths, typical of Nd: YAG and fiber lasers
- Rated for 3000 W Continuous Wave (CW) laser exposure
- Prevents penetration for 10 seconds of direct radiation at a distance of 60 cm
- Built to withstand direct accidental exposure from common industrial laser wavelengths
- Acts as a secondary containment wall in automated or handheld laser welding cells, helping protect personnel from specular reflections that could cause eye damage or skin burns
- Provides a modular way to "wall off" printing and cladding operations during maintenance or calibration, ensuring that technicians can work in the same room without needing full-body PPE at all times
- Ideal for research and development laboratories where beam paths frequently change, allowing researchers to quickly "box in" new experiments and prevent stray beams from exiting the lab
- Essential for maintenance, repair, and overhaul (MRO) applications where industrial lasers cannot be moved into a dedicated enclosure
- Creates a safe testing "booth" during the final testing stages of high-power medical and aesthetic devices, helping protect nearby assembly workers during burn-in cycles
- Safety Standards: EN60825 and IEC60825 compliant
- Overall Dimensions: 57.50" W x 82.50" H x 19.80" Depth
- Actual Product Weight: 25 lbs
Please note: While the LaserEdge Pro Laser Barrier is a formidable barrier, it is designed as a passive guard. Always ensure that the barrier material is inspected for damage after any direct strike event, and always use in conjunction with appropriate laser safety eyewear.
About this Brand
The Phillips family's deep roots in the optical business were planted over 115 years ago with producing glasses for Bausch & Lomb in 1905. With the creation of Phillips Safety Products in 2001, the company began to focus its extensive optical experience on occupational safety, specifically protecting the eyes of customers using X-ray and laser equipment for healthcare, education, and military purposes. As the company has grown, its experience safeguarding professionals working with X-rays has led to the creation of innovative radiation protection barriers that provide both radiation protection and patient visibility. Phillips' state-of-the-art computer numeric control (CNC) edging facility enables them to produce the highest quality products, ensuring accurate production of both spherical and aspheric lenses. With a wide range of both designer and affordable classic frames coupled with its capability to incorporate prescriptions in safety glasses, Phillips Safety stands apart for blending the best and most affordable styles with the necessary safety functions to keep your eyes protected.
Specifications
| Manufacturer | Phillips Safety Products |
|---|---|
| Latex Free | Yes |
| Actual Product Weight | 25 lbs |
| Overall Height | 82.50" |
| Overall Width | 57.50" |
| Overall Depth | 19.80" |
| Country of Manufacture | United States |
| Item Ships From | New Jersey |
Literature
Instructions
Warranty: Phillips Safety products are fully guaranteed against manufacturer defects (material and workmanship) for 1 year from the date of purchase. This does not cover negligent use of the product. Phillips-Safety will, at their discretion, repair or replace any defective merchandise at no charge. All shipping charges remain payable by the purchaser.
Returns
This item cannot be returned as it is made to order.
