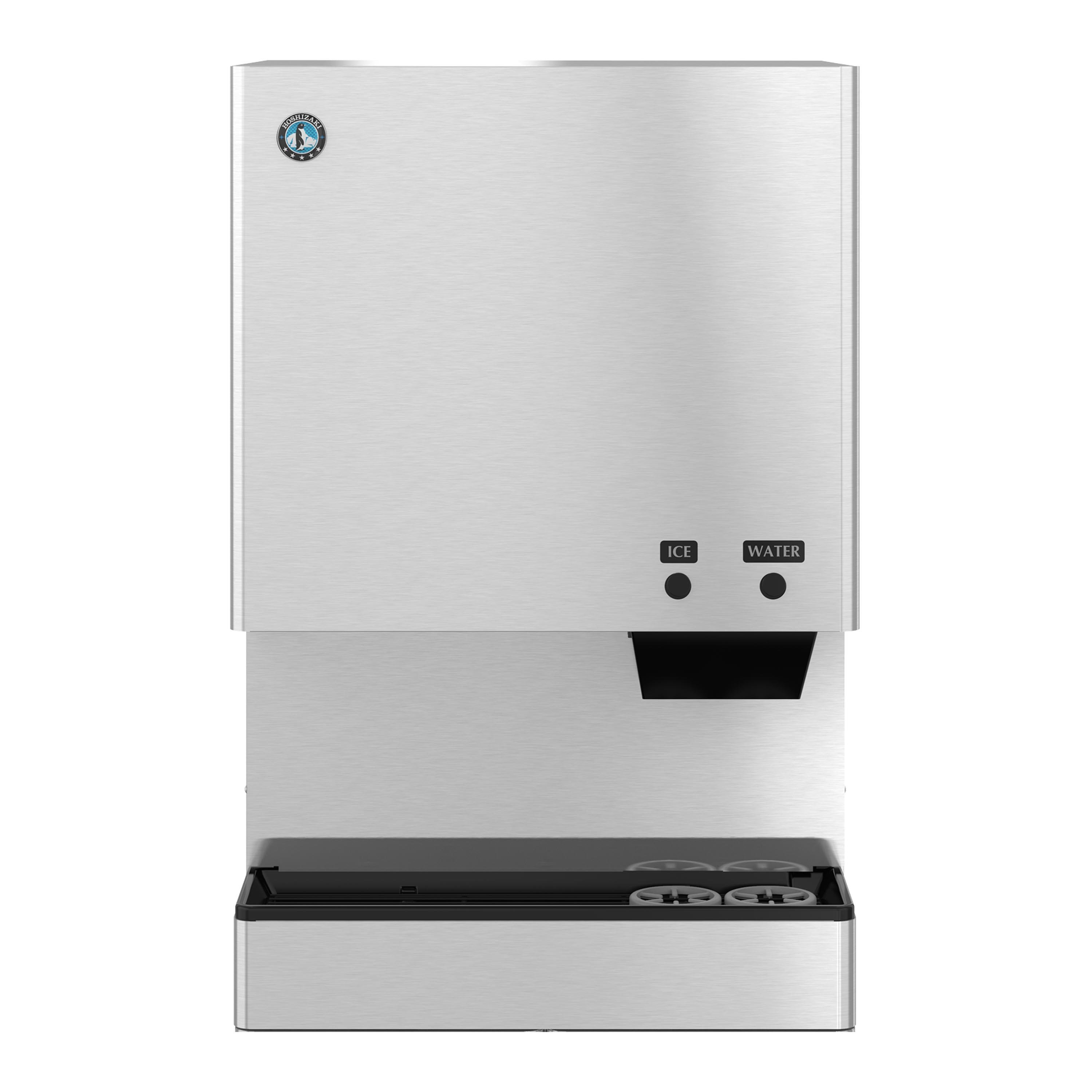

Hoshizaki DCM-500BAK Air-Cooled Countertop Small Cubelet Ice and Water Dispenser with Built-In Storage Bin - Up to 597 lb/24-Hour Ice Production

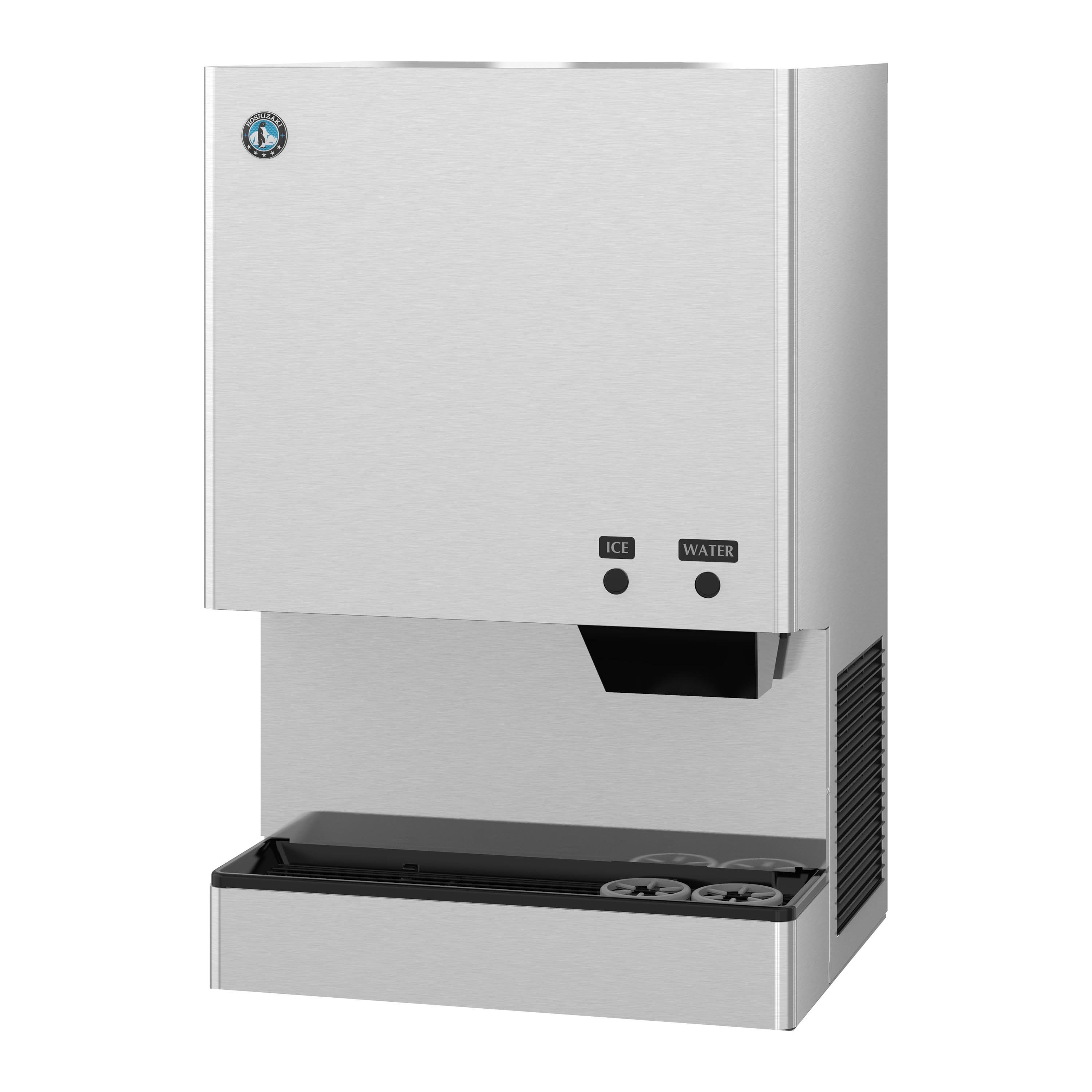

Hoshizaki DCM-500BAK Air-Cooled Countertop Small Cubelet Ice and Water Dispenser with Built-In Storage Bin, Up to 597 lb/24-Hour Ice Production - Right Angle View

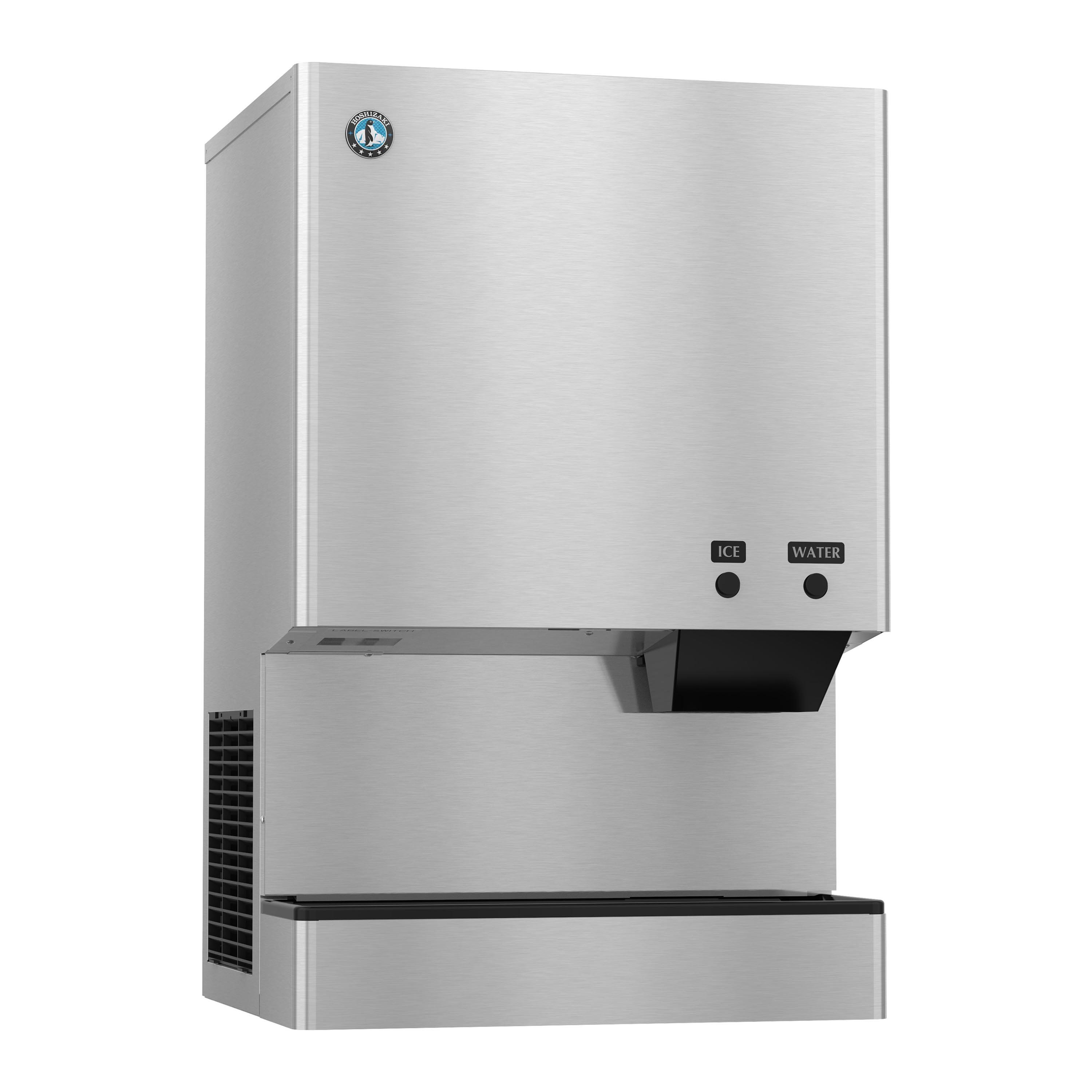

Hoshizaki DCM-500BAK Air-Cooled Countertop Small Cubelet Ice and Water Dispenser with Built-In Storage Bin, Up to 597 lb/24-Hour Ice Production - Left Angle View

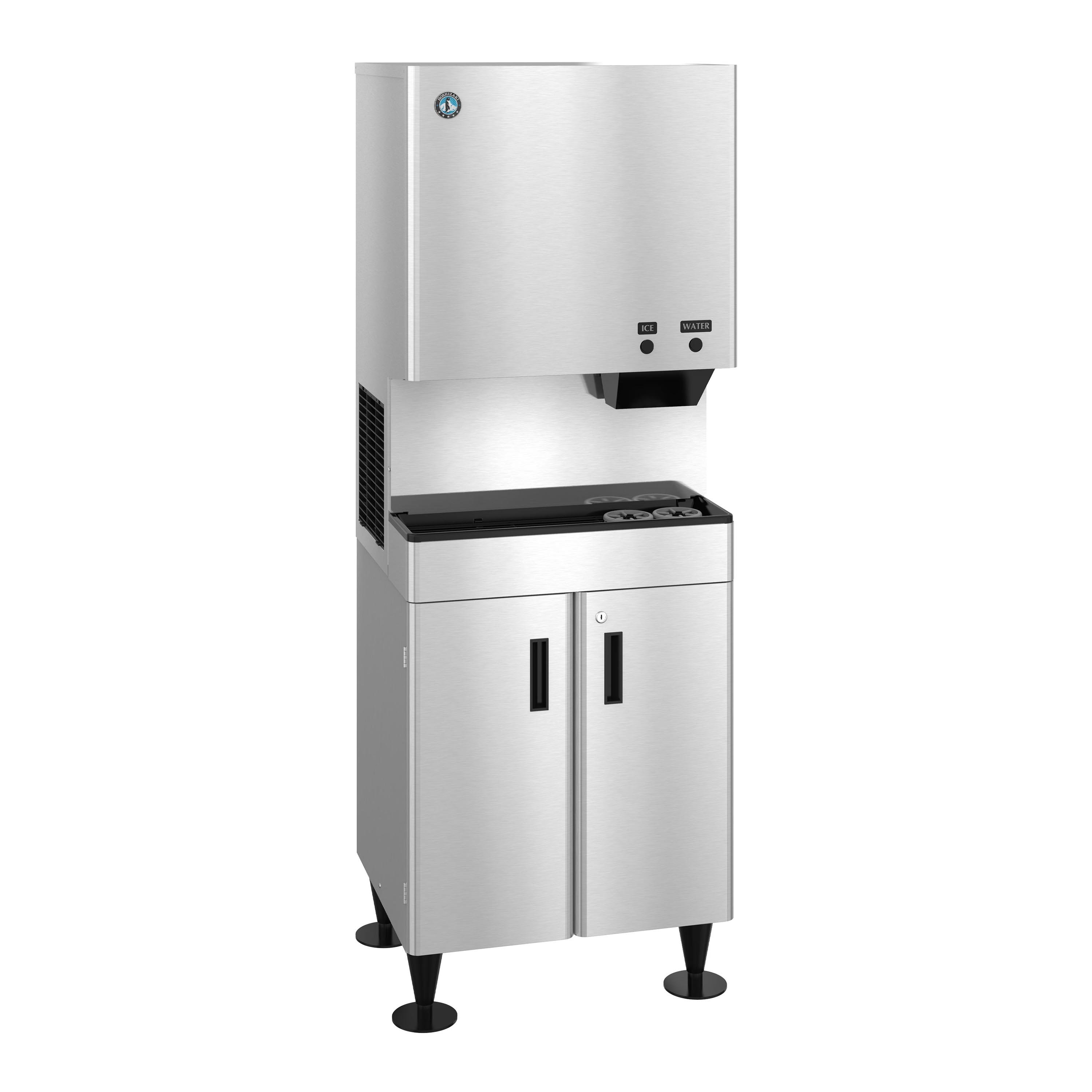

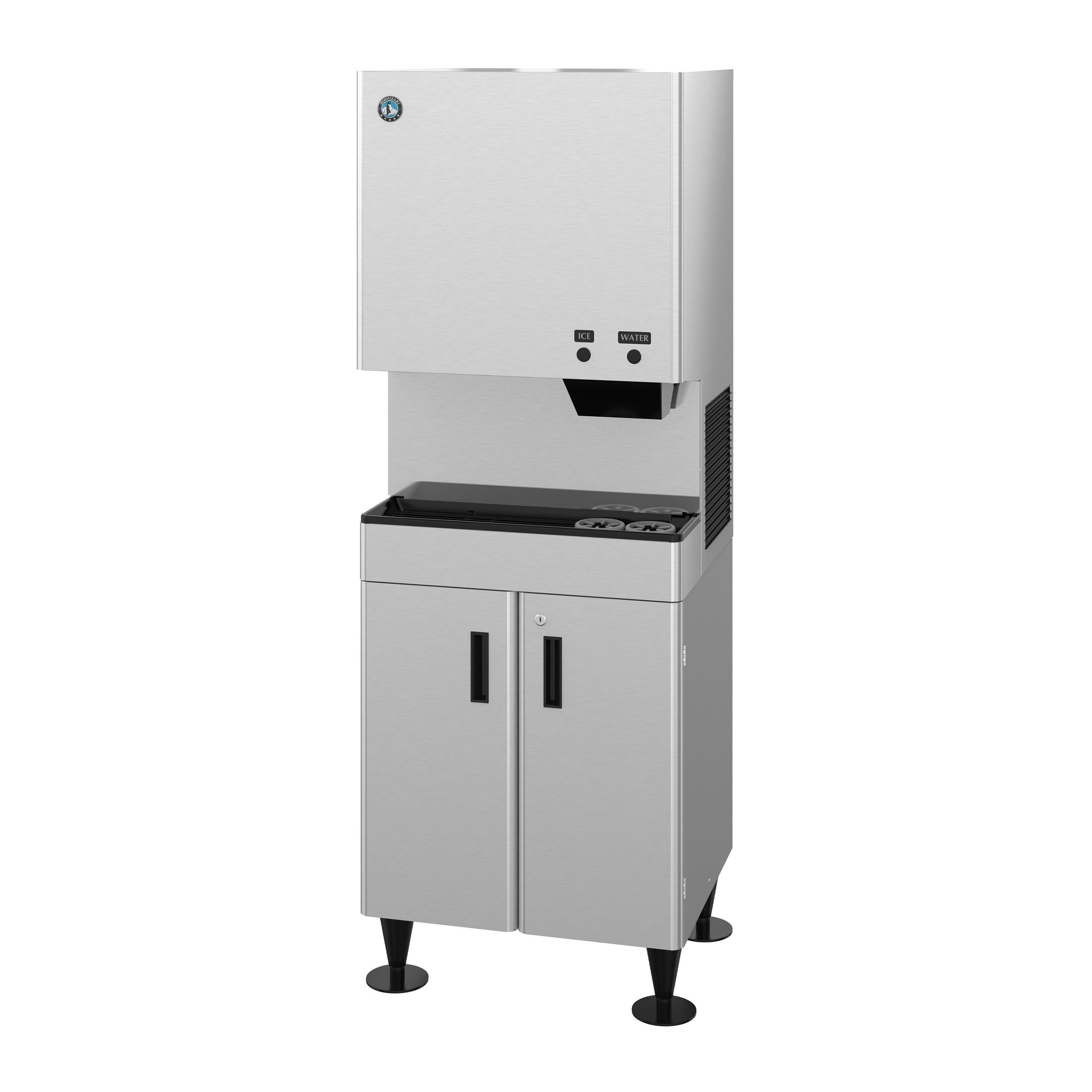

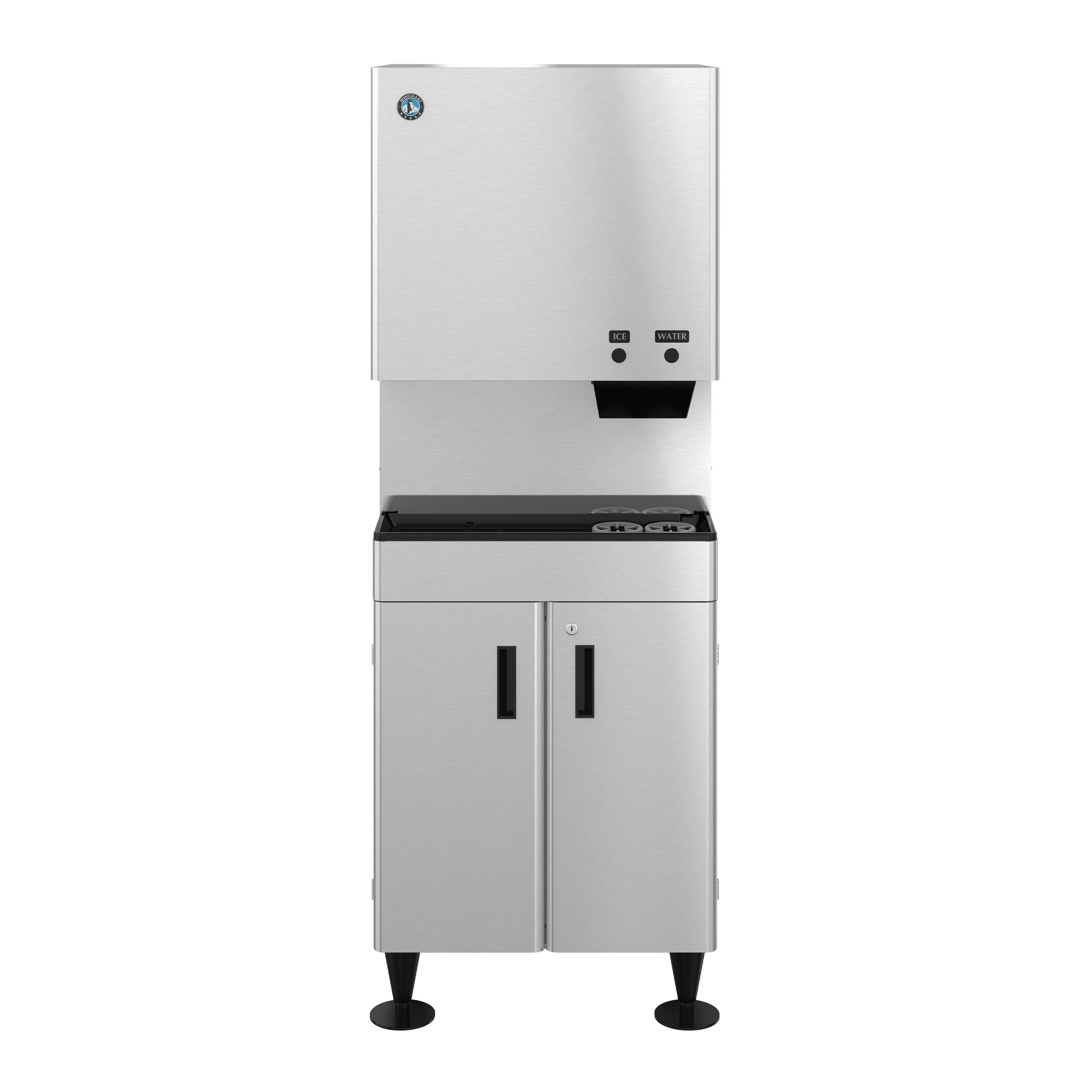

Hoshizaki DCM-500BAK Air-Cooled Countertop Small Cubelet Ice and Water Dispenser with Built-In Storage Bin, Up to 597 lb/24-Hour Ice Production - On Dispenser Stand (Dispenser Stand is Sold Separately)

Hoshizaki Cubelet Ice and Water Dispenser - Ice Pieces

Hoshizaki Cubelet Ice and Water Dispenser - Ice Pieces Close-Up

Hoshizaki Cubelet Ice and Water Dispenser - Ice Pieces in Glass (Glass, Tray, and Stethoscope are Not Included)

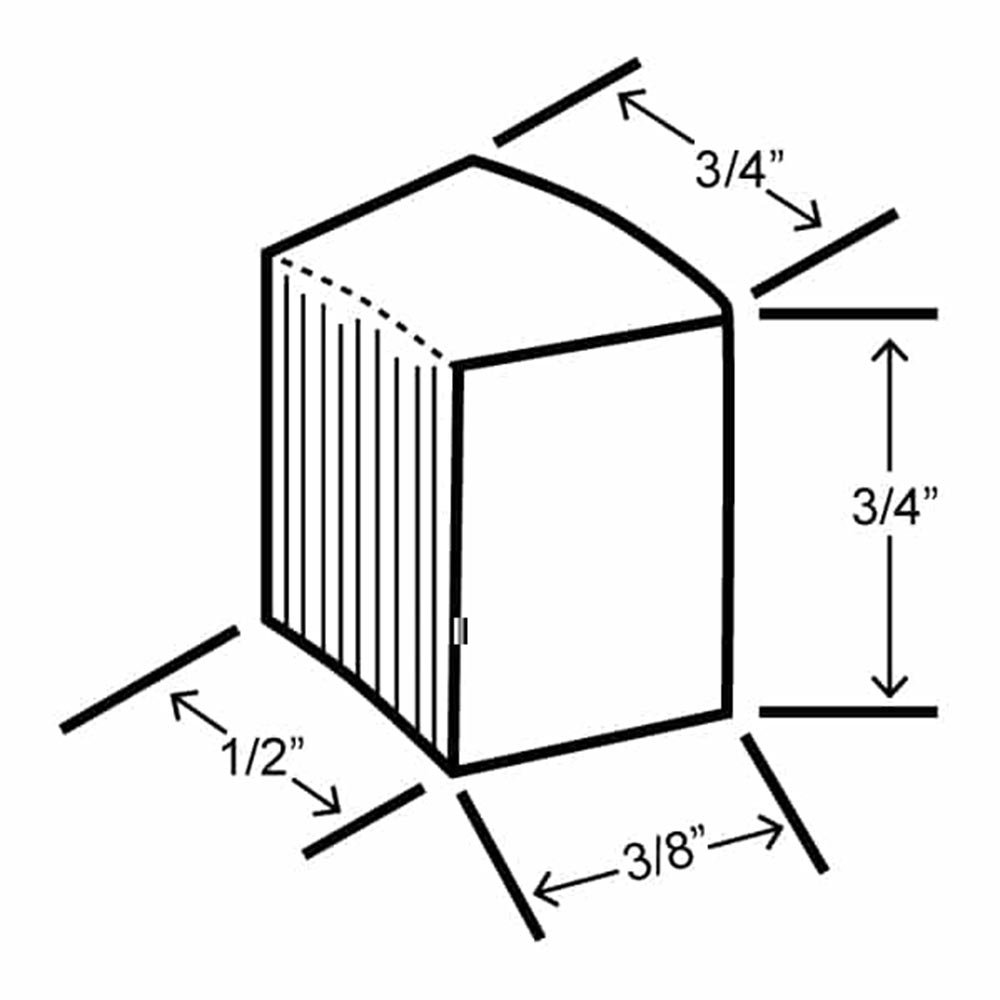

Hoshizaki Cubelet Ice and Water Dispenser - Ice Piece Dimensions

Move your mouse over image or click to enlarge

Is this item the best fit for your needs?

Let our experts help.

800-423-2767

Live Chat

Usually Ships in 5-7 Business Days

In stock

Be the first to review this product

Product Description

The Hoshizaki Air-Cooled Countertop Small Cubelet Ice and Water Dispenser with Built-In Storage Bin produces up to 597 lbs of cubelet nugget-style ice per day with a built-in storage bin that holds up to 40 lbs of ice at a time.

Features:

Provides easy-to-chew cubelet ice or water with the push of a button
With a user-friendly design that keeps ice contained and sanitary until needed
The Advanced CleanCycle24™ design automatically performs a two-second purge every hour to maintain cleanliness
Self-contained design reduces opportunities for cross-contamination
Stainless steel auger with greaseless bearing
Designed for versatility, it can be placed on a countertop or paired with the optional SD-500 stand (Sold Separately)
Durable and corrosion-resistant stainless steel exterior
Environmentally friendly R290 hydrocarbon refrigerant
6 ft. cord with NEMA 5-15 plug
Certifications:
- AHRI Certified
- NSF Certified
- UL Certified

Technical Specifications:

Ice Production per 24 Hours:
- At 70°F Air / 50°F Water Temperature: 597 lbs
- At 90°F Air / 70°F Water Temperature: 470 lbs
Built-In Ice Storage Capacity: 40 lbs
Cooling Type: Air-Cooled
Ice Type: Small Cubelet Nugget-Style Ice
Refrigerant: R290
Refrigerant Charge Amount: 4.70 oz
Heat Rejection: 6,100 BTU/hour
Operating Limits:
- Ambient Temperature: 45-100°F
- Water Temperature: 45-90°F
- Water Pressure: 10-113 PSIG
- Voltage: 108-127V
Utility Consumption at 90°F Air / 70°F Water Temperature
- Potable Water Usage: 12 gal per 100 lbs of Ice
- kWh Used: 4.70 kWh per 100 lbs of Ice
Electrical Voltage: 115V / 60 Hz / Single-Phase
Max Fuse/HACR Breaker: 20 A
Amperage: 6.70 A
Circuit Wires (Including Ground): 3
Approximate Cubelet Dimensions: 0.38" W x 0.50-0.75" D x 0.75" H
Overall Dimensions: 26" W x 22.50" D x 40" H
Warranty: 3 Years Parts and Labor

Please note: The dispenser stand, glass, tray, and stethoscope are not included.
