Product Description

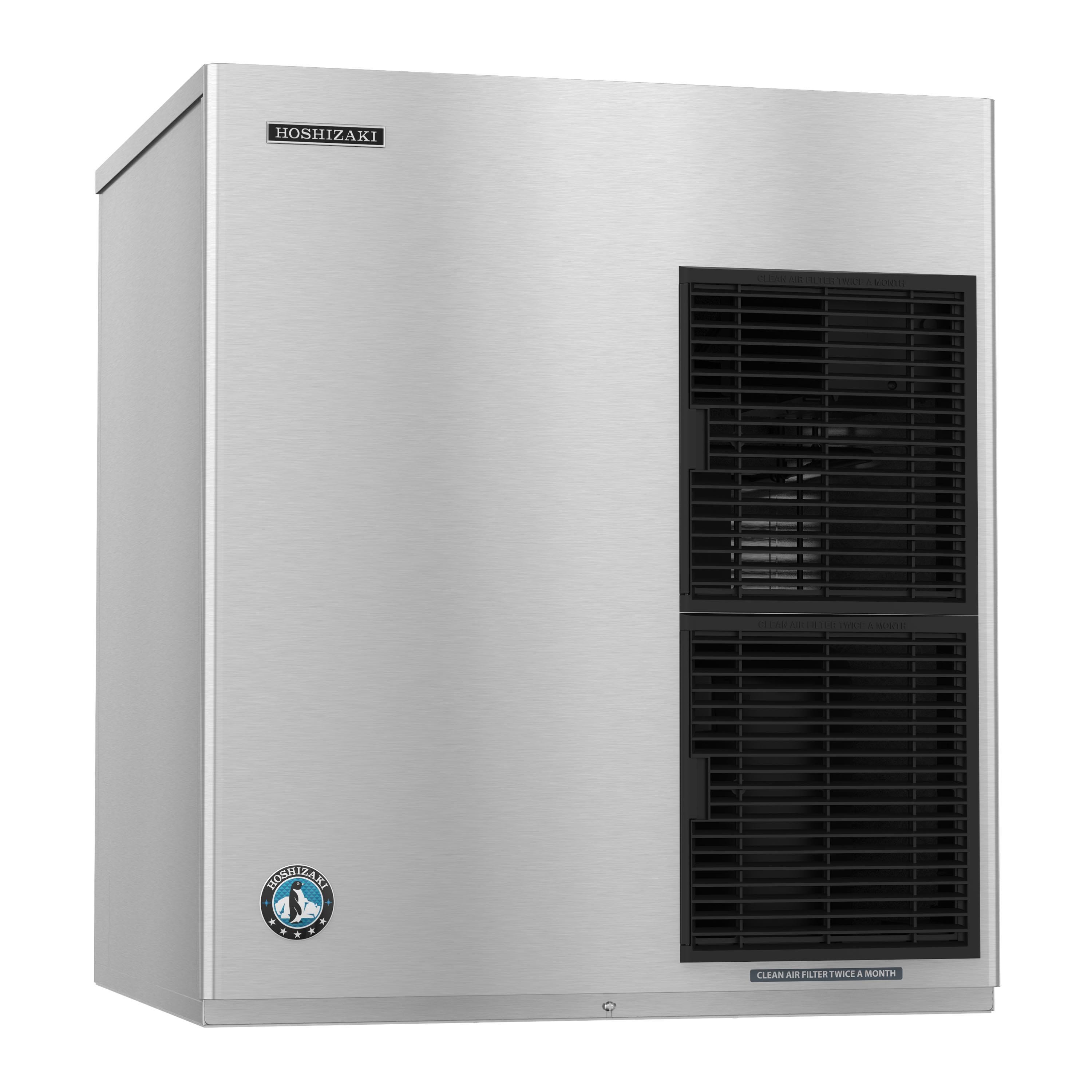

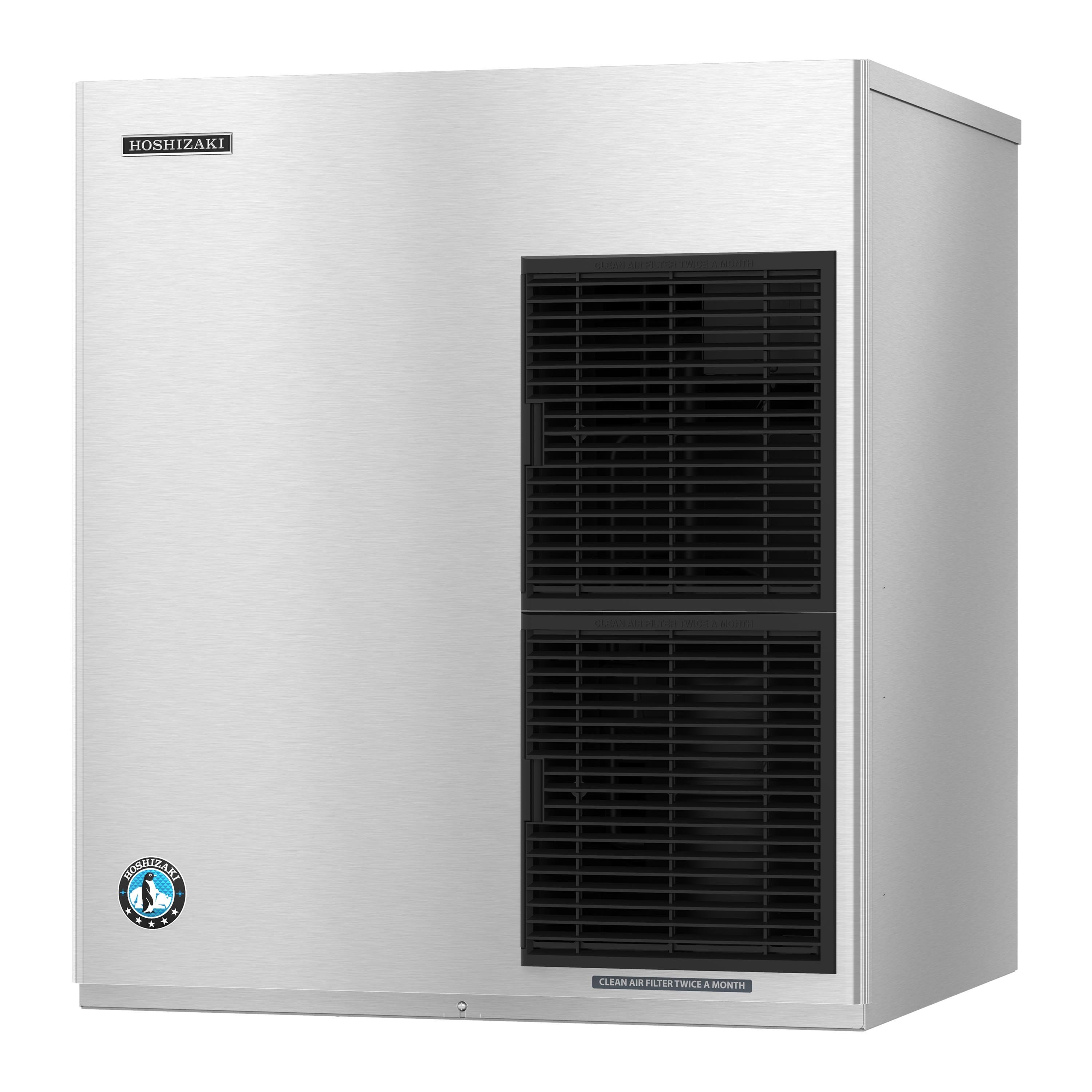

The Hoshizaki Slim-Line Series Air-Cooled Modular Medium Cubelet Ice Machine produces up to 1,327 lbs of cubelet nugget-style ice per day, offering automatic hourly cleaning, easy maintenance, and reliability.

Features:

The Advanced CleanCycle24™ design automatically performs a two-second purge every hour to clean itself
Flush cycle removes sediment for cleaner ice
Infrared bin control for easy cleaning and reliability
Stainless steel auger with greaseless bearing for easy maintenance
Clean ice and easy maintenance lead to longer unit life span
Mount two units, side-by-side, in only 60” W of floor space for double the amount of ice production
Durable stainless steel exterior
Must be hardwired at the site; no cord and plug included

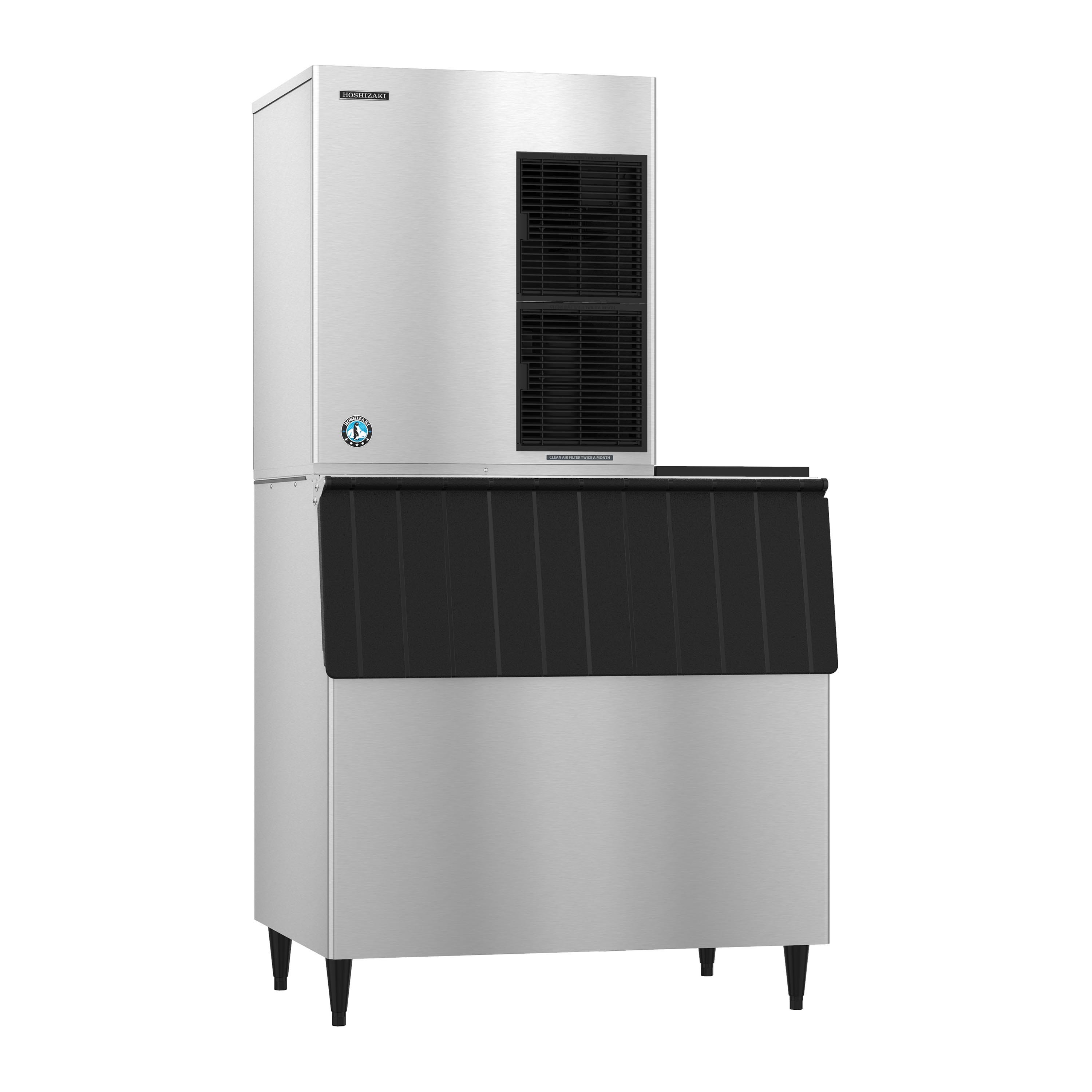

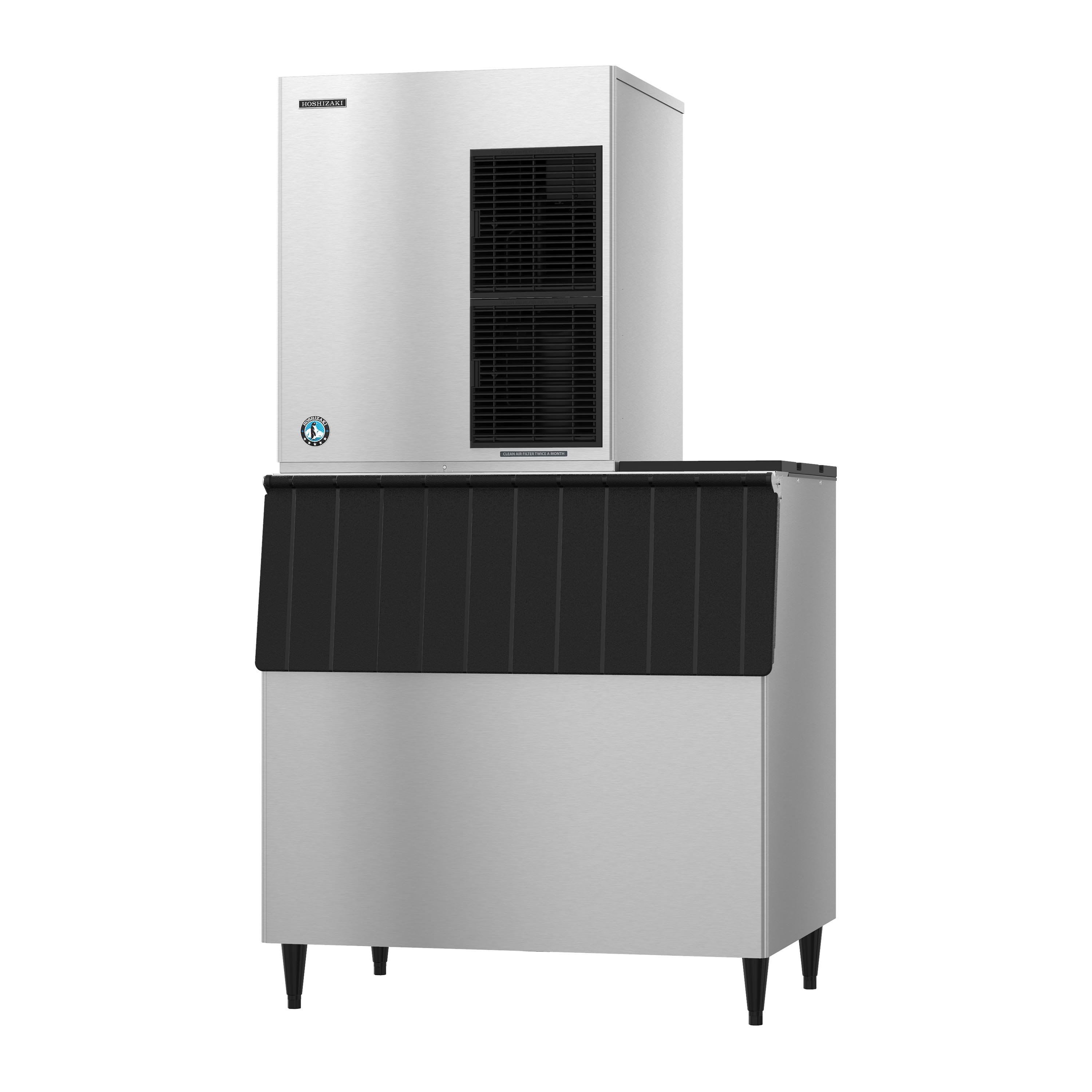

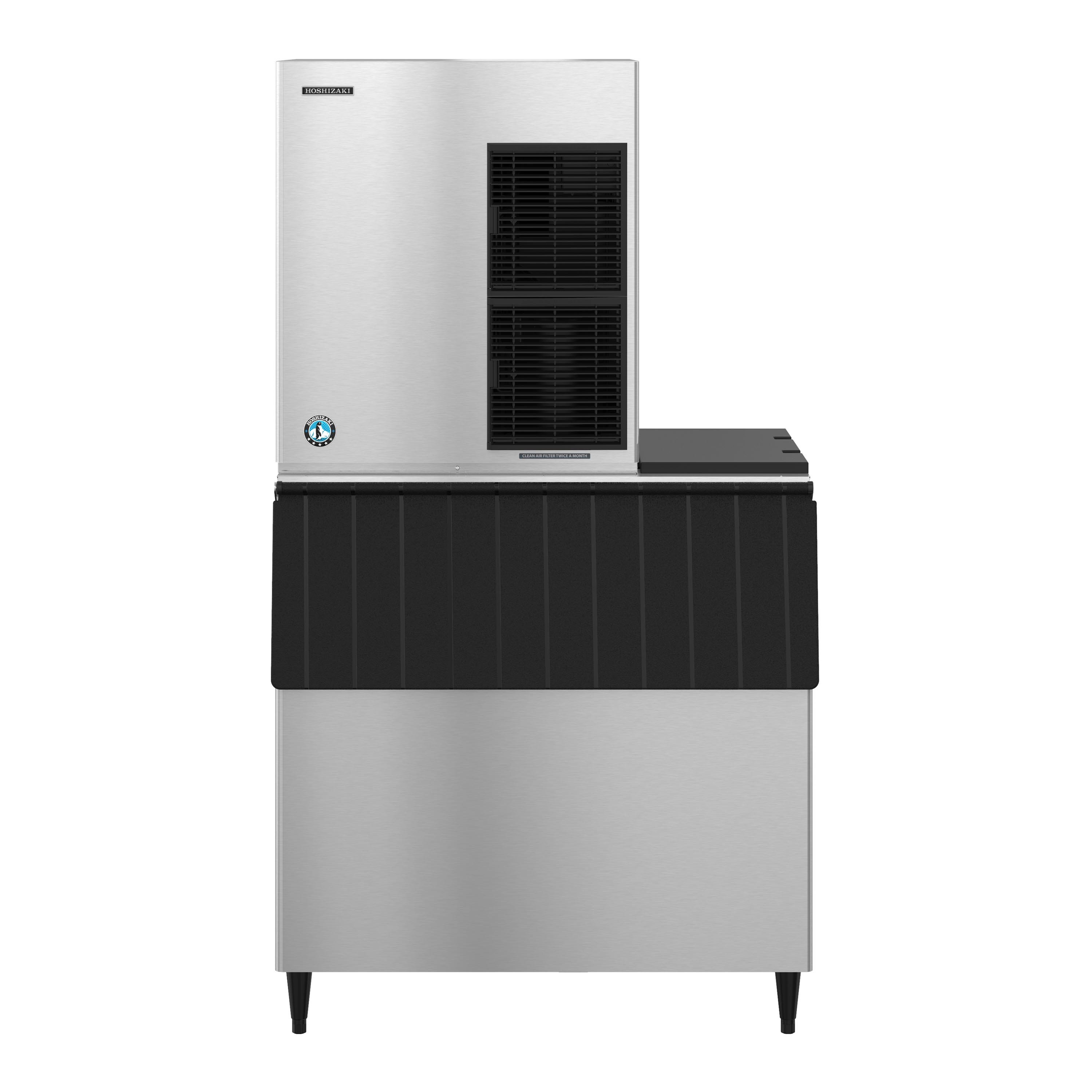

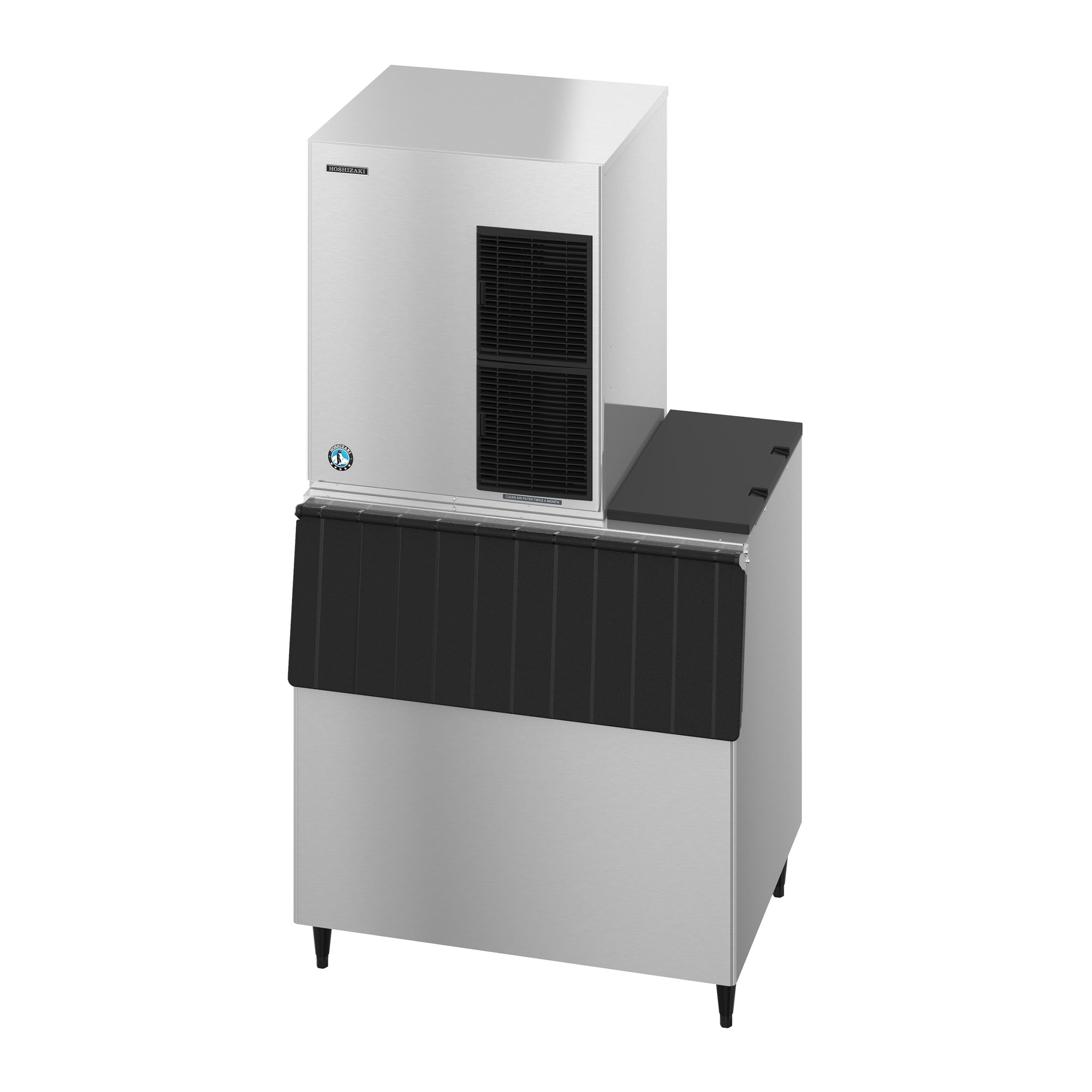

Compatible Ice Storage Bins (Sold Separately): B-250SF, B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS, B-1500SS, and B-1650SS
Certifications:
- AHRI Certified
- NSF Certified
- UL Listed

Technical Specifications:

Ice Production per 24 Hours:
- At 70°F Air / 50°F Water Temperature: 1,327 lbs
- At 90°F Air / 70°F Water Temperature: 1,020 lbs
Cooling Type: Air-Cooled
Ice Type: Medium Cubelet Nugget-Style Ice
Refrigerant: R-404A
Refrigerant Charge Amount: 2.31 lbs
Heat Rejection: 12,300 BTU/hour
Operating Limits:
- Ambient Temperature: 45-100°F
- Water Temperature: 45-90°F
- Water Pressure: 10-113 PSIG
- Voltage: 187-253 V
Utility Consumption at 90°F Air / 70°F Water Temperature
- Potable Water Usage: 12 gal per 100 lbs of Ice
- kWh Used: 4.61 kWh per 100 lbs of Ice
Electrical Voltage: 208-230 V / 60 Hz / Single-Phase
Max Fuse/HACR Breaker: 20 A
Amperage: 15.90 A
Circuit Wires (Including Ground): 4

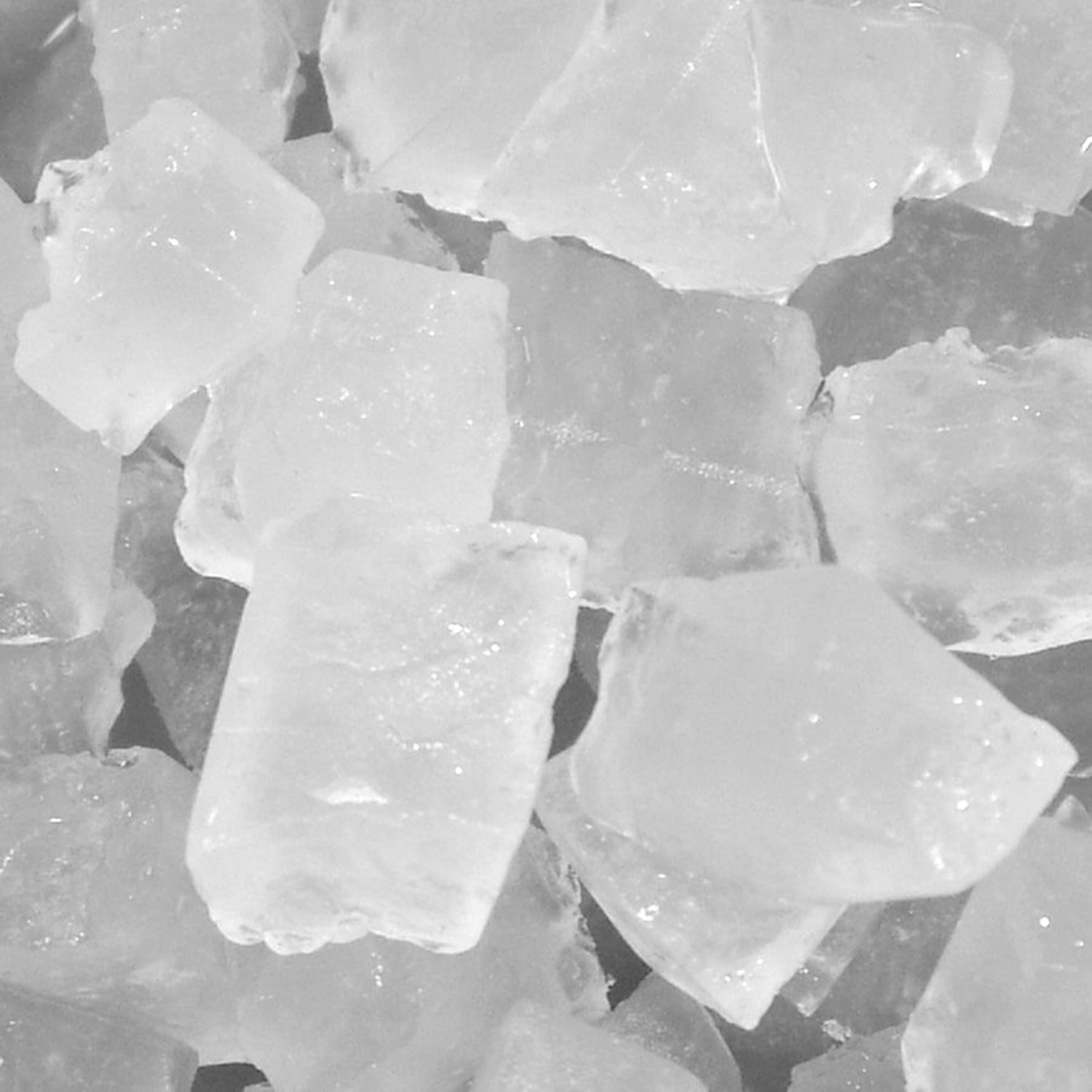

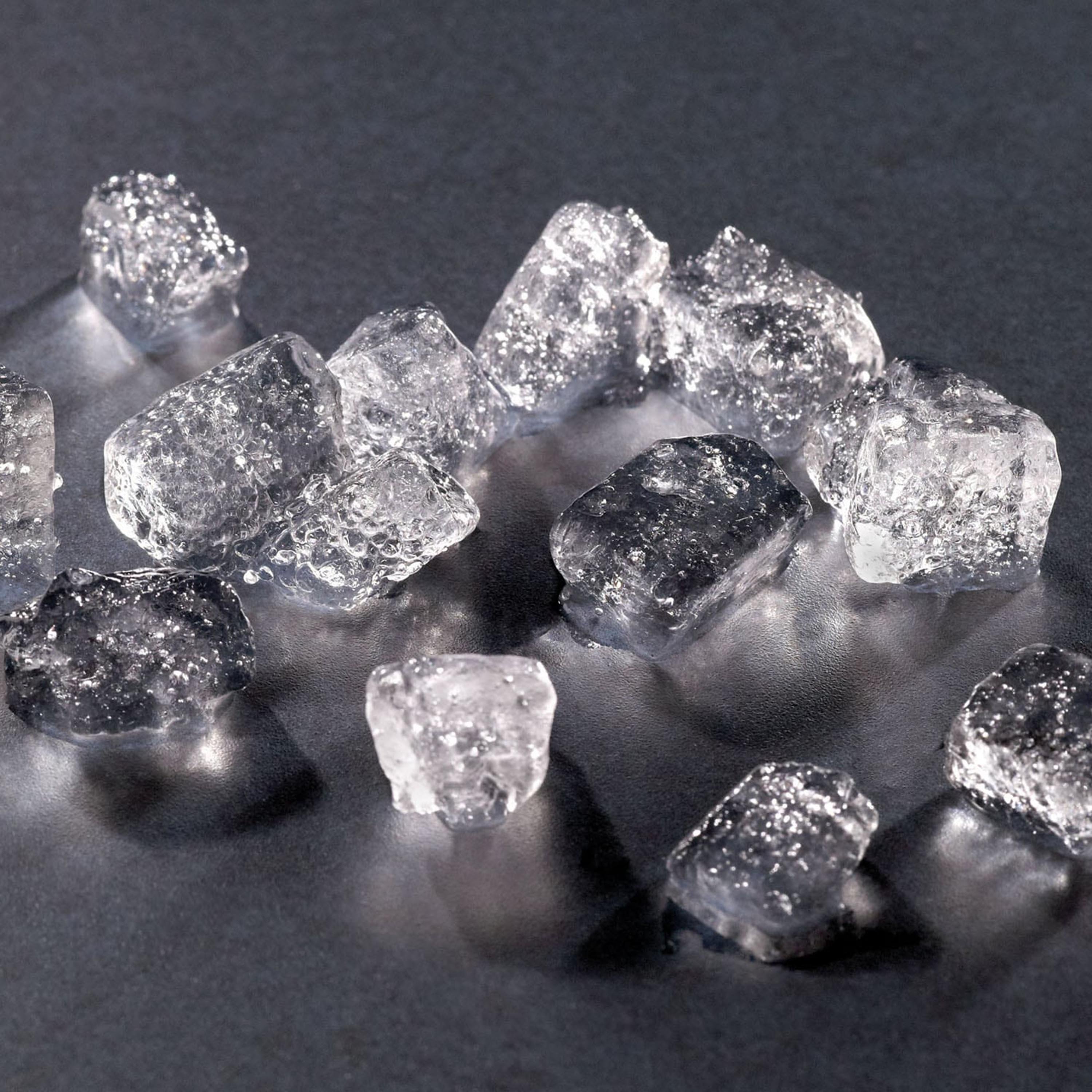

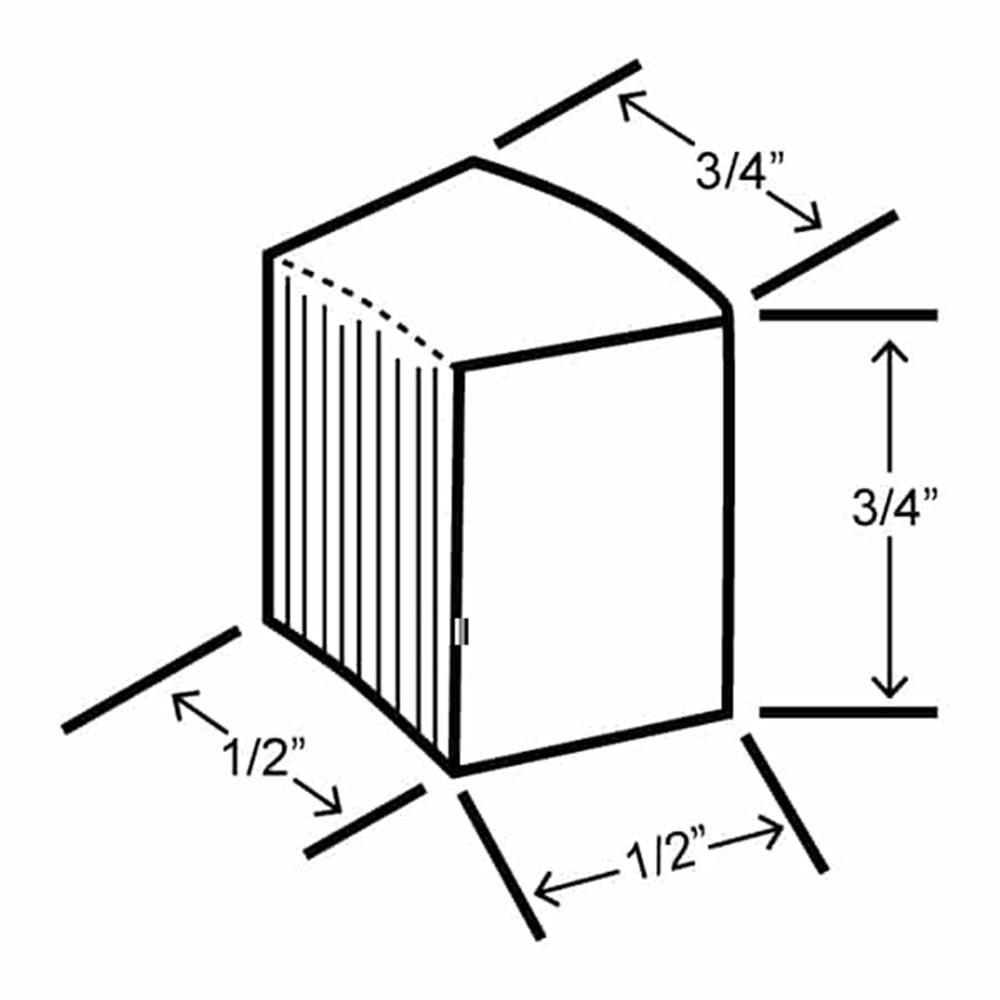

Approximate Cubelet Dimensions: 0.50" W x 0.50-0.75" D x 0.75" H
Overall Dimensions: 30" W x 27.38" D x 34.44" H
Warranty: 3 Years Parts and Labor

Please note: The ice storage bin, glass, tray, and stethoscope are not included.

Specifications

Specifications
Manufacturer	Hoshizaki America
Overall Height	34.44"
Overall Width	30"
Overall Depth	27.38"
Country of Manufacture	United States
Item Ships From	California
