Product Description

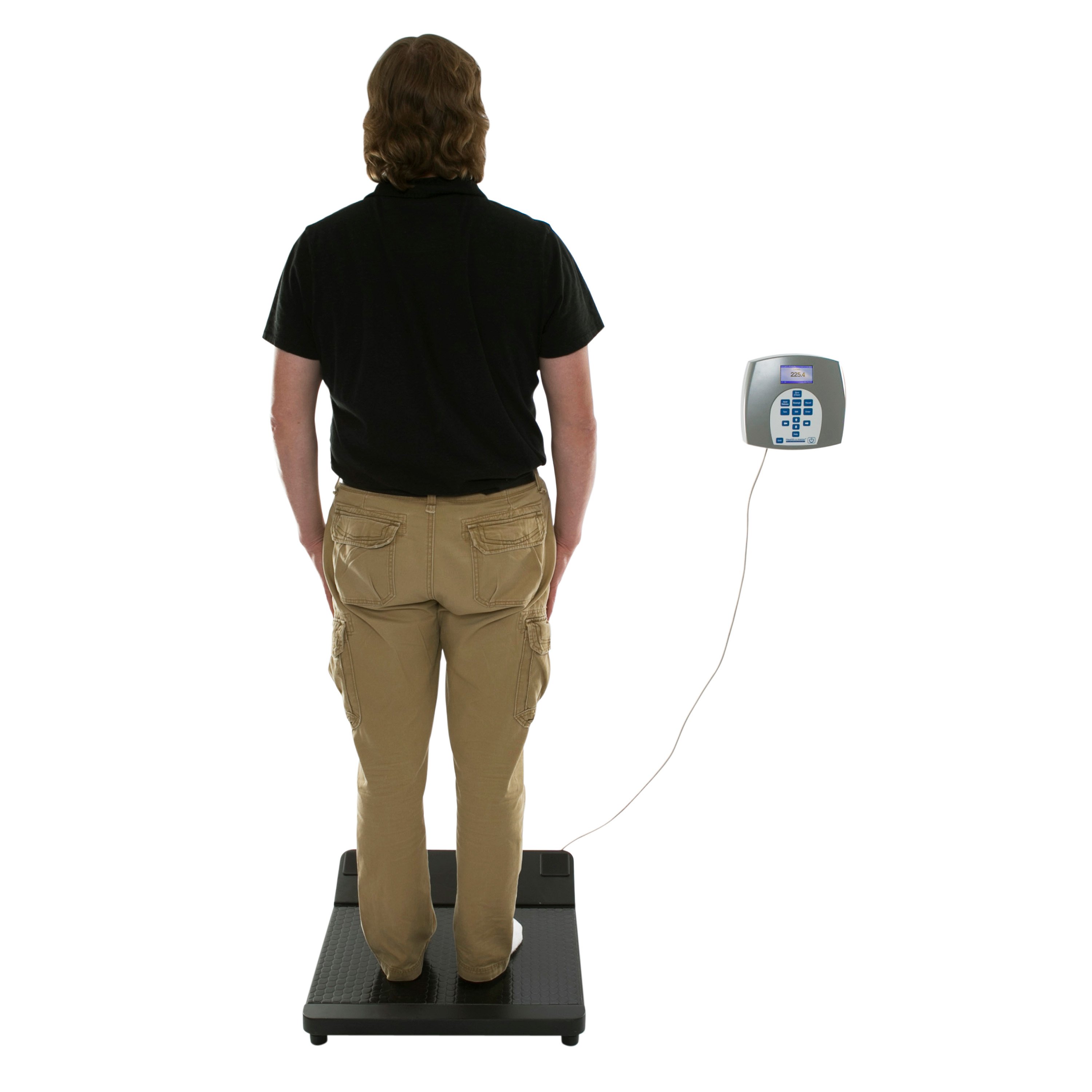

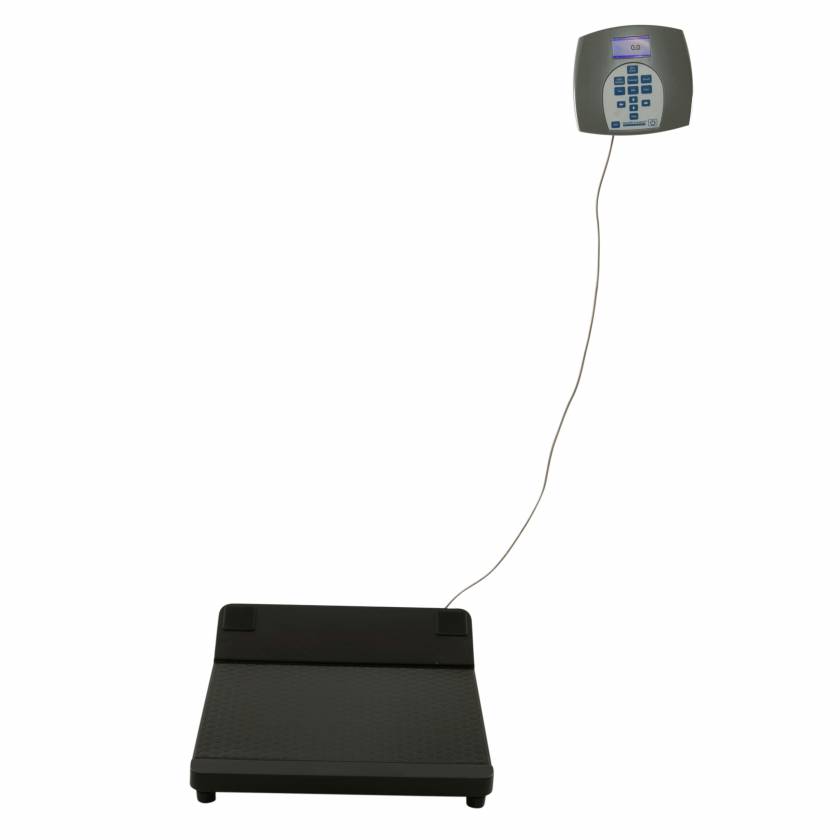

The 1110 Series Scales are high-capacity remote-display digital scales with a large base. These scales are designed to be customizable to meet the changing needs of your practice and can accommodate any patient and facility. The large, non-skid, low-profile platform provides a safe weighing environment, and its 1000 lb high capacity offers flexibility to measure patients.


  • EMR Connectivity - The scale can interface with a computer, EMR software, or other electronic devices via various Health o meter® Professional Connectivity Solutions
  • Remote Display - The remote display provides versatility with the ability to be mounted on a wall, placed on a table, or handheld
  • Workflow Efficiency:
    • The On-Screen Help Menu Guides users through operating functions and provides easy access to multiple settings
    • Interactive Display High contrast color screen provides a user-friendly interface
    • EMR Capable Scale can interface with a PC or other electronic device via USB or optional Pelstar wireless technology
  • Antimicrobial Keypad - The keypad features antimicrobial protection
  • Easy integration and seamless communication with today's EMR applications
  • The exclusive Everlock® function allows the measuring unit (LB or KG) to be permanently locked on the scale
  • Optional “Live” Handrails - The Accessory 1110HB provides stability and added safety for the patient and caregiver. The 1110HB also includes two wheels for portability
  • Optional Height Rods - An optional Digital (245EHR-1110) or Mechanical (201HR-1110) height rod can be added to the handlebar accessory to measure height and weight simultaneously

Please note: When purchasing a Height Rod, you must have the Handlebar Accessory (1110HB). All are sold separately.


  • LB/KG conversion
  • LB/KG lockout
  • BMI
  • Zero
  • Tare
  • Pre-tare
  • Hold/release
  • Reweigh
  • Recall
  • Auto zero
  • Auto-off
  • Time/date
  • Variable auto off-time
  • Audible/mute sound option
  • Parent/child weighing function
  • Everlock®

Technical Specifications:

  • Weight Capacity: 1000 lbs / 454 kg
  • EMR Connectivity: Via USB, optional Pelstar®wireless technology
  • Resolution: 0.2 lbs / 0.1 kg
  • Display:
    • Digit Size: 3/8"
    • Screen Size: 2 3/4" x 1 1/2"
    • High-Contrast Color TFT-LCD Screen
  • Power Source: 100-240V Adapter (ADPT30) included or 6 D batteries (Not included)
  • Remote Cable: 6 ft
  • Platform Size: 22" W x 15 3/4" D x 2 5/8" H
  • Overall Product Dimensions: 22" W x 23 1/2" D x 4 3/4" H
  • Actual Product Weight: 27 lbs

The Pelstar Wireless Technology allows facilities to wirelessly transmit measurements directly to a myriad of devices to increase workflow efficiency and reduce the risk of error from manual data entry. Once the data reaches the device, it can be conveniently displayed, reviewed, and smoothly transferred into EMR systems.

SKU Measurement System Pelstar Wireless Technology
1110KL Kilograms & Pounds Purchased Separately
1110KL-BT Kilograms & Pounds Built-in
1110KG Kilograms Only Purchased Separately
1110KG-BT Kilograms Only Built-in

About this Brand


Manufacturer Pelstar LLC
Actual Product Weight 27 lbs
Overall Height 4 3/4"
Overall Width 22"
Overall Depth 23 1/2"
Weight Capacity 1000 lbs / 454 kg
Country of Manufacture China
Item Ships From Illinois
