Product Description

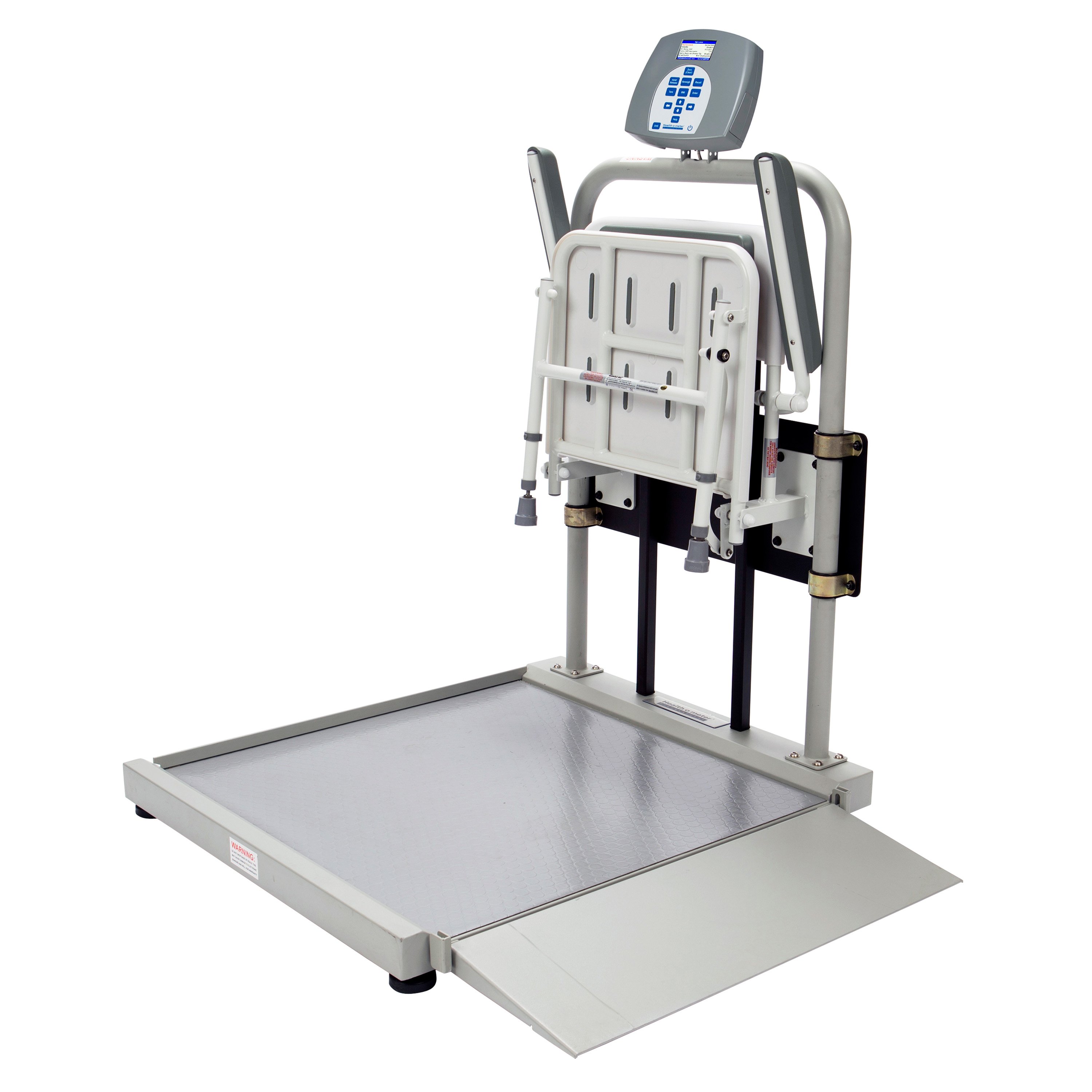

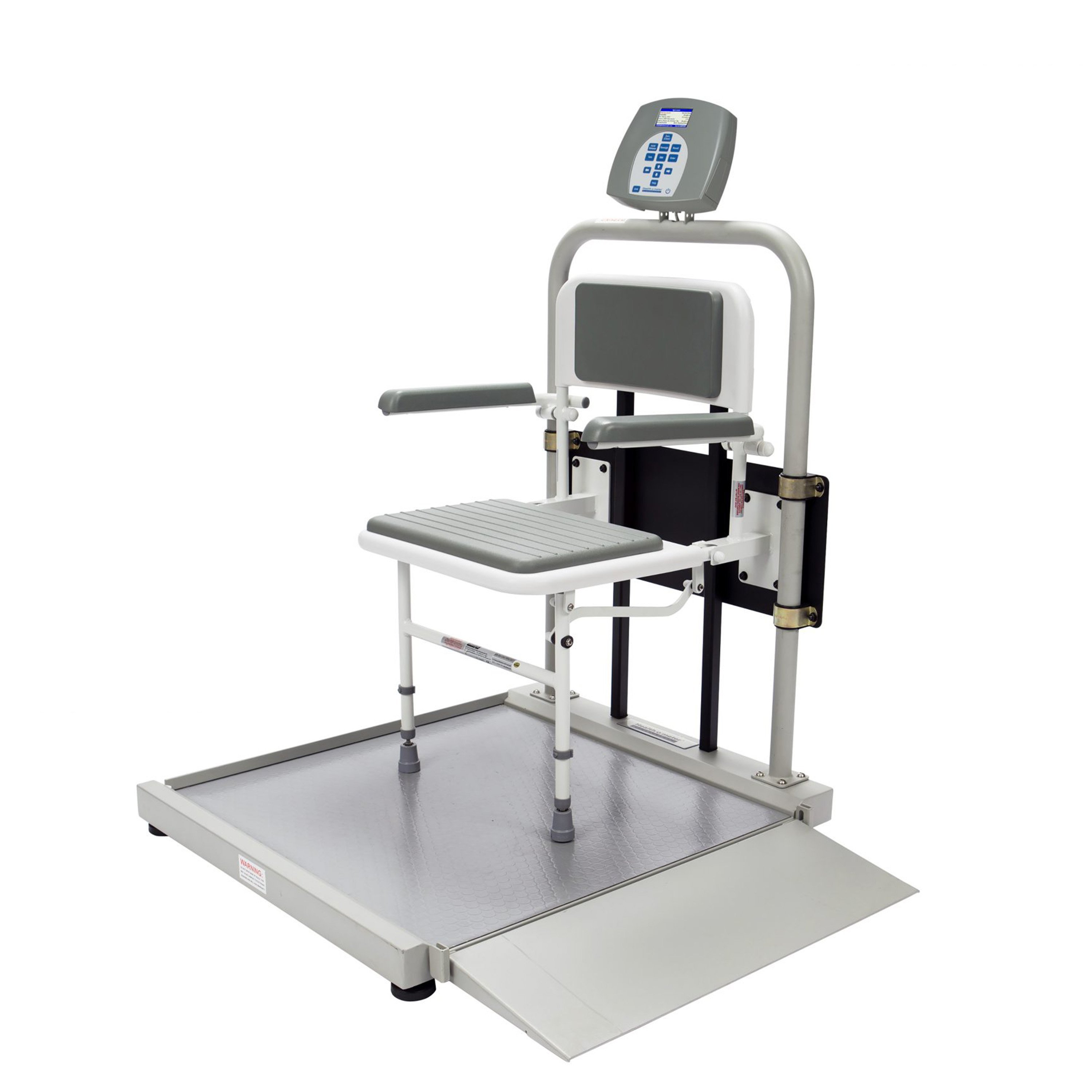

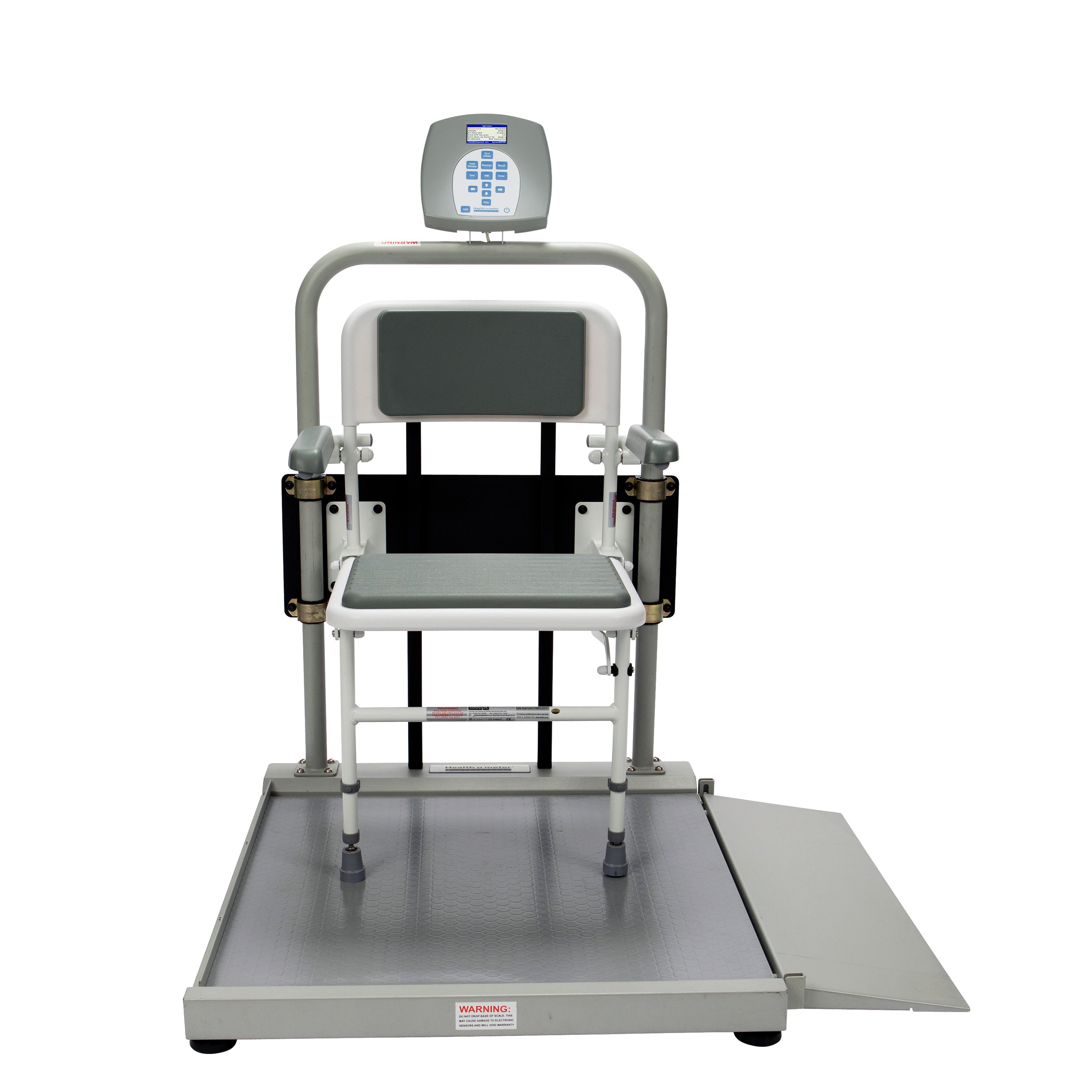

The 2500C Series Single-Ramp Wheelchair Scale is perfect for use with standard-size wheelchairs. It also has a fold-away chair for patients who need to be seated.


  • EMR Connectivity - The scale can interface with a computer, EMR software, or other electronic devices via various Health o meter® Professional Connectivity Solutions
  • Swivel Display Head - For the convenience of the administrator, the display head rotates and pivots allowing line-of-sight viewing and information privacy
  • On-Screen Help Menu - Guides users through operating functions and provides easy access to multiple settings
  • Antimicrobial Keypad - The keypad features antimicrobial protection.
  • Easy Portability - The scale has two wheels that provide easy mobility and allow for convenient placement
  • The exclusive Everlock® function allows the measuring unit (LB or KG) to be permanently locked on the scale.


  • LB/KG conversion
  • LB/KG lockout
  • BMI
  • Zero
  • Tare
  • Pre-tare
  • Hold/release
  • Reweigh
  • Recall
  • Auto zero
  • Auto-off
  • Time/date
  • Variable auto off-time
  • Audible/mute sound option
  • Parent/child weighing function
  • Everlock®

Technical Specifications:

  • Weight Capacity (Scale): 1000 lbs / 454 kg
  • EMR Connectivity: Via USB, optional Pelstar® wireless technology
  • Resolution: 0.2 lbs / 0.1 kg
  • Display: 1 1/2" High-Contrast Color TFT-LCD Screen
  • Power Source: 100-240V Adapter (ADPT30) included or 6 D batteries (Not Included)
  • Fold Away Seat:
    • Capacity: 419 lbs / 190 kg
    • Size: 18" W x 15" D x 18 1/2" H
  • Wheels: 2
  • Platform Size: 29 3/8" W x 28 1/4" D x 2 3/8" H
  • Ramp Size: 28 1/4" W x 9 7/8" D
  • Overall Dimension: 40 1/4" W x 34 1/2" D x 45 1/2" H
  • Actual Product Weight: 121 lbs

The Pelstar Wireless Technology allows facilities to wirelessly transmit measurements directly to a myriad of devices to increase workflow efficiency and reduce the risk of error from manual data entry. Once the data reaches the device, it can be conveniently displayed, reviewed, and smoothly transferred into EMR systems.

SKU Measurement System Pelstar Wireless Technology
2500CKL Kilograms & Pounds Purchased Separately
2500CKL-BT Kilograms & Pounds Built-in
2500CKG Kilograms Only Purchased Separately
2500CKG-BT Kilograms Only Built-in

About this Brand


Manufacturer Pelstar LLC
Actual Product Weight 121 lbs
Overall Height 45 1/2"
Overall Width 40 1/4"
Overall Length 34 1/2"
Weight Capacity 419 lbs / 190 kg (Seat) - 1000 lbs / 454 kg (Scale)
Country of Manufacture China
Item Ships From Illinois


(Size: 263.6 KB)
(Size: 963.9 KB)
(Size: 1.7 MB)


Warranty: Health o meter® Professional scales are warranted from the date of purchase against defects of materials or in workmanship for a period of time (see product instruction manual for the warranty period). Your warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, abuse including tampering, damage in transit, or unauthorized repair or alternations. If the manufacturer determines that a defect of material or workmanship exists, a customer’s sole remedy will be the replacement of scale at no charge. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, a replacement may be made with a similar product of equal or greater value. All parts including replaced parts are covered only for the original warranty period.

Freight Shipping

Please Note: This item ships via motor freight carrier. Shipping fees often have to be re-quoted when purchasing this item. Our website estimates freight charges based on delivery to a location with a truck height dock. Examples of additional services include liftgate service, inside delivery, call ahead service, or limited access. If you would like to know the total delivery charges in advance of placing an order, we recommend requesting a quote for this item prior to placing your order. At quote or order submission, please make note of your receiving hours and specific delivery needs. Customer Service will reach out to you if additional details are needed. If you have questions about the motor freight delivery process please contact Customer Service.


Products must be returned in unused, unopened, resalable condition with the original packaging. To return this item you must contact Customer Service within 30 days of receipt to obtain a valid Return Authorization Number. Restocking fees may apply at the discretion of the manufacturer. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.

Custom made products are non returnable and non exchangeable.
