Product Description

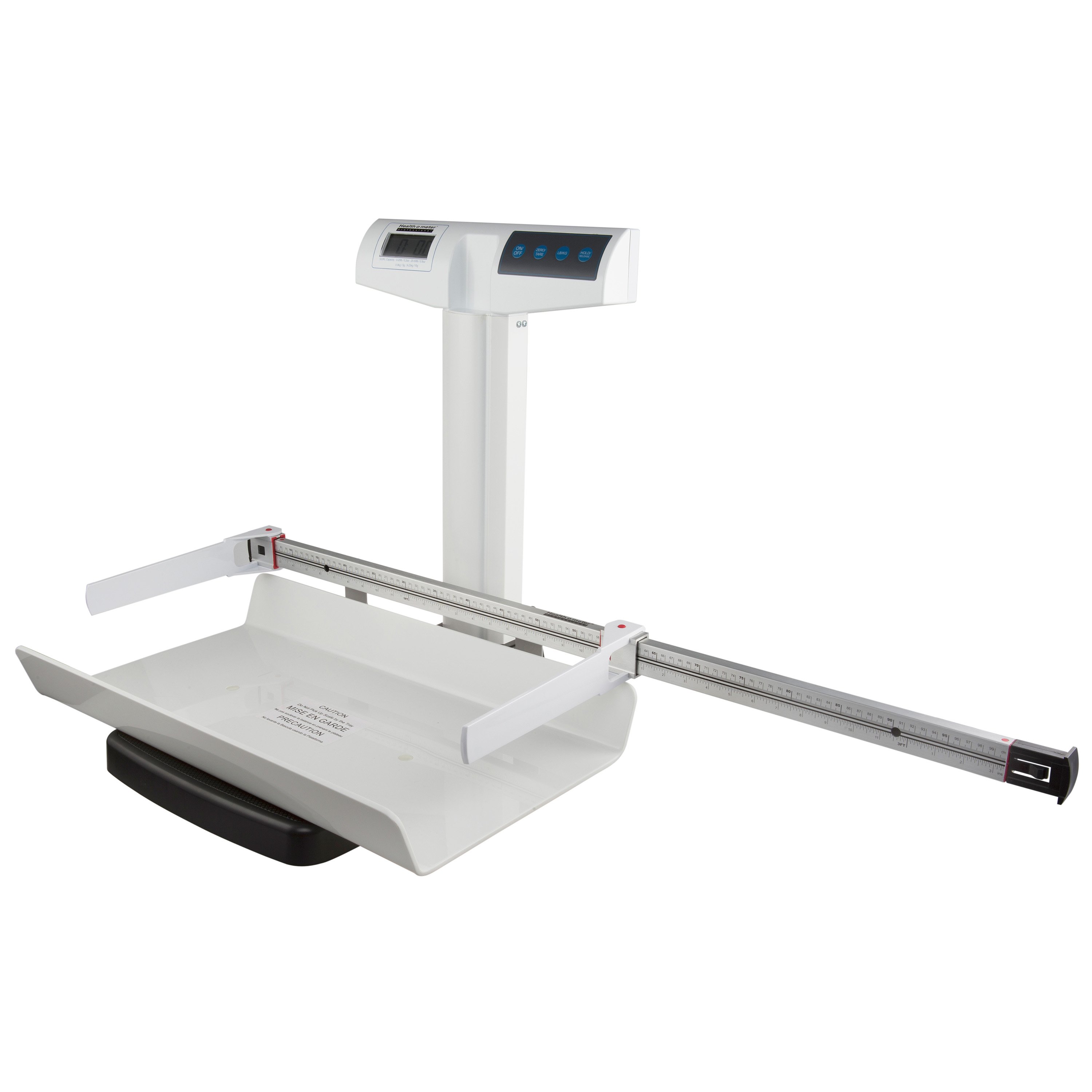

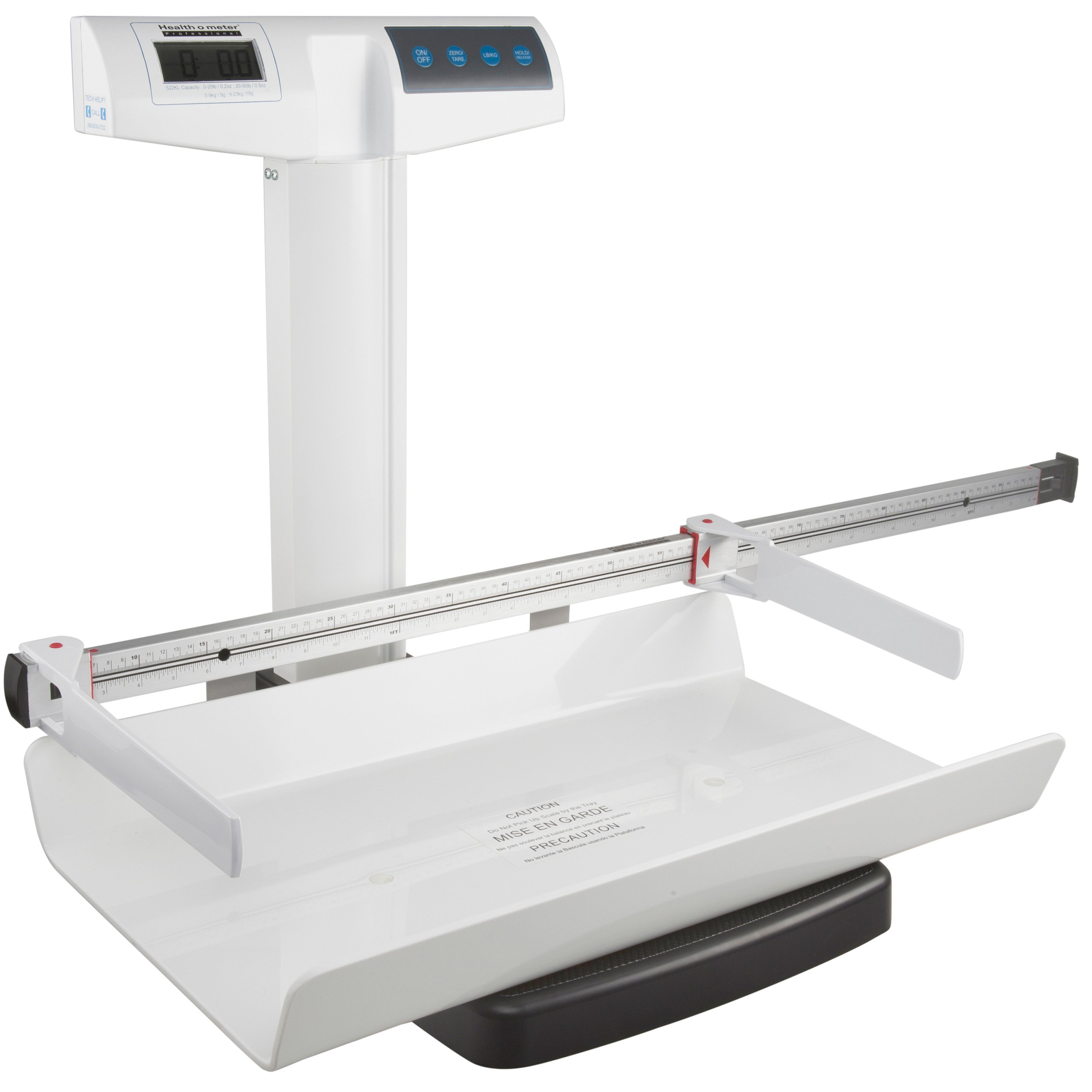

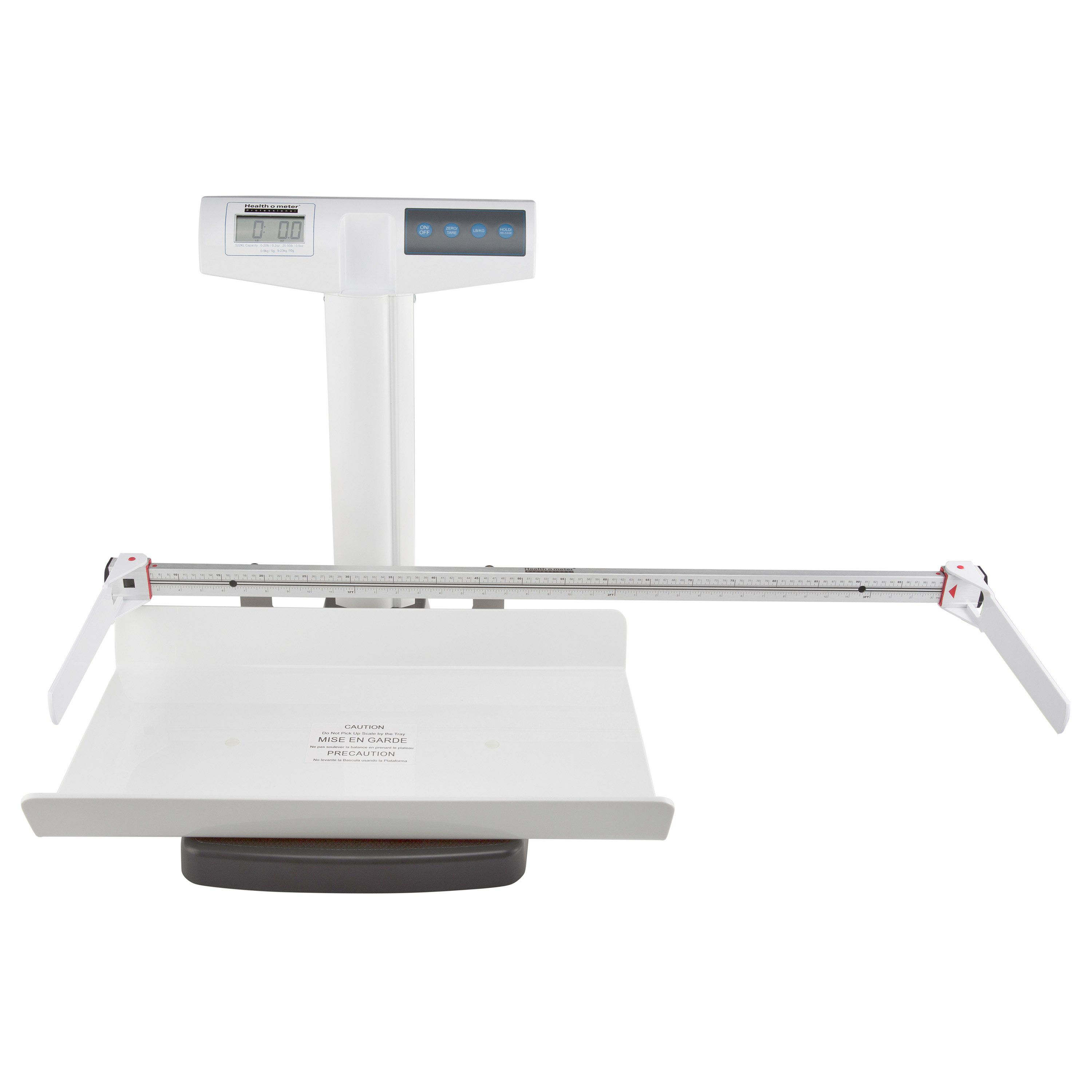

The 522-HR Series Digital Pediatric Tray Scale with Mechanical Height Rod was specifically created for nurseries, delivery rooms, and pediatric practices, making it an ideal choice for newborns, infants, and toddlers. This scale offers providers and patients a range of benefits, including safety, comfort, and flexibility. The scale ensures a secure platform and keeps patients calm for accurate readings. With a mechanical height rod, practitioners can determine the baby’s length during the weighing session.

Features:

  • Display Head 17" Above Scale Base - The Display head is positioned 17” above the scale base to allow for an unobstructed view of the weight measurement
  • Motion Detection - The scale can weigh accurately despite the movement of the subject on the scale
  • Mechanical Height Rod Included - Easy-to-read height rod allows users to measure both weight and height simultaneously
  • Easy integration and seamless communication with today's EMR applications
  • The exclusive Everlock® function allows the measuring unit (LB or KG) to be permanently locked on the scale

Functions:

  • LB/KG Conversion
  • LB/KG Lockout
  • Zero
  • Tare
  • Hold/Release
  • Auto Zero
  • Auto-Off
  • Variable Auto-Off Time
  • Audible/Mute Sound Option
  • Enabling Unit View with the Unit of Measure Locked
  • Auto-Weight Hold for 30 to 60 Seconds
  • Auto Zero on Power Up
  • Reweigh
  • Pre-Tare
  • Recall
  • Everlock®

Technical Specifications:

  • Weight Capacity: 50 lbs / 23 kg
  • EMR Connectivity: Via optional Pelstar® wireless technology
  • Resolution:
    • 0 - 20 lbs / 0.2 oz; 20 - 50 lbs / 0.5 oz
    • 0 - 9 kg / 5g; 9 - 23 kg / 10 g
  • Display: 1" / 25 mm, LCD Display
  • Power Source: 6 AA batteries included or Optional 120V Adapter (ADPT31)
  • Height Rod:
    • Measuring Range: 3" - 39" / 7 cm - 100 cm
    • Graduation: 1/16" / 1 mm
    • Actual Product Dimensions: 41" L x 1.5" W x 11.25" D
  • Tray Size: 24 1/8" W x 14 1/2" D x 2 5/8" H
  • Overall Product Dimensions: 24 1/8" W x 21" D x 23 1/8" H
  • Actual Product Weight: 20 lbs (Without Height Rod)

Comparison Table:

SKU Measurement System
522KL-HR Kilograms & Pounds
522KG-HR Kilograms Only

About this Brand

Specifications

Specifications
Manufacturer Pelstar LLC
Actual Product Weight 20 lbs
Overall Height 23 1/8"
Overall Width 24 1/8"
Overall Depth 21"
Weight Capacity 50 lbs / 23 kg
Country of Manufacture China
Item Ships From Illinois

Literature

pdf
(Size: 65.5 KB)
pdf
(Size: 412.3 KB)
pdf
(Size: 652.9 KB)
pdf
(Size: 1.1 MB)

Instructions

Warranty: Health o meter® Professional scales are warranted from the date of purchase against defects of materials or in workmanship for a period of time (see product instruction manual for the warranty period). Your warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, abuse including tampering, damage in transit, or unauthorized repair or alternations. If the manufacturer determines that a defect of material or workmanship exists, a customer’s sole remedy will be the replacement of scale at no charge. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. All parts including replaced parts are covered only for the original warranty period.

Returns

Products must be returned in unused, unopened, resalable condition with the original packaging. To return this item you must contact Customer Service within 30 days of receipt to obtain a valid Return Authorization Number. Restocking fees may apply at the discretion of the manufacturer. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.
