Digital Baby Scale
Product Description

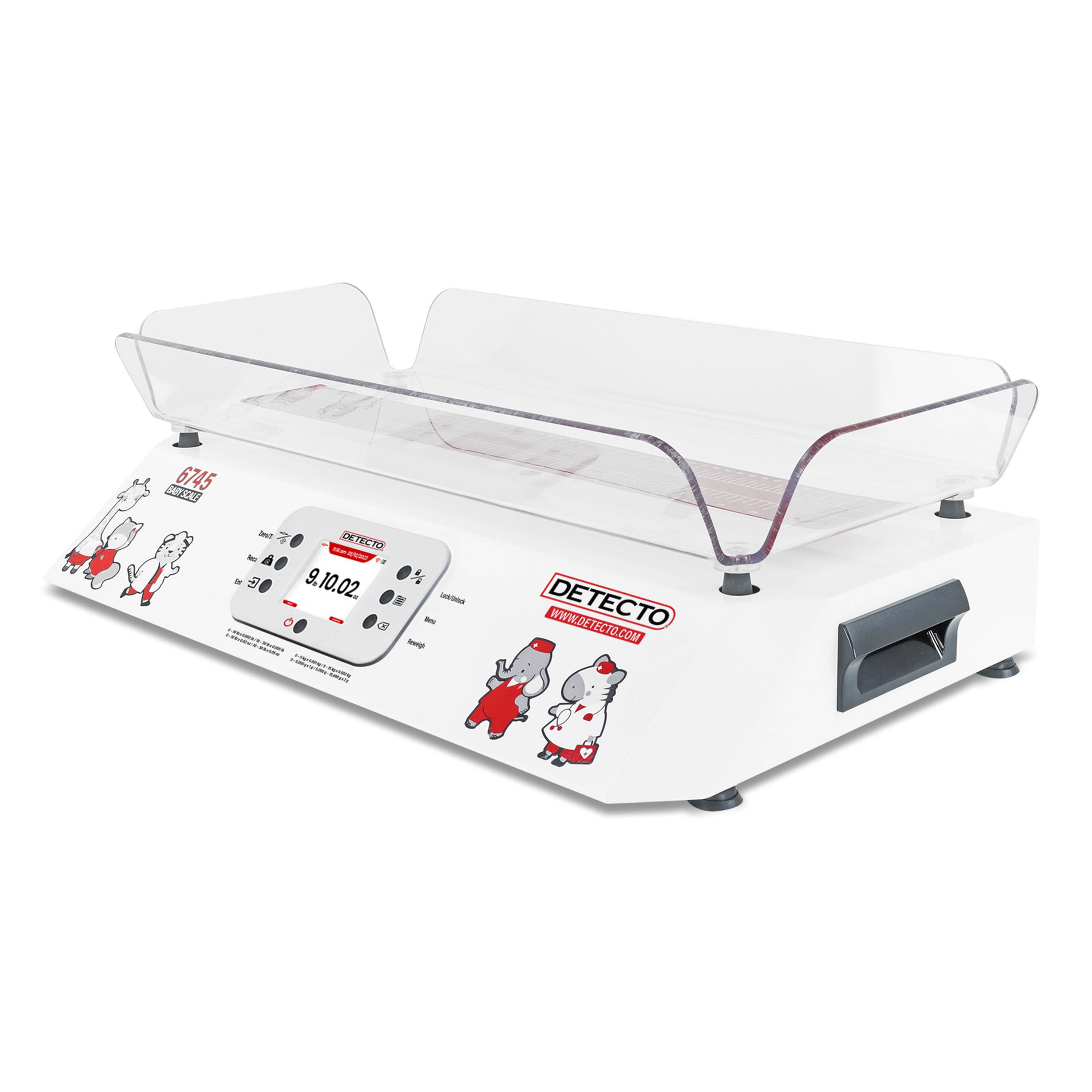

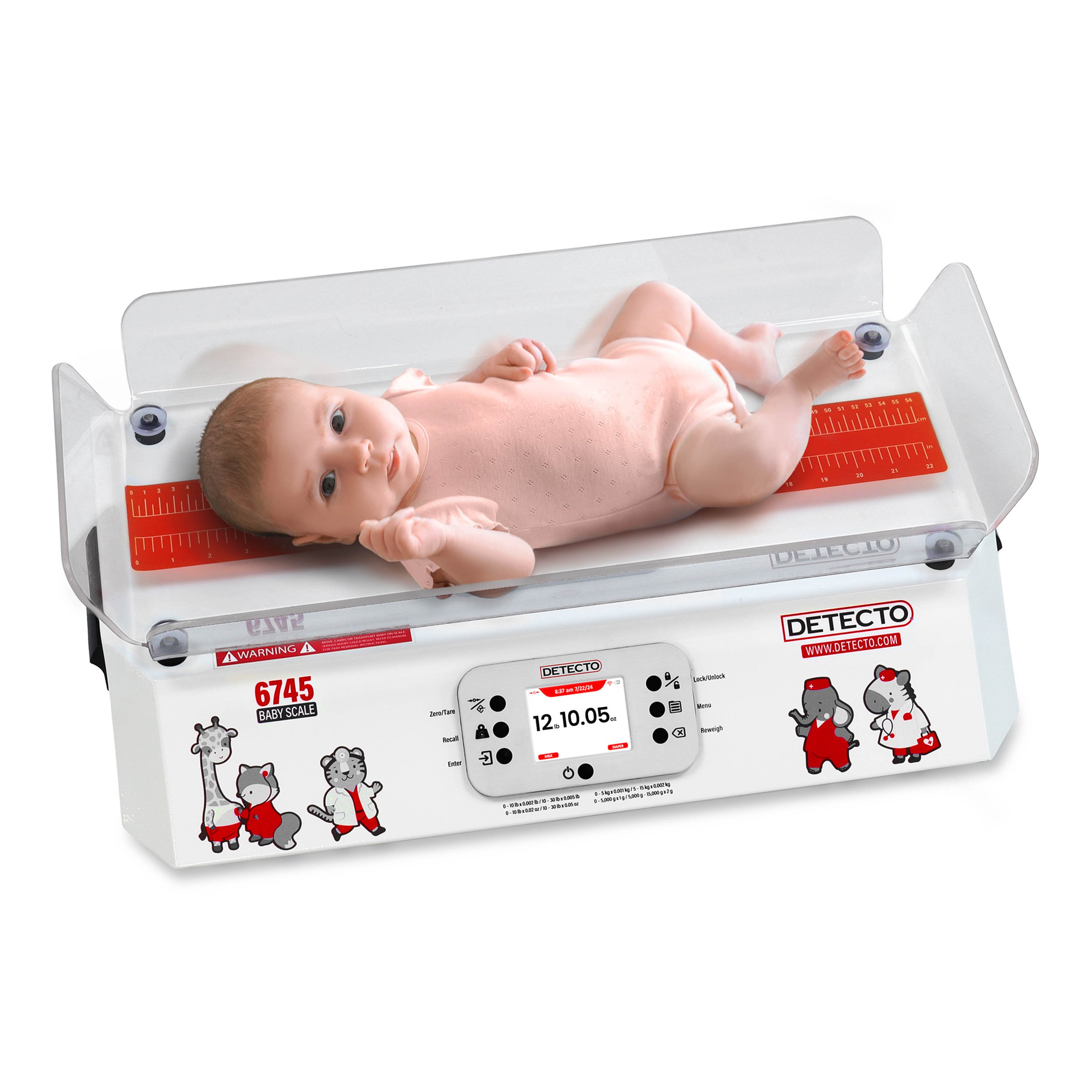

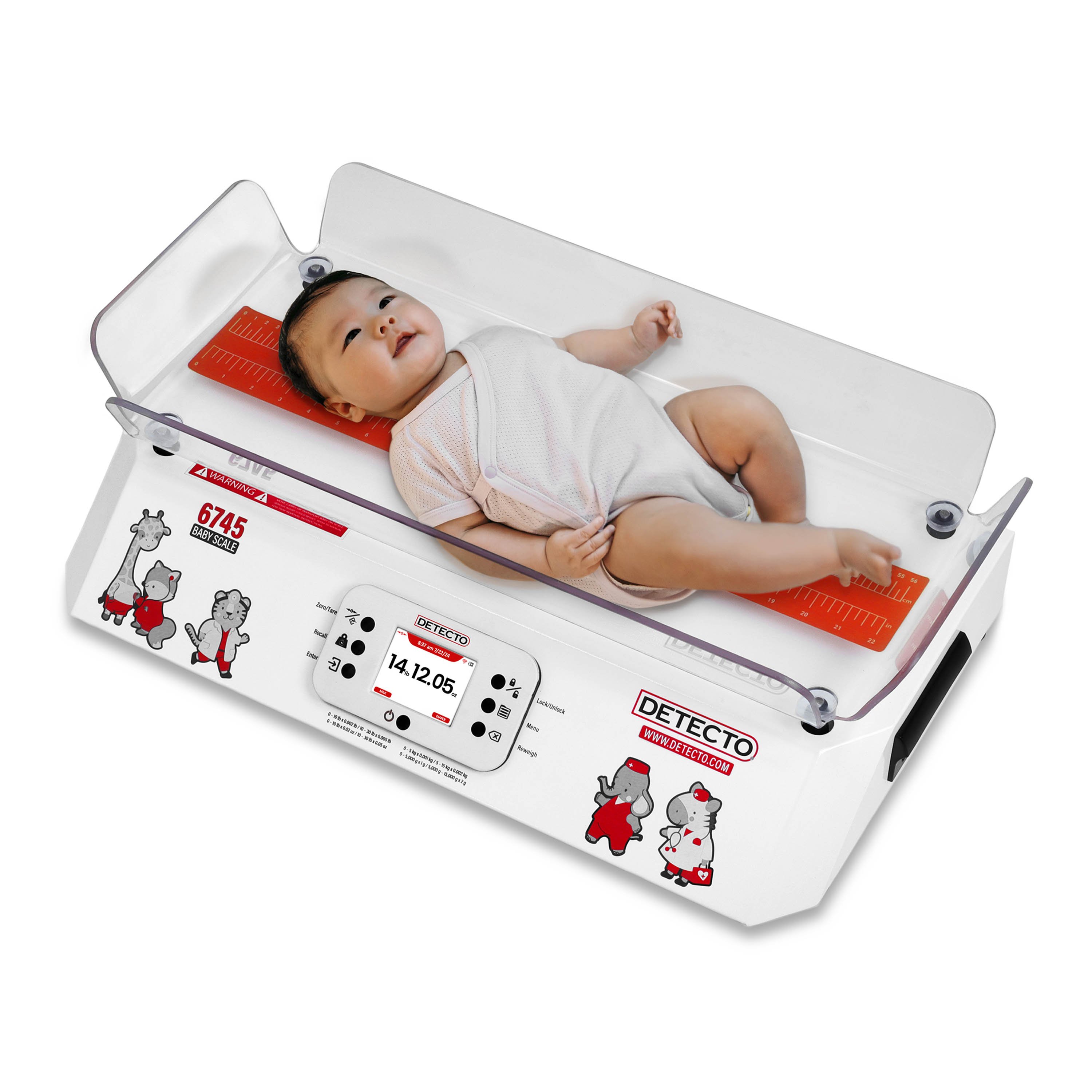

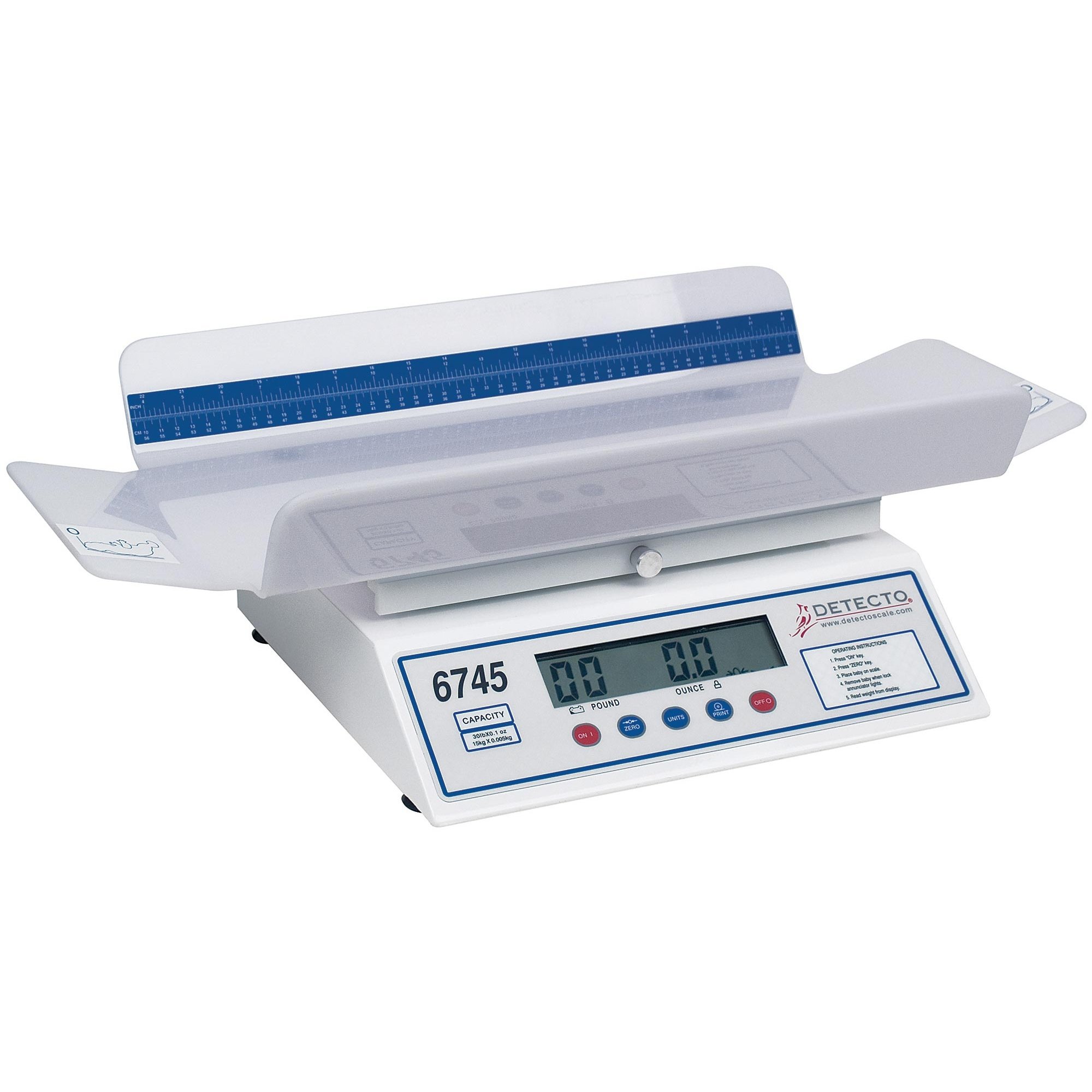

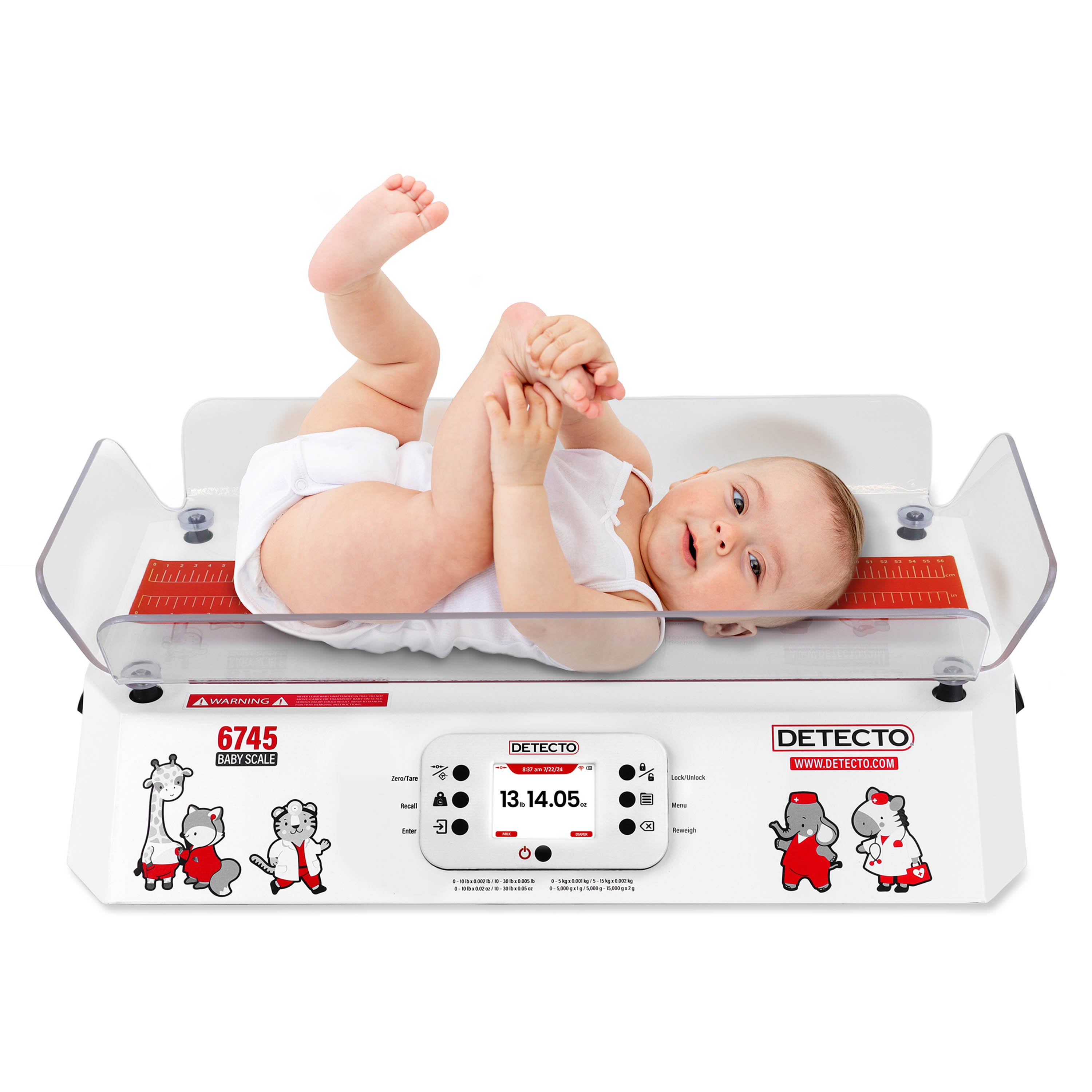

Detecto Digital Baby Scale Model 6745 was designed for use in the NICU, nursery, delivery room, and pediatric practices where high accuracy and dependability are paramount for weighing the smallest of patients. It pairs perfectly with the DETECTO Rescue carts RC33669WHT or RC333369WHT for mobile weighing and storage.
Features:
- 1 gram divisions, 30 lb / 15 kg capacity
- NTEP certified for verified weighing accuracy to prevent dosing errors
- OneWeigh units locking into LB or KG
- Roomy 22" x 9" weighing tray (flat portion)

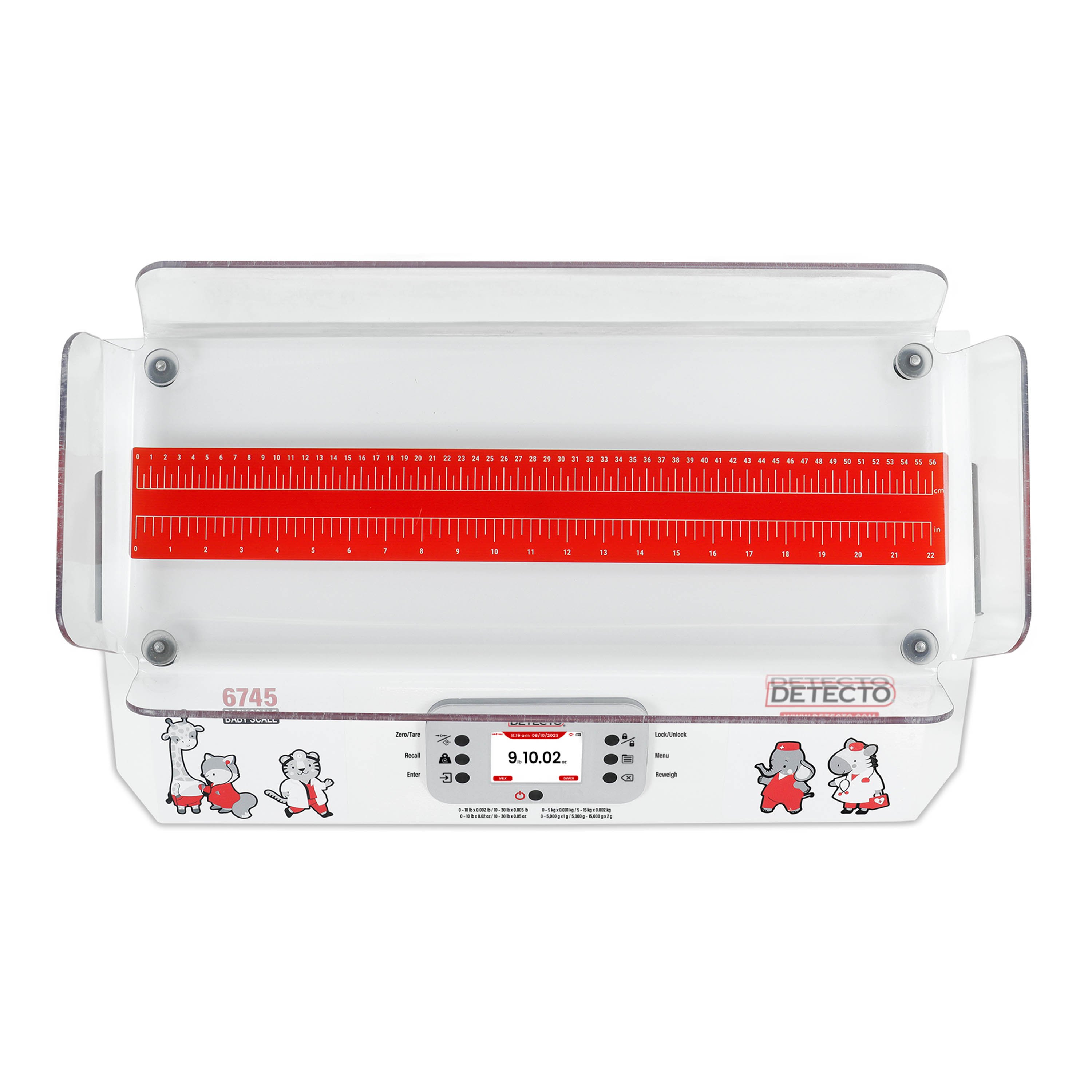

- The integral length measuring tape is imprinted underneath the clear thermoplastic platform, so it will never wear off during use
- Lift-off clear tray for easy cleaning

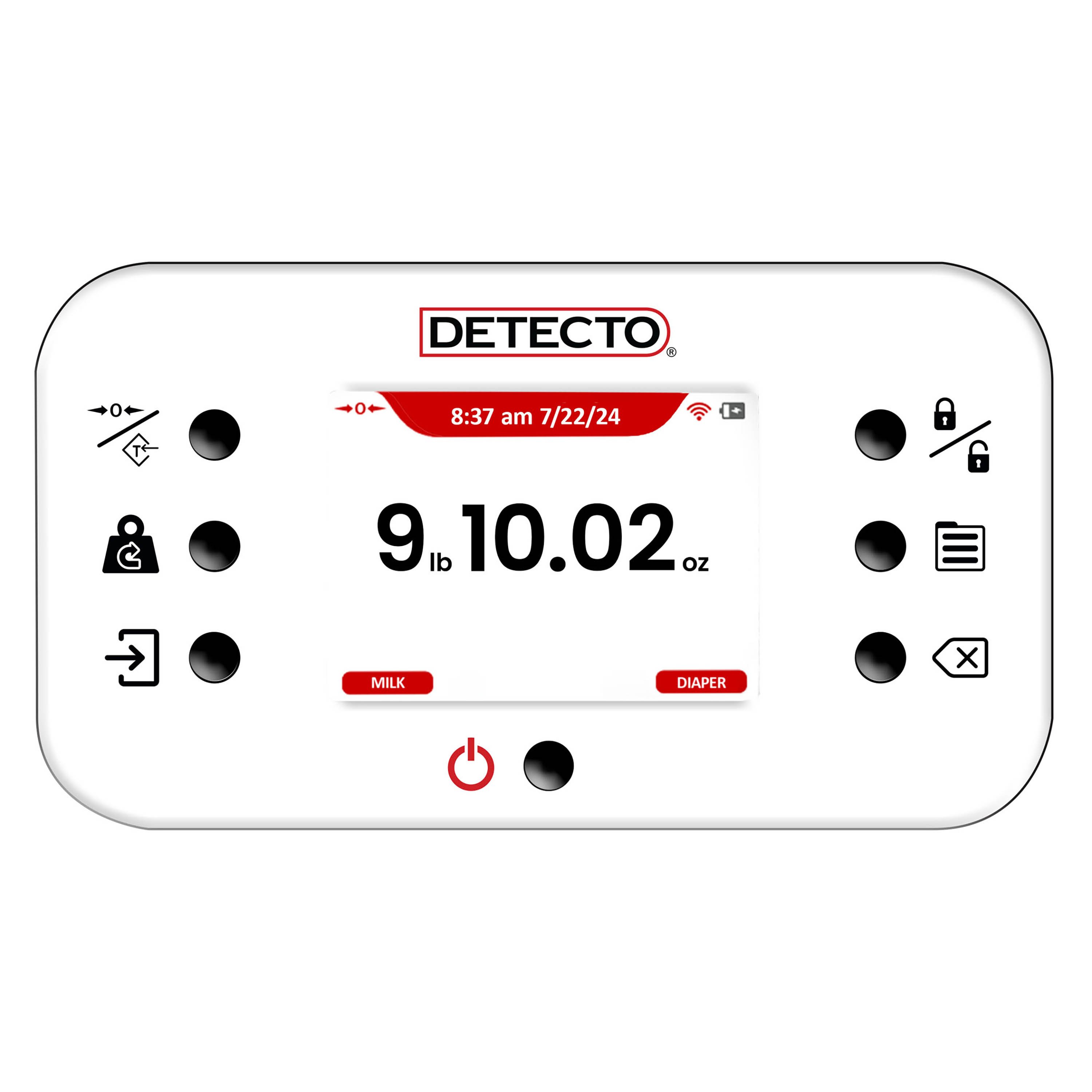

- Full-color touchscreen 3.2" (diagonal) display with 320 x 240 resolution
- Touchscreen LCD allows you to enter up to an 8-digit numeric patient ID, which can be sent to an EMR/EHR system

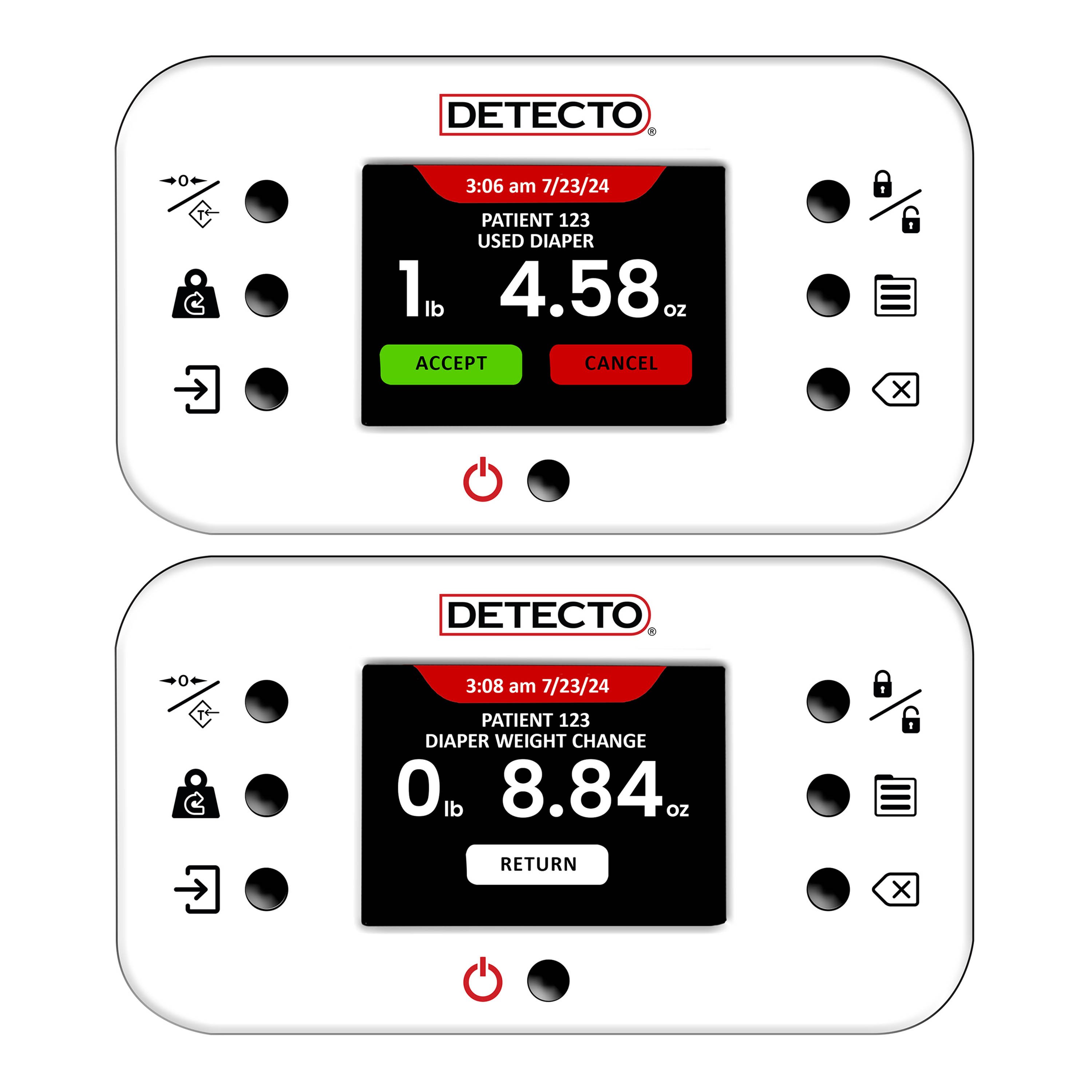

- Milk and Diaper keys help track infant fluid output for health monitoring
- The memory function stores and recalls up to 5 patient weights

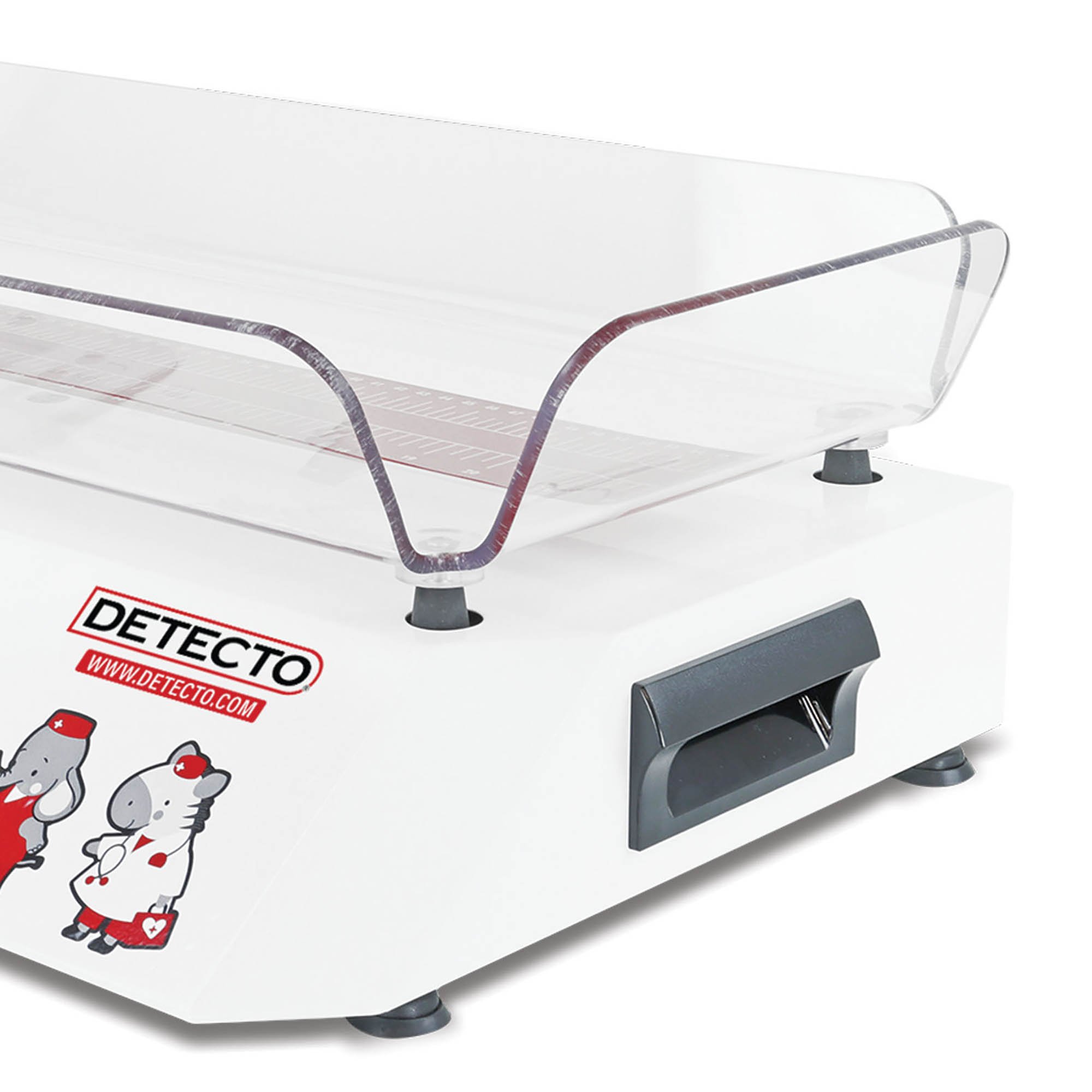

- Built-in carrying handles and wide supportive base for infant safety

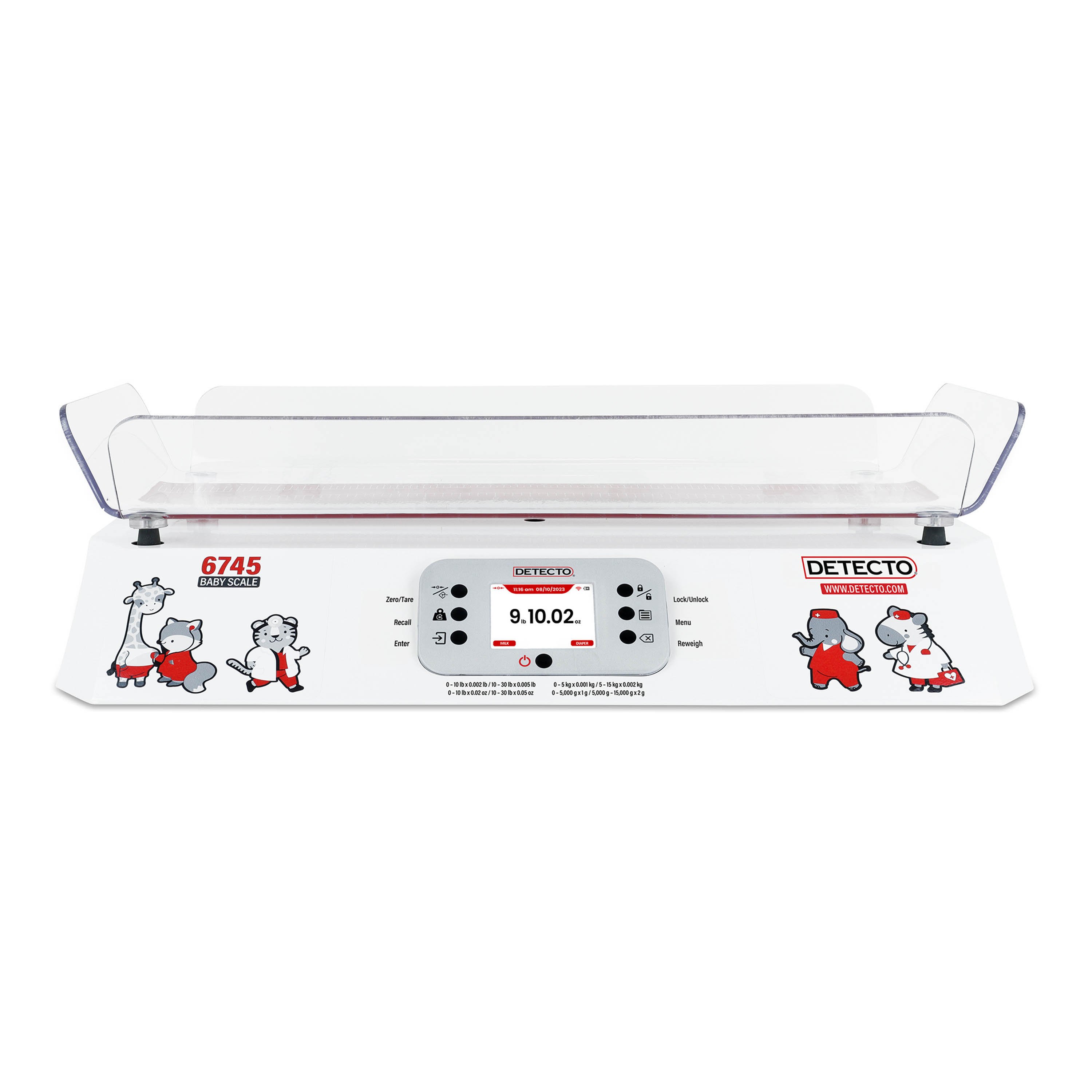

- Colorful animal graphics across the front of the scale make weighing fun and attractive for children

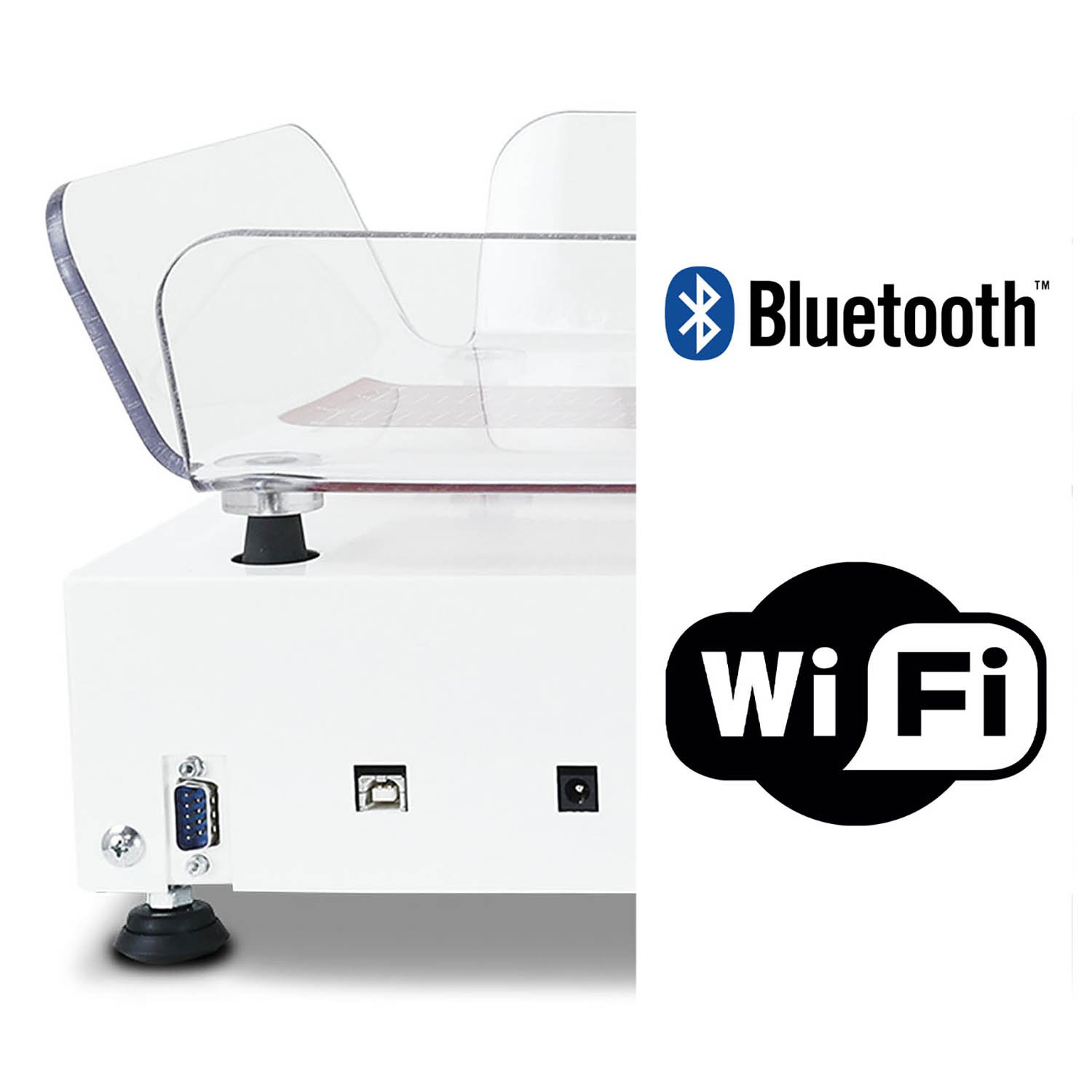

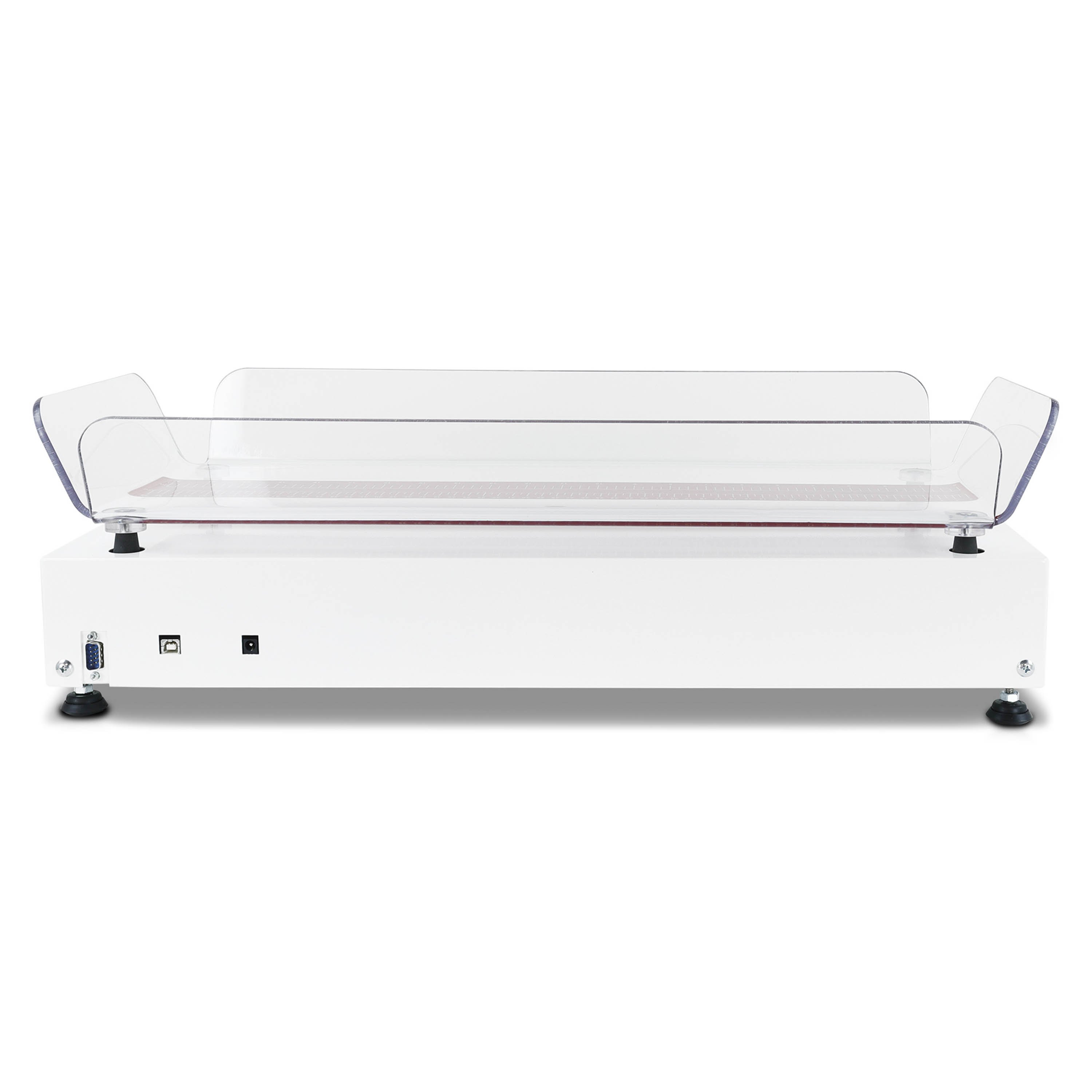

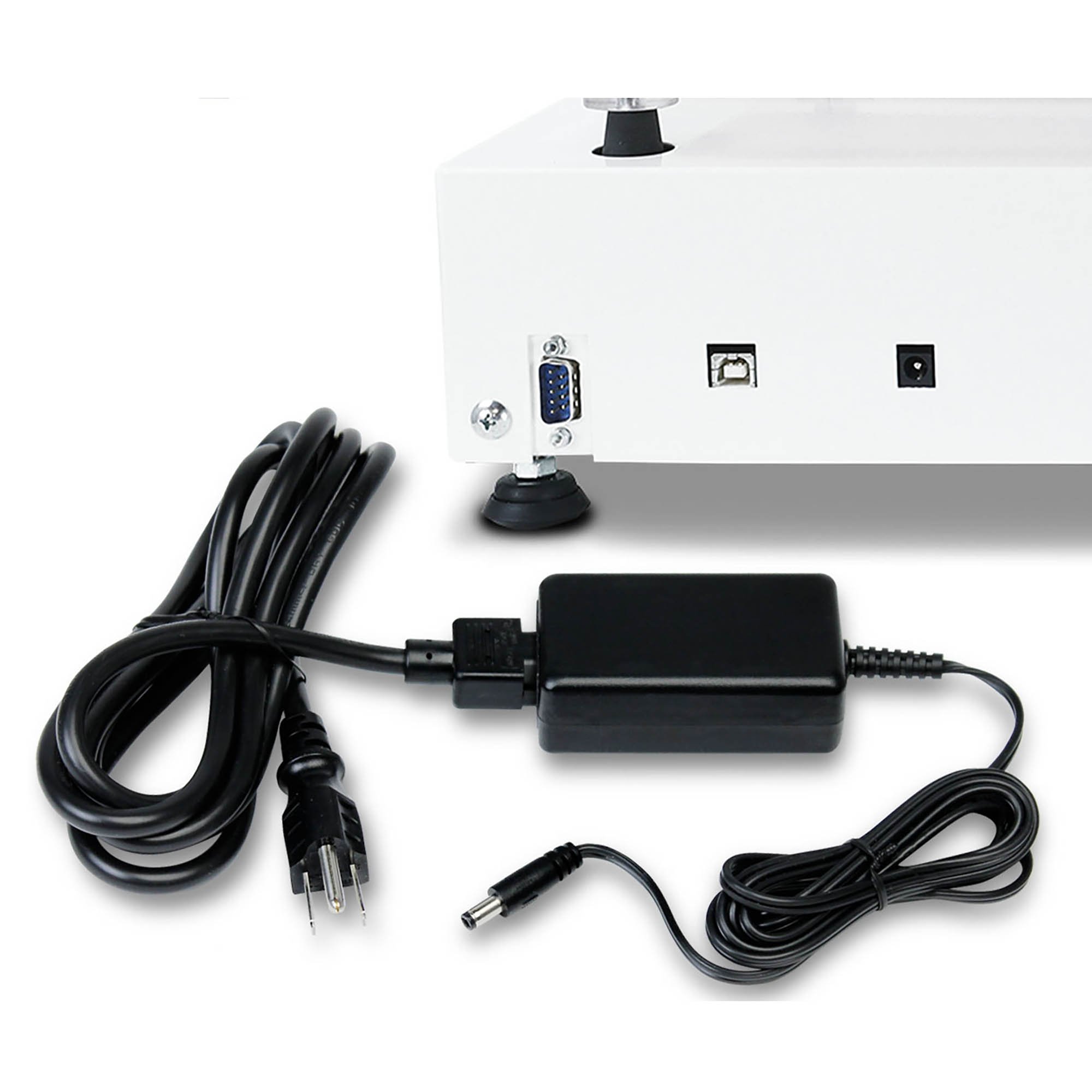

- Ports include 9-pin RS232 for sending data to a serial printer and USB-B for connecting with a PC for EMR/EHR
- Wi-Fi and Bluetooth 5.0 wireless connectivity is standard
- Choice of 6 C batteries (not included) or UL-listed, CE-approved AC adapter (included)
- TAA compliant
- Made in the USA of American and global components
Specifications:
| Capacity |
0 - 10 lb x 0.002 lb / 10 - 30 lb x 0.005 lb 0 - 10 lb x 0.02 oz / 10 - 30 lb x 0.05 oz 0 - 5 kg x 0.001 kg / 5 - 15 kg x 0.002 kg 0 - 5,000 g x 1 g / 5,000 g - 15,000 g x 2 g |
| Platform Size (Flat Portion) | 22.5" W x 9.1" D |
| Overall Dimensions | 26" W x 15.1" D x 7.5" H |
| Display Type | 3.2" (diagonal) full-color TFT display 320 x 240 resolution |
| Touch Screen | Resistive touch panel covering the display |
| Keys | Mechanical switch type, Power, Zero/Tare, Recall, Enter, Lock/Unlock, Menu, Reweigh, ID, Cycle Display Mode, Print |
| Weight Units | Pounds / Pounds and Ounces / Kilograms / Grams |
| Integrated Measuring Tape | 0 - 22 in / 0 - 56 cm |
| Communication Interfaces | Wi-Fi, Bluetooth 5.0, RS232, and USB-B |
| Power Requirements |
Six C-size Alkaline, Ni-Cad, or NiMH batteries (not included) Included Model MV1PWR, 100 to 240V AC 50/60Hz 12V DC 1.2A UL, CE-approved medical-grade power supply with US plug |
| Operating Environment |
Operated Temperature Range: 50 to 104°F (+10 to +40°C) Humidity: 0 to 90% non-condensing |
| NTEP | Certificate of Conformance No. 24-079 |
| Product Weight | 31 lbs |
Specifications
| Manufacturer | Detecto Scales |
|---|---|
| Actual Product Weight | 31 lbs |
| Weight Capacity | 30 lb / 15 kg |
| Country of Manufacture | United States |
| Item Ships From | Missouri |
Literature
Instructions
Warranty:
Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows:
- Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of two (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
- During the first ninety (90) days Detecto may choose to replace the product at no charge to the buyer upon inspection of the returned item.
- After the first ninety (90) days, upon inspection of the returned item, Detecto will repair or replace it with a remanufactured product. The customer is responsible for paying for the freight both ways.
