Product Description

This Harloff's spacious smart scope cabinet with a sixteen scope capacity uses a push/pull design creating a vortex of HEPA filtered air that flows through the cabinet ensuring maximum drying efficiency. This positive pressure system is powered by three intake fans and two exhaust fans creating a fully redundant circulation system. The addition of Dri-Scope Aid®, the industry leading internal lumen drying system, provides constant delivery of HEPA filtered air through all internal endoscope channels using simple to attach individual disposable scope connectors. The next generation "Tracker" unit is a flexible endoscope tracking system that monitors scope status, check-ins and check-outs made by your staff, scope hang times and provides customizable drying options with unique settings for each scope. This complete drying system helps to meet or exceed AORN, SGNA and AAMI guidelines (including ANSI/AAMI ST91:2021 updated guidelines) when included as part of your endoscope reprocessing workflow.

Tracker Features & Benefits:

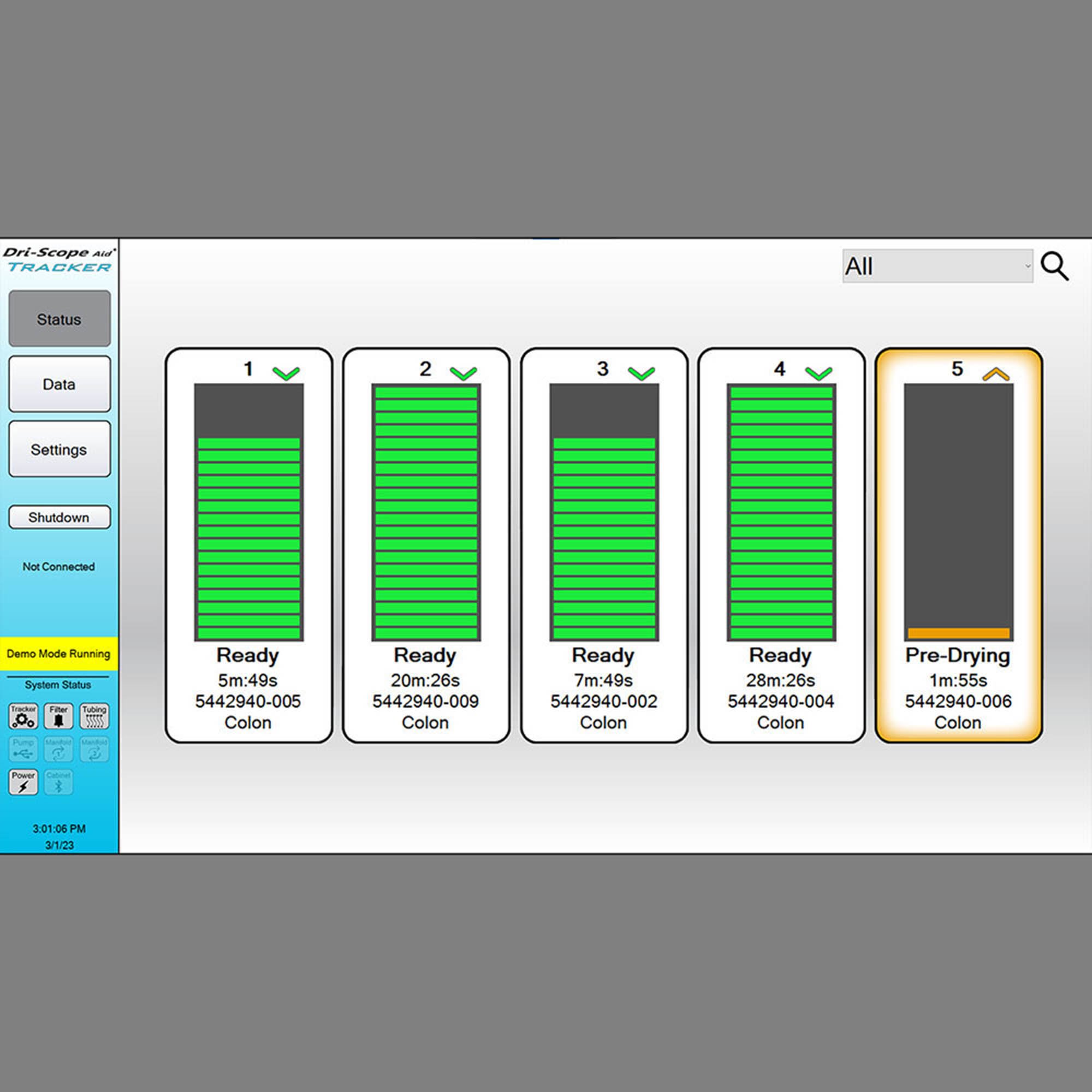

  • Digital display maintains a list of scopes by drying status, with displays of scope processing times
  • Intelligent automated scheduler continuously processes scopes as long as they remain checked into the system
  • Includes default or customizable settings and drying options unique to each endoscope
  • Scope tracker maintains records of scope drying events, user access, check-ins and check-outs
  • Color touch screen access by authorized personnel is completed by passcode, with adjustable session timeout settings and options for passcode retrieval if forgotten
  • Various adjustable timing options controlled through the color touchscreen including drying, pre-drying and venting time settings, hang time limits, endoscope removal/load delay timing, etc
  • At a glance, display shows scope inventory and reprocessing status including the time until scope expiration requiring further reprocessing
  • Slot display order settings displayed on the status screen per user preferences
  • Configurable replacement times for tubing and pump filter, with overdue warnings/indicator lights
  • Downloadable export files available for endoscope management, user lists and more
  • Customizable Hang Time Monitor adjusts the number of days your scopes hang; you will be alerted when a scope is about to expire

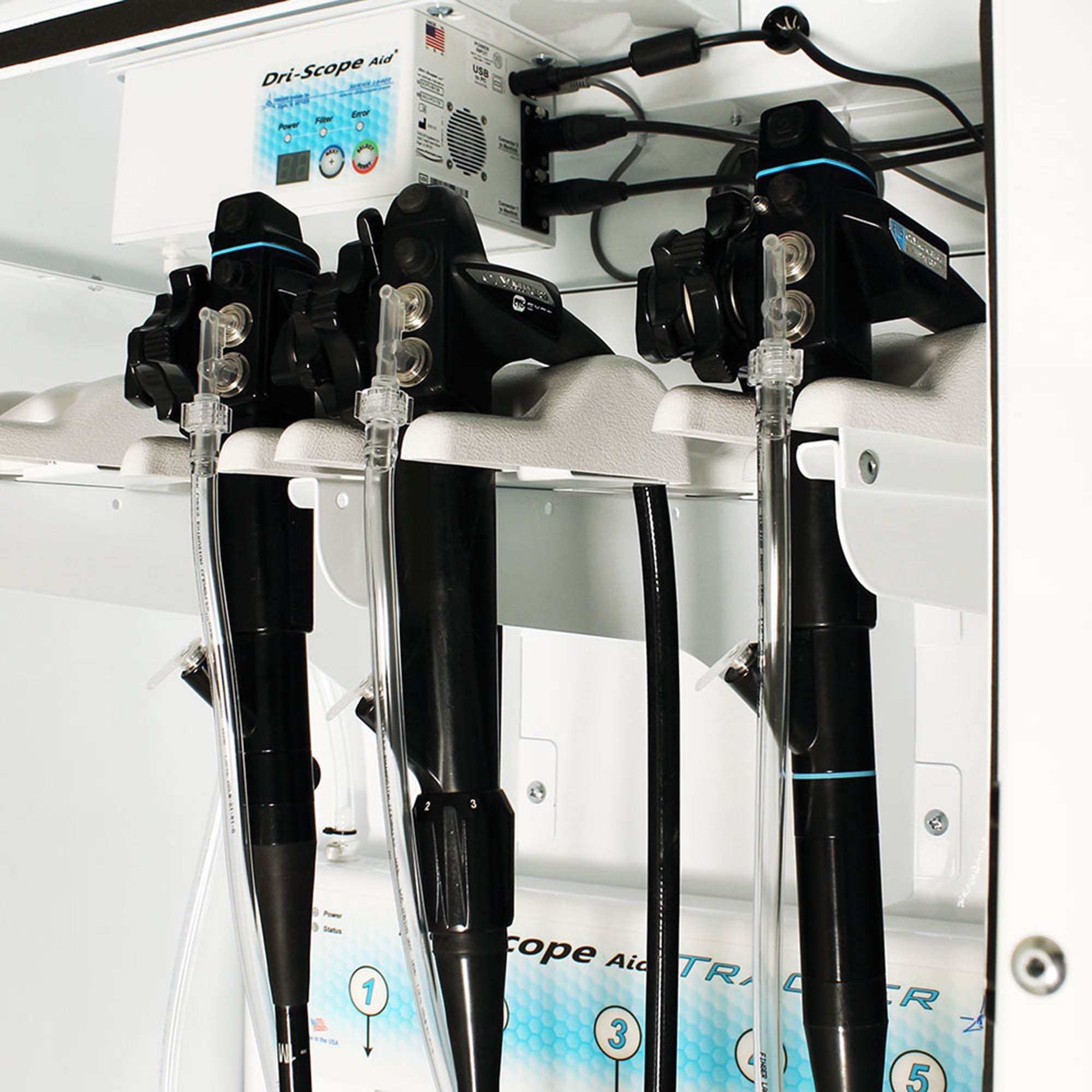

Dri-Scope Aid® Features & Benefits:

  • Constant Flow - Consistent Pressure - Repeatable Results
  • Significantly improves drying of internal channels
  • HEPA filter offers a 99.97% retention rate of particles that have a size > 0.3μm
  • Provides constant air delivery through all internal endoscope channels
  • Short drying cycle for quick turn-around time
  • Continuous venting cycle for overnight storage
  • Automatic high-pressure shutoff
  • Fulfills forced air recommendations
  • Self-adjusting high-pressure regulation

Dri-Scope Aid® Ease of Operation:

  • Hands-free operation
  • Visual display of purging times
  • Simple to attach, disposable, individual scope connectors meet SGNA and AORN guidelines (Sold Separately)
  • Works with all major endoscope brands
  • Filter replacement indicator light
  • Dries 4 to 16 endoscopes

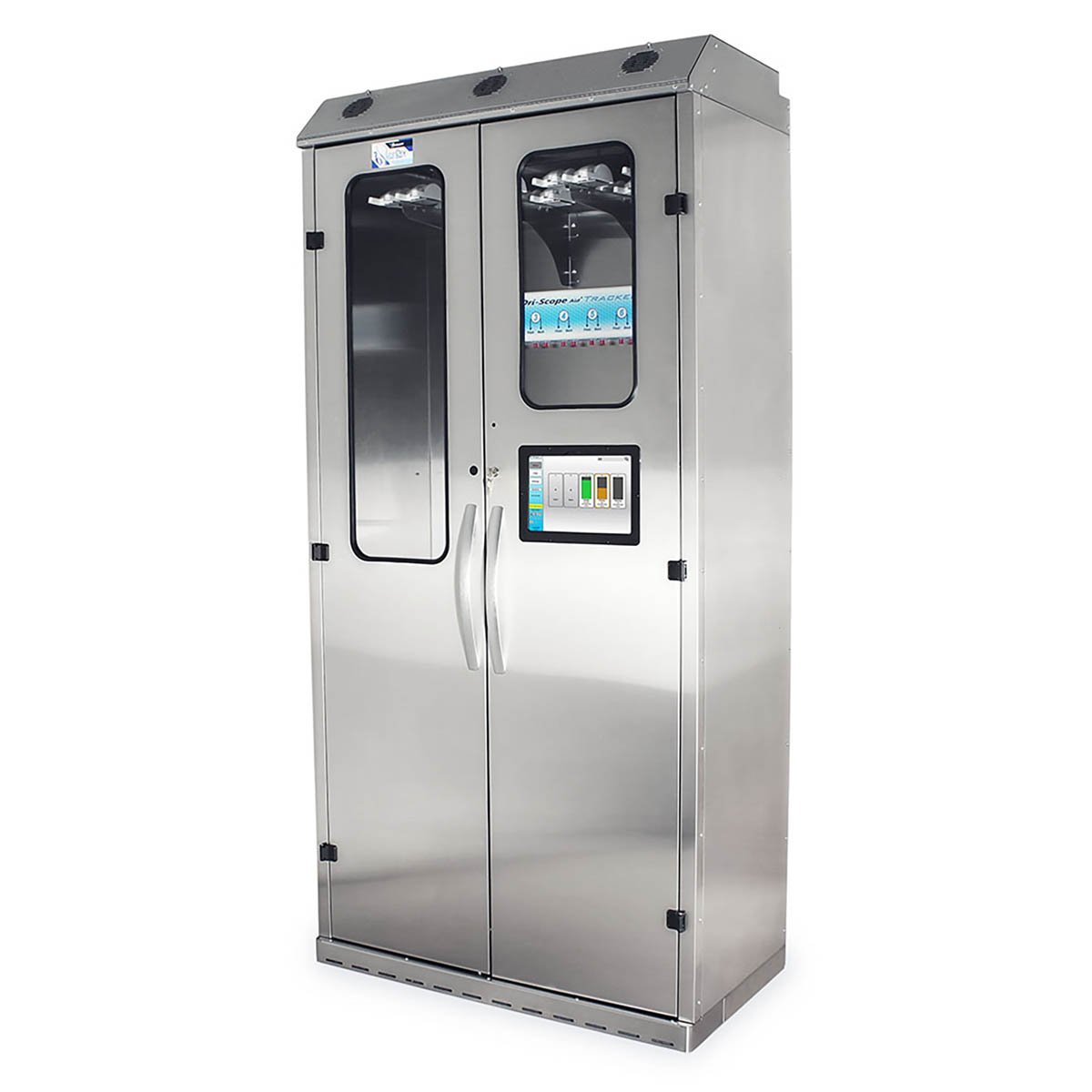

Scope Cabinet Features:

  • Industries most spacious scope cabinet allows for easy hanging and retrieval of all scope types
  • Positive pressure fully redundant fan system
  • Unit features 3 intake fans and 2 exhaust fans
  • Fan run time is fully adjustable and activated each time cabinet is closed
  • HEPA filter removes 99.7% of particulates, 0.03 Microns
  • Replaceable HEPA Filter system without removal of scopes
  • Holds 16 scopes with secure adjustable mounting system
  • Medical grade electrical system
  • Easy to clean removable drip tray
  • Tempered glass double doors
  • Key lock with two keys
  • Constructed of Stainless Steel
  • Cabinets are delivered fully assembled
  • Twelve (12) year warranty on manufactured parts
  • One (1) year warranty on any bought-out (not fabricated or manufactured by Harloff) part or component (i.e. hardware, casters, drawer slides, plastic tops, electronic components, etc.)
  • Overall Dimensions: 93" H x 44" W x 24" D
  • Images shown with endoscopes - not included
  • Scope Connectors and tubing are sold separately by Dri-Scope Aid® to ensure you receive the proper accessories for use with your specific endoscope brand and model(s)

Please Note:

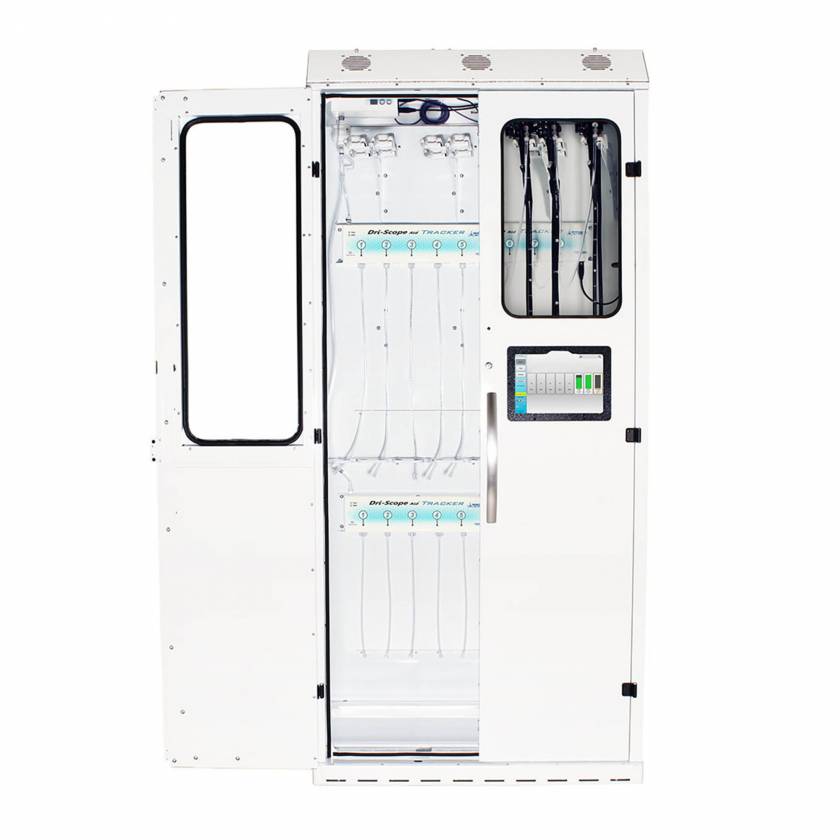

  • The picture displayed on this page is of the powder coat steel version (model SC8044TD-T3316D) of this product.

About this Brand

Specifications

Specifications
Manufacturer Harloff
Latex Free Yes
Actual Product Weight 384 lbs
Overall Height 93"
Overall Length 24"
Overall Width 44"
Cabinet Capacity 16 Scopes
Material Stainless Steel
Door Style Double
Lock Type Key
Country of Manufacture United States
Item Ships From Colorado
