Product Description

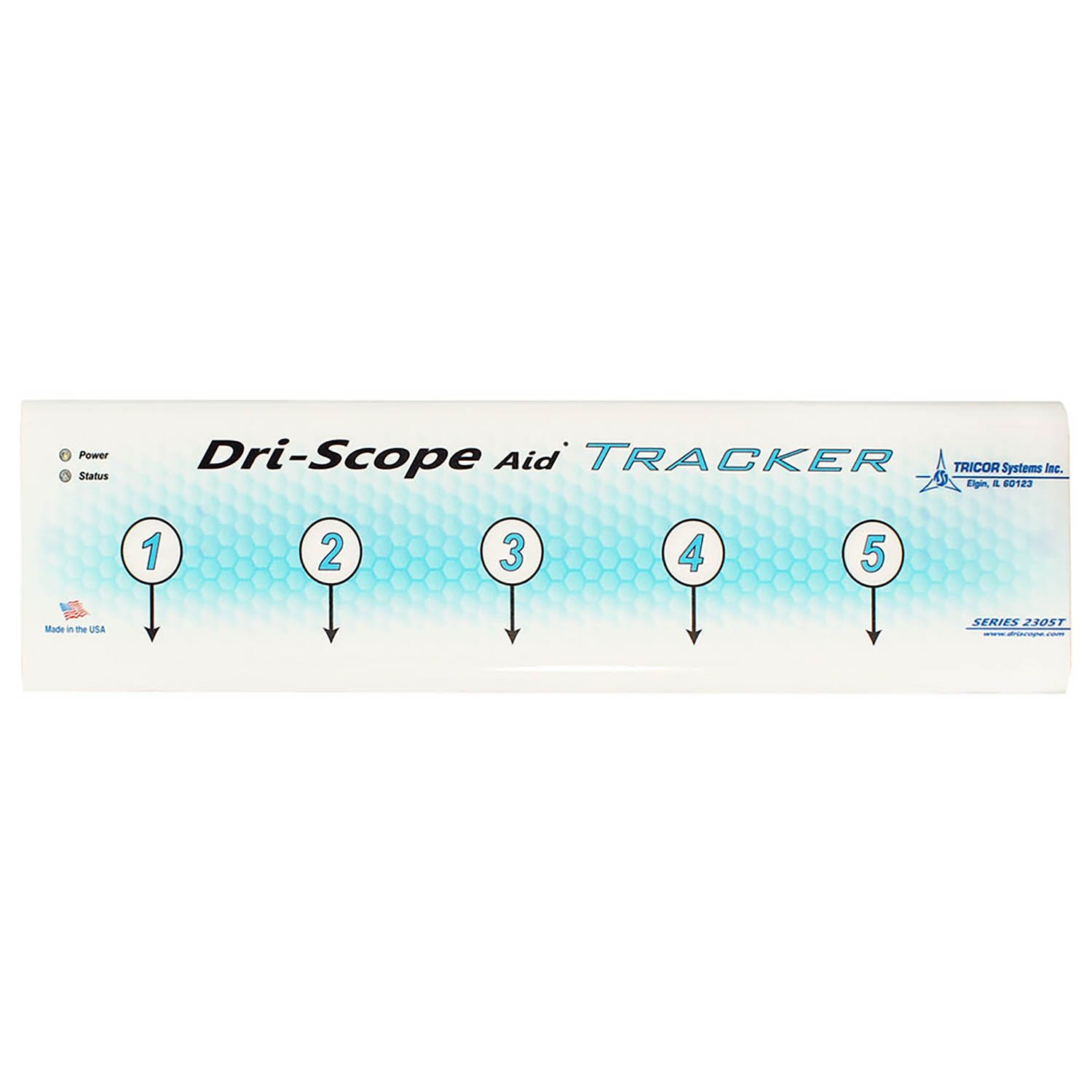

The Harloff Model SC8030TD-T2310D SureDry scope drying and tracking cabinet includes the new Dri-Scope Aid® Tracker System which digitally displays scope status, user access, check-ins/outs, displays processing times and provides customizable drying options with unique settings for each scope. This scope tracking cabinet quickly dries scope exteriors with a push/pull design of intake and exhaust fans (a fully redundant circulation system) which creates a vortex of HEPA filtered air flowing through the cabinet. Interior endoscope channels are further dried with the Dri-Scope Aid® internal lumen drying system which uses simple-to-attach scope connectors to provide constant flow, consistent pressure and repeatable results to scope channels. This complete drying system helps to meet or exceed AORN, SGNA and AAMI guidelines (including ANSI/AAMI ST91:2021 updated guidelines) when included as part of your endoscope reprocessing workflow.

Tracker Features & Benefits:

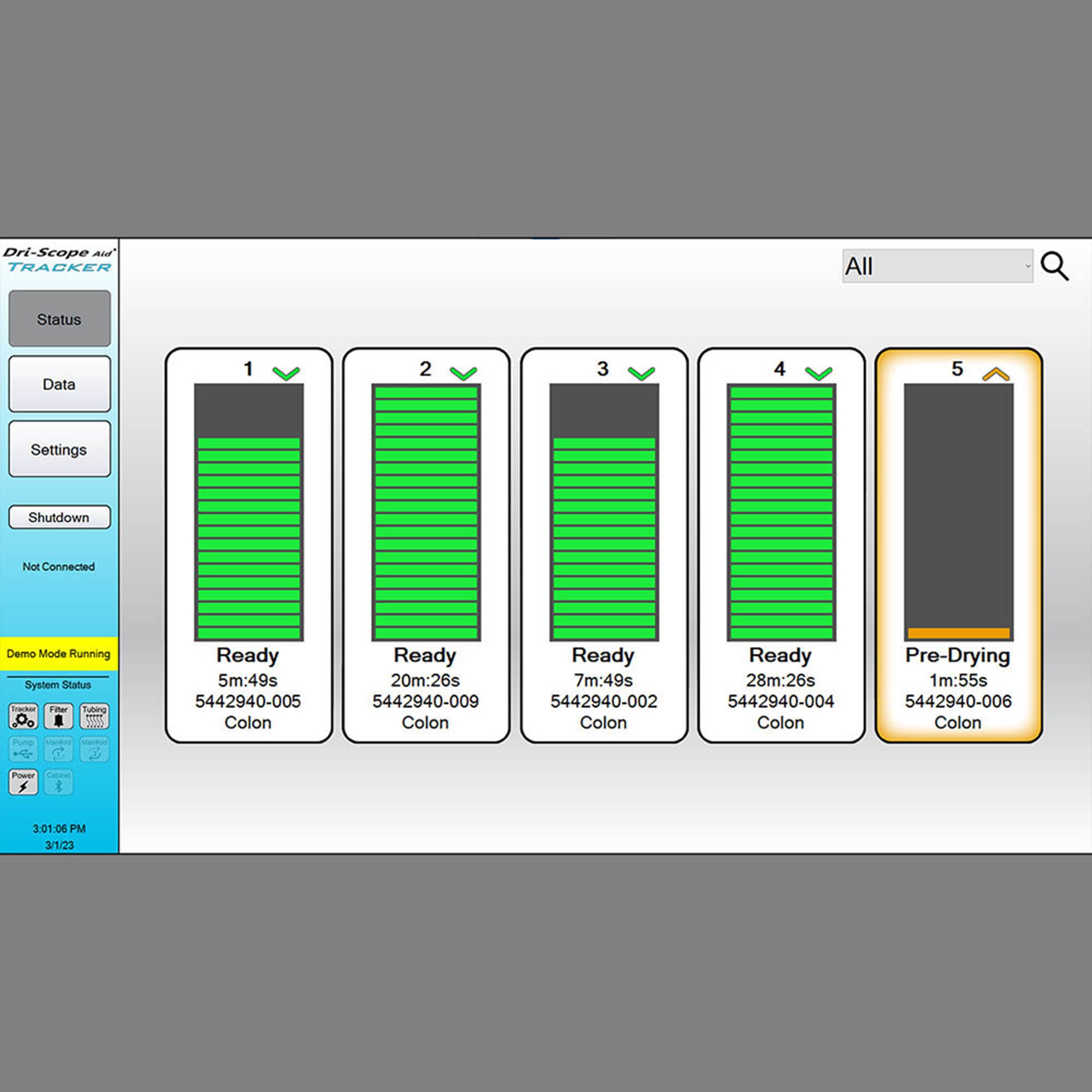

  • Digital display maintains a list of scopes by drying status, with displays of scope processing times
  • Intelligent automated scheduler continuously processes scopes as long as they remain checked into the system
  • Includes default or customizable settings and drying options unique to each endoscope
  • Scope tracker maintains records of scope drying events, user access, check-ins and check-outs
  • Color touch screen access by authorized personnel is completed by passcode, with adjustable session timeout settings and options for passcode retrieval if forgotten
  • Various adjustable timing options controlled through the color touchscreen including drying, pre-drying and venting time settings, hang time limits, endoscope removal/load delay timing, etc
  • At a glance, display shows scope inventory and reprocessing status including the time until scope expiration requiring further reprocessing
  • Slot display order settings displayed on the status screen per user preferences
  • Configurable replacement times for tubing and pump filter, with overdue warnings/indicator lights
  • Downloadable export files available for endoscope management, user lists and more
  • Customizable Hang Time Monitor adjusts the number of days your scopes hang; you will be alerted when a scope is about to expire

Dri-Scope Aid® Features & Benefits:

  • Constant Flow - Consistent Pressure - Repeatable Results
  • Significantly improves drying of internal channels
  • HEPA filter offers a 99.97% retention rate of particles that have a size > 0.3μm
  • Provides constant air delivery through all internal endoscope channels
  • Short drying cycle for quick turn-around time
  • Continuous venting cycle for overnight storage
  • Automatic high-pressure shutoff
  • Fulfills forced air recommendations
  • Self-adjusting high-pressure regulation

Dri-Scope Aid® Ease of Operation:

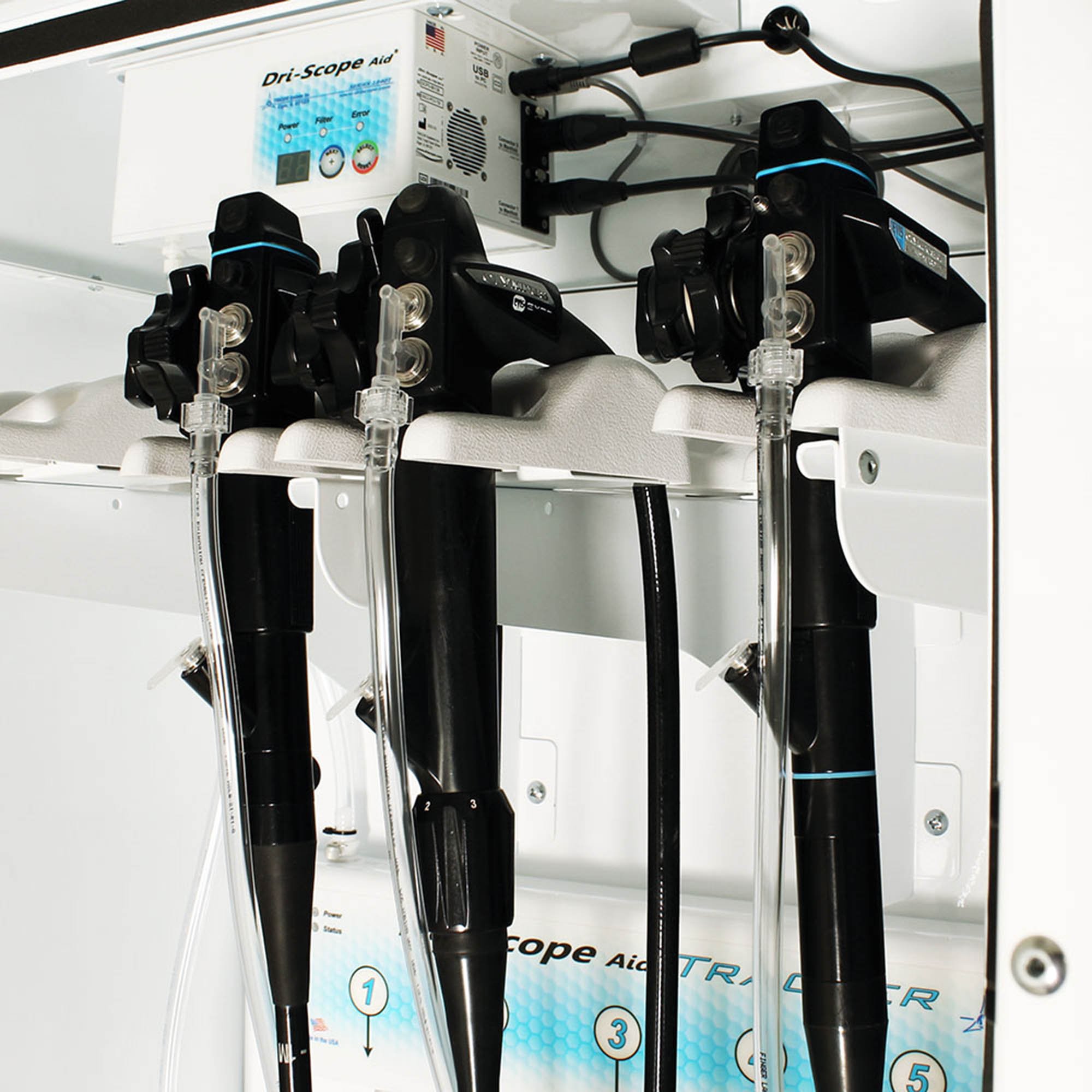

  • Hands-free operation
  • Visual display of purging times
  • Simple to attach, disposable, individual scope connectors meet SGNA and AORN guidelines (Sold Separately)
  • Works with all major endoscope brands
  • Filter replacement indicator light
  • Dries 1 to 10 endoscopes

Scope Cabinet Features:

  • Positive pressure fully redundant fan system
  • Unit features 2 intake fans and 1 exhaust fan
  • Fan run time is fully adjustable and activated each time cabinet is closed
  • HEPA filter removes 99.7% of particulates, 0.03 Microns
  • Replaceable HEPA Filter system without removal of scopes
  • Holds 10 scopes with secure adjustable mounting system
  • Medical grade electrical system
  • Easy to clean removable drip tray

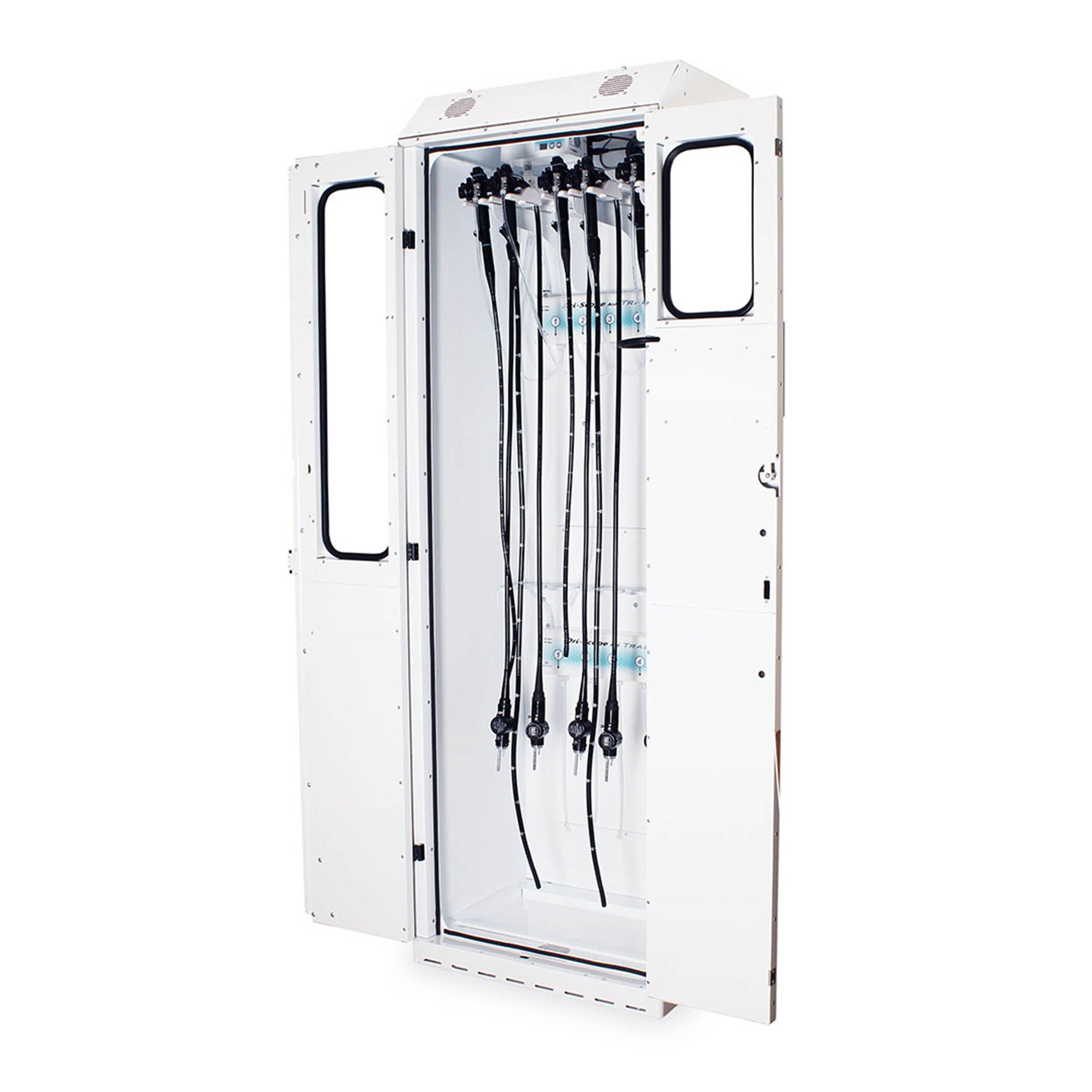

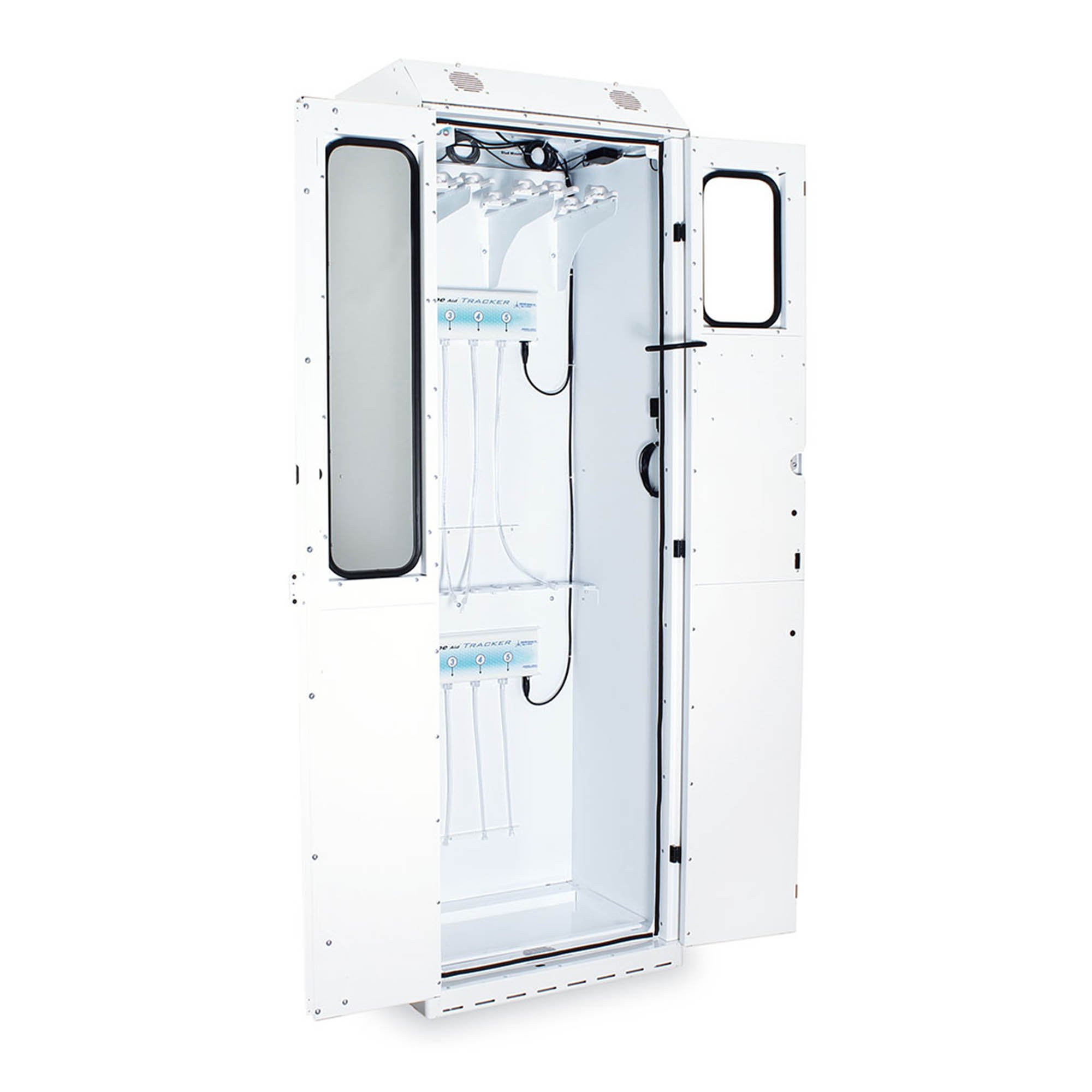

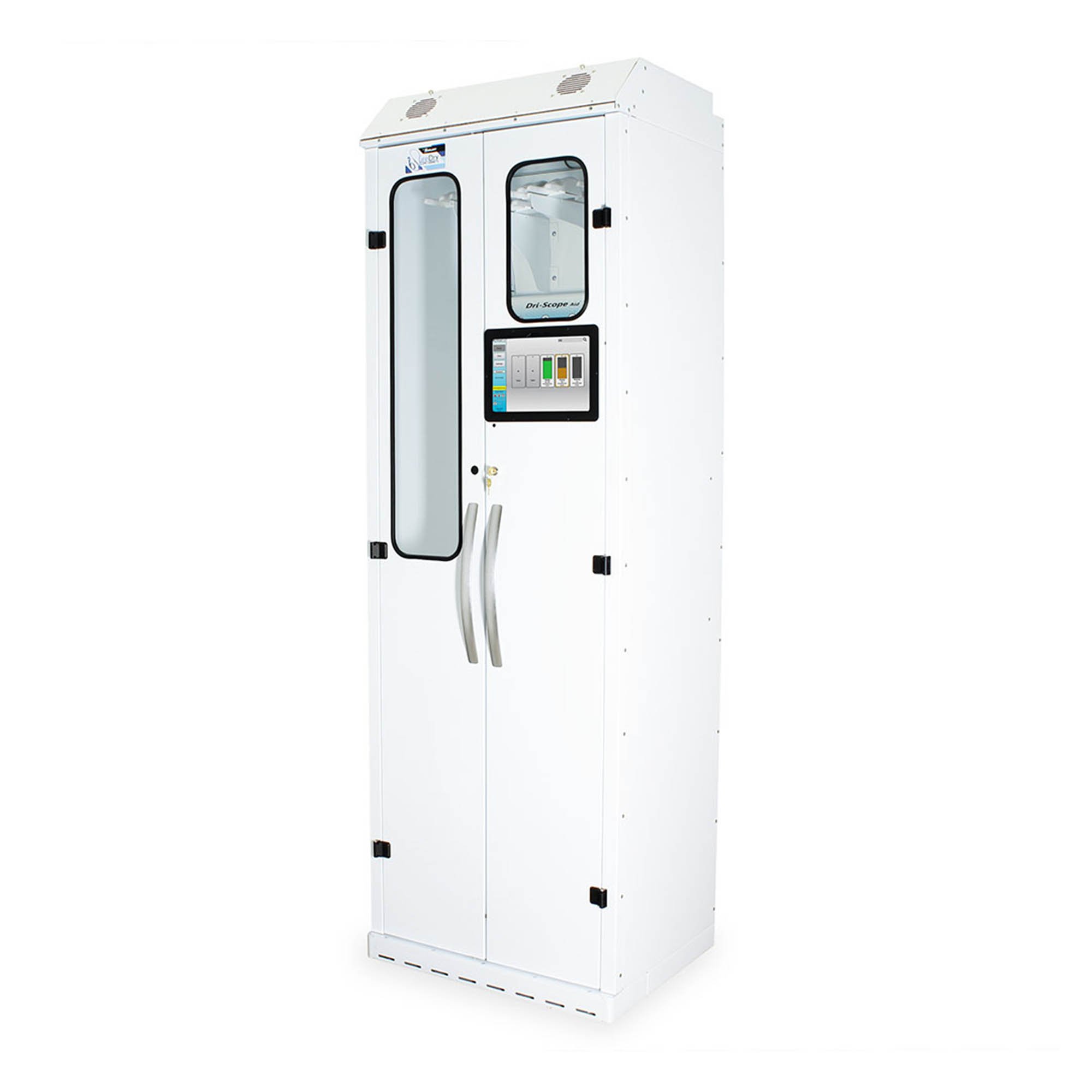

  • Tempered glass double doors
  • Key lock with two keys
  • Powder Coated Steel available in multiple colors
  • Cabinets are delivered fully assembled
  • Twelve (12) year warranty on manufactured parts
  • One (1) year warranty on any bought-out (not fabricated or manufactured by Harloff) part or component (i.e. hardware, casters, drawer slides, plastic tops, electronic components, etc.)
  • Overall Dimensions: 93" H x 30" W x 24" D
  • Images shown with endoscopes - not included
  • Scope Connectors and tubing are sold separately by Dri-Scope Aid® to ensure you receive the proper accessories for use with your specific endoscope brand and model(s)

About this Brand

Specifications

Specifications
Manufacturer Harloff
Latex Free Yes
Actual Product Weight 350 lbs
Overall Height 93"
Overall Length 24"
Overall Width 30"
Cabinet Capacity 10 Scopes
Material Steel
Door Style Double
Lock Type Key
Country of Manufacture United States
Item Ships From Colorado

Literature

Instructions

Warranty: Harloff Healthcare Products and Accessories are manufactured, tested and inspected in accordance with specific engineering requirements, and are warranted to be free from defects in workmanship and materials for a period of twelve (12) years from date of purchase and limited to parts manufactured by Harloff, including cabinets, drawers, and bumper frames. One (1) year on any bought-out (not fabricated or manufactured by Harloff) part or component (i.e. hardware, casters, drawer slides, plastic tops, electronic components, etc.). The warranty is limited to original purchaser of equipment. This warranty does not apply to freight damage or failure caused by abuse, misuse, neglect, lack of proper maintenance, age, unauthorized modification or repair, or to damage caused by theft or unauthorized entry. There is no reimbursement for labor to repair or maintain Harloff Healthcare Products. Return freight on warranty claims is the responsibility of the claimant- unless unit is brought back at Harloff request. Reasonable maintenance on Healthcare Products is the responsibility of the purchaser. This includes but is not limited to tightening loose hardware, applying touchup paint to scratches, bumps, wear areas and any holes drilled for mounting accessories after receipt, reseating drawer slides, and cleaning surfaces where corrosive liquids have spilled is also the purchaser's responsibility and do not apply.

Freight Shipping

Please Note: This item ships via motor freight carrier. Shipping fees often have to be re-quoted when purchasing this item. Our website estimates freight charges based on delivery to a location with a truck height dock. Examples of additional services include liftgate service, inside delivery, call ahead service, or limited access. If you would like to know the total delivery charges in advance of placing an order, we recommend requesting a quote for this item prior to placing your order. At quote or order submission, please make note of your receiving hours and specific delivery needs. Customer Service will reach out to you if additional details are needed. If you have questions about the motor freight delivery process please contact Customer Service.

Returns

Permission to return goods is strictly at the discretion of the manufacturer. An authorization number must be requested from Customer Service within 30 days from date of original delivery. A restocking fee and return freight will be charged for all returns. Returned goods must be shipped in original packaging & returned in unused, resalable condition. Credit will not be issued if product is received damaged.
